Toyota CAMRY 前门锁和车门把手 — Figure 6703

Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 2 images and 23 PNC and OE references.

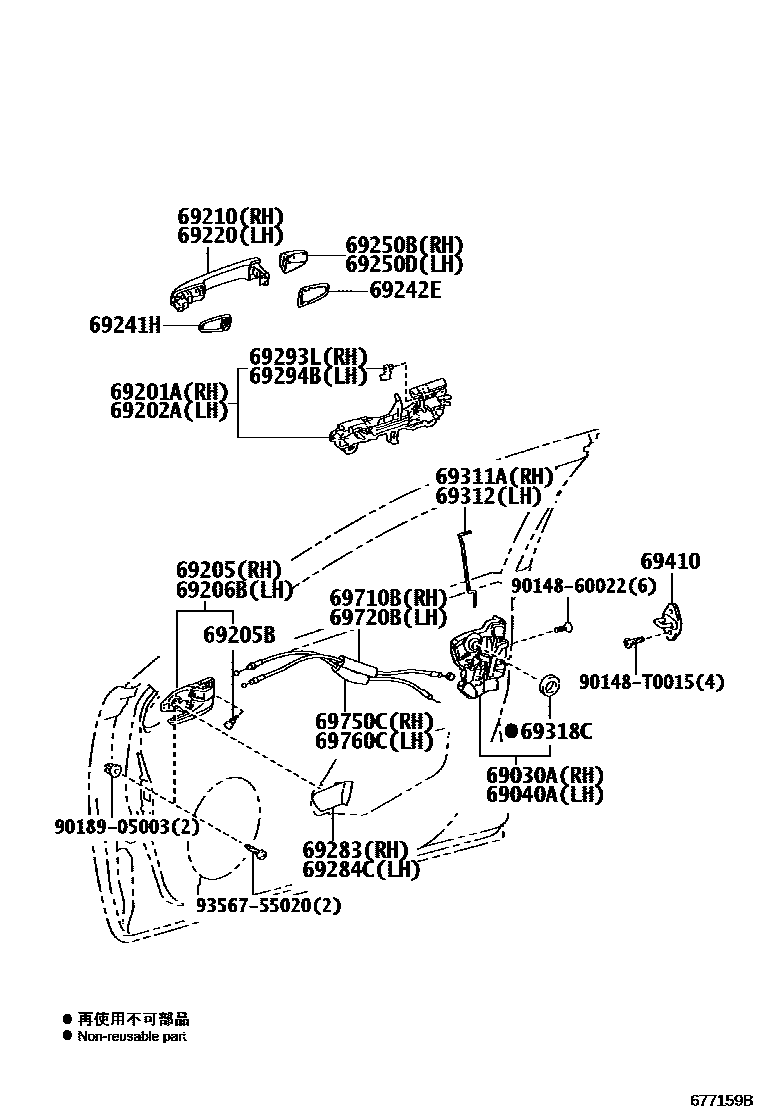

Toyota CAMRY 前门锁和车门把手 EPC diagram — 677159B
前门锁和车门把手 — 677159B (201110 – 999999)

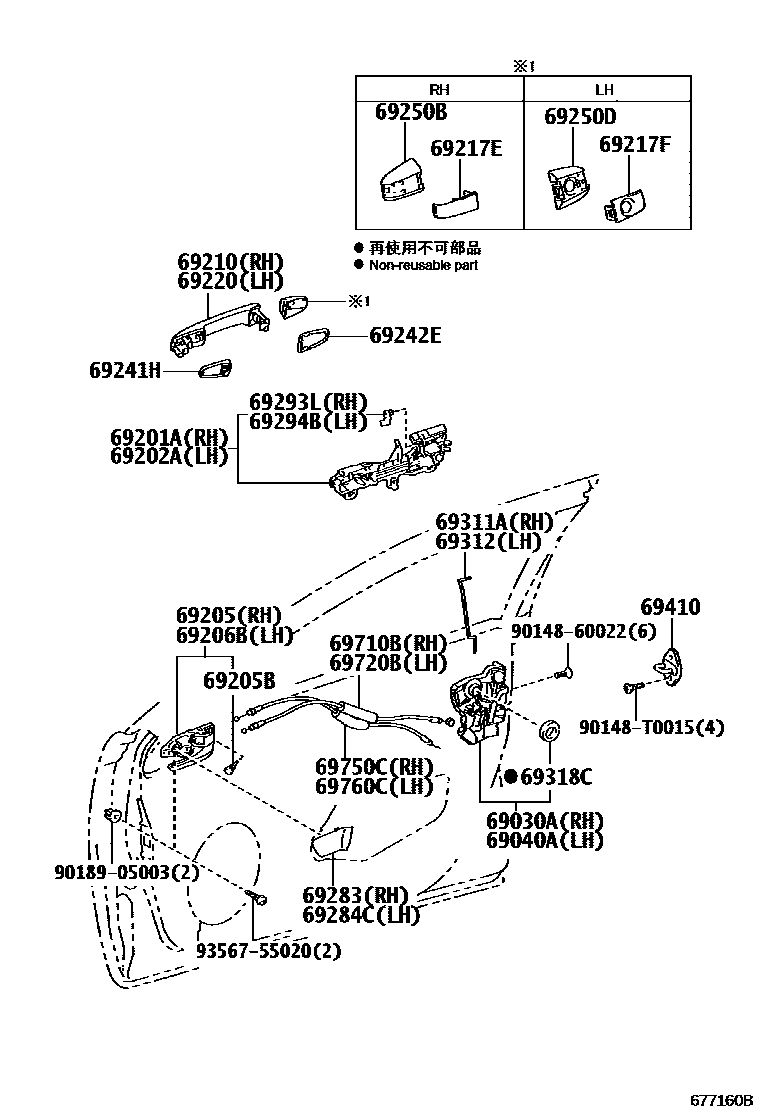

Toyota CAMRY 前门锁和车门把手 EPC diagram — 677160B
前门锁和车门把手 — 677160B (201110 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-06170 · 69030-06180 · 69030-06190
69040ALeft front door door lock assembly with motor69040-06150 · 69040-06160
69201ARight front door outer handle frame sub-assembly69201-06080 · 69201-52130
69202ALeft front door outer handle frame sub-assembly69202-06090 · 69202-52070
69205BCushion pad (for inner front door handle)90089-54015
69210Right front door outer handle assembly69210-06936 · 69211-06910
69217ERight front door outer handle cover69218-06060
69217FLeft front door outer handle cover69217-06250
69220Left front door outer handle assembly69210-06936 · 69211-06910
69241HFront door exterior handle pad69241-33030 · 69241-52020
69242EFront door rear outer handle pad69242-33040 · 69242-52030
69250BCar door outer handle cover assembly69217-06910 · 69217-06912 · 69217-52900 · 69217-52901 · 69250-06900
69250DLeft door outer handle cover assembly69217-06910 · 69217-06911 · 69217-52900 · 69217-52901 · 69250-06900
69293LRight front door outer handle buckle69293-12030
69294BLeft front door outer handle buckle69293-12040
69311ARight front door lock opening lever69311-06111 · 69311-06160
69312Left front door lock opening lever69312-06111 · 69312-06160
69318Cdoor lock harness seal69318-51010
69410Front door lock plate assembly69410-02040
69710BRight front door lock remote control cable assembly69710-06110
69720BLeft front door lock remote control cable assembly69710-06110
69750CRight front door inner lock cable assembly69750-06100
69760CLeft front door inner lock cable assembly69750-06100
