Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 2 images and 39 PNC and OE references.

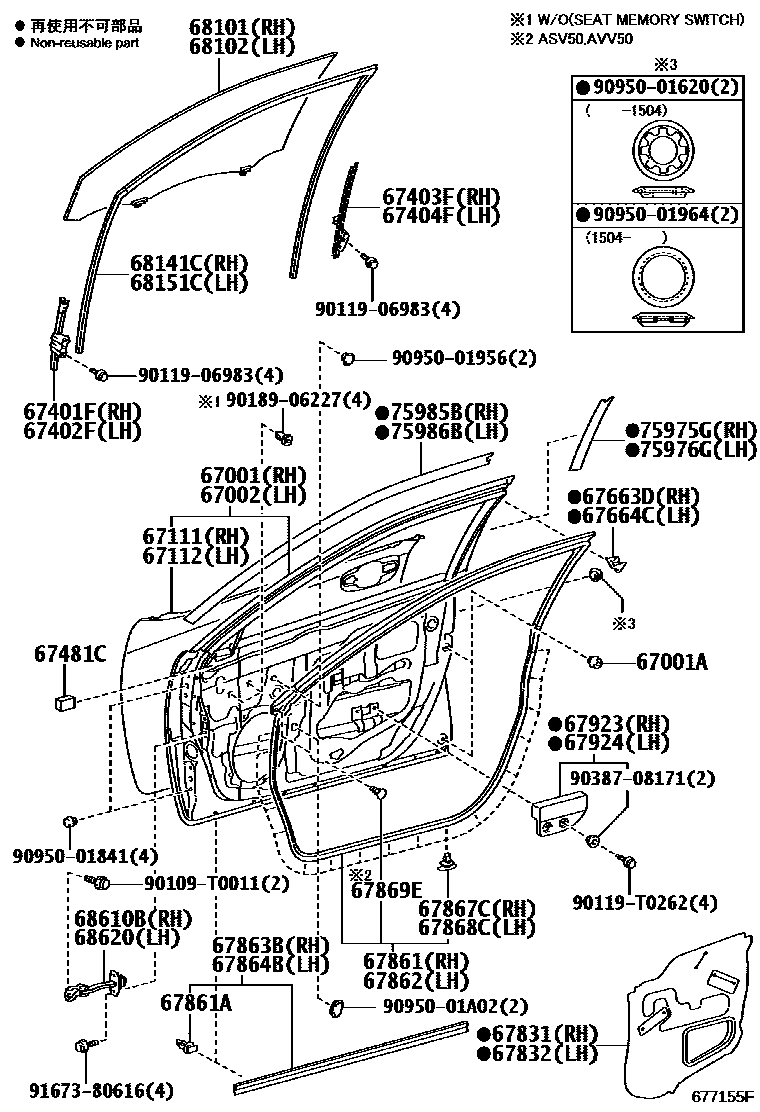

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 677155F
前门板和前门玻璃 — 677155F (201110 – 999999)

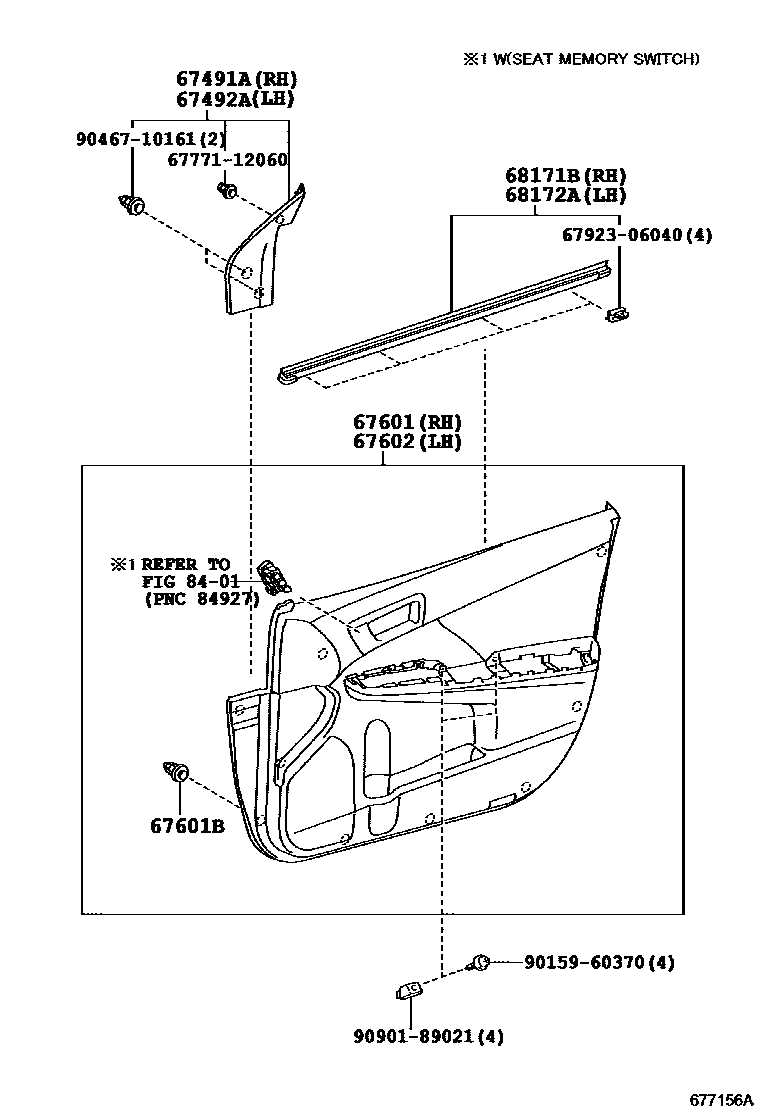

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 677156A
前门板和前门玻璃 — 677156A (201110 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-06180 · 67001-06250 · 67001-06260
67001AFront door panel cushion90541-09124
67002Left front door panel sub-assembly67002-06180 · 67002-06250 · 67002-06330
67111Outer right front door panel67111-06120 · 67111-06160 · 67111-06170
67112Outer left front door panel67112-06120 · 67112-06160 · 67112-06170
67401FRight front door front lower door frame sub-assembly67401-06110
67402FLeft front door front lower door frame sub-assembly67402-06110
67403FRight front door rear lower door frame sub-assembly67403-06090
67404FLeft front door rear lower door frame sub-assembly67404-06090
67481CFront door lower door frame seal67481-06020 · 67481-06090
67491ARight front door lower door frame bracket decorative strip67491-06100
67492ALeft front door lower door frame bracket decorative strip67492-06100
67601BCatch (for front door trim panel)67773-0E020
67663DRight door frame decorative strip67663-06070
67664CLeft door frame decorative strip67664-06070
67831Right front door access hole cover67831-06140
67832Left front door access hole cover67832-06140
67861Right front door seal67861-06100 · 67861-06160
67861AFixing piece (for front door sealing strip)67867-12150 · 67867-50050
67862Left front door seal67862-06100 · 67862-06160
67863BRight front door seal No. 267863-06020
67864BLeft front door seal No. 267864-06020
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
67869EFront door seal strip clip67869-22010
67923Front door No. 1 reinforcement cushion pad67923-06120
67924Front door No. 2 reinforcement cushion pad67924-06050
68101Right front door glass sub-assembly68101-06200
68102Left front door glass sub-assembly68102-06200
68141CRight front door glass lift channel68141-06110 · 68141-06170
68151CLeft front door glass lift channel68151-06100 · 68151-06160
68171BRight front door glass inner sealing strip68171-06101 · 68171-06160
68172ALeft front door glass inner sealing strip68172-06101 · 68172-06160
68610BRight front door opening limiter assembly68610-06101
68620Left front door opening limiter assembly68610-06101
75975GRight front door trim strip No. 275975-06060
75976GLeft front door trim strip No. 275976-06060
75985BRight front door trim strip No. 375985-06060
75986BLeft front door No. 3 trim75986-06060
