Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

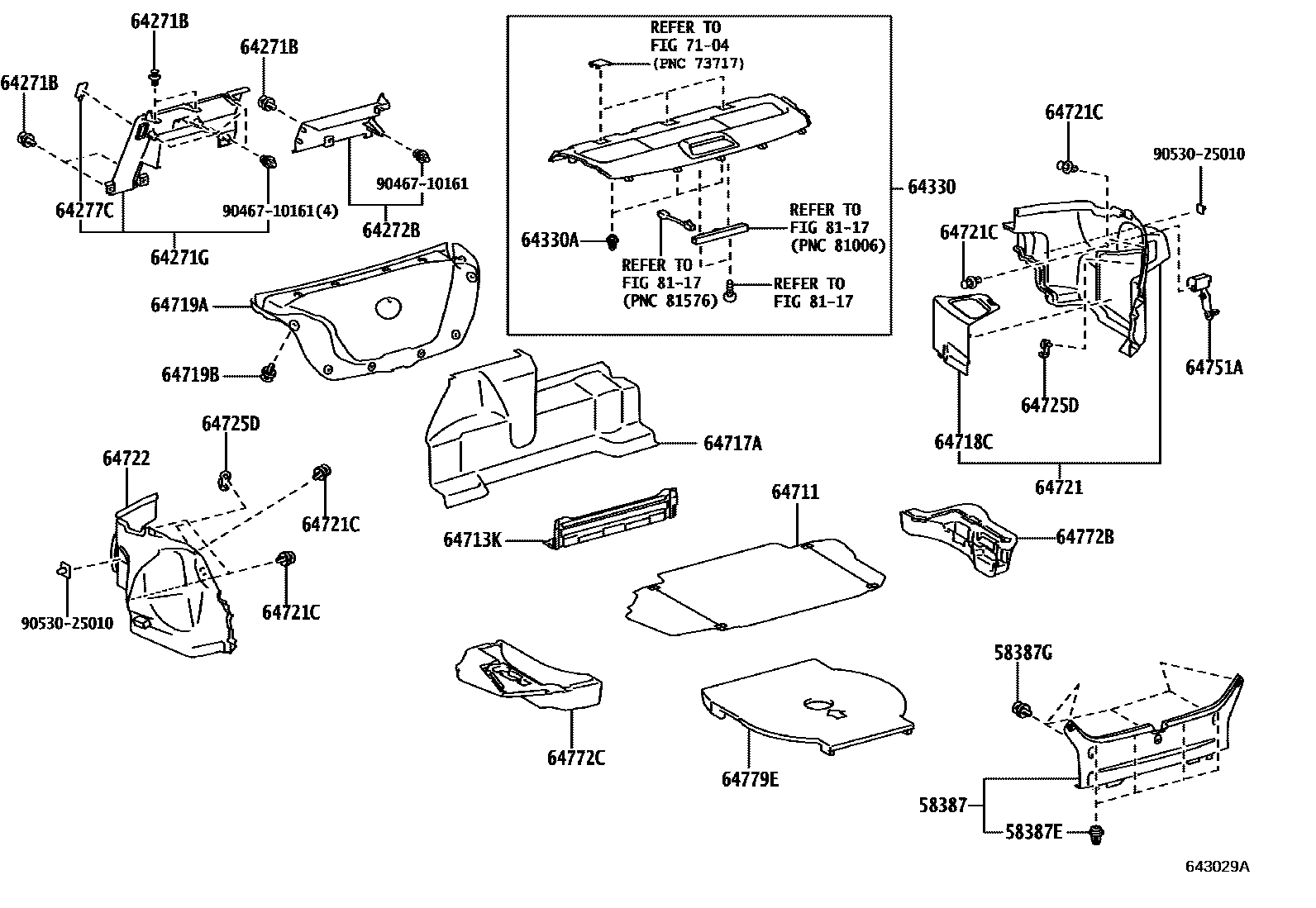

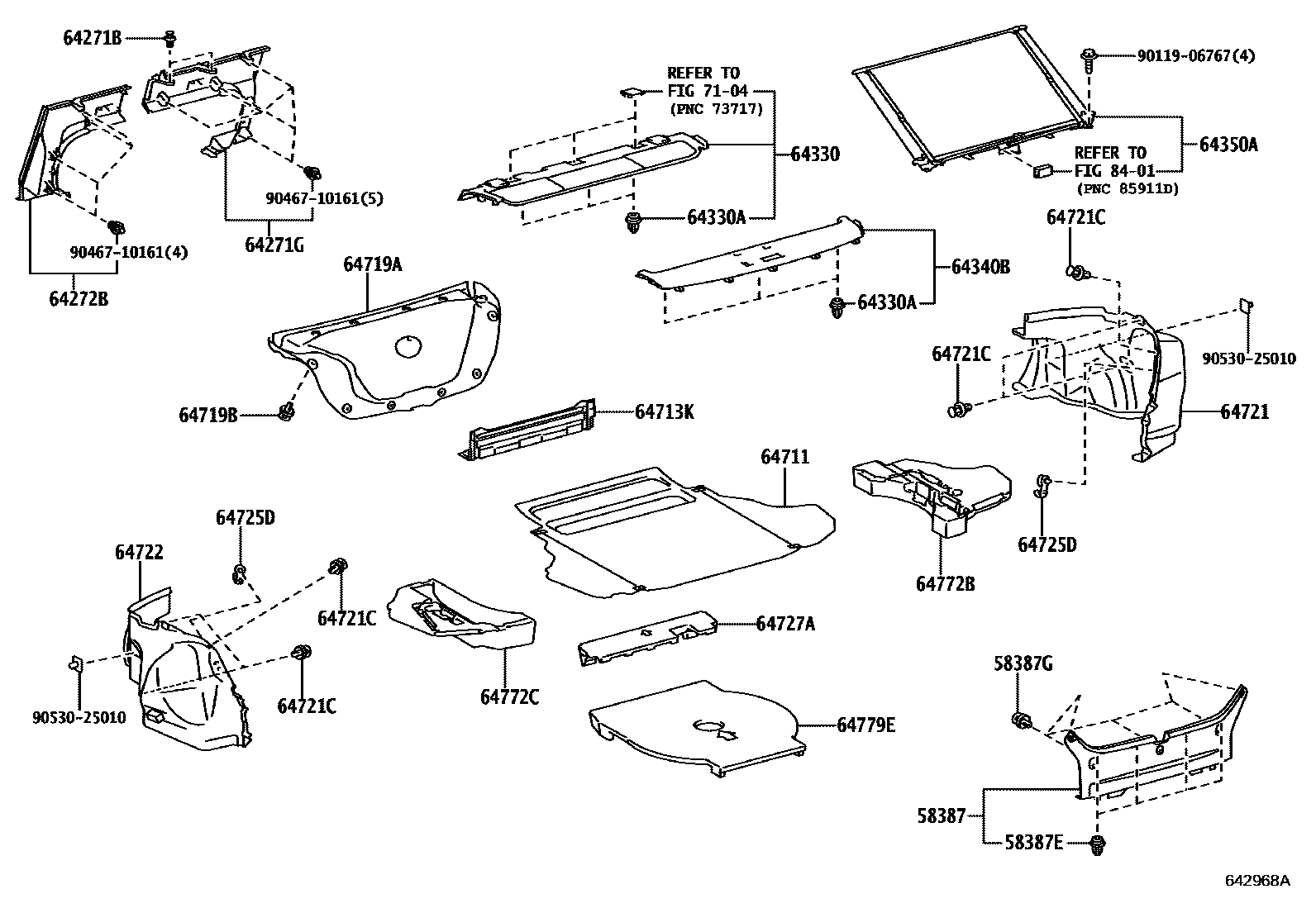

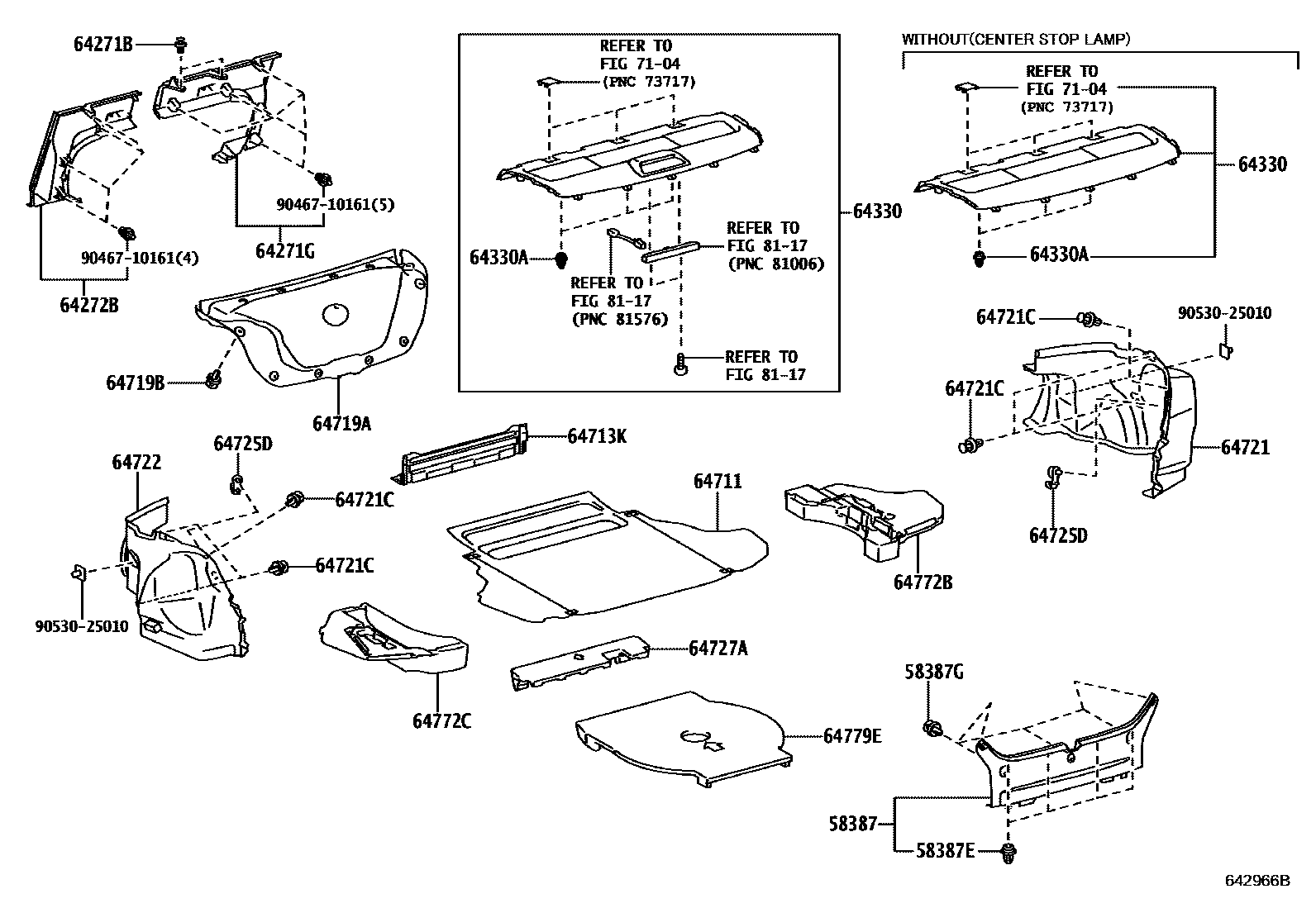

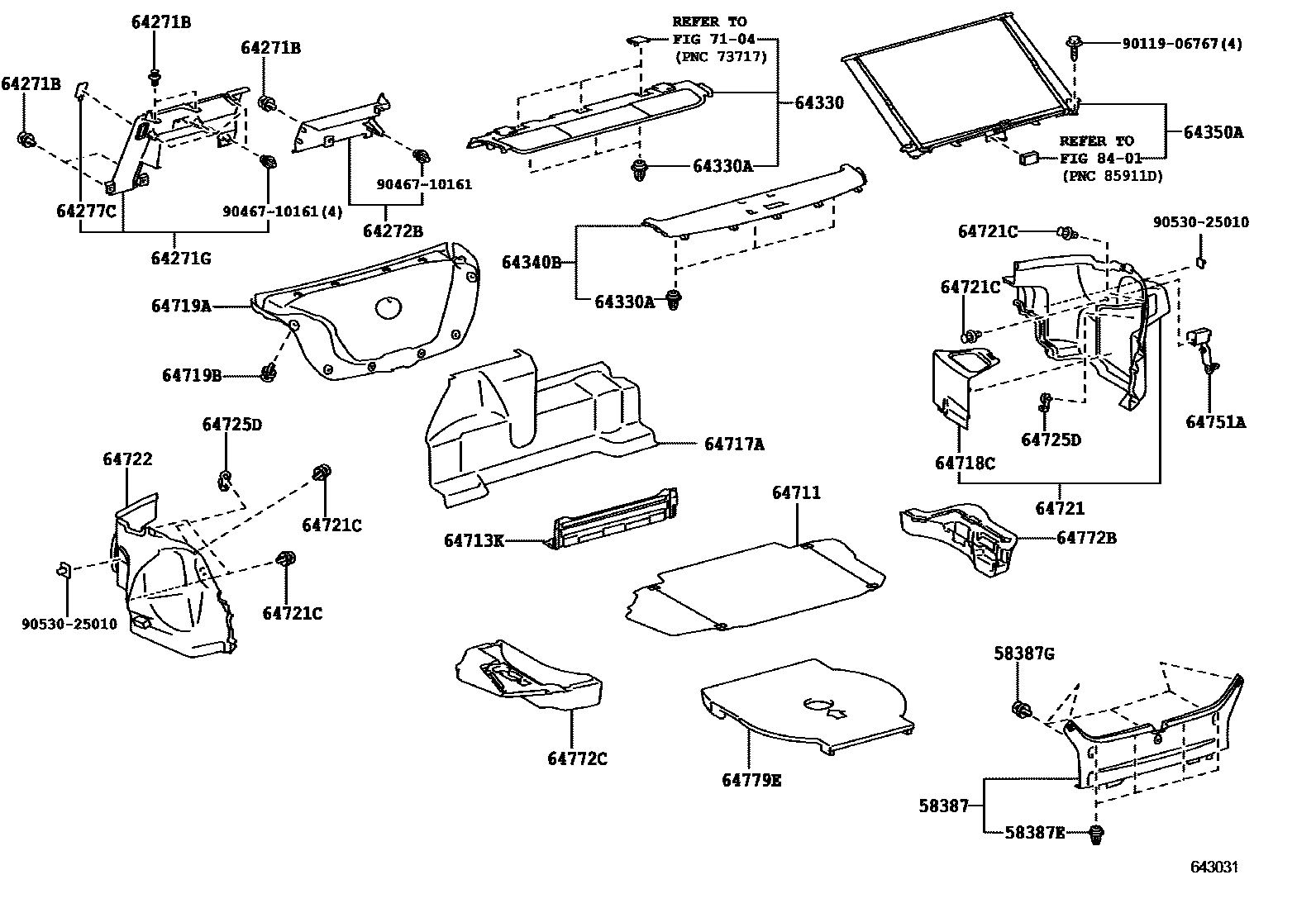

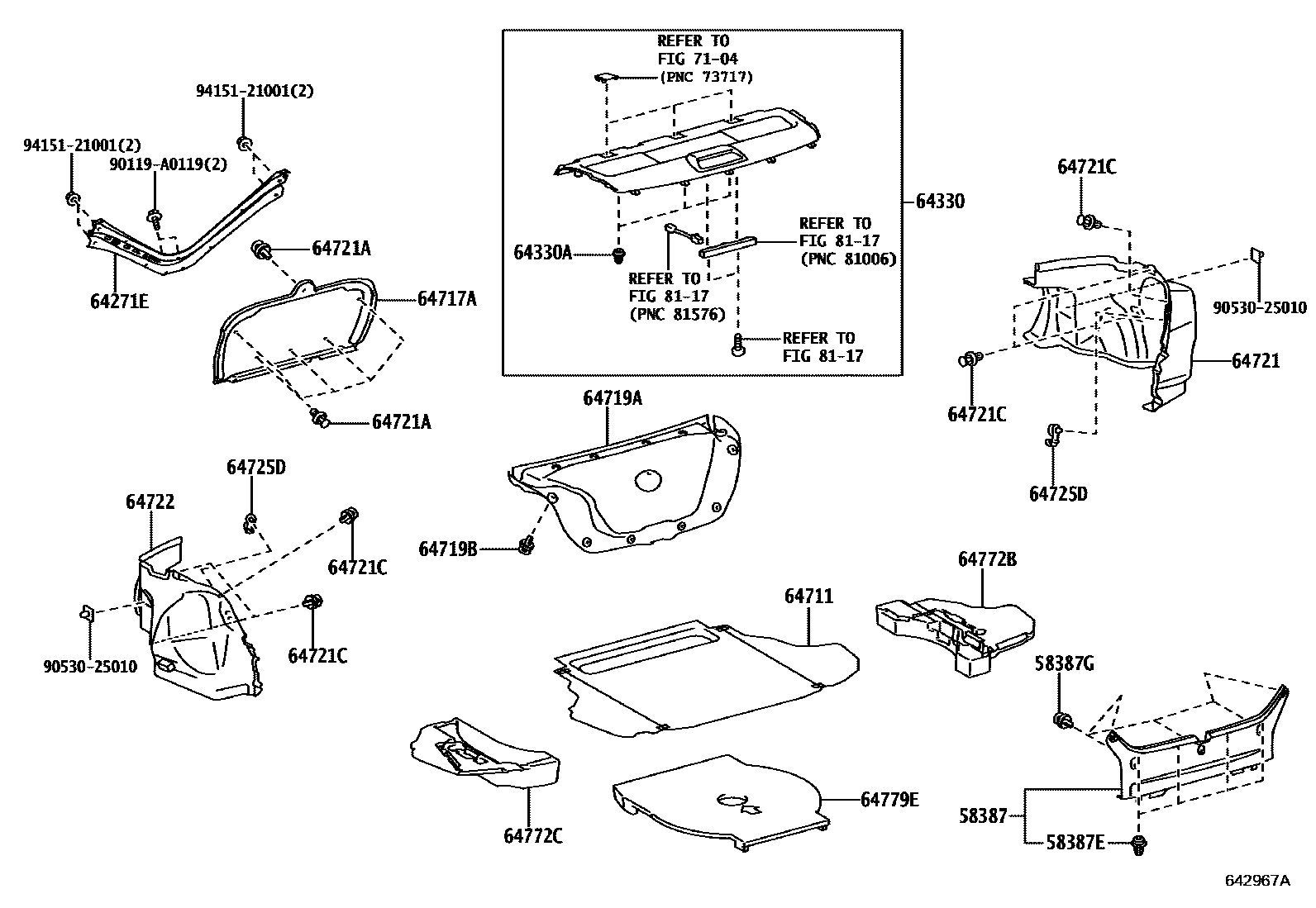

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-06151 |
| 58387E | Clip (for rear floor trim panel) | 90467-10161 |
| 58387G | Clip (for rear floor trim panel) | 90467-07201 |
| 64271B | Clip (for compartment partition) | 90467-07201 |
| 64271E | compartment partition | 64241-06050 |
| 64271G | Right compartment partition | 64271-06050 · 64271-06060 |
| 64272B | Left compartment partition | 64272-06040 · 64277-06010 |
| 64277C | No. 2 carriage partition cover | 64275-06010 |
| 64330A | Clip (for glove box decorative panel) | 90467-10161 |
| 64350A | Rear window sun visor assembly | 64350-06120 |
| 64718C | Trunk trim access hole cover | 64718-06070 |
| 64719B | Catch (for trunk door) | 90467-07201 |
| 64721A | Clip (for trunk interior decoration cover) | 90467-07201 |
| 64721C | Clip (suitcase) | 90467-07201 |
| 64727A | Luggage interior decorative mat | 64727-06061 |
| 64751A | No. 1 trunk door decorative cover bracket | 64751-06050 |
| 64772B | Spare tire cover liner | 64772-06031 · 64772-06171 |
| 64772C | Spare tire cover liner | 64773-06051 |
| 64779E | Spare tire cover bracket | 64779-06021 |
