Toyota CAMRY 车顶内衬和消声垫 — Figure 6402

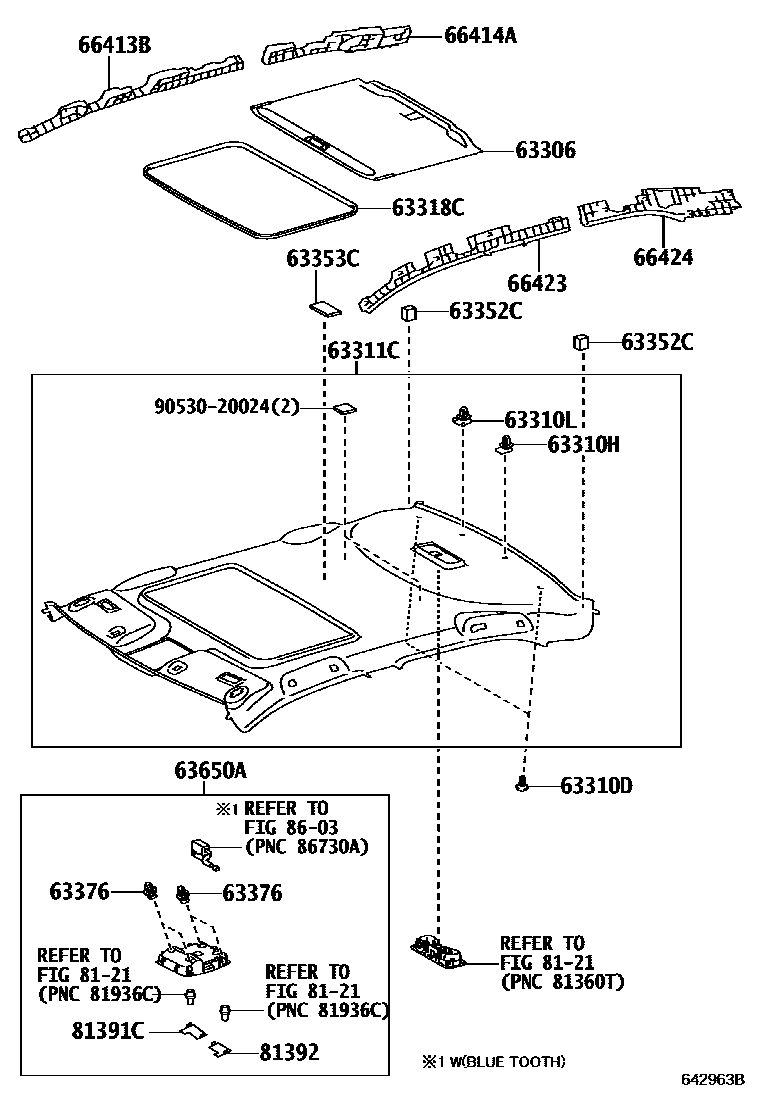

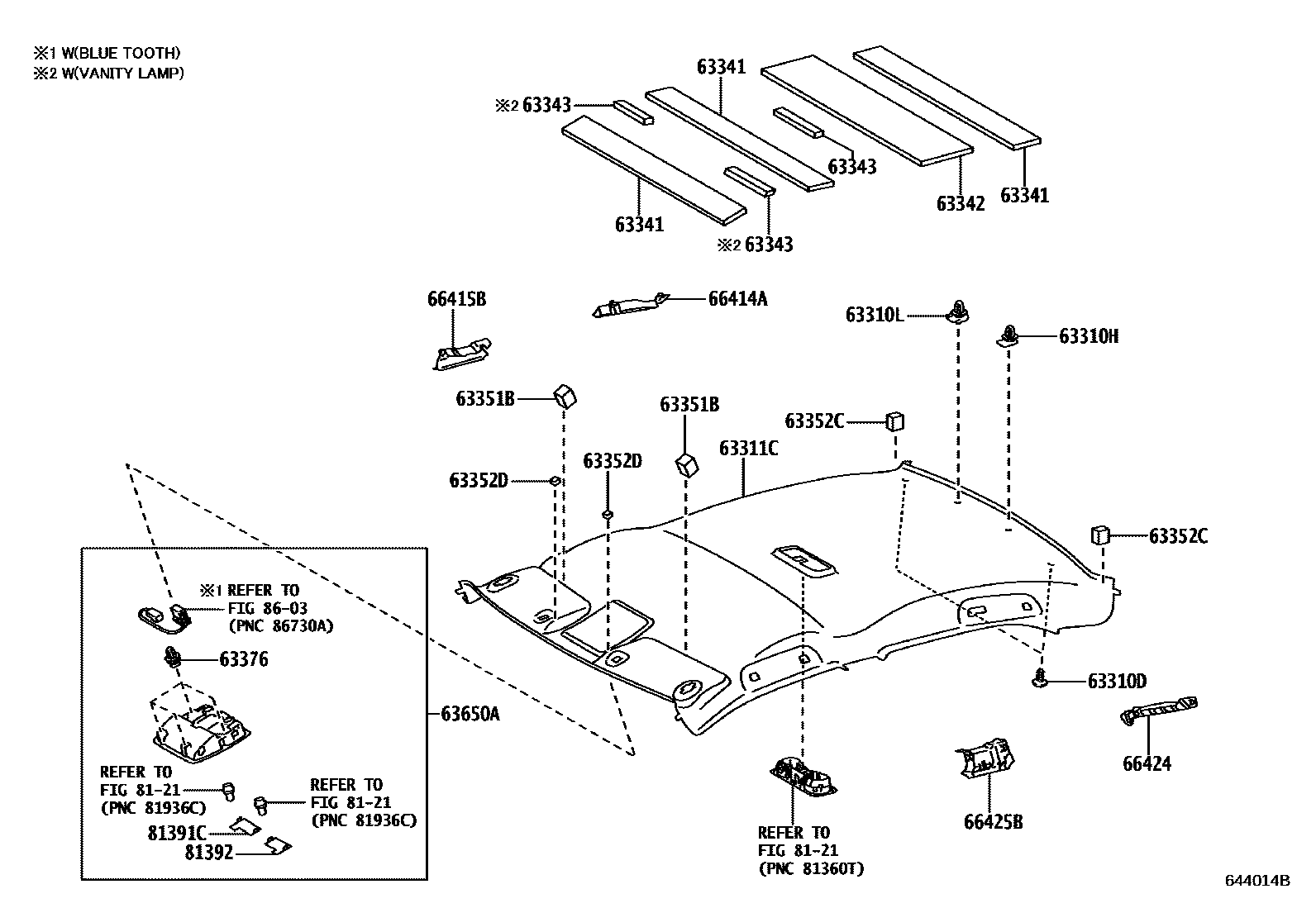

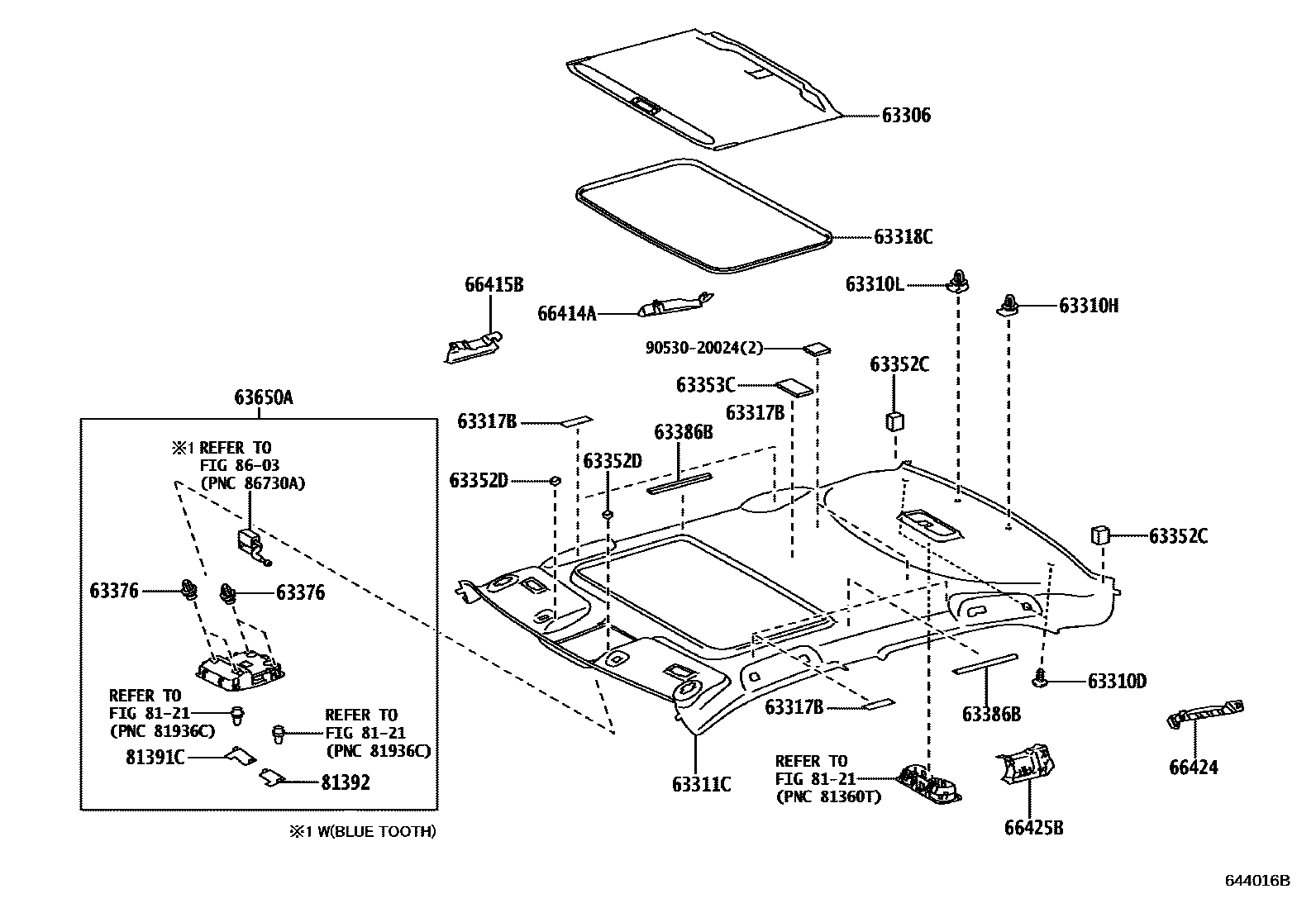

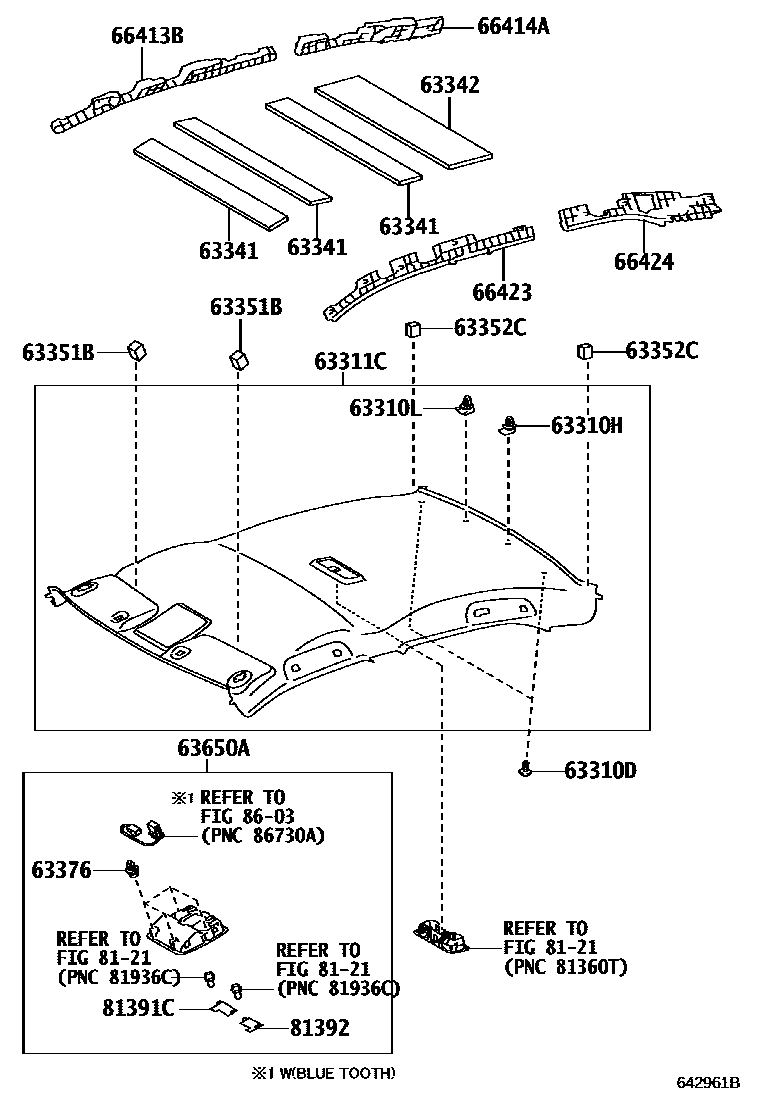

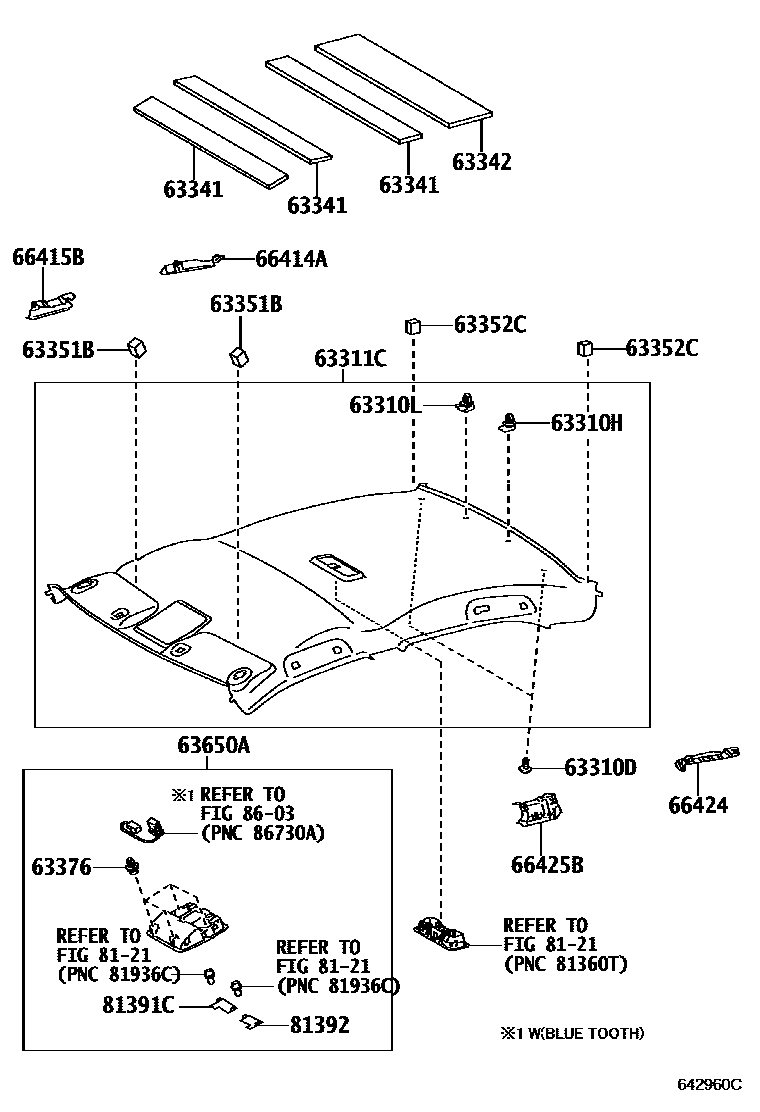

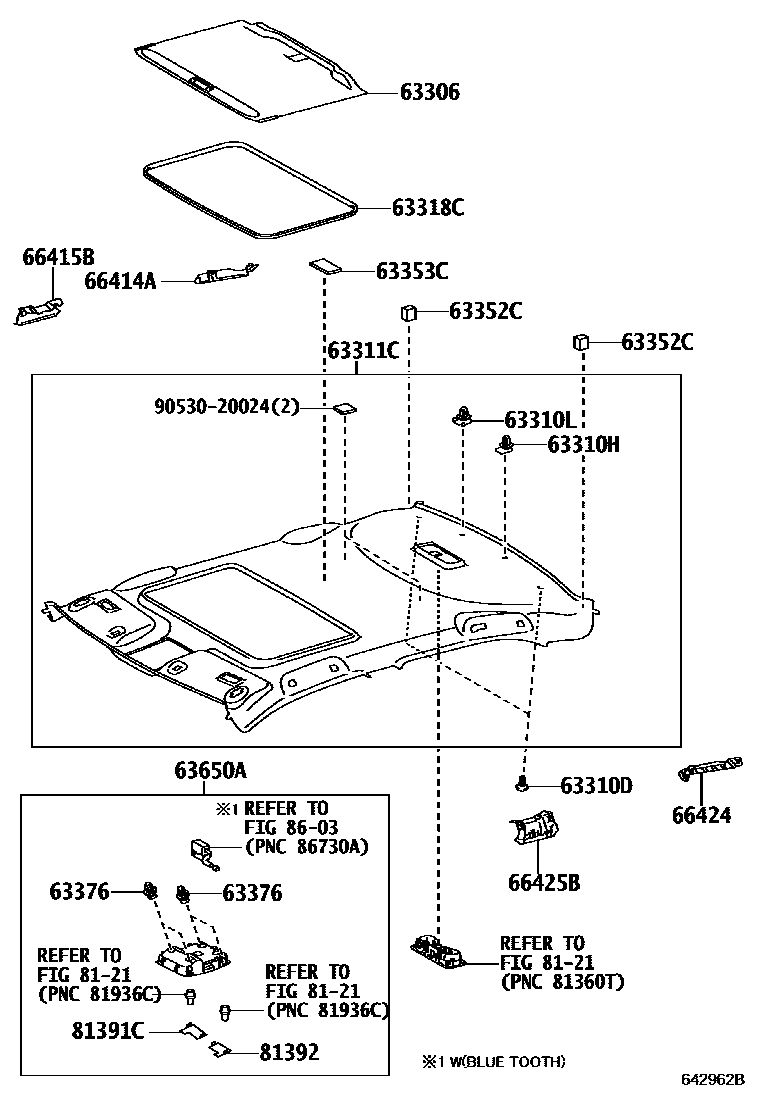

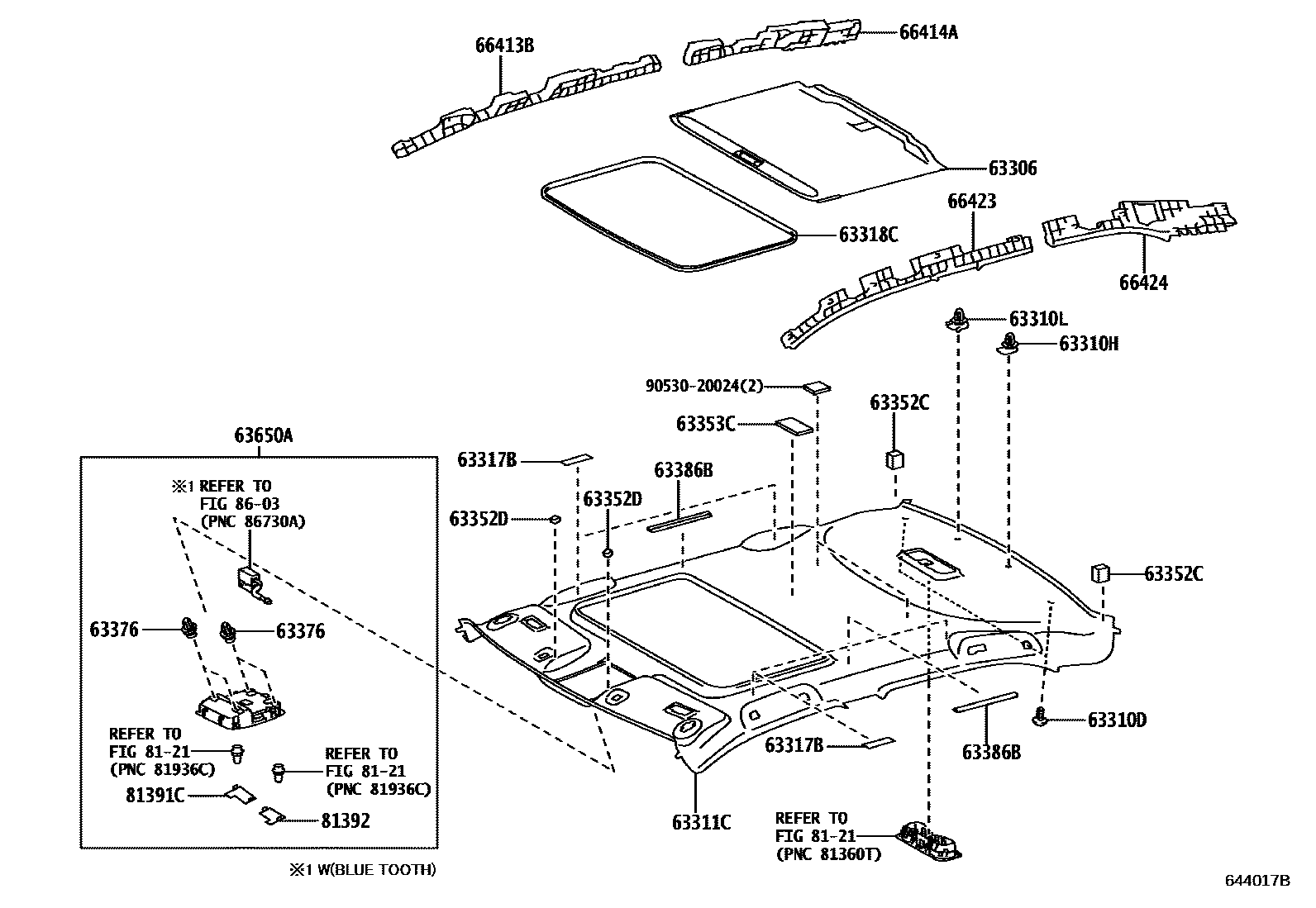

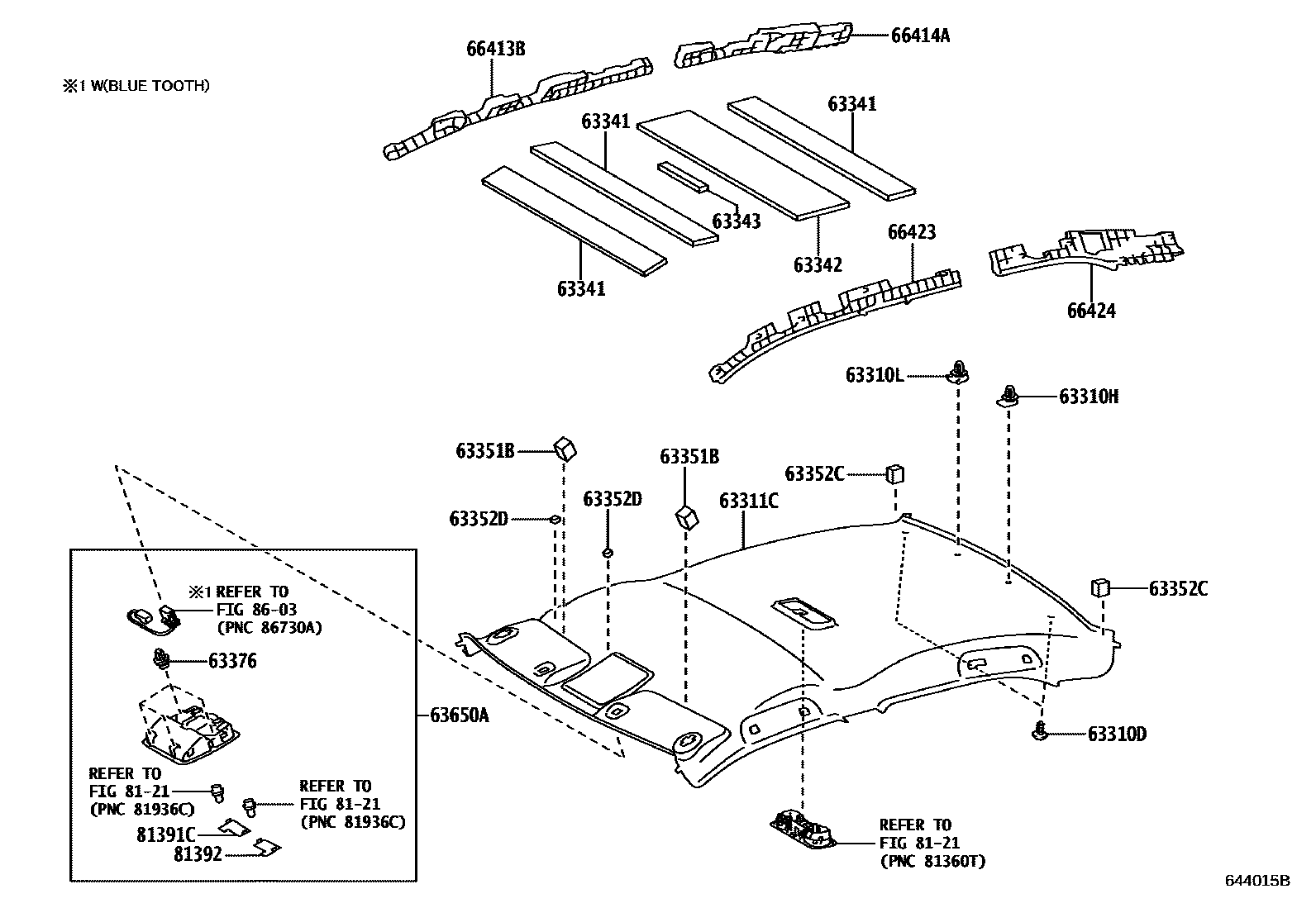

Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 8 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310H | Clip (for headliner) | 90467-09126 |
| 63310L | Cover (for headliner) | 90467-10181 |
| 63317B | headliner fabric | 63317-06010 |
| 63341 | No. 1 roof silencer mat | 63341-06110 · 63341-06111 |
| 63342 | No. 2 roof muffler pad | 63342-06100 · 63342-06101 |
| 63343 | No. 3 roof muffler pad | 63343-06260 |
| 63351B | roof lining pads | 63351-06030 |
| 63352C | Headlining end pads | 63352-06030 |
| 63352D | No. 2 roof lining lining block | 63352-06070 |
| 63353C | Center roof lining lining | 63353-06010 |
| 63376 | Lined clips | 90467-09236 · 90467-A0033 |
| 63386B | Headlining trim reinforcement | 63386-06030 |
| 66413B | Right front longitudinal member spacer | 66413-06060 |
| 66414A | Right rear longitudinal member spacer | 62495-06010 · 66414-06050 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-06070 |
| 66423 | Left front longitudinal member spacer | 66423-06060 |
| 66424 | Left rear longitudinal member spacer | 62496-06010 · 66424-06050 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-06060 |
| 81391C | Lampshade right front fixing piece | 81391-06020 · 81391-06030 · 81391-33010 · 81391-33020 |
| 81392 | Lampshade left front fixing piece | 81392-06010 · 81392-06020 · 81392-33010 · 81392-33020 |
