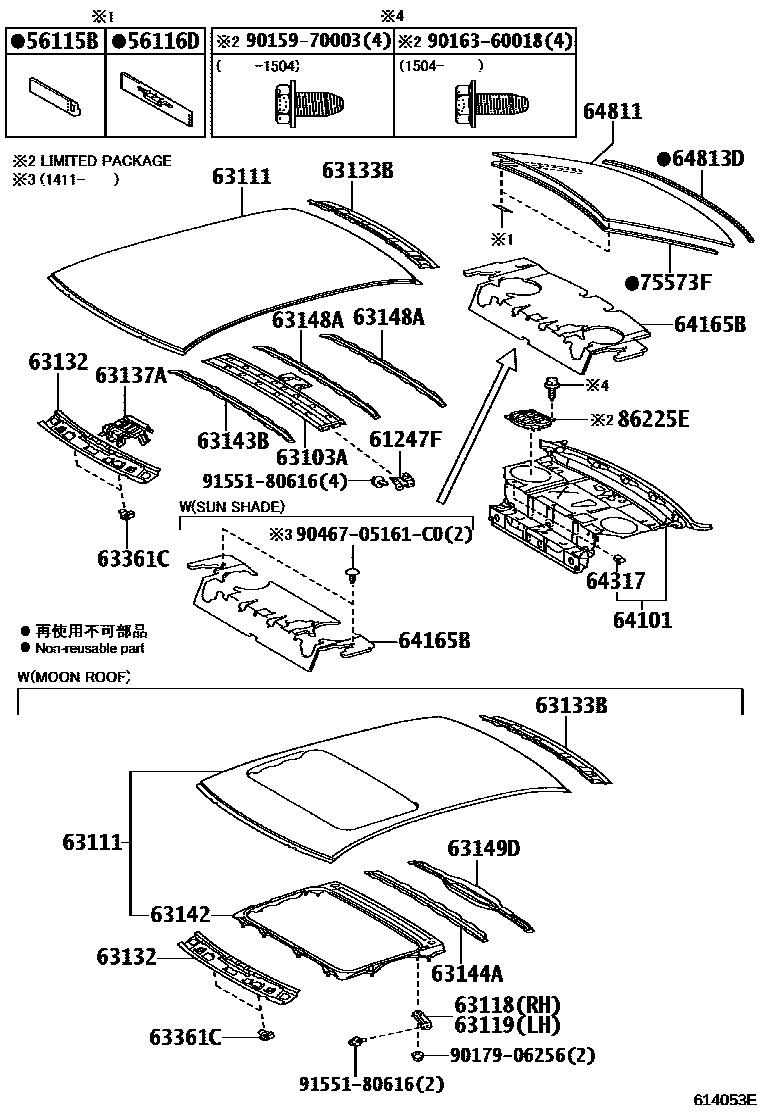

Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104
Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-33040 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-06090 |
| 63111 | roof panel | 63111-06470 · 63111-06915 |
| 63118 | Right roof panel bracket | 63118-33050 |
| 63119 | Left roof panel bracket | 63118-33050 |
| 63132 | Windshield inner roof panel | 63132-33100 |
| 63133B | back window frame | 63133-06110 |
| 63137A | No. 1 ceiling light bracket | 63137-06090 |
| 63142 | No. 2 roof panel reinforcement | 63142-33090 |
| 63143B | No. 3 roof panel reinforcement | 63143-33100 |
| 63144A | No. 4 roof panel reinforcement | 63144-33170 |
| 63148A | No. 7 roof panel reinforcement | 63148-33050 |
| 63149D | No. 8 roof panel reinforcement | 63149-33030 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-33170 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-33110 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-33050 |
| 63209 | Roof deflector sub-assembly | 63209-33160 |
| 63214F | Roof rear drain channel | 63214-33070 |
| 63217G | Right sliding sunroof trim | 63217-33080 · 63217-33110 |
| 63218G | Sliding sunroof trim, left | 63217-33080 · 63217-33110 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-30010 |
| 63236D | Sliding skylight drain hose clamp | 63236-33030 |
| 63247E | Right rear sliding sunroof drain hose | 63247-33040 |
| 63248E | Left rear sliding sunroof drain hose | 63248-33030 |
| 63249E | Sliding skylight drain hose | 63249-33140 |
| 63251H | Sliding skylight seal | 63251-30090 · 63251-30100 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-33120 |
| 63361C | headliner bracket | 63361-06050 |
| 63669B | Sliding skylight drain seal | 63669-06030 |
| 64101 | Upper back panel sub-assembly | 64101-06290 |
| 64165B | No. 1 upper back panel hole cover | 64165-06240 · 64165-06280 |
| 64317 | Seat belt anchor to glove box reinforcement | 64317-12040 |
| 64811 | back window glass | 64811-06270 · 64811-06310 · 64811-06311 |
| 64813D | Back window glass adhesive seal | 56117-50140 |
| 75573F | Protective strip for rear window | 75573-06090 |
| 86225E | Right speaker cover | 86225-33010 |
