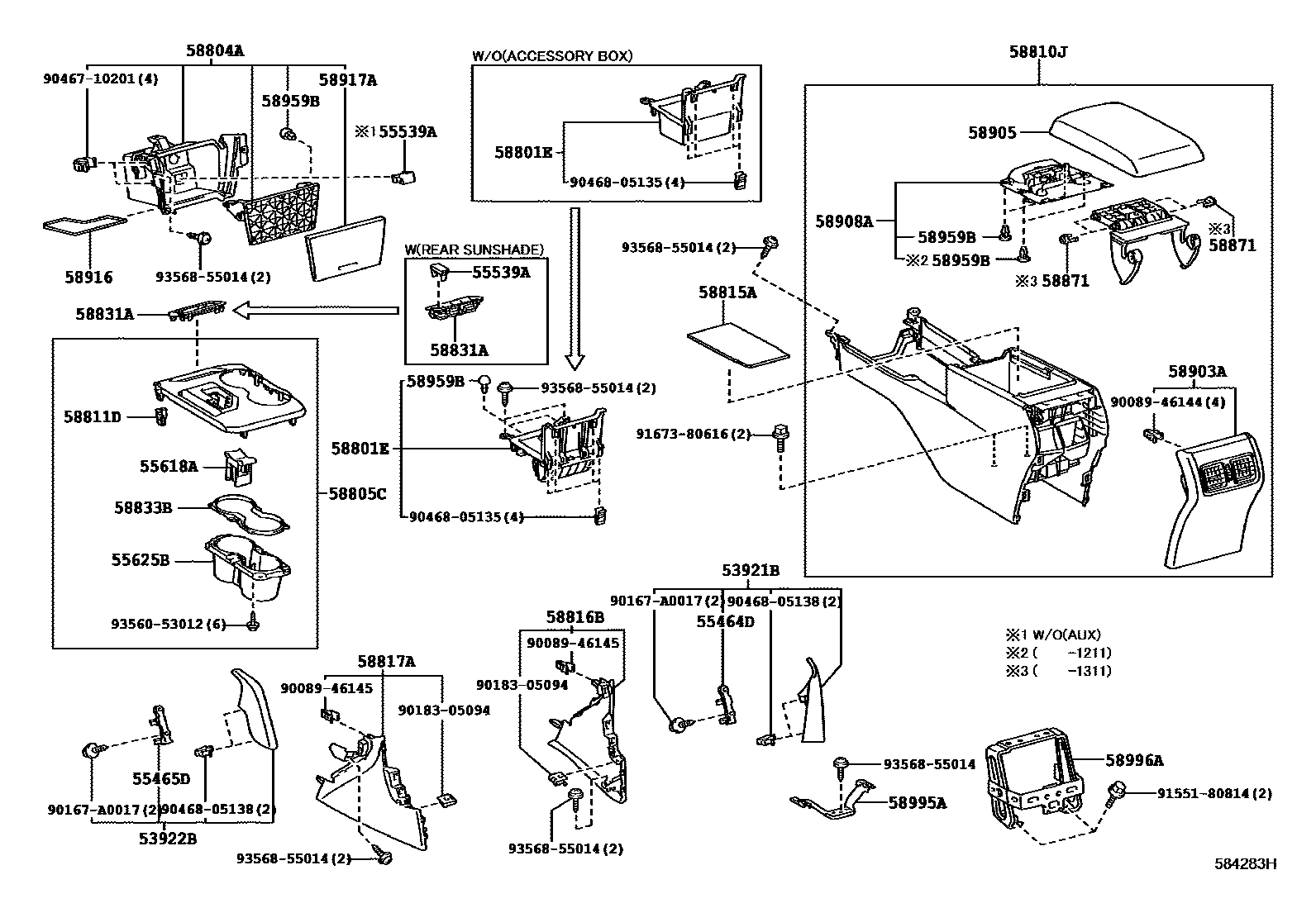

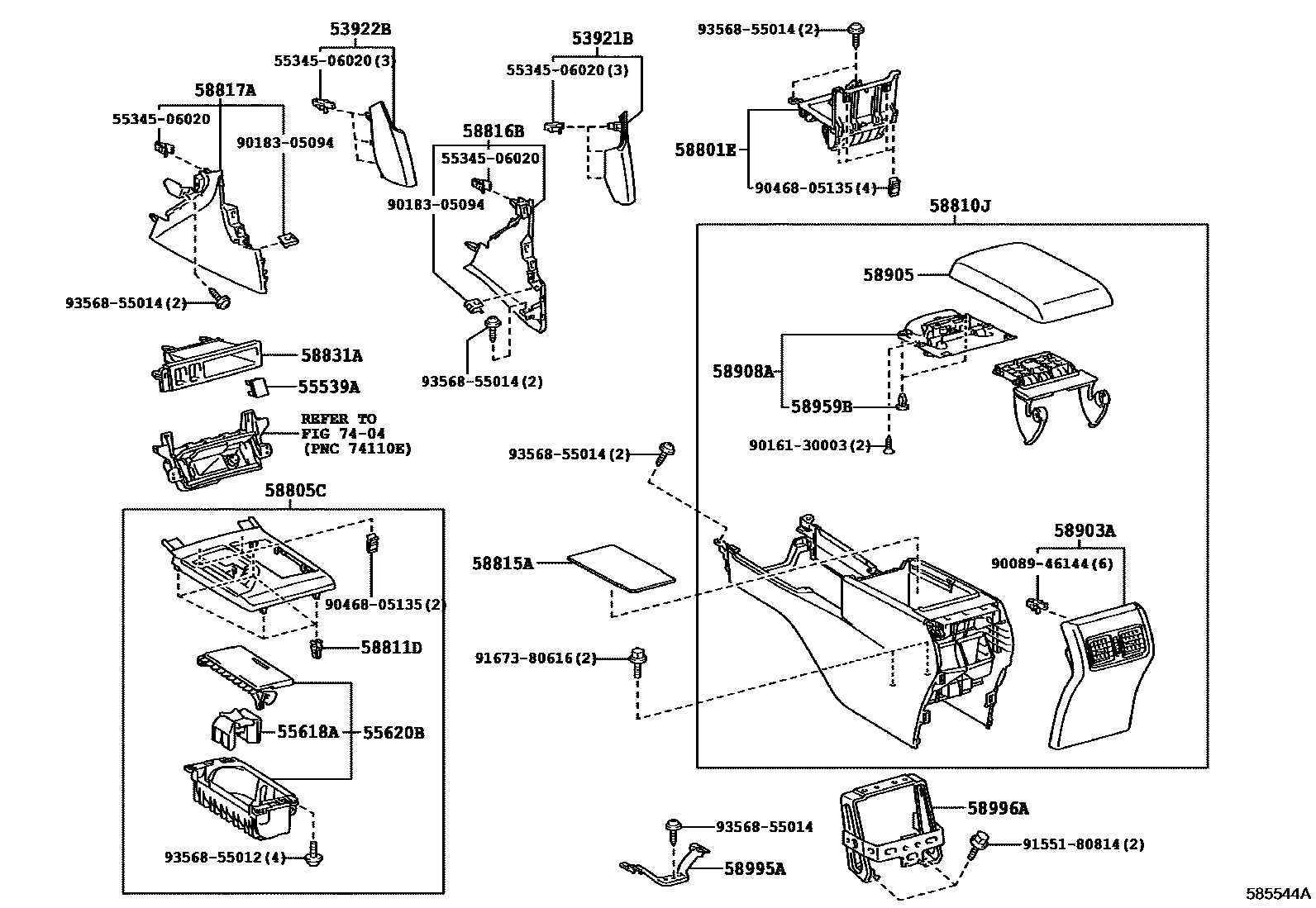

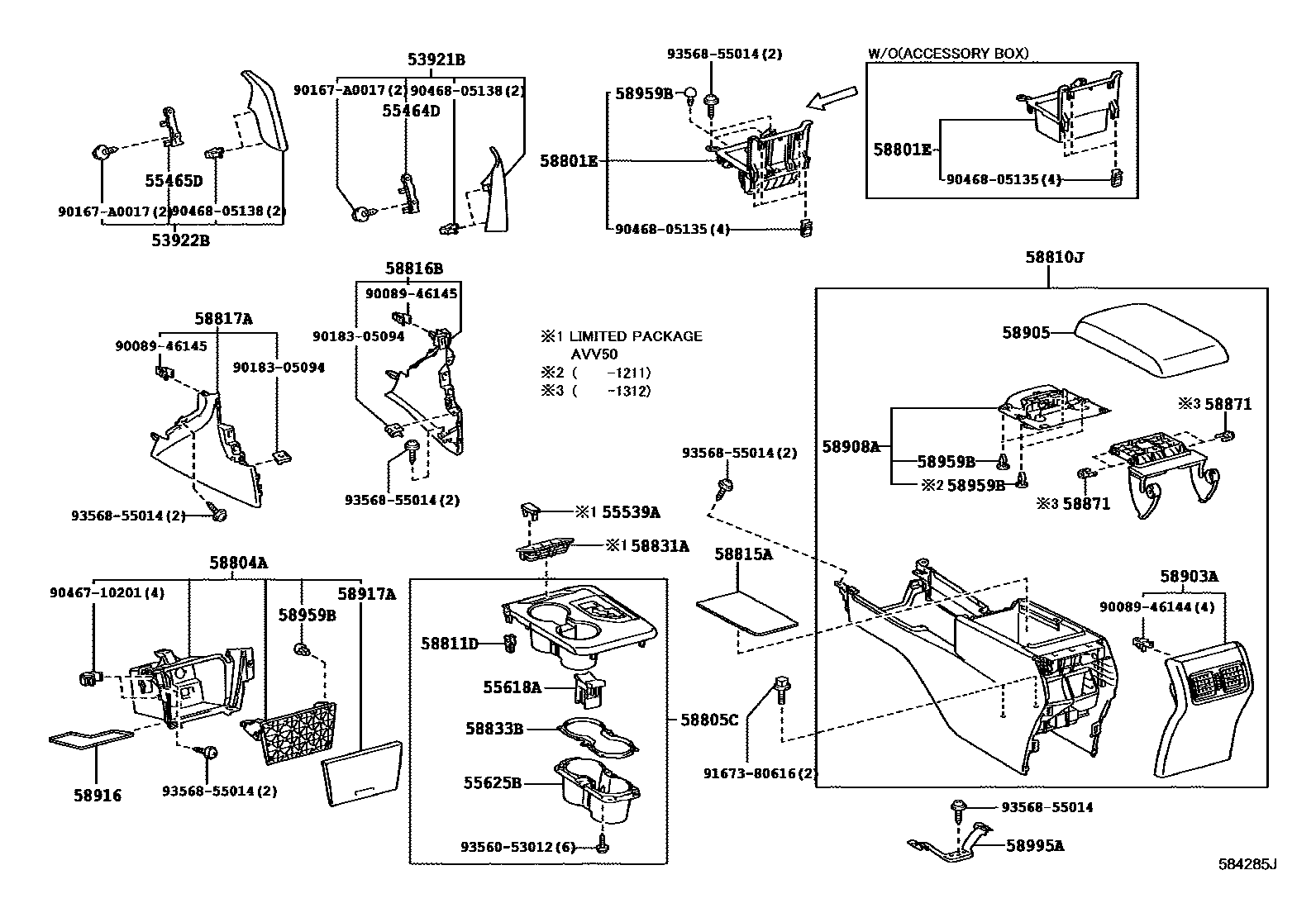

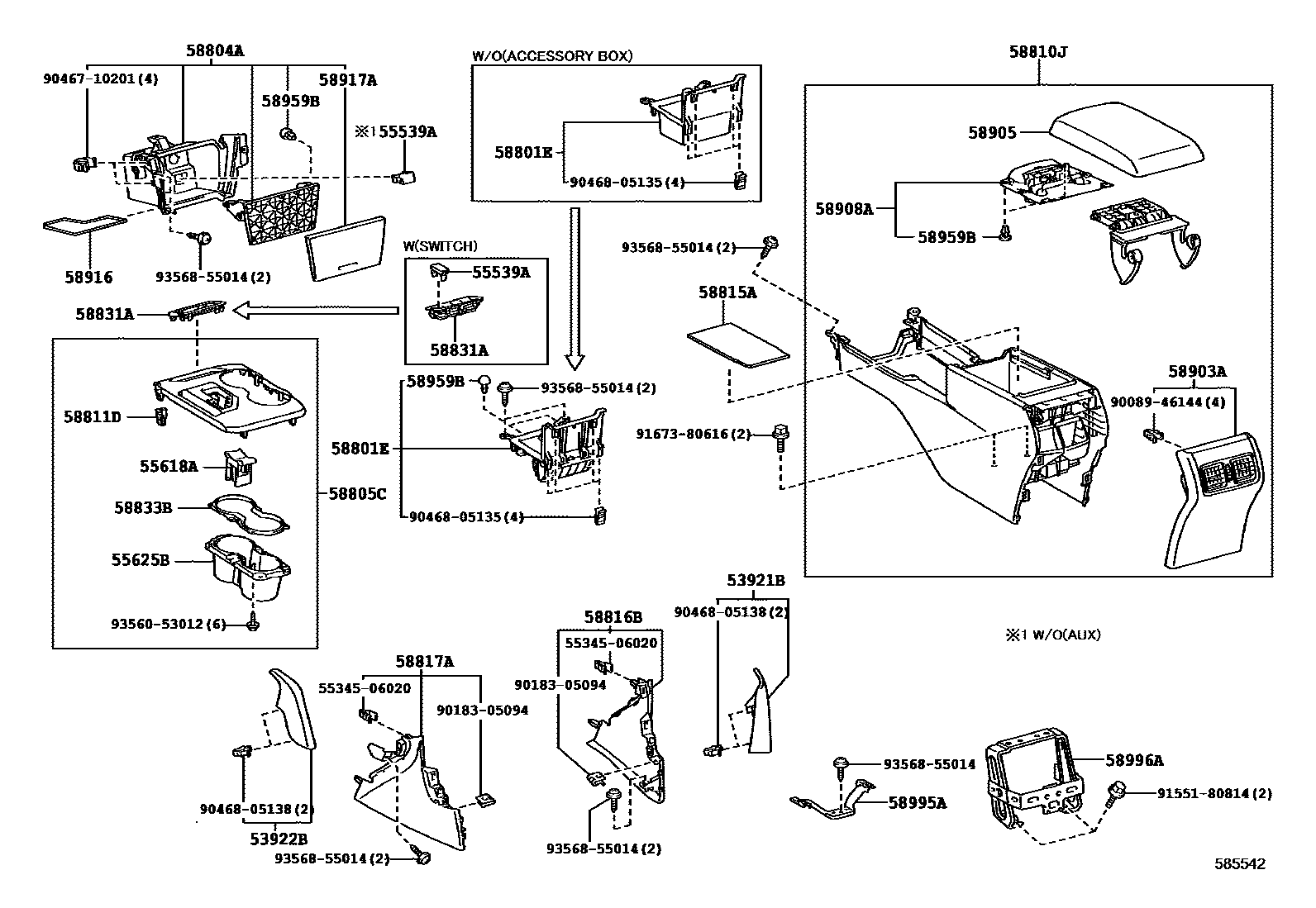

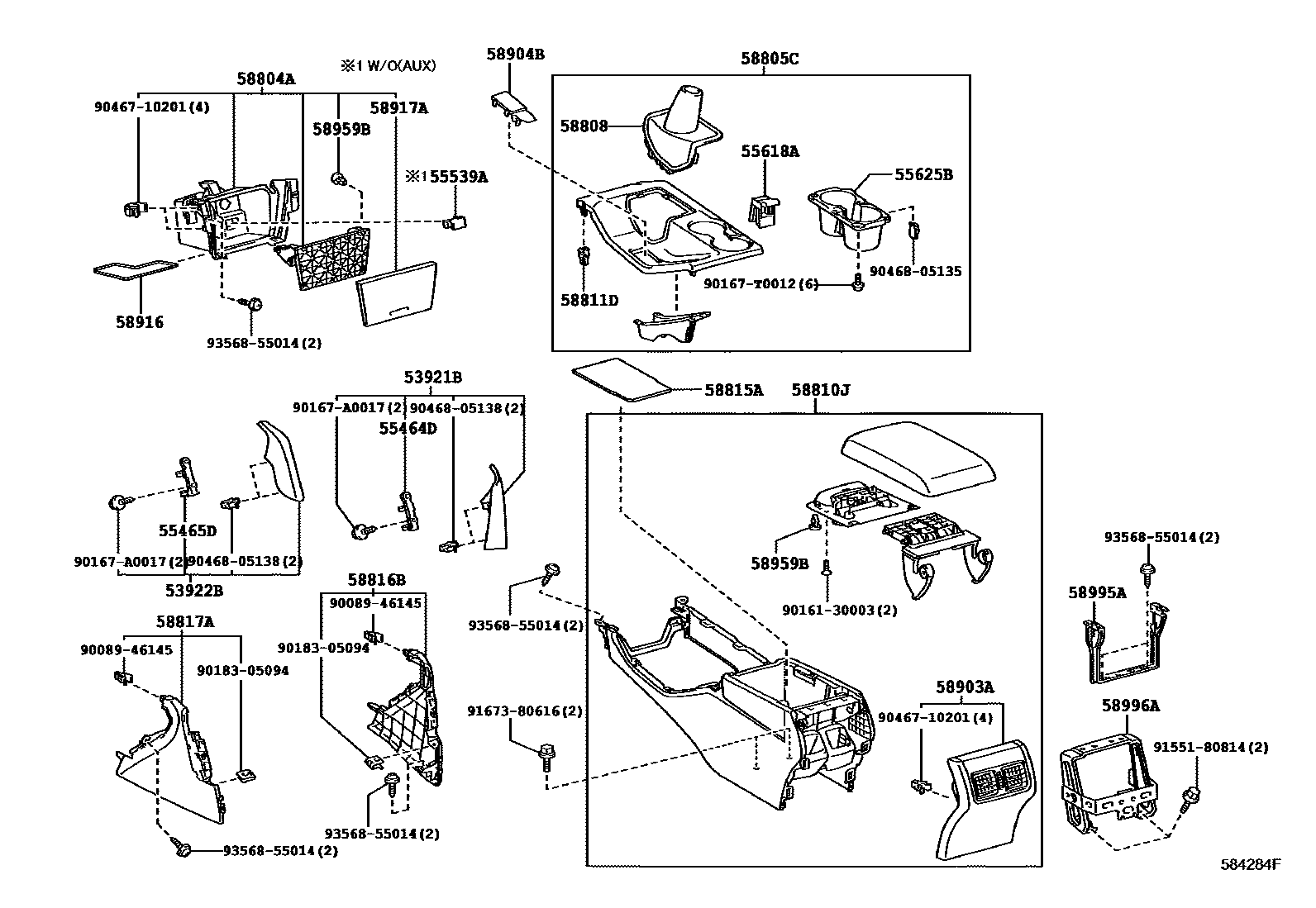

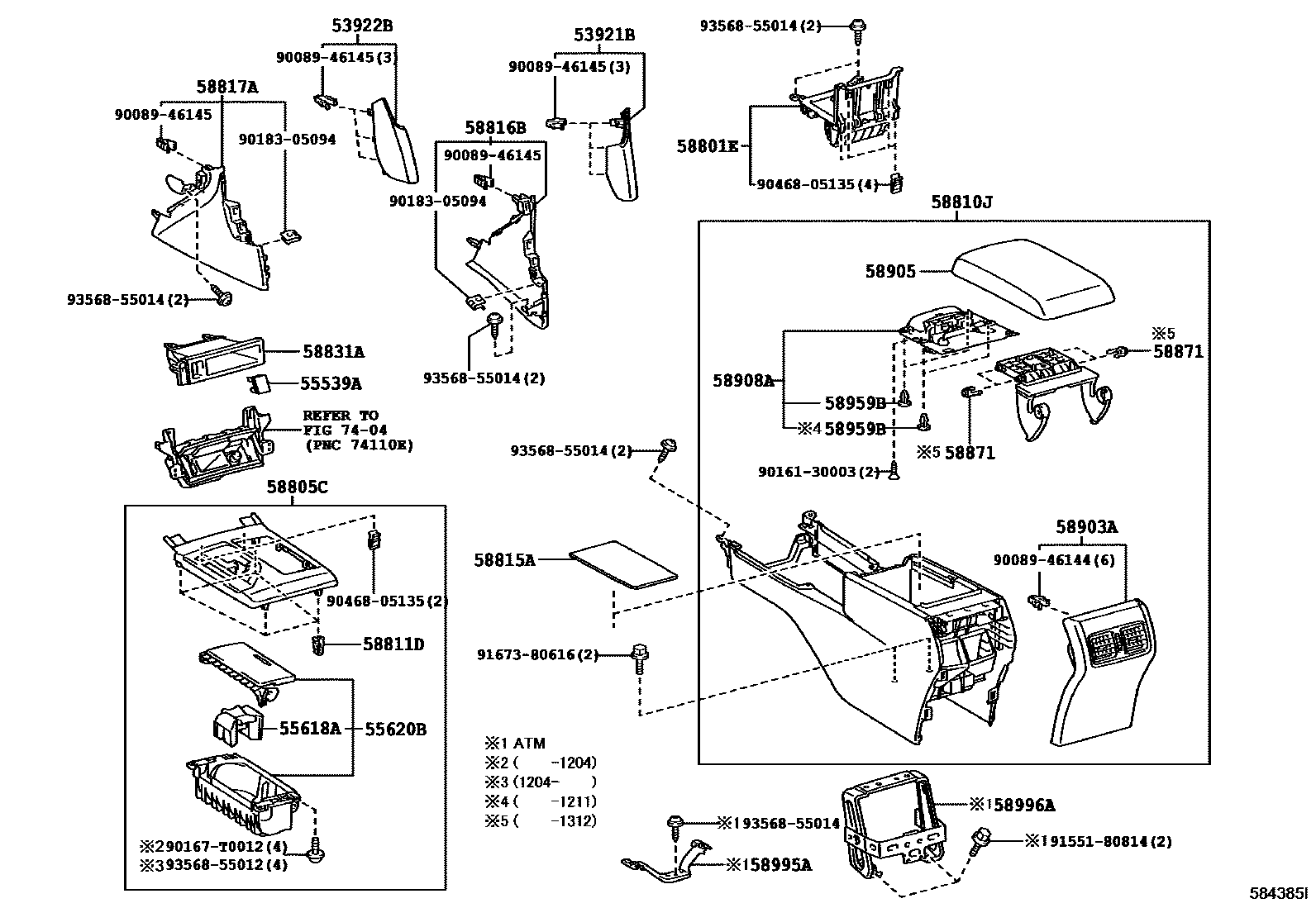

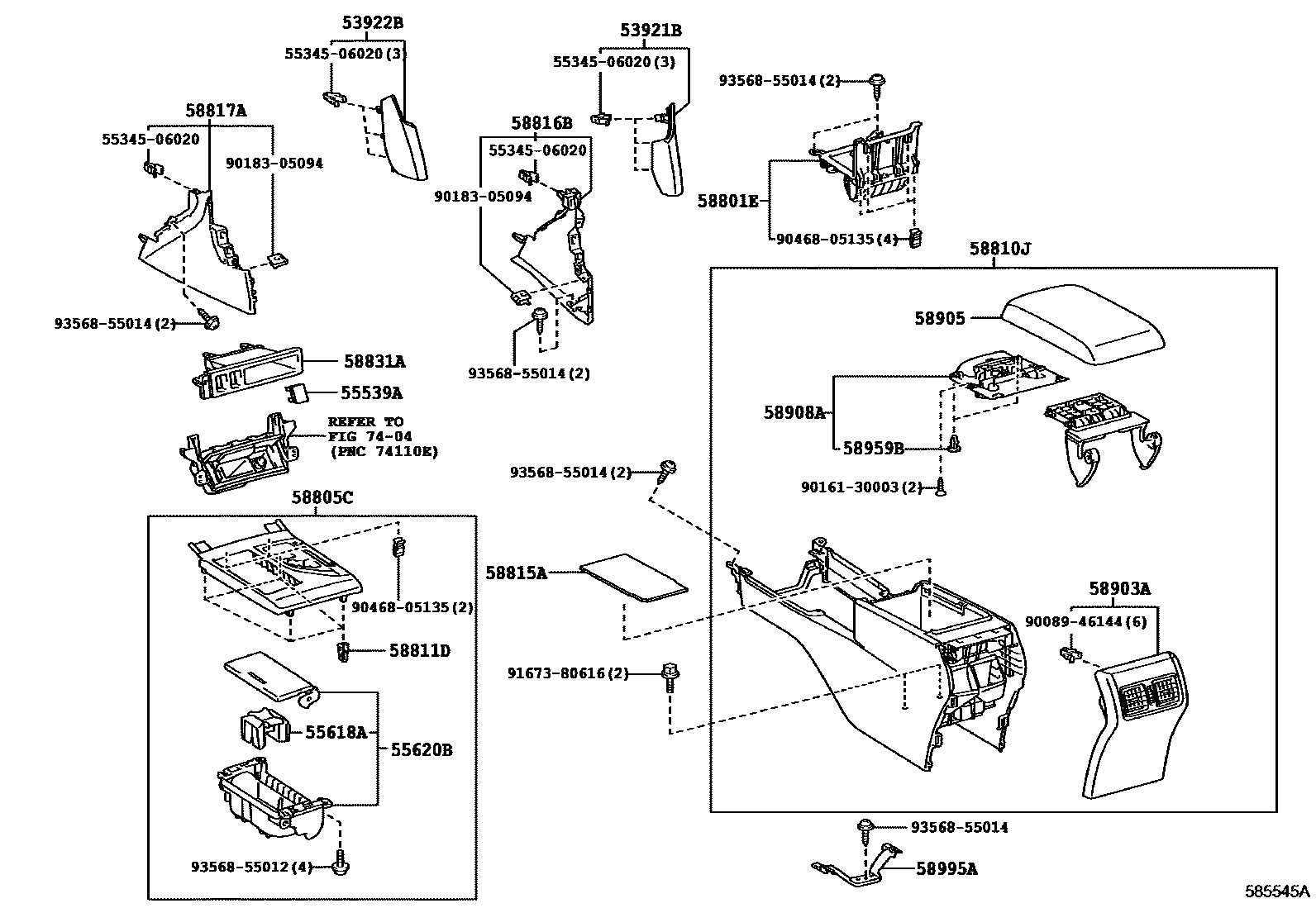

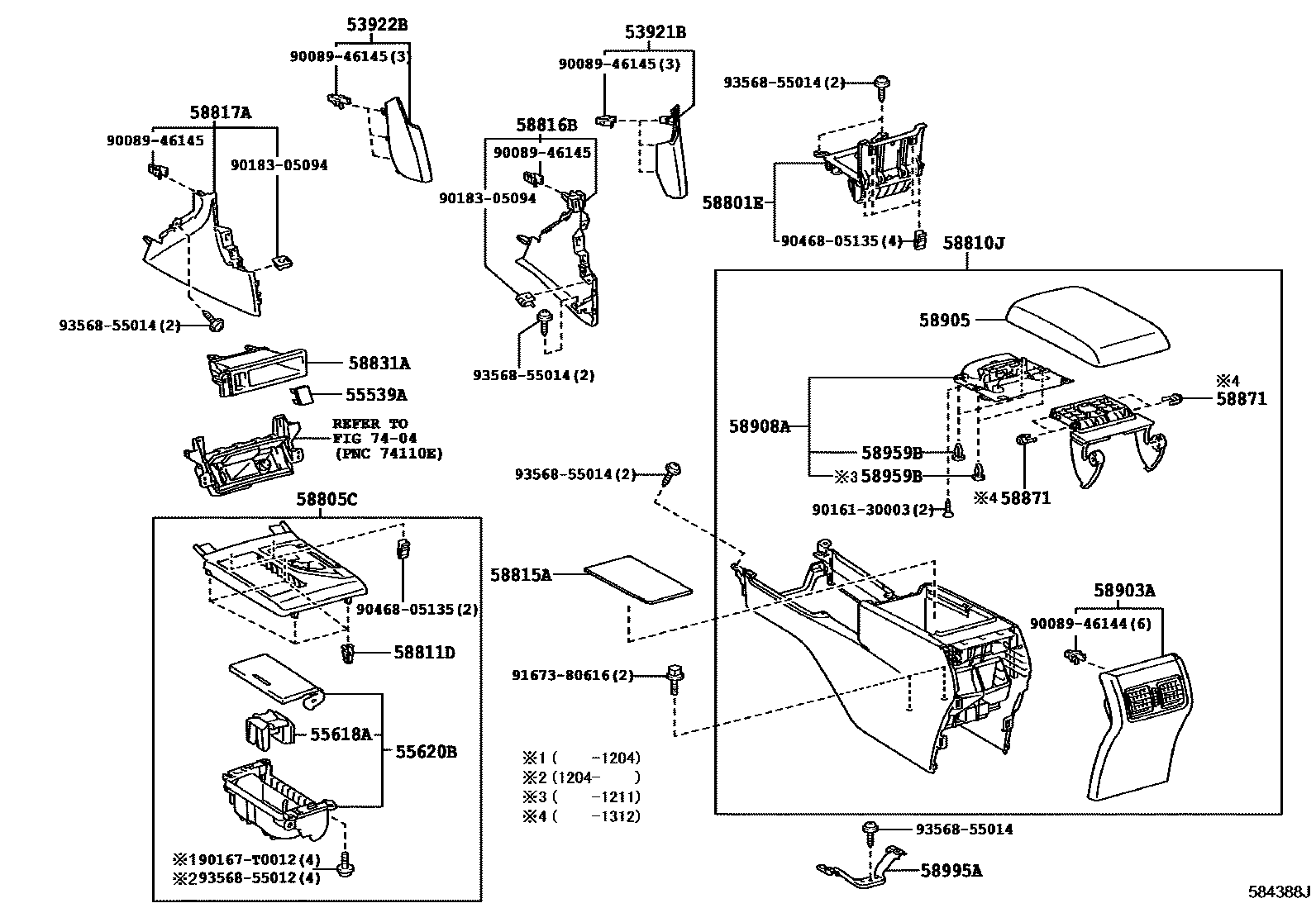

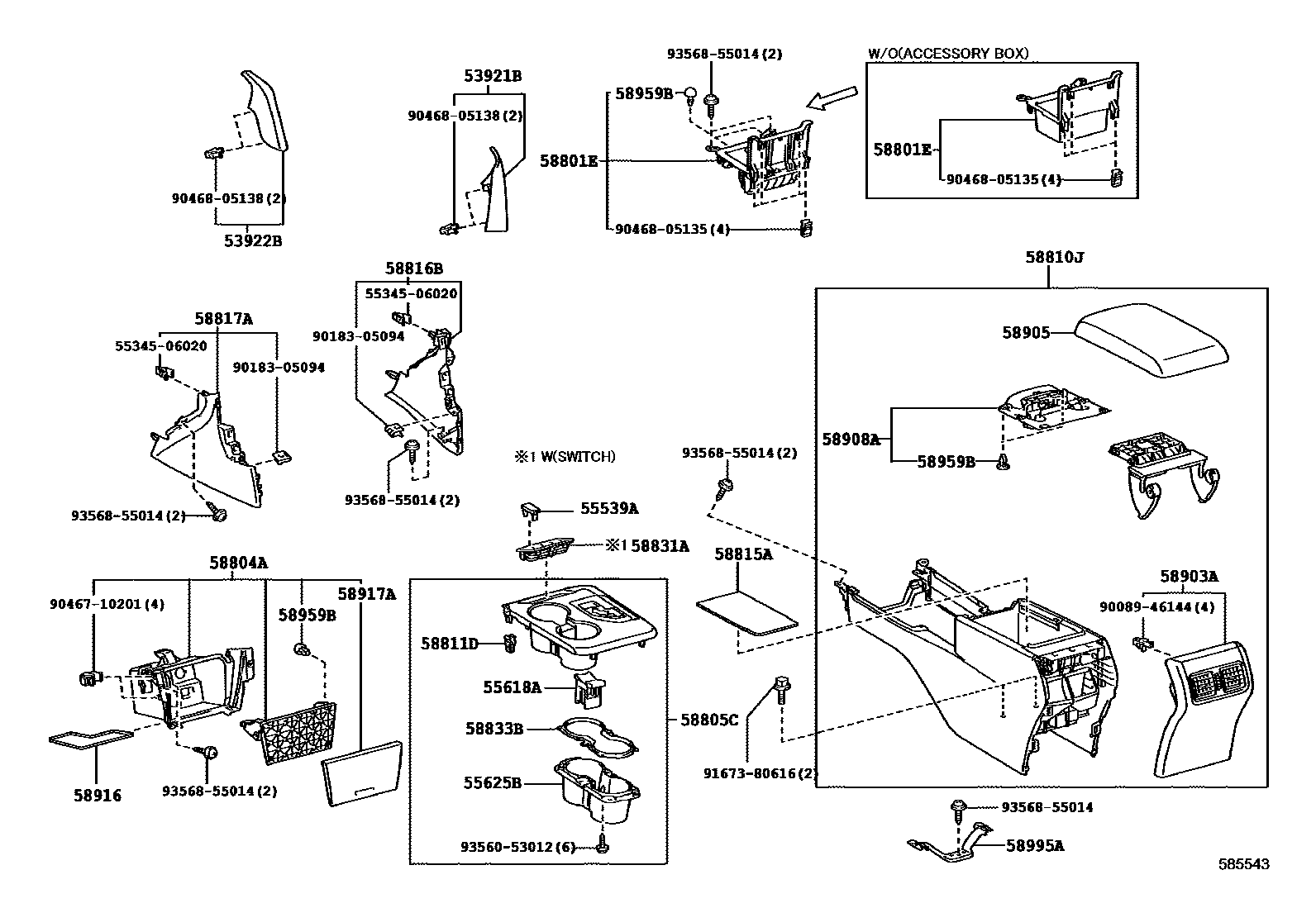

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 9 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55464D | Dashboard lower right pad insert | 55464-06010 |
| 55465D | Dashboard lower left pad insert | 55465-06010 |
| 55618A | Armrest box cup holder | 55618-06110 · 55618-06120 · 55618-06150 |
| 55625B | Dashboard cup holder tray | 55625-06120 · 55625-06130 · 55625-06140 |
| 58804A | Armrest box upper panel sub-assembly | 58804-06410 |
| 58808 | Shift hole cover sub-assembly | 58808-33090 |
| 58811D | Clip (for armrest box) | 55345-06020 · 90089-46145 · 90467-10203 |
| 58815A | Armrest box felt pad | 58815-06110 · 58815-06120 |
| 58831A | Front armrest box upper panel decorative parts | 58831-06540 · 58831-06610 · 58831-06720 · 58831-06791 · 58831-06810 |
| 58833B | Armrest box upper panel decorative part No. 1 | 58831-06530 · 58831-06740 |
| 58871 | Armrest box cushion | 58871-30070 |
| 58908A | Armrest box lid lock assembly | 58908-06091 |
| 58916 | Armrest box bottom pad | 58916-06060 |
| 58917A | Rear armrest box cover | 58917-06070 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-06130 · 58995-06150 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-06070 · 58996-06080 |
