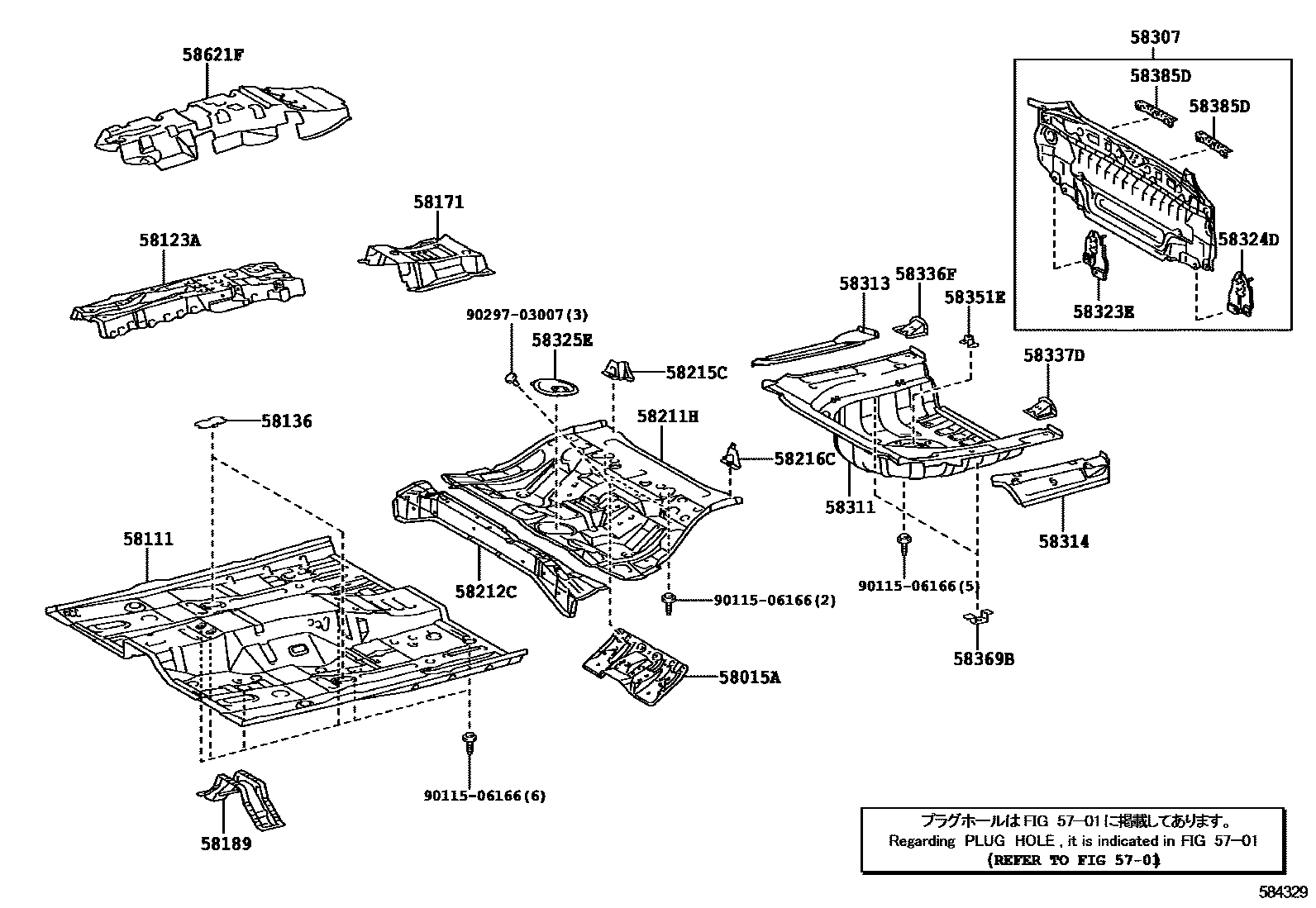

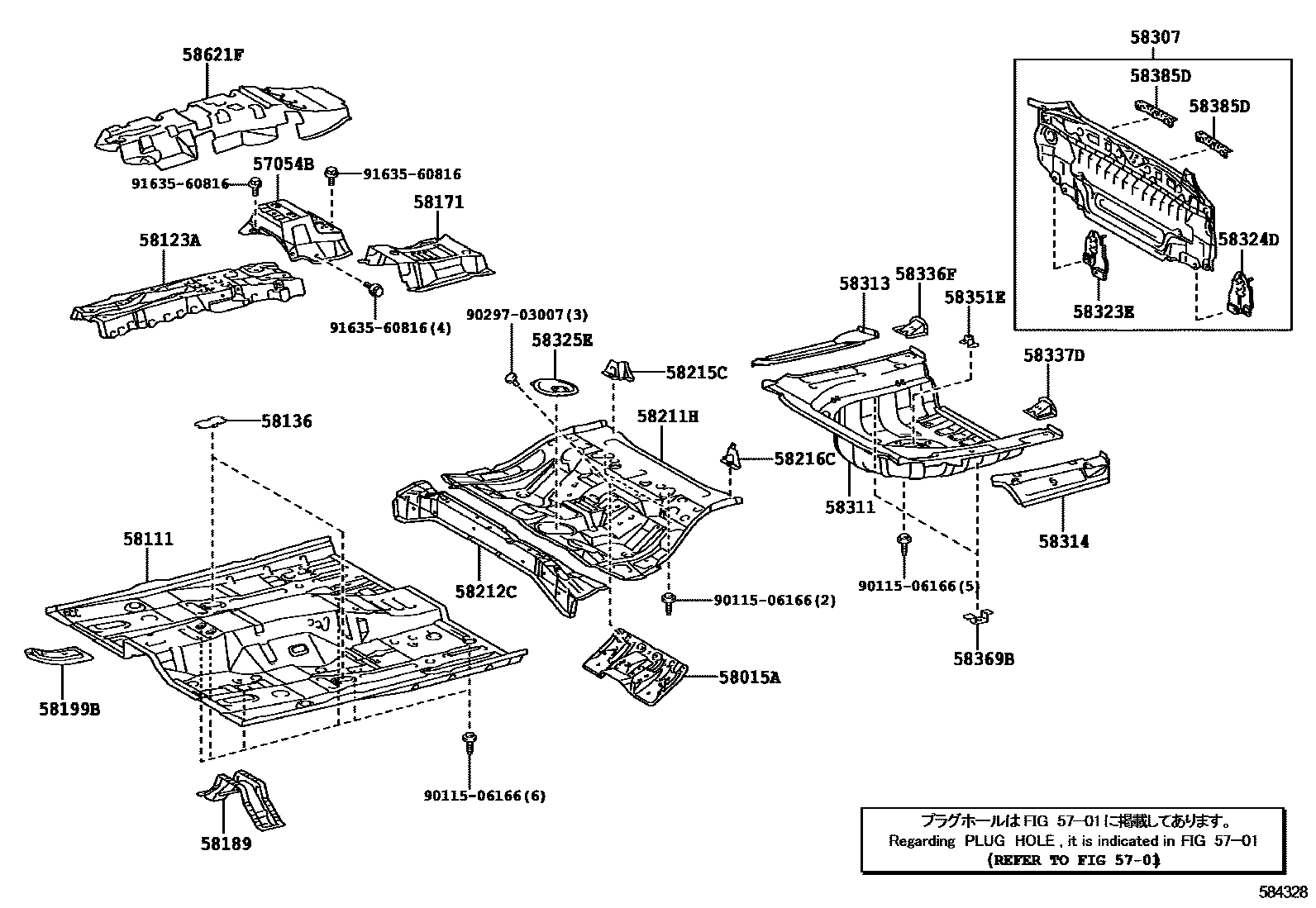

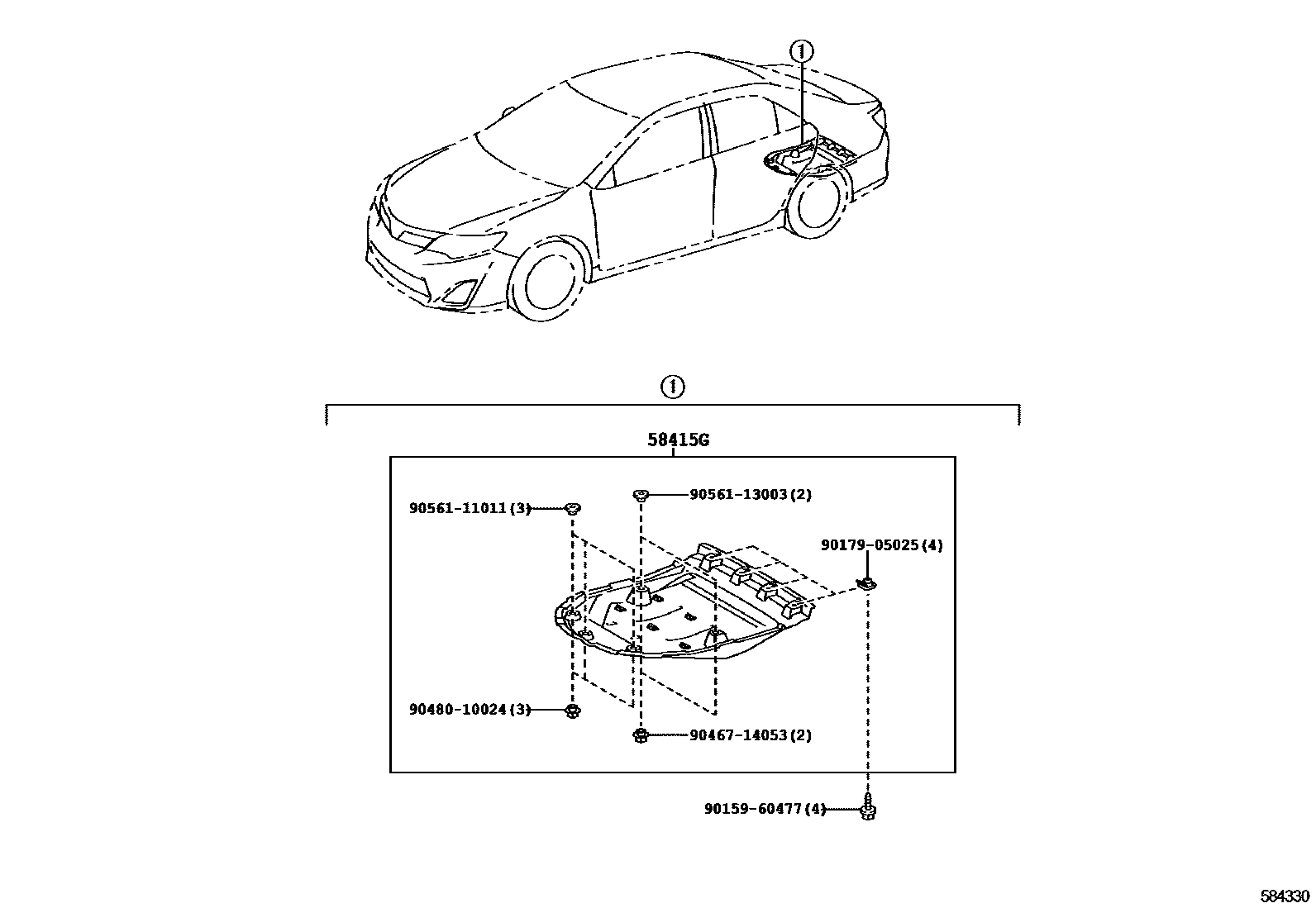

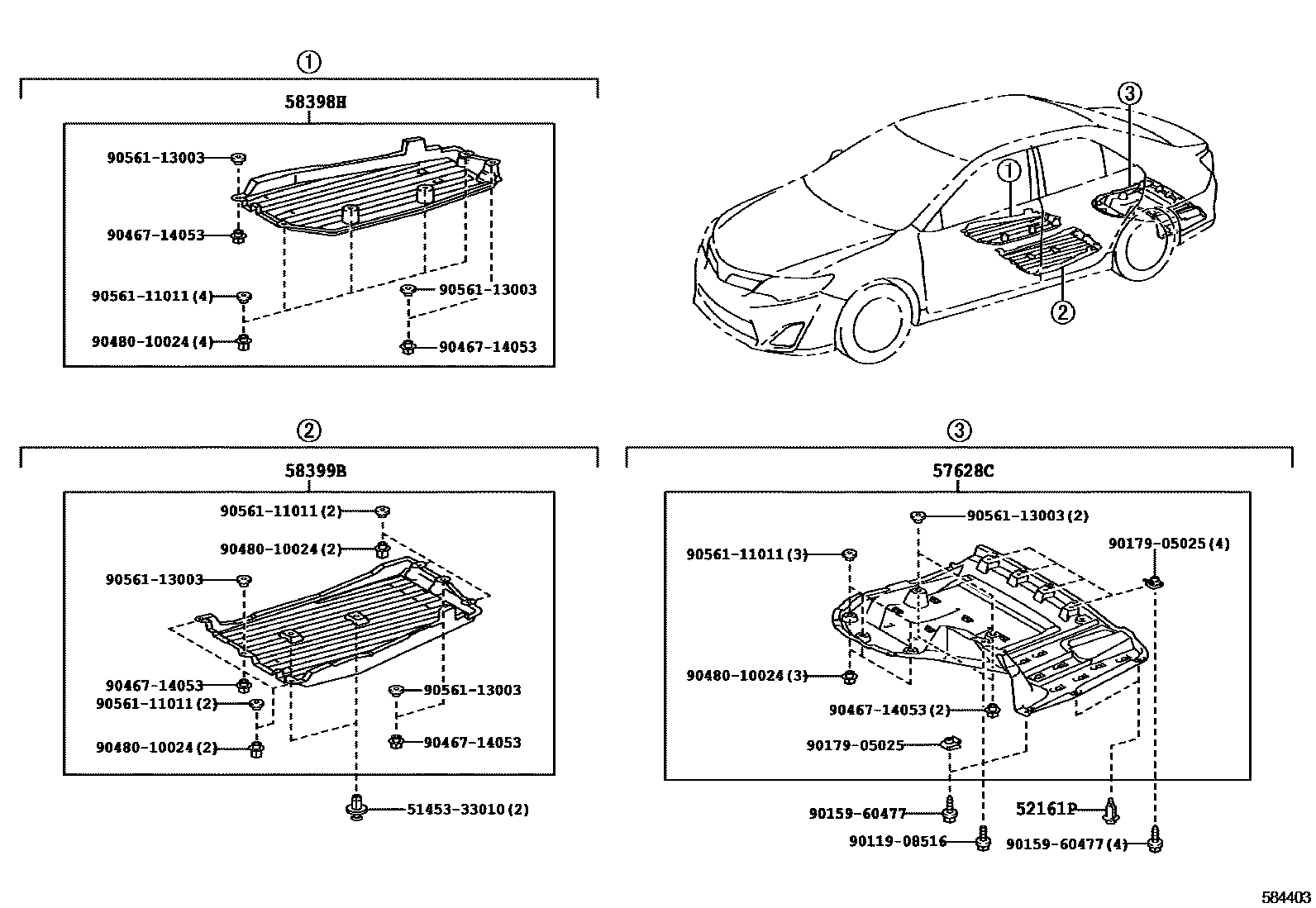

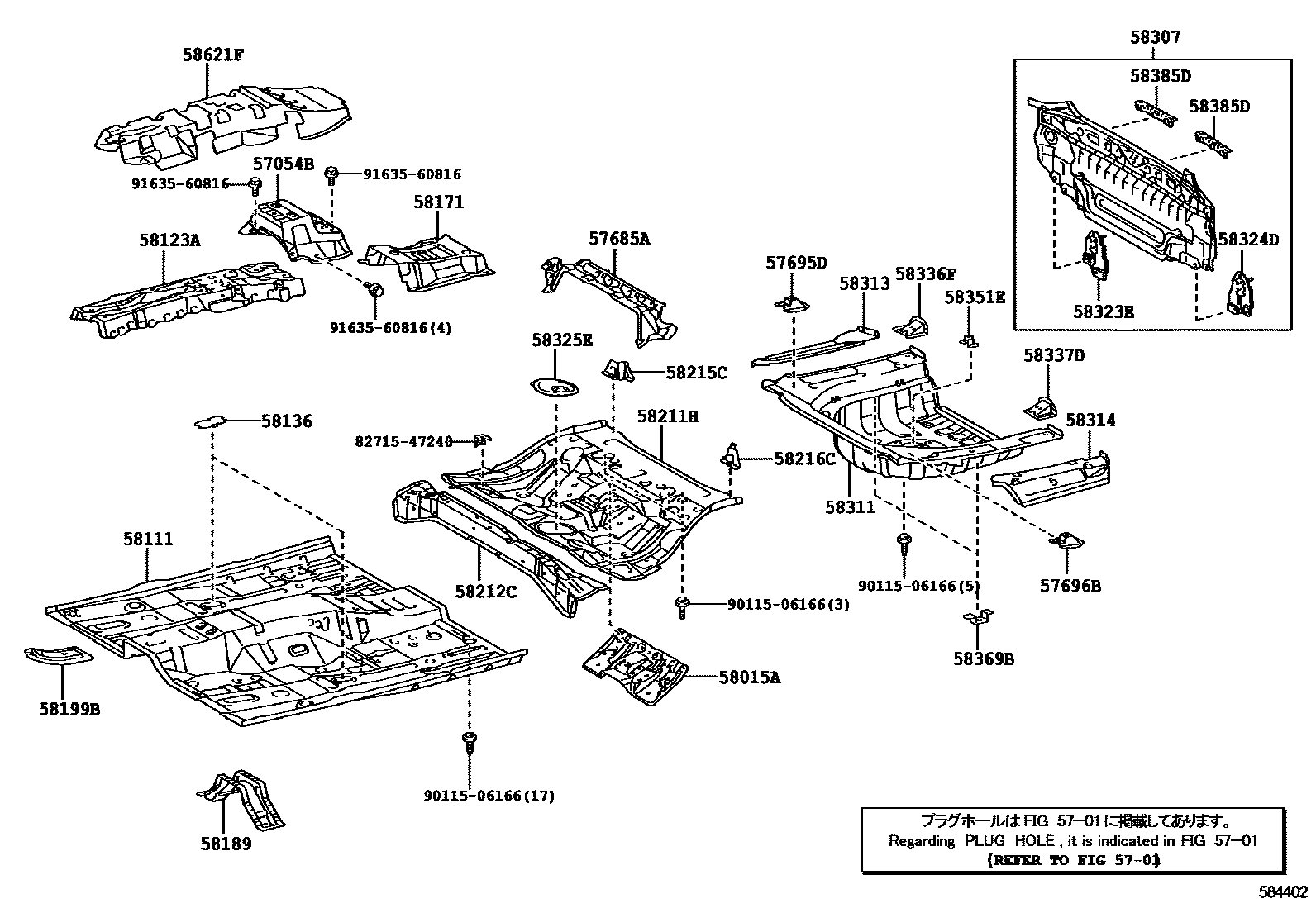

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 5 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161P | Rear bumper insert | 52161-16010 |
| 57054B | Floor No. 4 beam reinforcement sub-assembly | 57054-06050 |
| 57628C | Rear floor left longitudinal member cover | 57628-06080 · 57628-06160 |
| 57685A | Rear floor No. 1 right mounting bracket | 57685-33010 |
| 57695D | Rear floor No. 2 right mounting bracket | 57695-33020 |
| 57696B | Rear floor No. 2 left mounting bracket | 57695-33020 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-06080 · 58015-06100 |
| 58111 | front floor pan | 58111-06110 |
| 58123A | shift lever bracket | 58013-06111 |
| 58136 | Front floor hole cover | 58136-06020 |
| 58171 | Parking brake base reinforcement | 58171-06090 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-06130 |
| 58199B | Footrest reinforcement | 58199-06030 |
| 58211H | central floor base | 58211-06130 · 58211-06131 · 58211-06150 · 58211-06151 · 58211-06190 · 58211-06191 · 58211-06192 |
| 58212C | Center floor front floor | 58212-06050 |
| 58215C | Center floor No. 2 right reinforcement | 58215-33040 |
| 58216C | Center floor No. 2 left reinforcement | 58216-33030 |
| 58307 | Body lower back panel sub-assembly | 58307-06160 · 58307-33160 |
| 58311 | rear floor pan | 58311-06111 · 58311-06112 |
| 58313 | Rear floor right panel | 58313-06140 · 58313-06150 |
| 58314 | rear floor left panel | 58314-06130 |
| 58323E | Rear bumper arm right bracket reinforcement | 58323-06051 |
| 58324D | Rear bumper arm left bracket reinforcement | 58324-06051 |
| 58325E | Rear floor access hole cover | 58325-06030 |
| 58336F | Rear floor bottom panel right reinforcement | 58336-06050 |
| 58337D | Rear floor bottom left reinforcement | 58337-06040 |
| 58351E | Spare tire clip bracket | 58351-YC010 |
| 58369B | No. 3 fuel pipe bracket | 58369-33010 |
| 58385D | Rear bumper cover bracket | 58385-06090 |
| 58398H | No. 1 floor under cover | 58398-33010 |
| 58399B | Floor No. 2 lower cover | 58399-33011 |
| 58415G | Rear floor panel No. 1 | 58415-06050 |
| 58621F | Center console silencer No. 1 | 58621-06110 · 58621-06180 |
