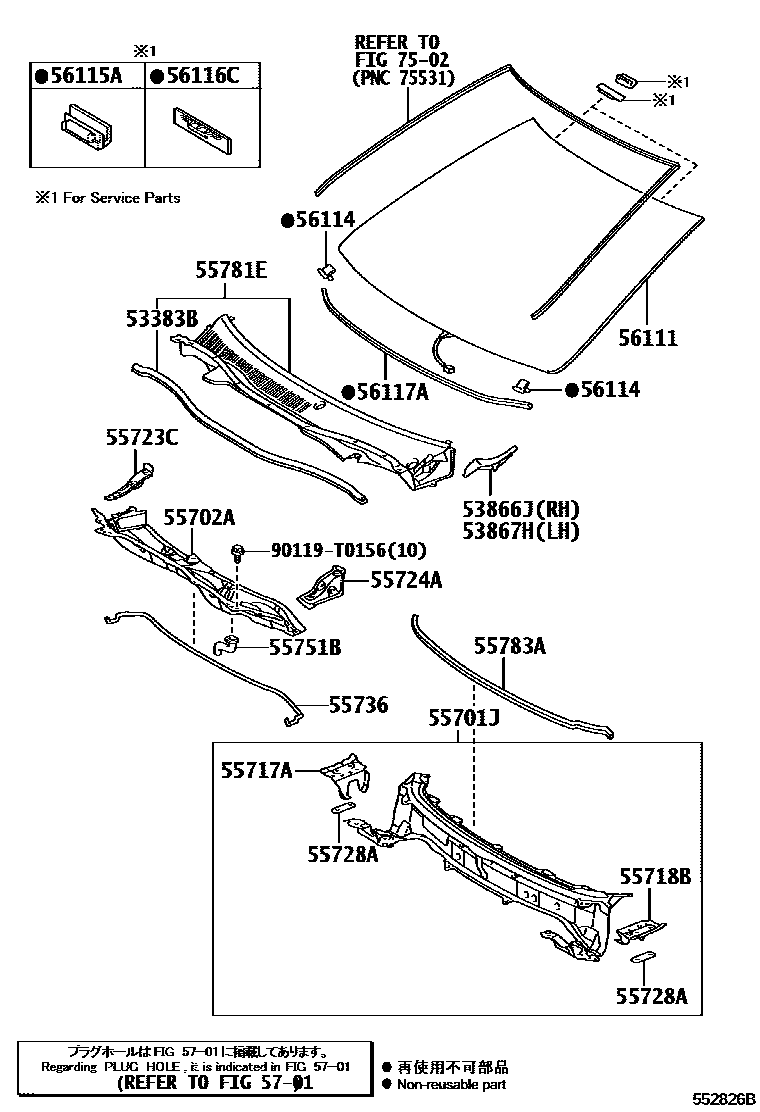

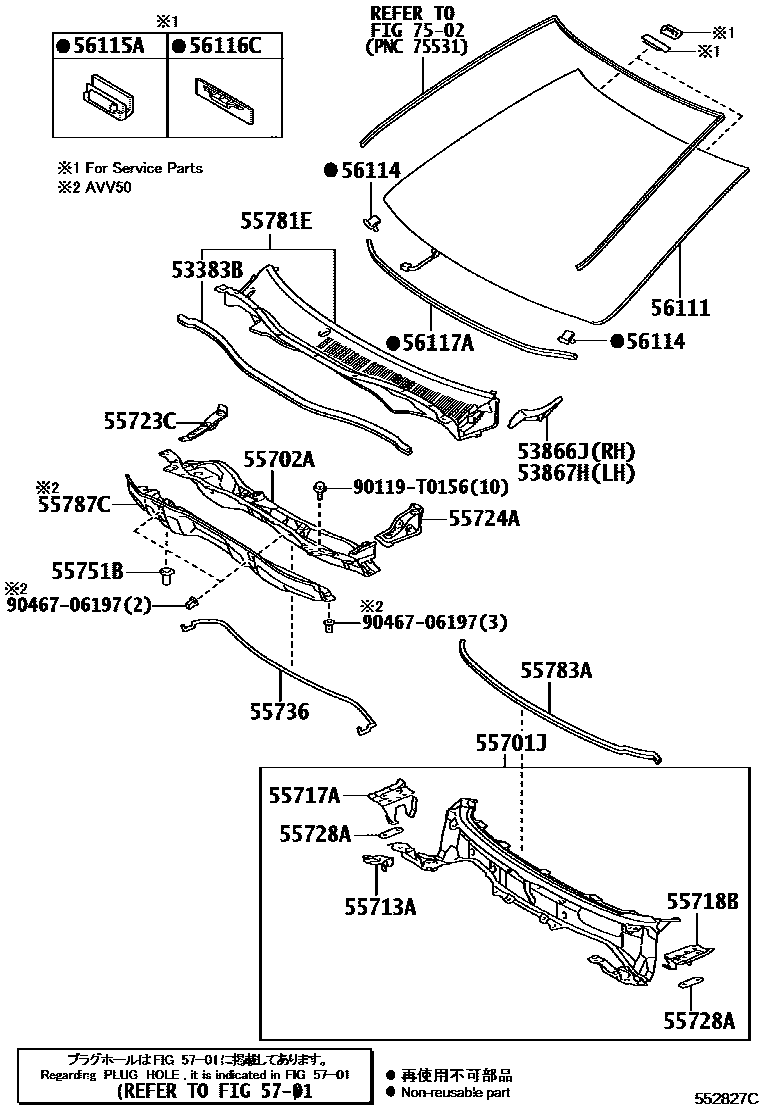

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-06130 |
| 53866J | Right front fender to cowl side seal | 53866-06070 · 53866-06120 |
| 53867H | Left front fender to cowl side seal | 53867-06070 · 53867-06121 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-06200 · 55701-06210 |
| 55702A | Front cowl upper outer front panel sub-assembly | 55702-06130 · 55702-06140 · 55702-06150 |
| 55713A | Right front wall upper side panel | 55713-06090 |
| 55717A | Upper right inner panel of cowl | 55717-06130 |
| 55718B | Upper left inner panel of front wall | 55718-06130 |
| 55723C | Right front wall upper side reinforcement | 55723-06120 · 55723-06130 |
| 55724A | Left front wall upper side reinforcement | 55724-06130 |
| 55728A | Engine cover block reinforcement | 55728-06100 |
| 55736 | Waterproof cover plate seal | 55736-06040 · 55736-06090 |
| 55751B | Front no. 1 water hose | 55751-33040 · 55751-33050 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-06150 · 55708-06160 |
| 55783A | Front cowl upper cover silencer pad | 55783-06100 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-06040 · 55787-06080 · 55787-33100 |
| 56111 | windshield | 56101-06965 · 56101-06966 · 56111-06900 · 56111-06901 · 56111-06902 · 56111-06903 · 56111-06904 |
| 56114 | windshield stopper | 56114-33050 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
