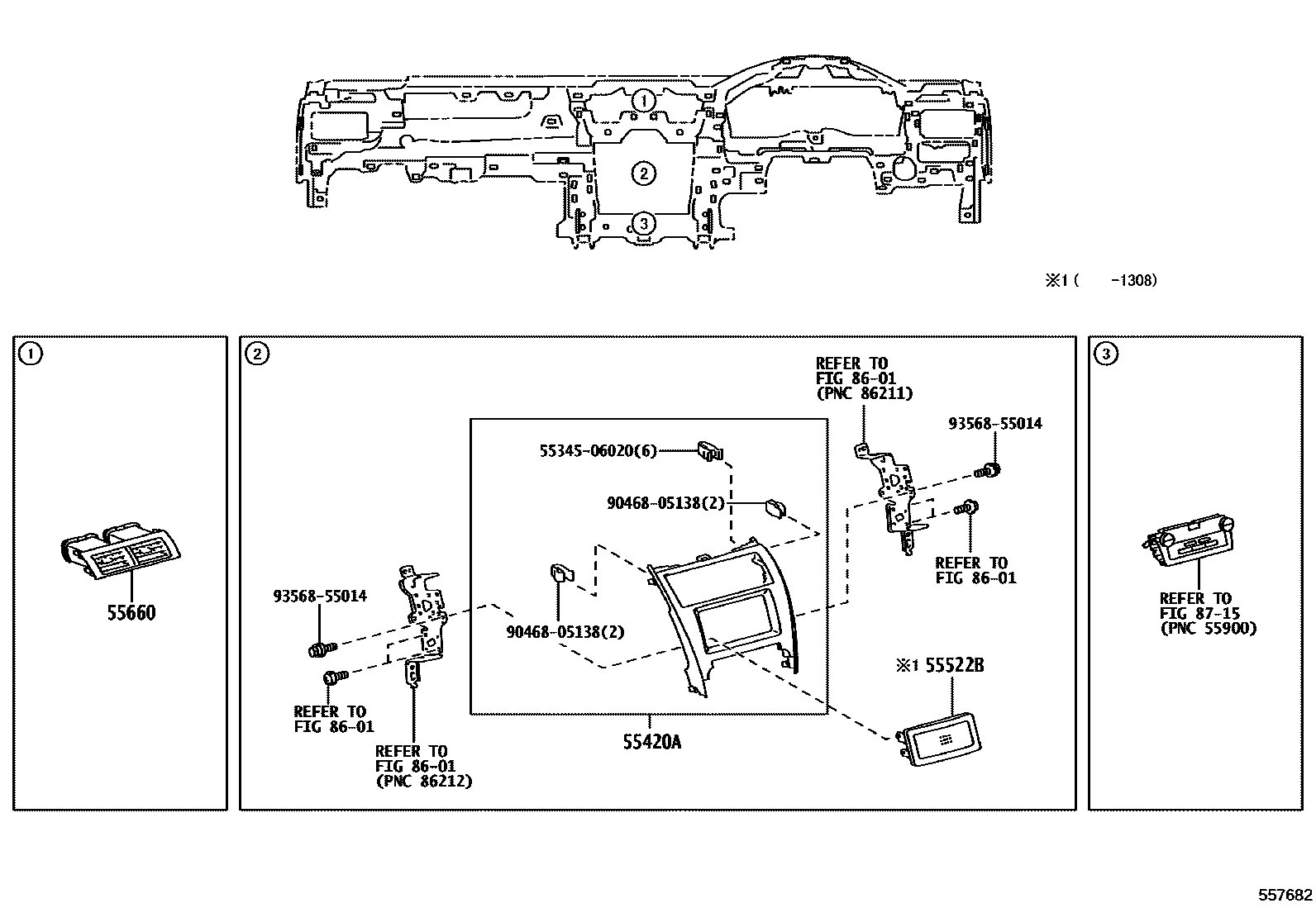

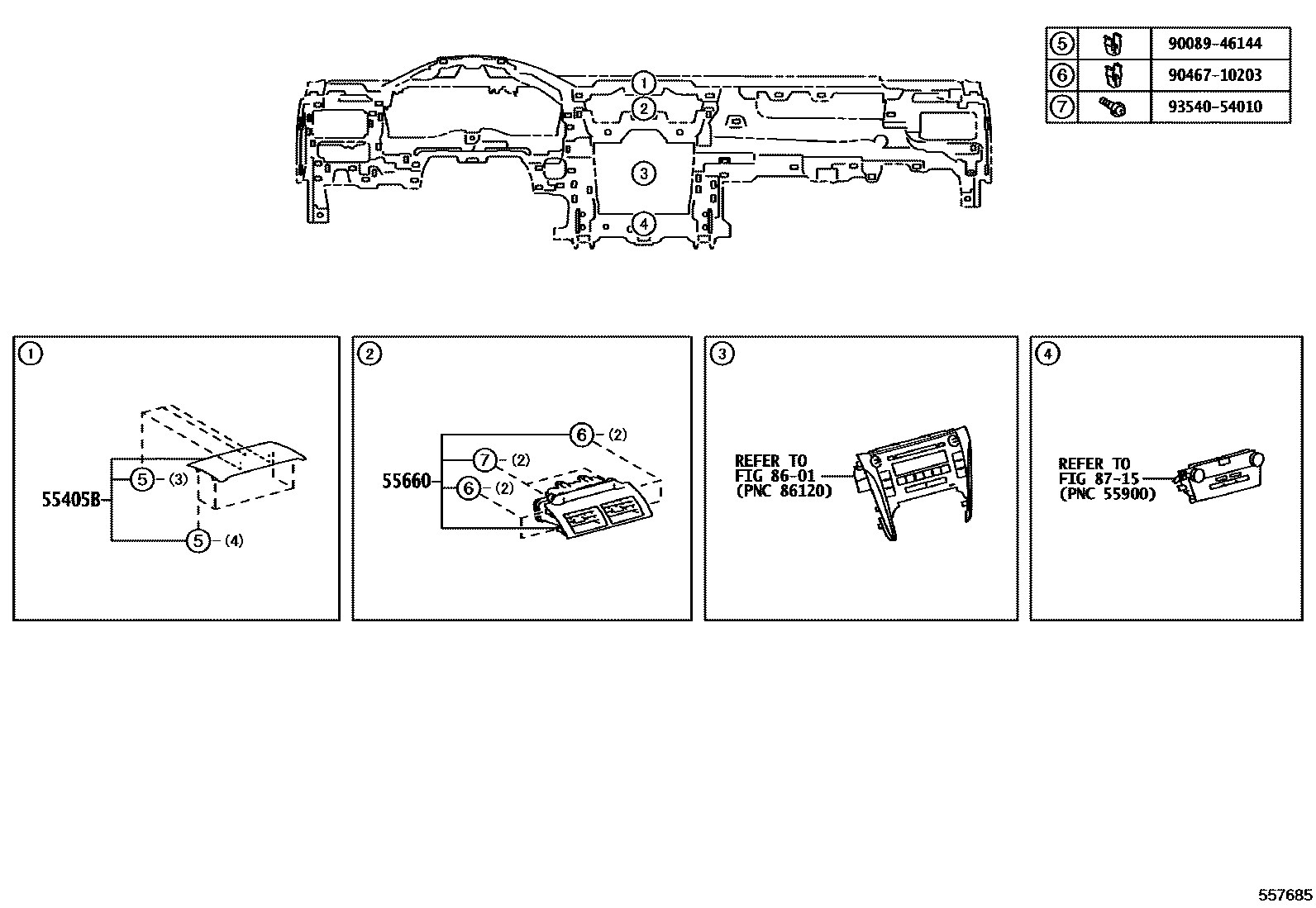

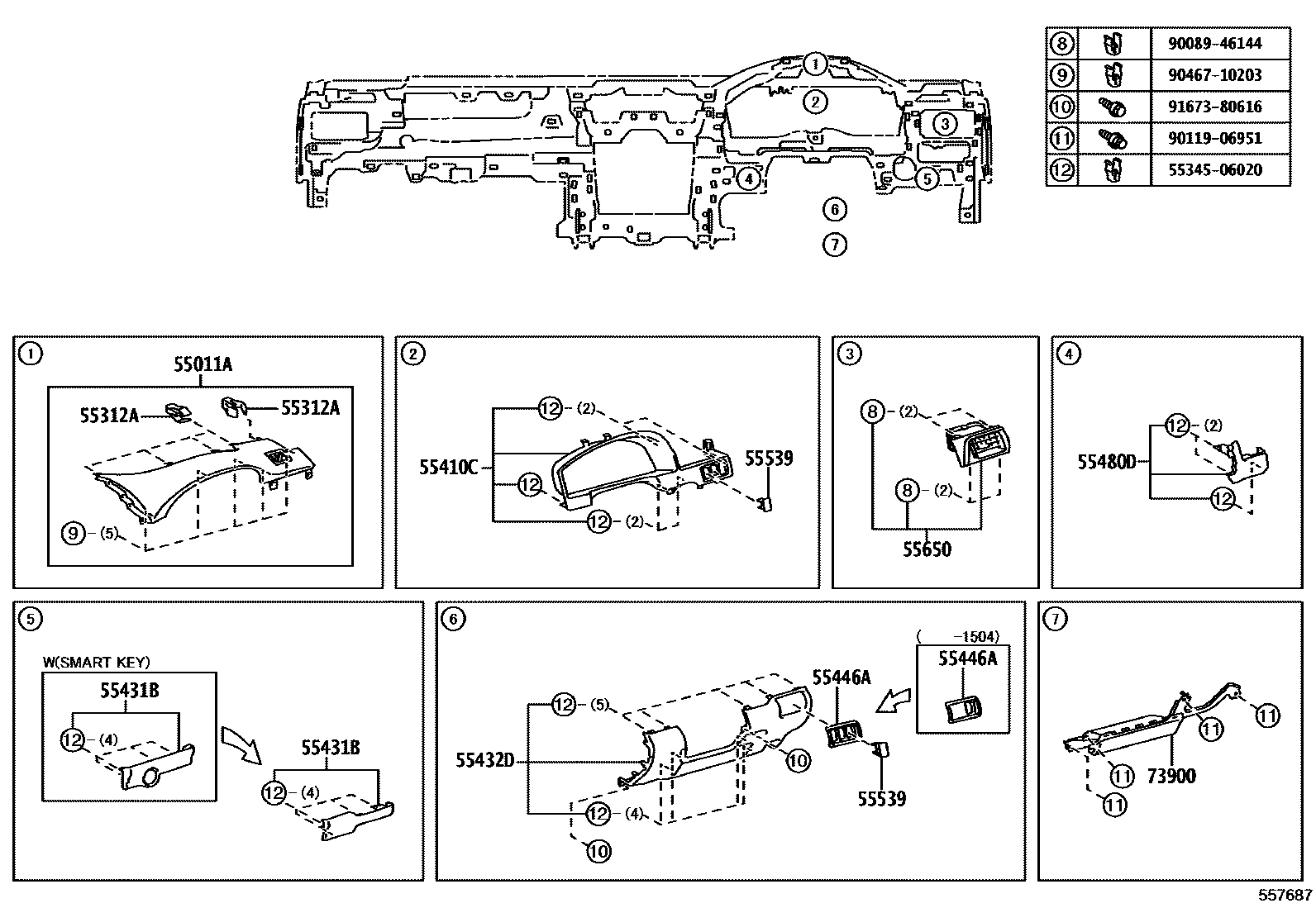

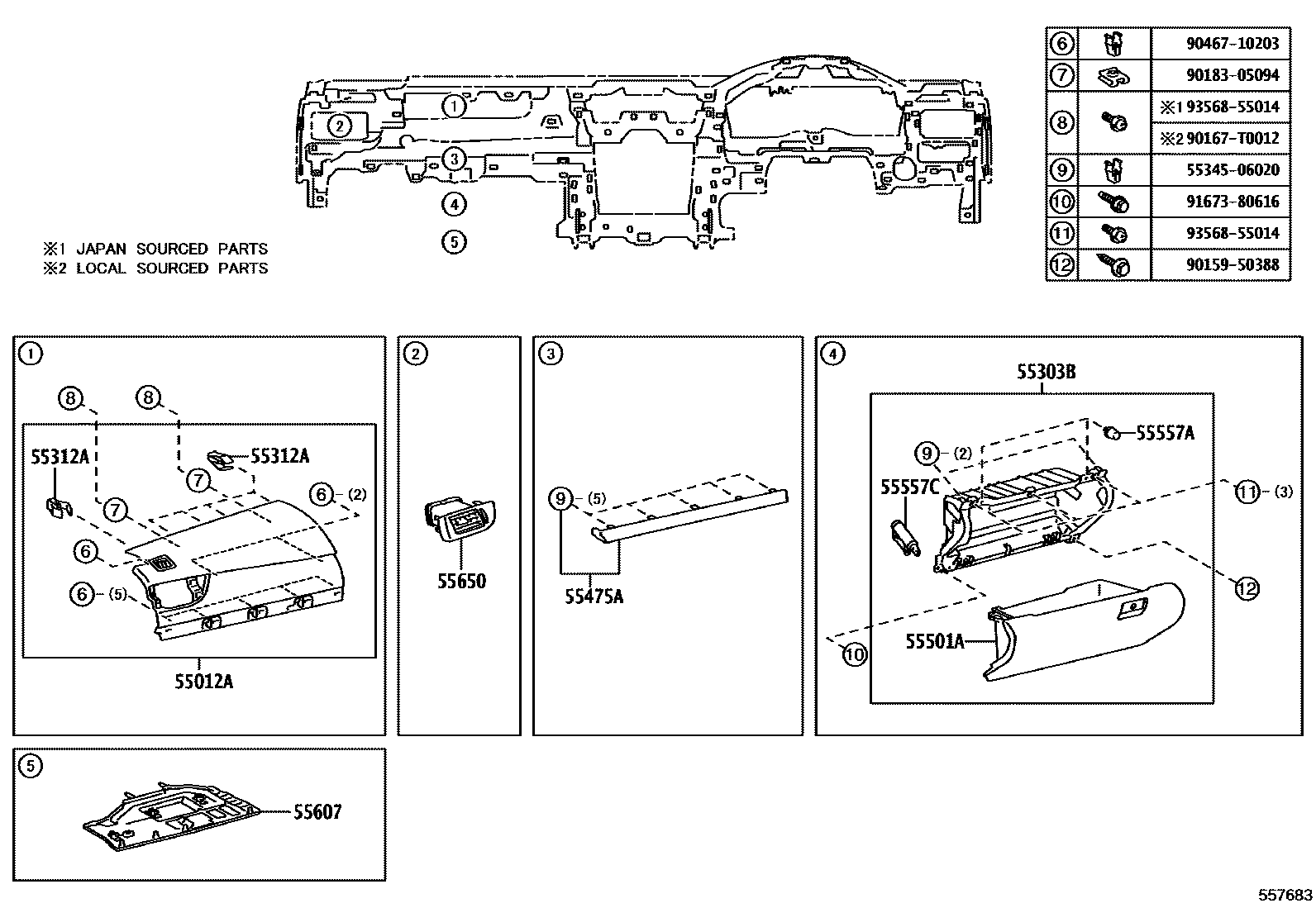

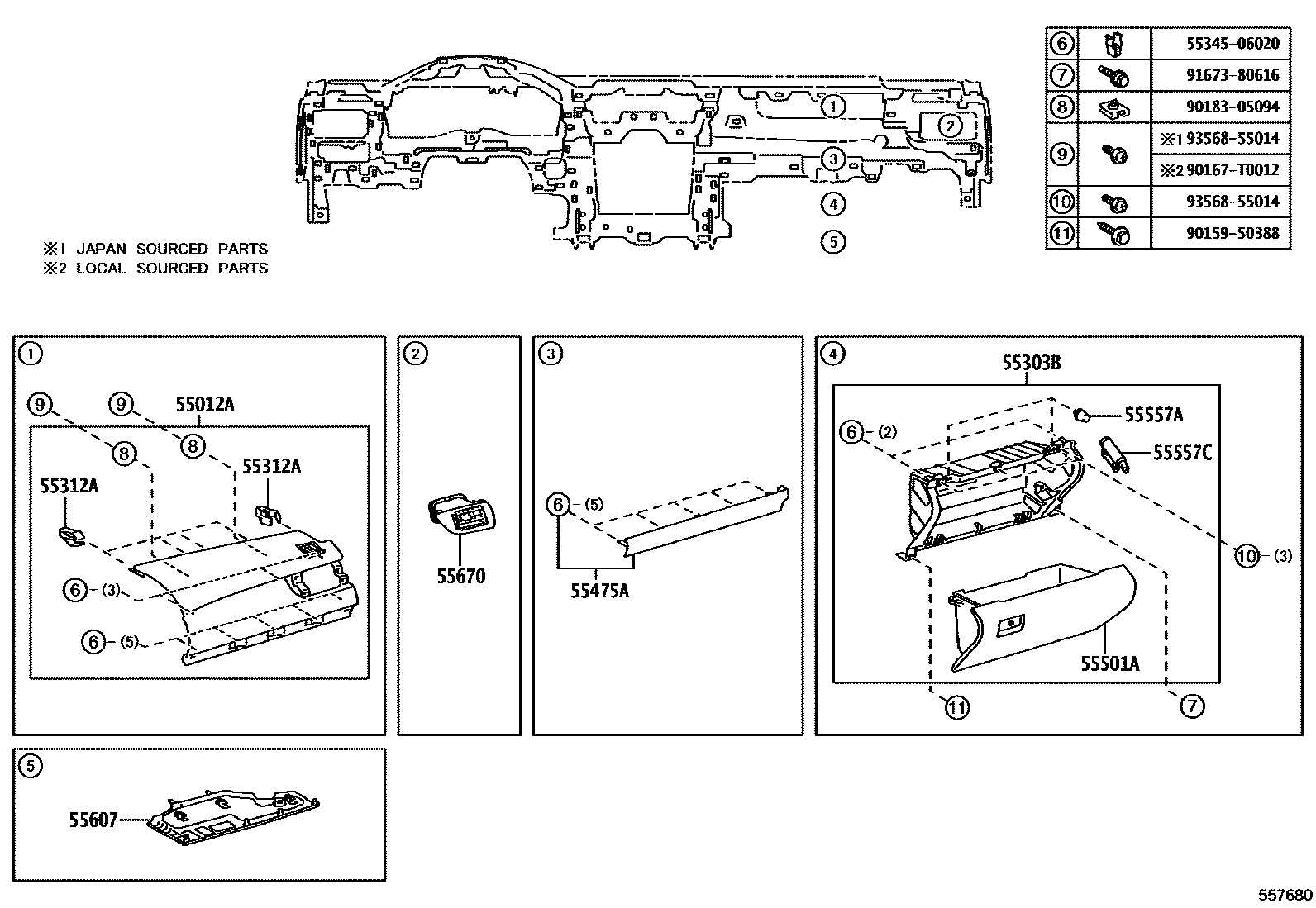

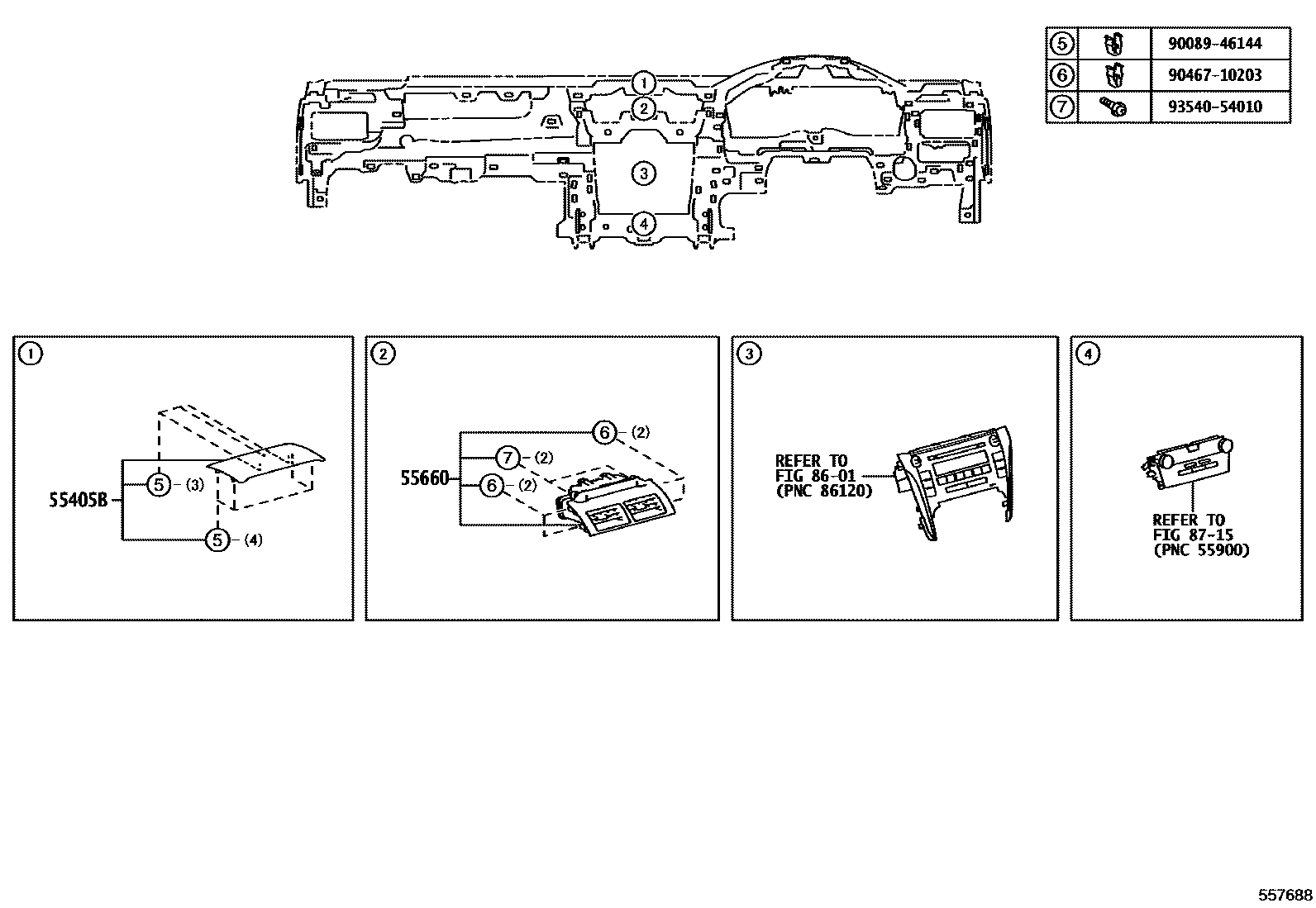

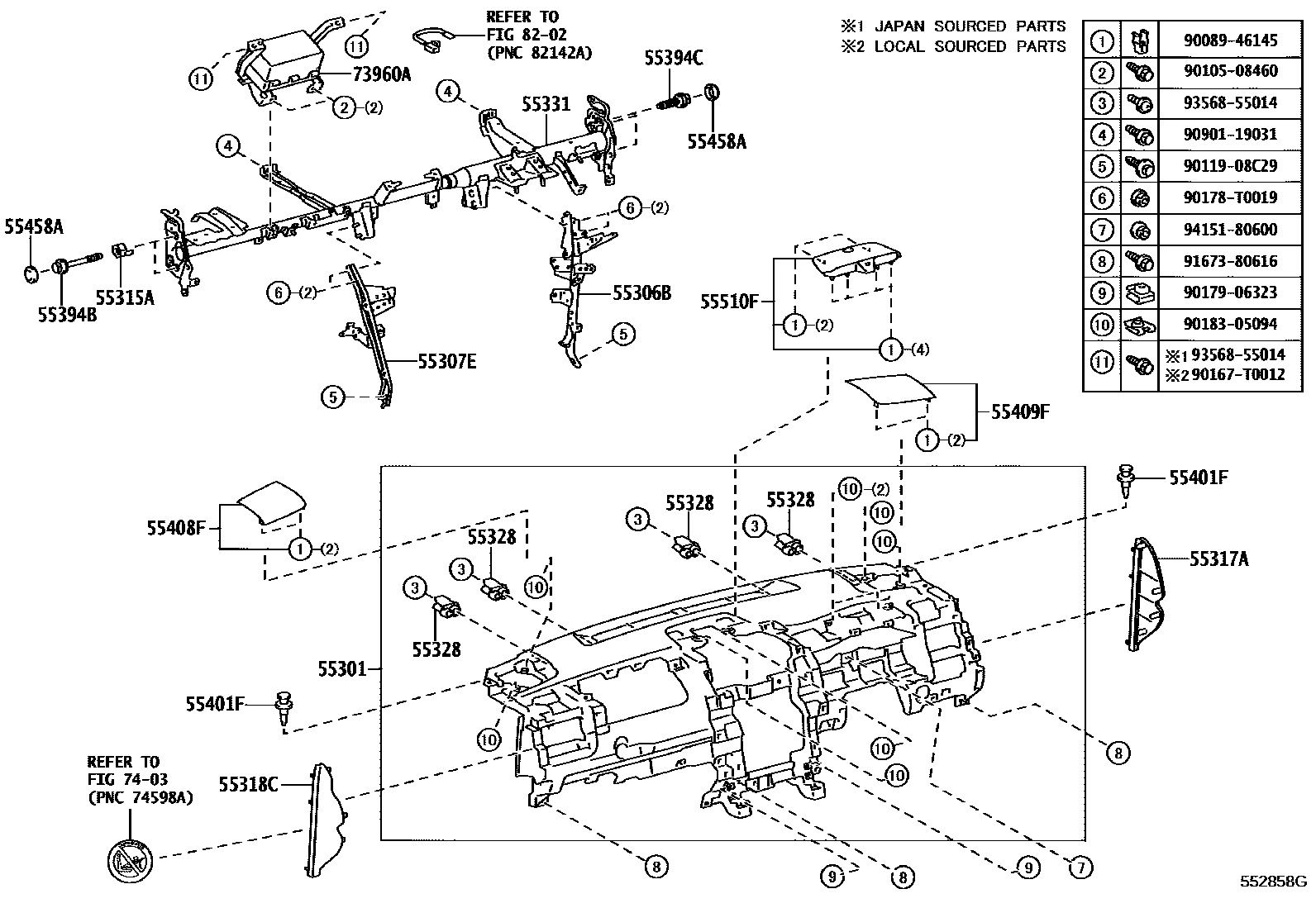

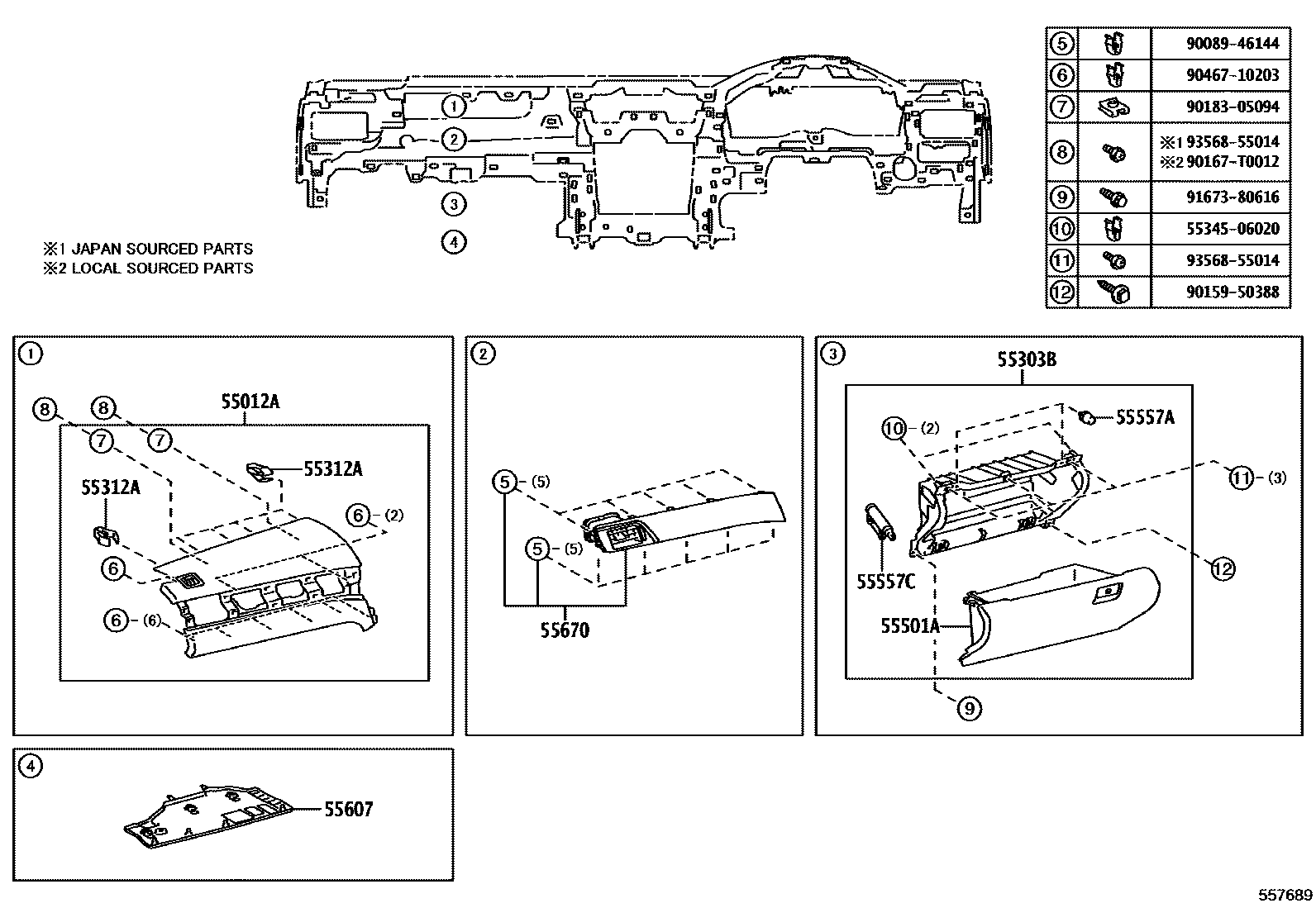

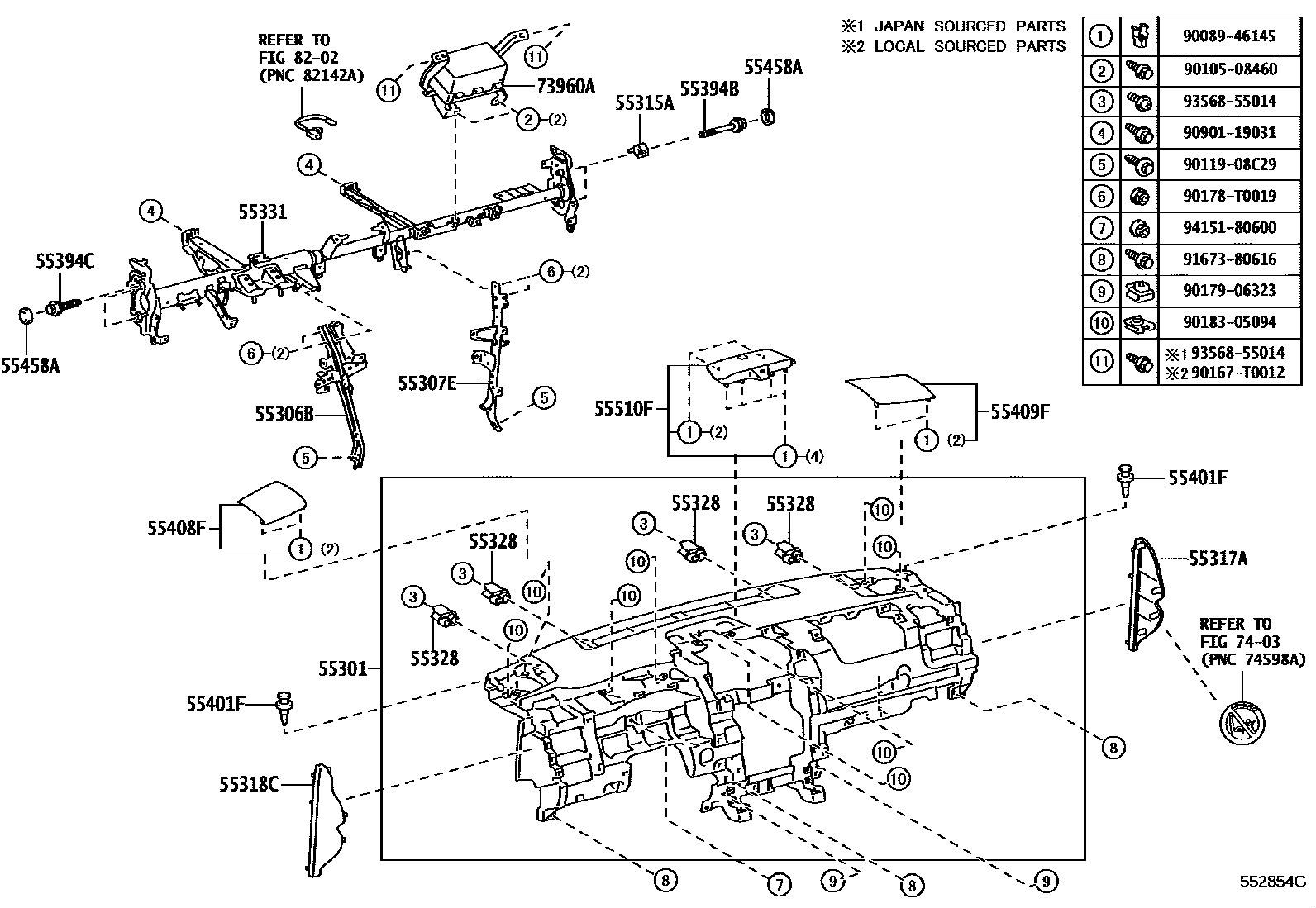

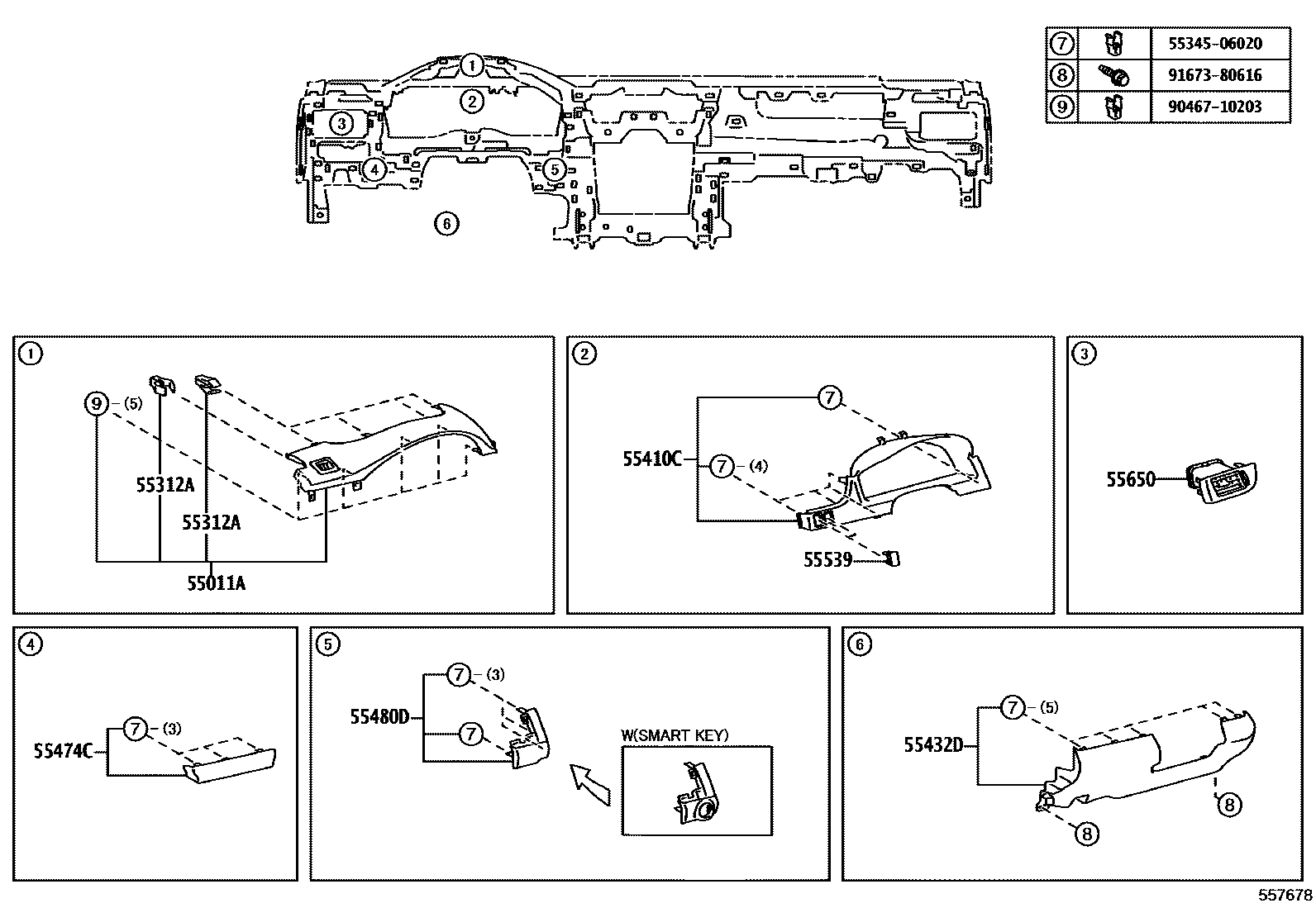

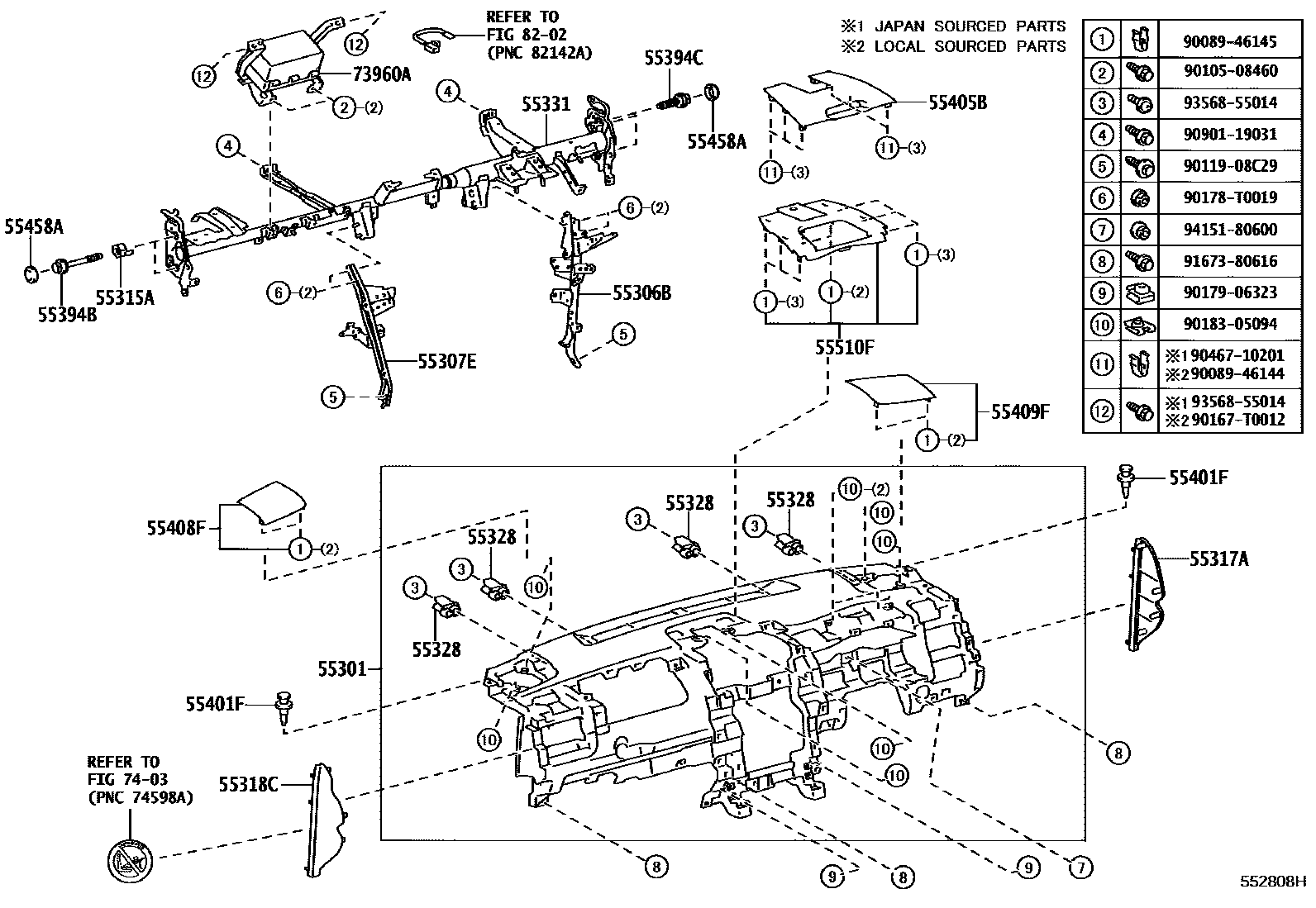

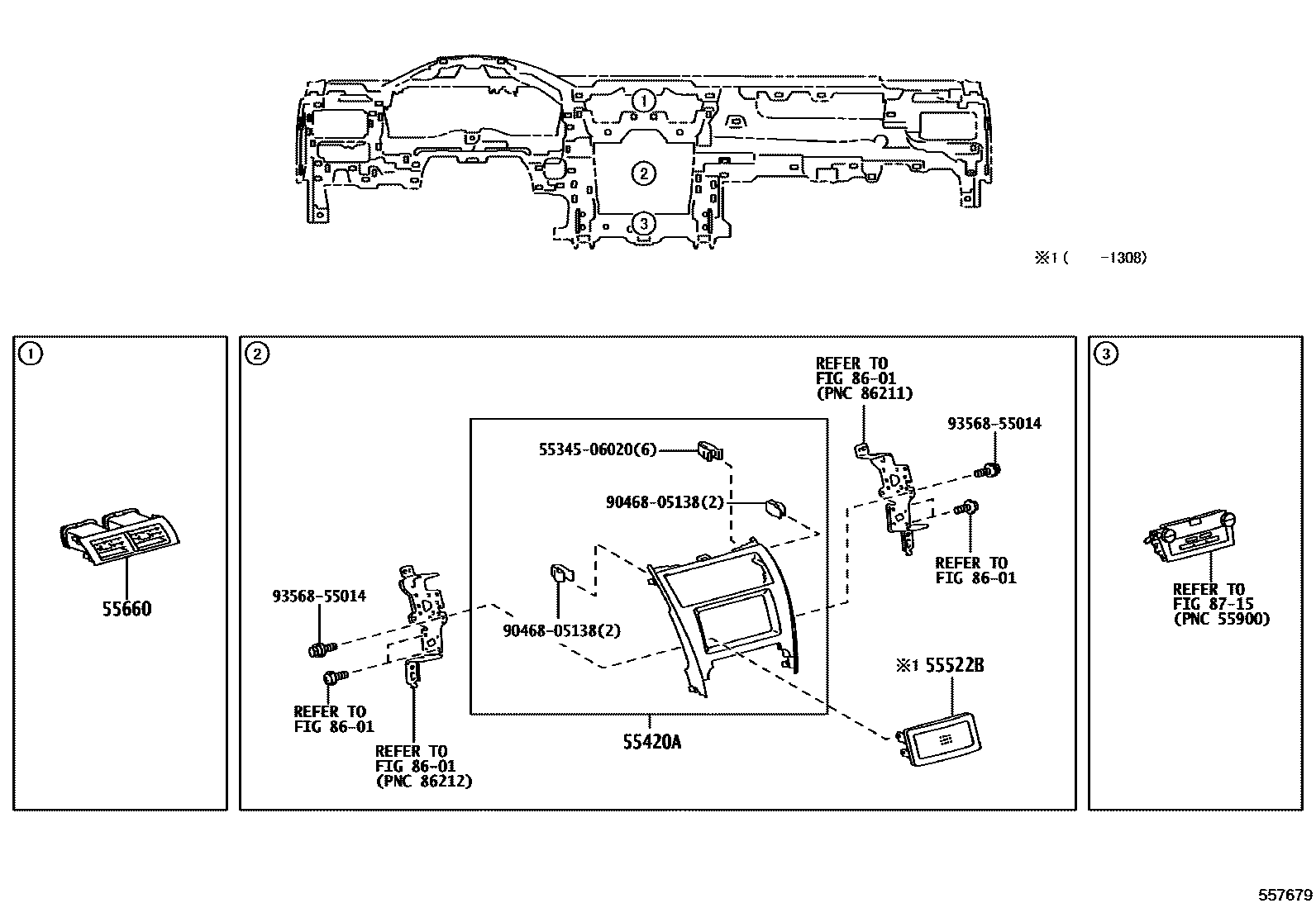

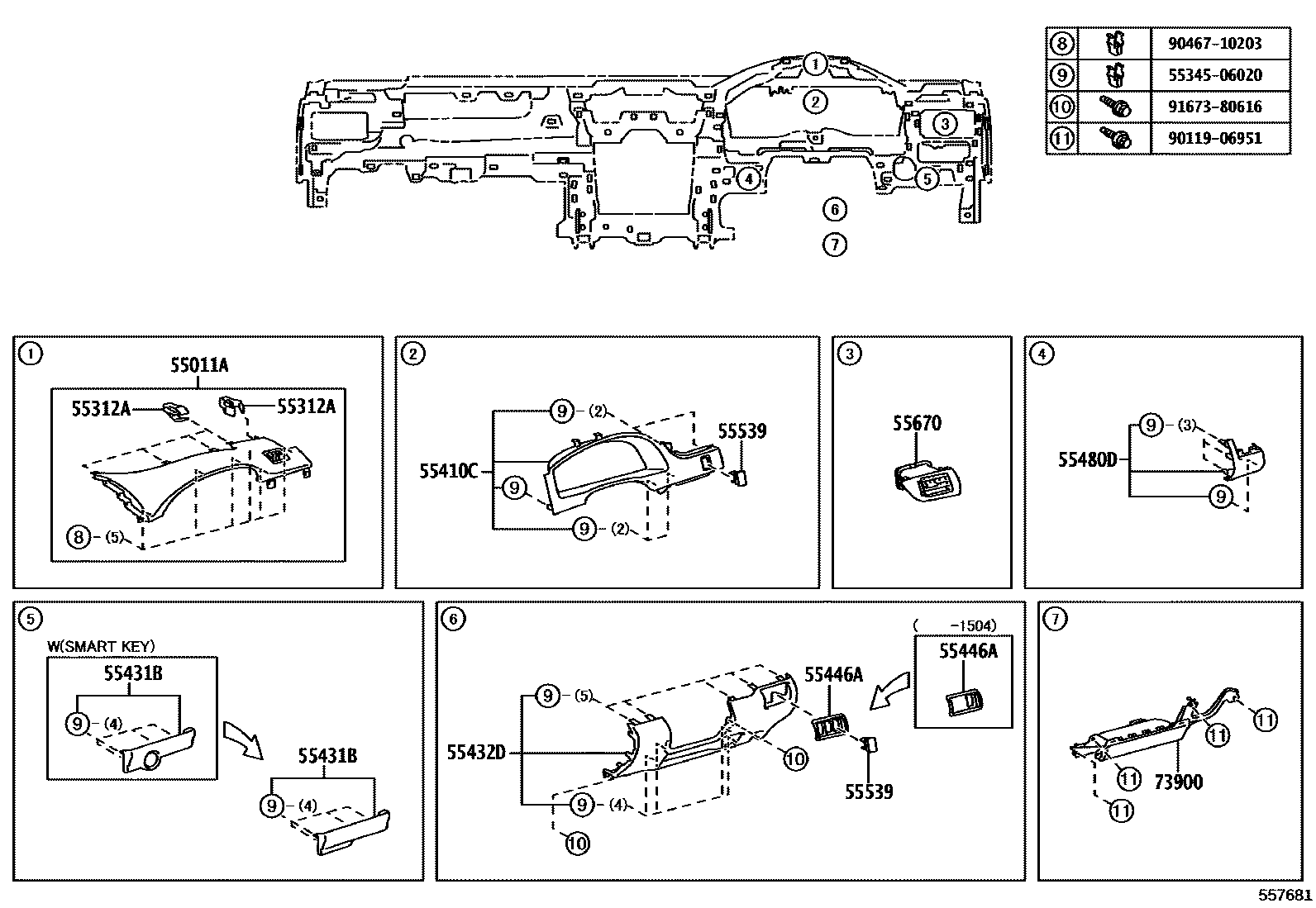

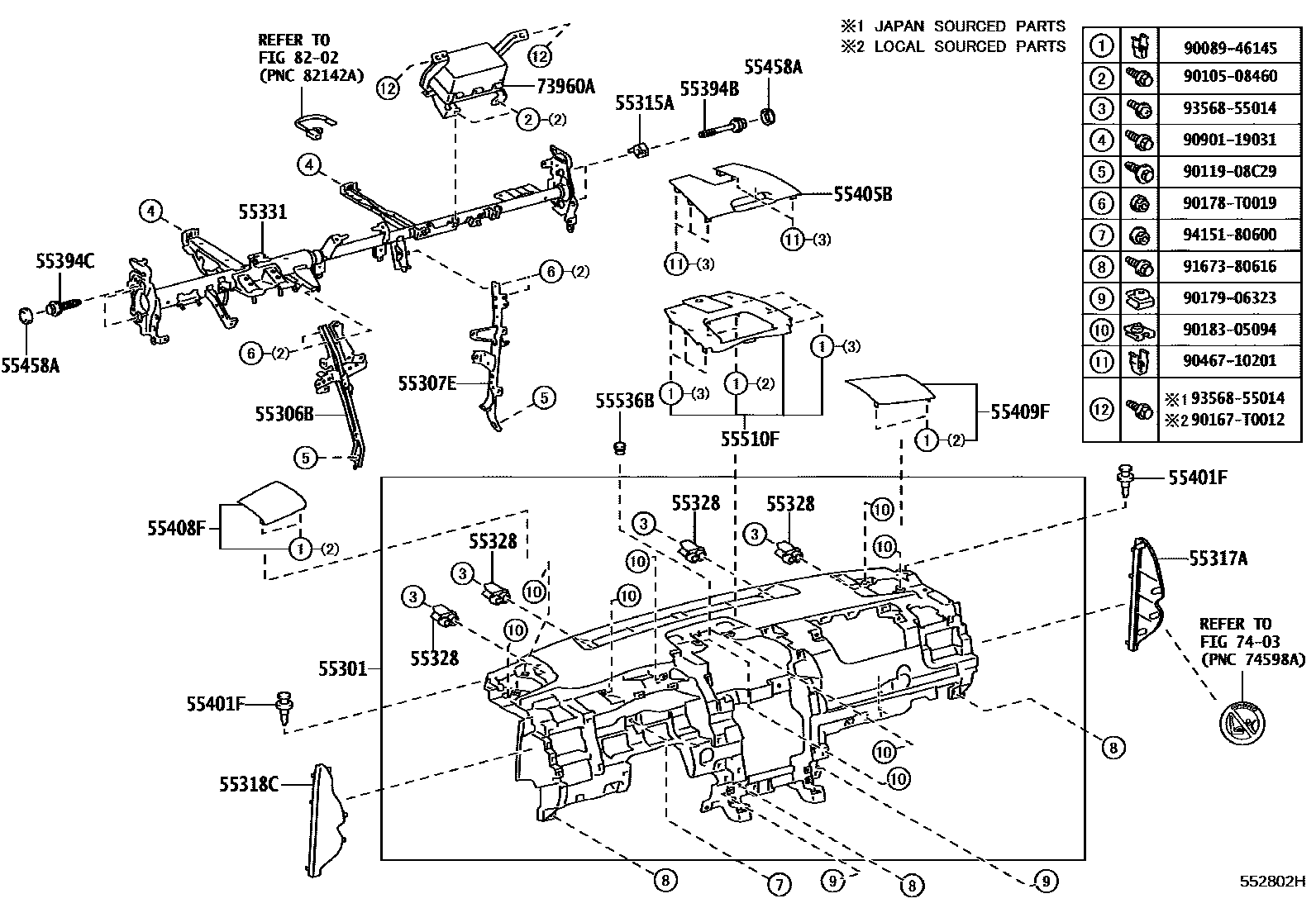

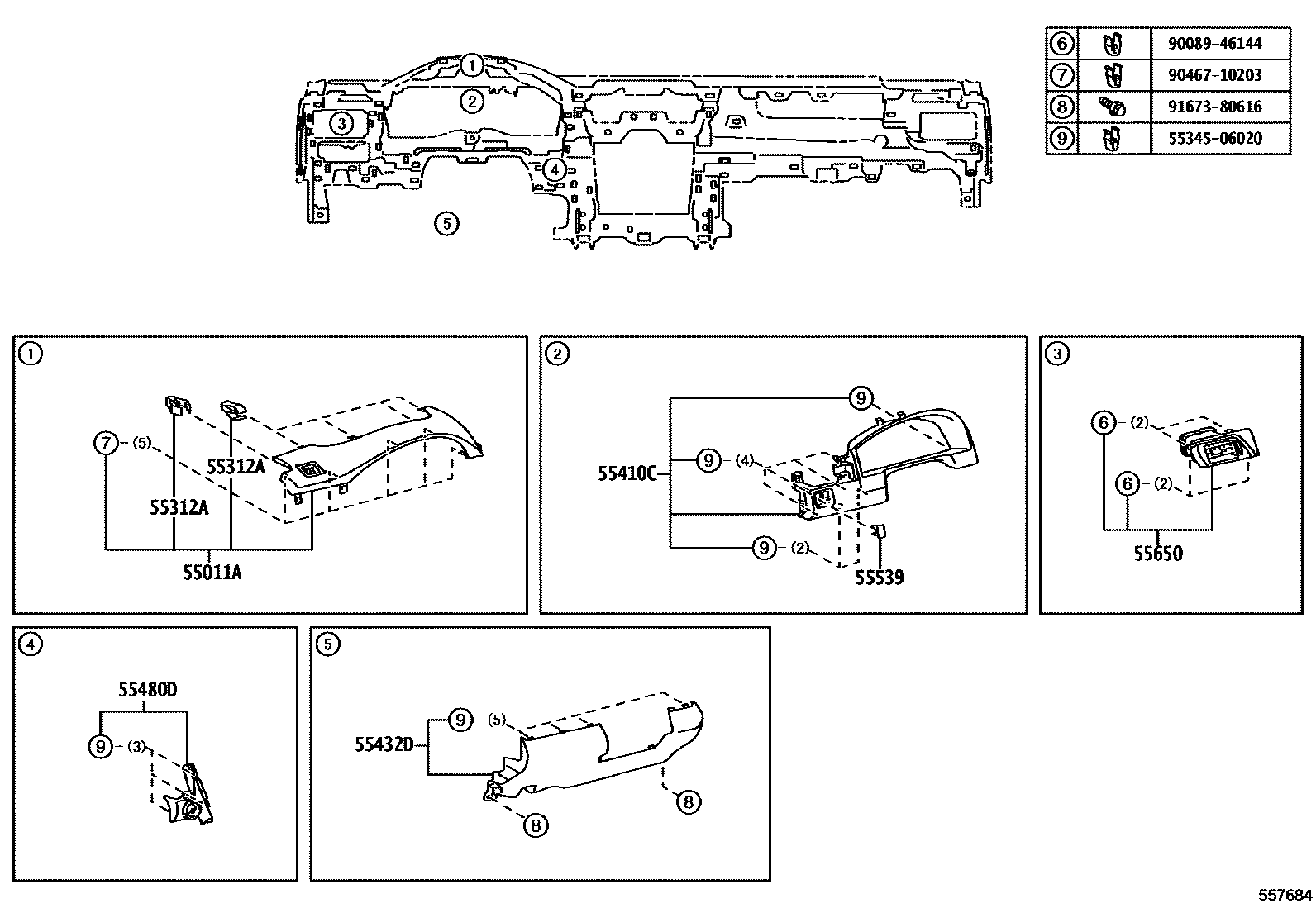

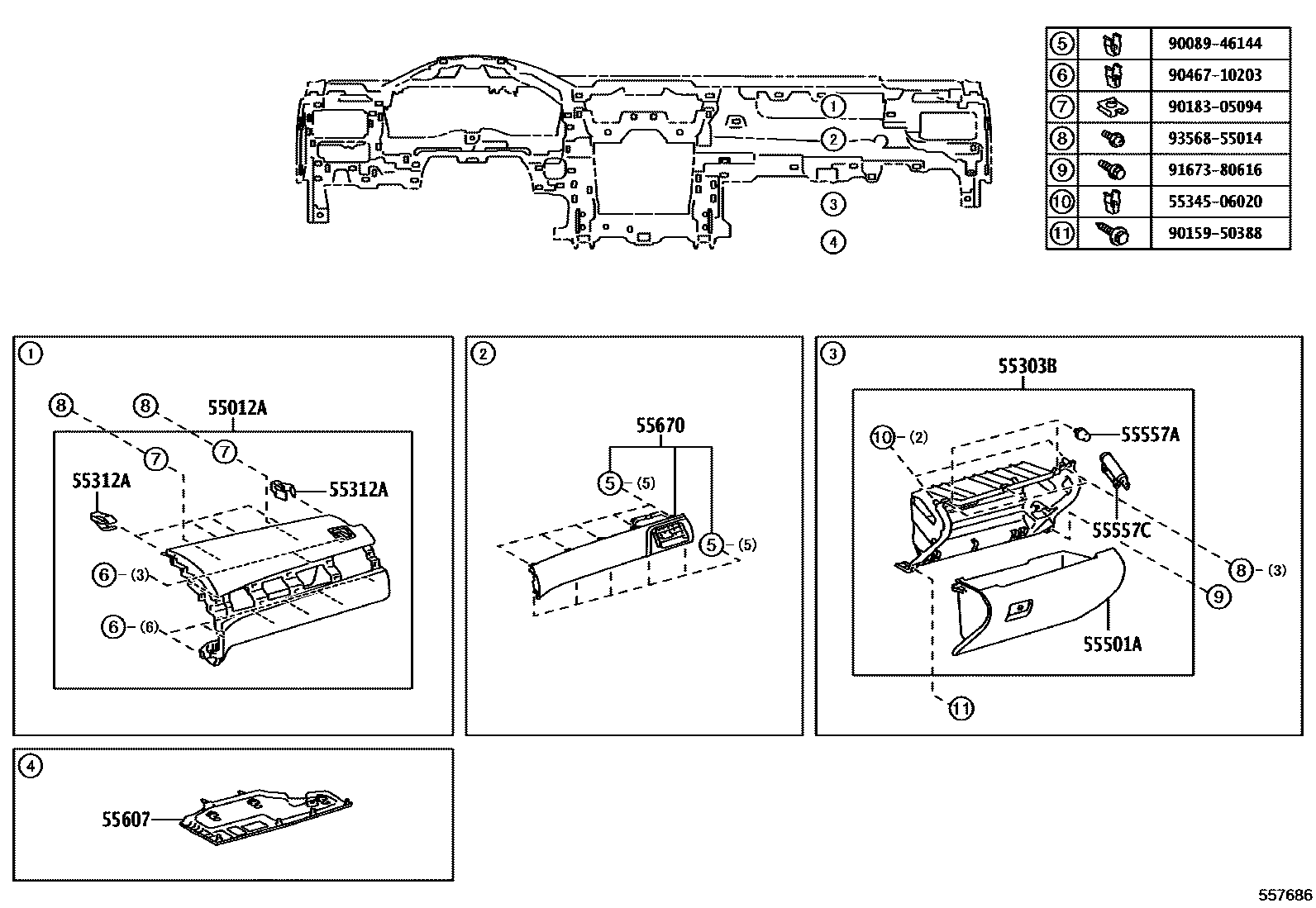

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 16 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306B | Dashboard to cowl bracket sub-assembly | 55306-06080 · 55306-06090 |
| 55307E | Instrument panel No. 2 bracket sub-assembly | 55307-06080 · 55307-06090 |
| 55315A | Instrument panel spacer No. 1 | 55315-48160 |
| 55328 | Instrument panel pin 1 | 55328-60090 |
| 55331 | Dashboard reinforcement | 55330-06310 · 55330-06320 · 55330-06440 |
| 55394B | Dashboard bolts | 90119-T0358 |
| 55394C | Dashboard bolts | 90119-T0357 |
| 55401F | Clip (for safety mat) | 52161-02020 · 52161-16010 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-06150 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-06050 |
| 55458A | Dashboard safety pad cover | 55458-22110 |
| 55522B | Radio tuner opening cover | 55522-0K010 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55557C | Glovebox lid damper | 55054-20020 · 55054-47010 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-06060 · 55607-06140 · 55607-06180 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-06190 |
