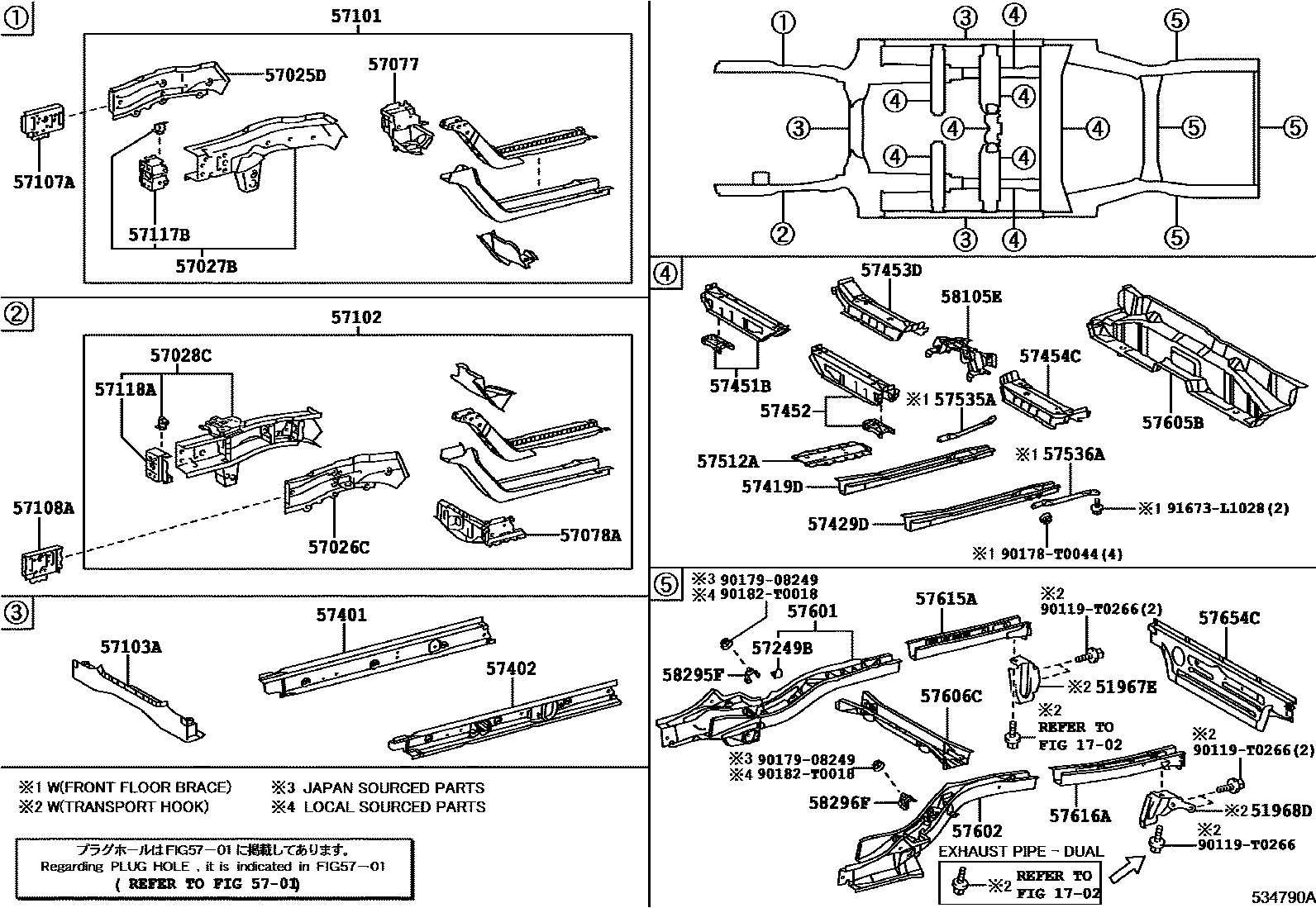

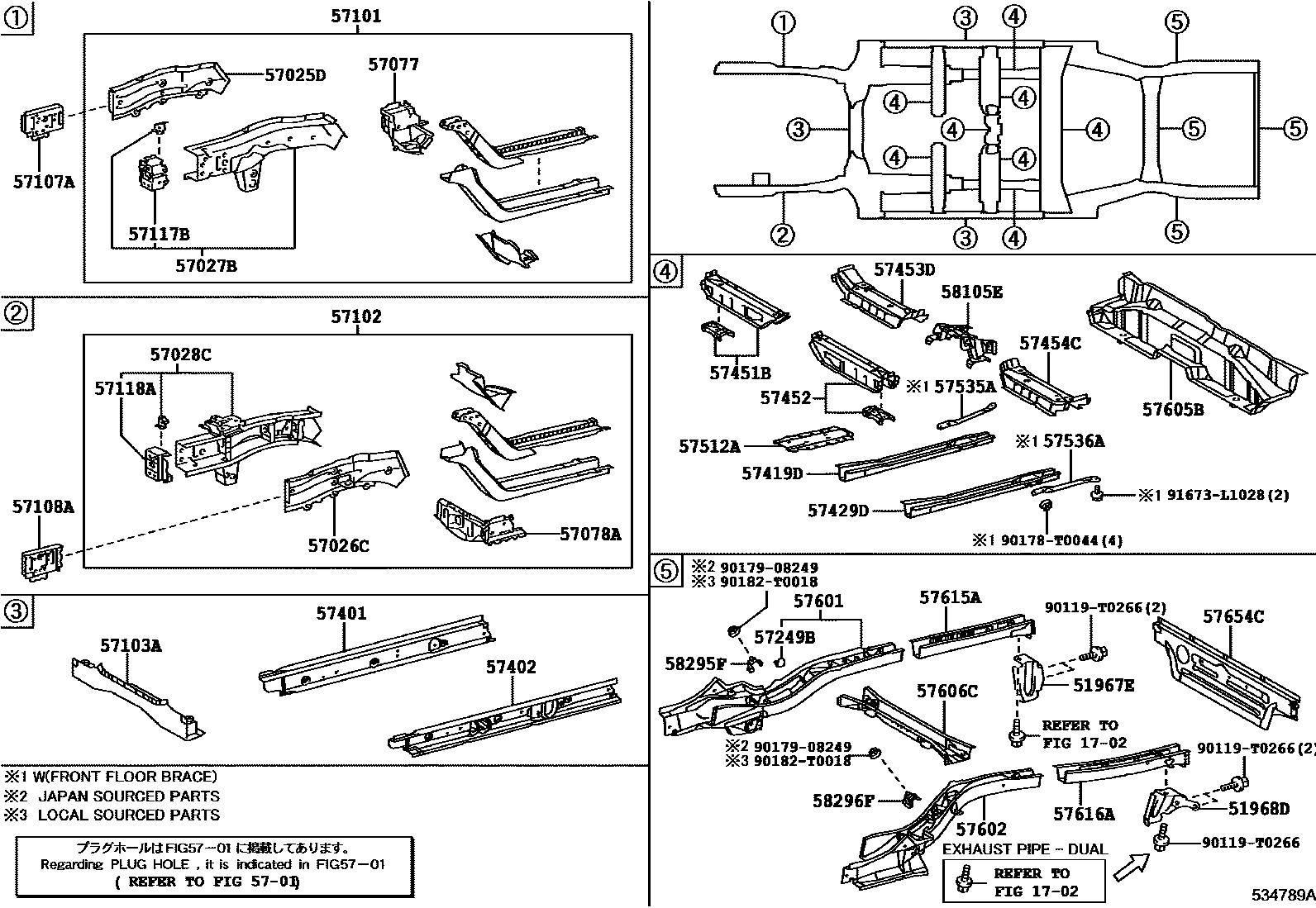

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51967E | right rear transport hook | 51967-06030 |
| 51968D | Left rear transport hook | 51968-06040 |
| 57025D | Right front outer longitudinal beam sub-assembly | 57025-06070 |
| 57026C | Left front outer longitudinal beam sub-assembly | 57026-06070 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-06031 |
| 57028C | Left front inner longitudinal beam sub-assembly | 57028-06111 |
| 57077 | Right front anti-torsion box-section sub-assembly | 57077-06070 |
| 57078A | Left front anti-torsion box-section sub-assembly | 57078-06070 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-06181 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-06221 |
| 57103A | Floor No. 3 beam sub-assembly | 57103-06120 · 57103-06130 |
| 57107A | No. 2 right front longitudinal beam plate sub-assembly | 57107-06031 |
| 57108A | No. 2 left front longitudinal beam plate sub-assembly | 57108-06021 |
| 57117B | Install reinforcement on the right side of the front bumper | 57117-33050 |
| 57118A | Install reinforcement on the left side of the front bumper | 57118-33050 |
| 57249B | No. 1 Flexible Hose Bracket | 57249-33010 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-06221 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-06211 |
| 57419D | Front floor right rear lower reinforcement | 57419-06080 |
| 57429D | Left rear reinforcement under front floor | 57429-06050 |
| 57451B | Front floor right cross member | 57451-06905 |
| 57452 | Front floor left cross member | 57452-06905 |
| 57453D | Front floor right cross member | 57453-06070 |
| 57454C | Front floor left longitudinal beam | 57454-06070 |
| 57512A | Front floor right reinforcement | 57512-06010 |
| 57535A | Front floor right bracket | 57535-06010 · 57535-06020 |
| 57536A | Front floor left bracket | 57536-06010 · 57536-06020 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-06906 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-06902 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-06150 · 57605-33110 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-06090 |
| 57615A | Rear floor right rear longitudinal member | 57615-06922 · 57615-06923 |
| 57616A | Rear floor left rear longitudinal member | 57616-06918 · 57616-06923 |
| 57654C | Rear floor beam No. 3 | 57654-06050 |
| 58105E | Front floor and rear upper sub-panel sub-assembly | 58105-06041 |
| 58295F | Right No. 4 seat belt anchor to floor base | 58295-33010 |
| 58296F | Left No. 4 seat belt anchor to floor base | 58296-33010 |
