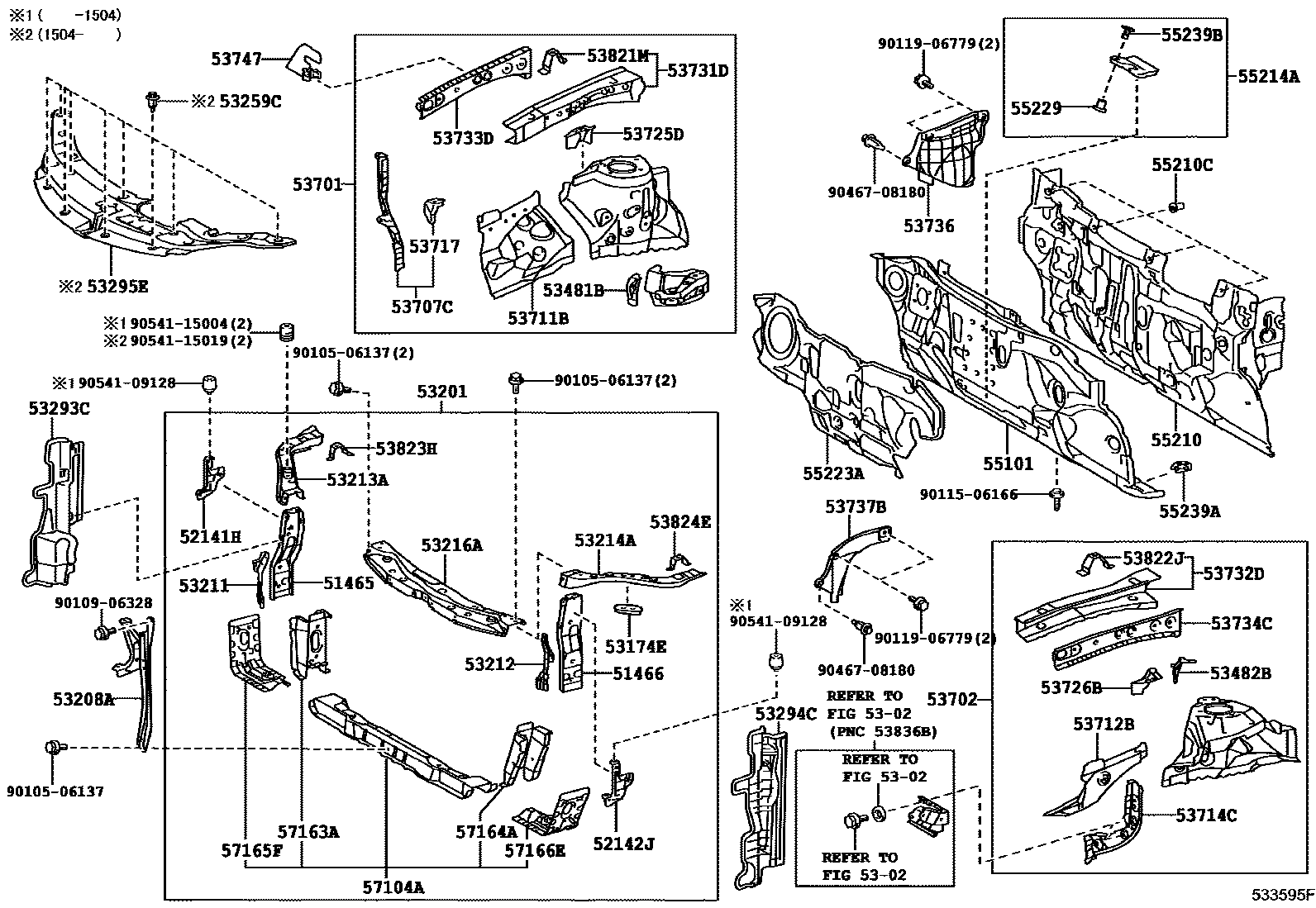

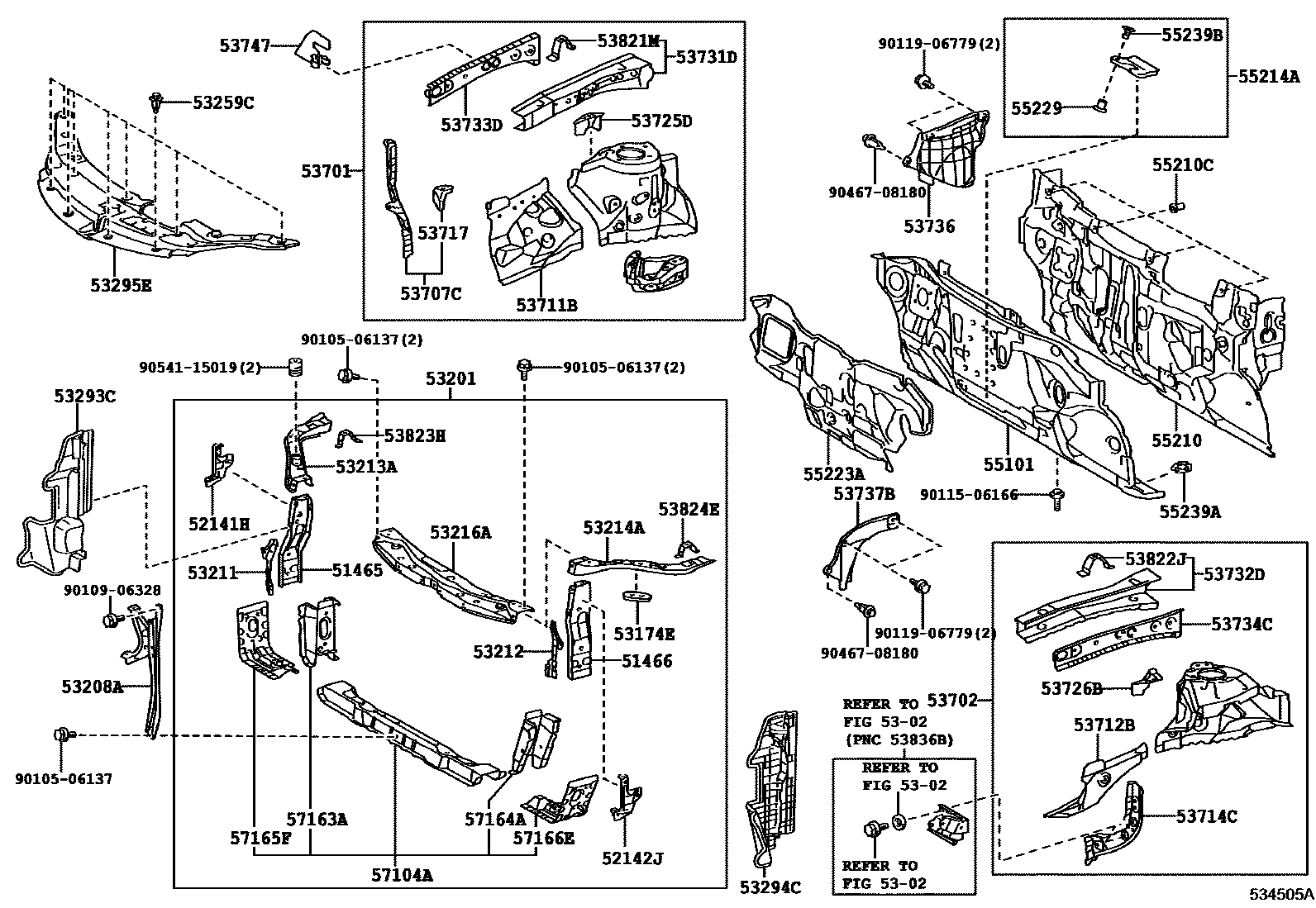

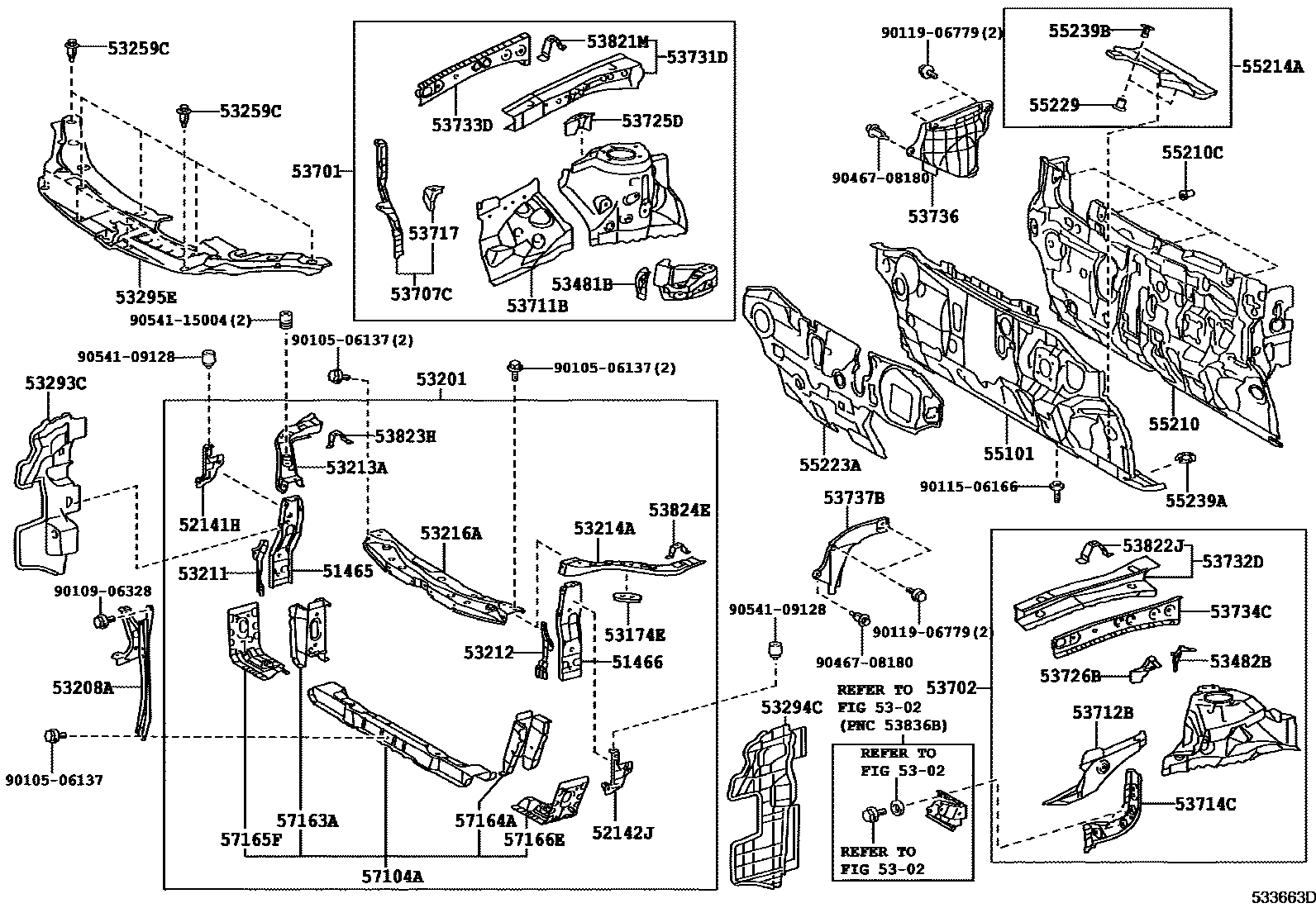

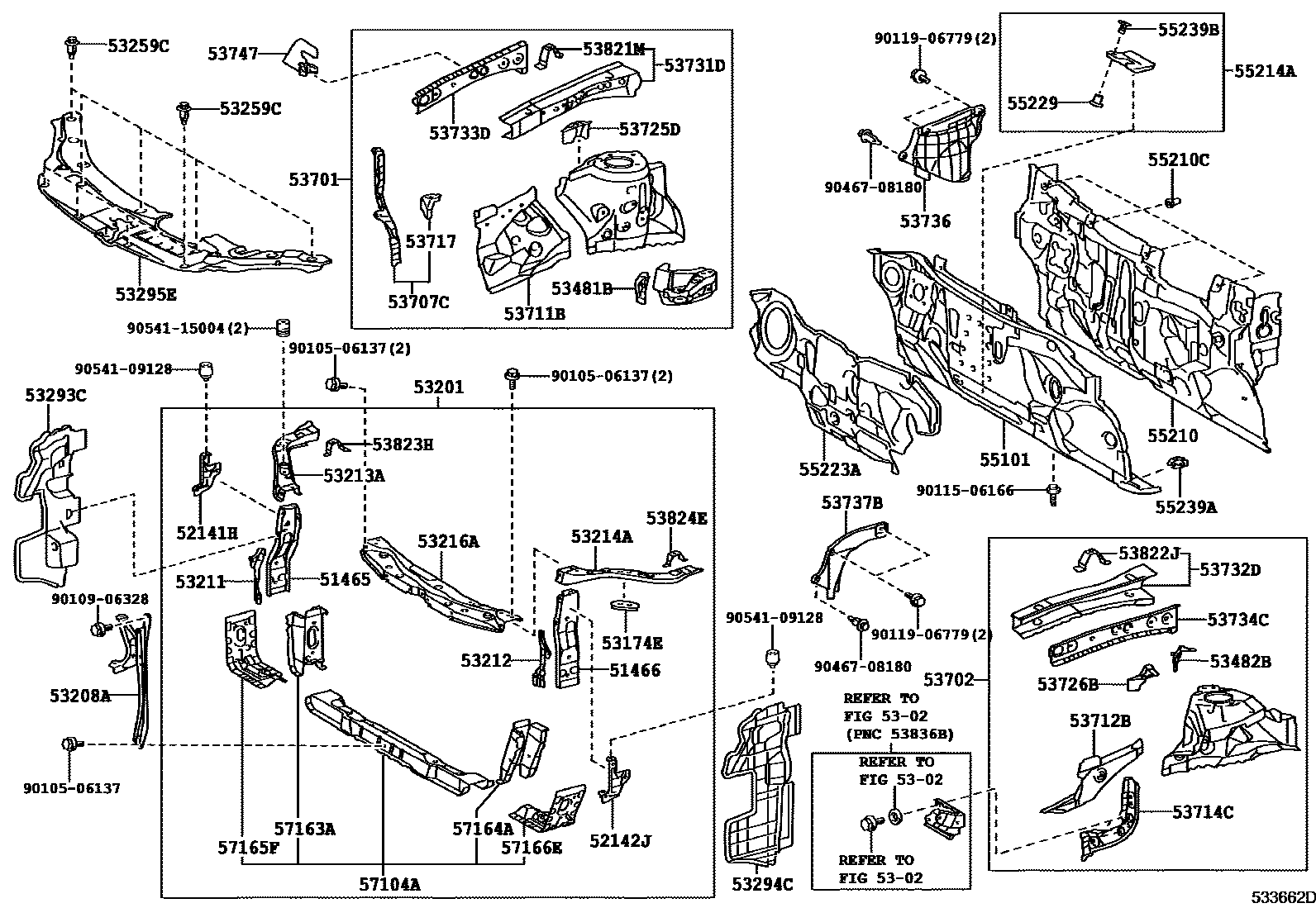

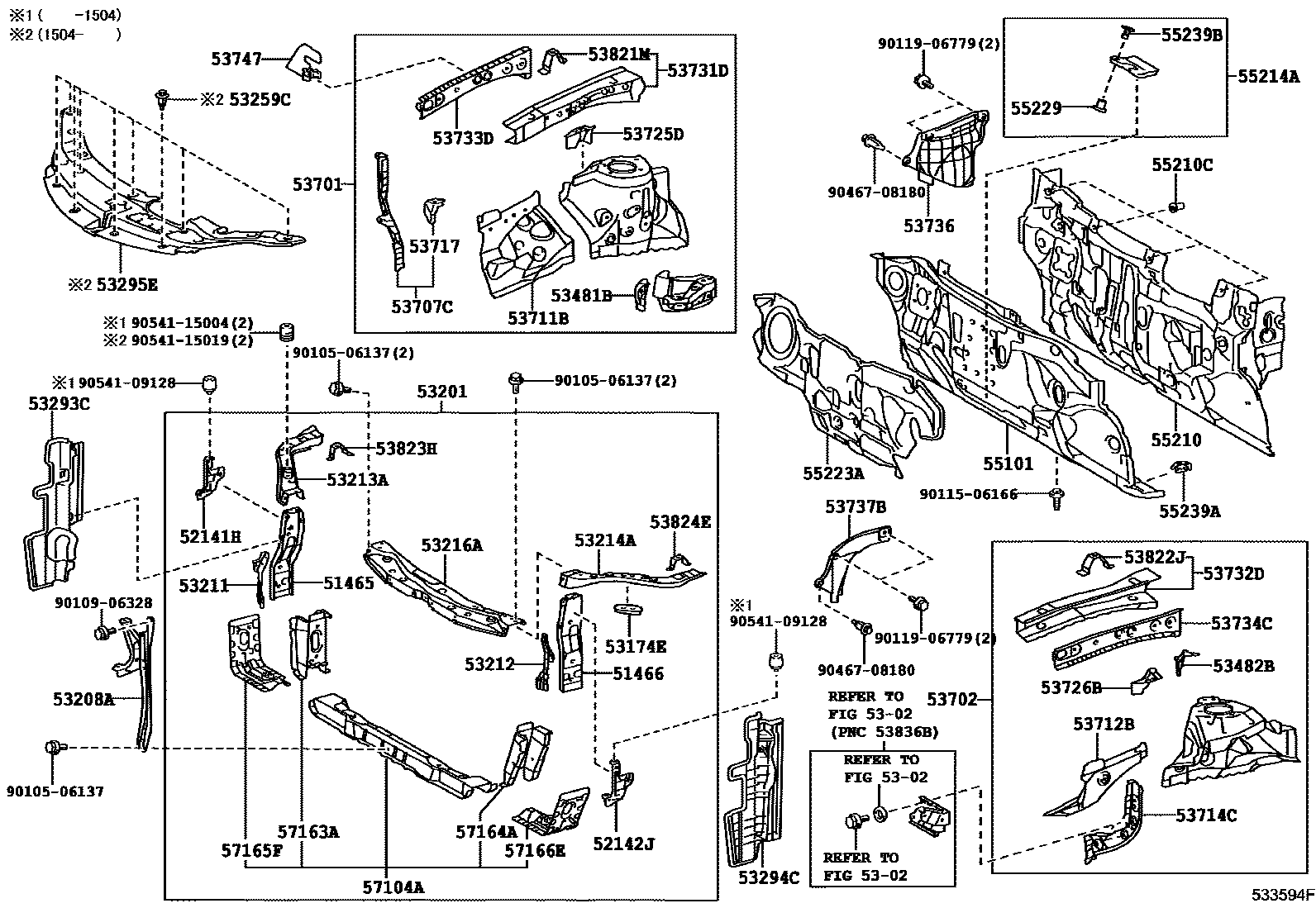

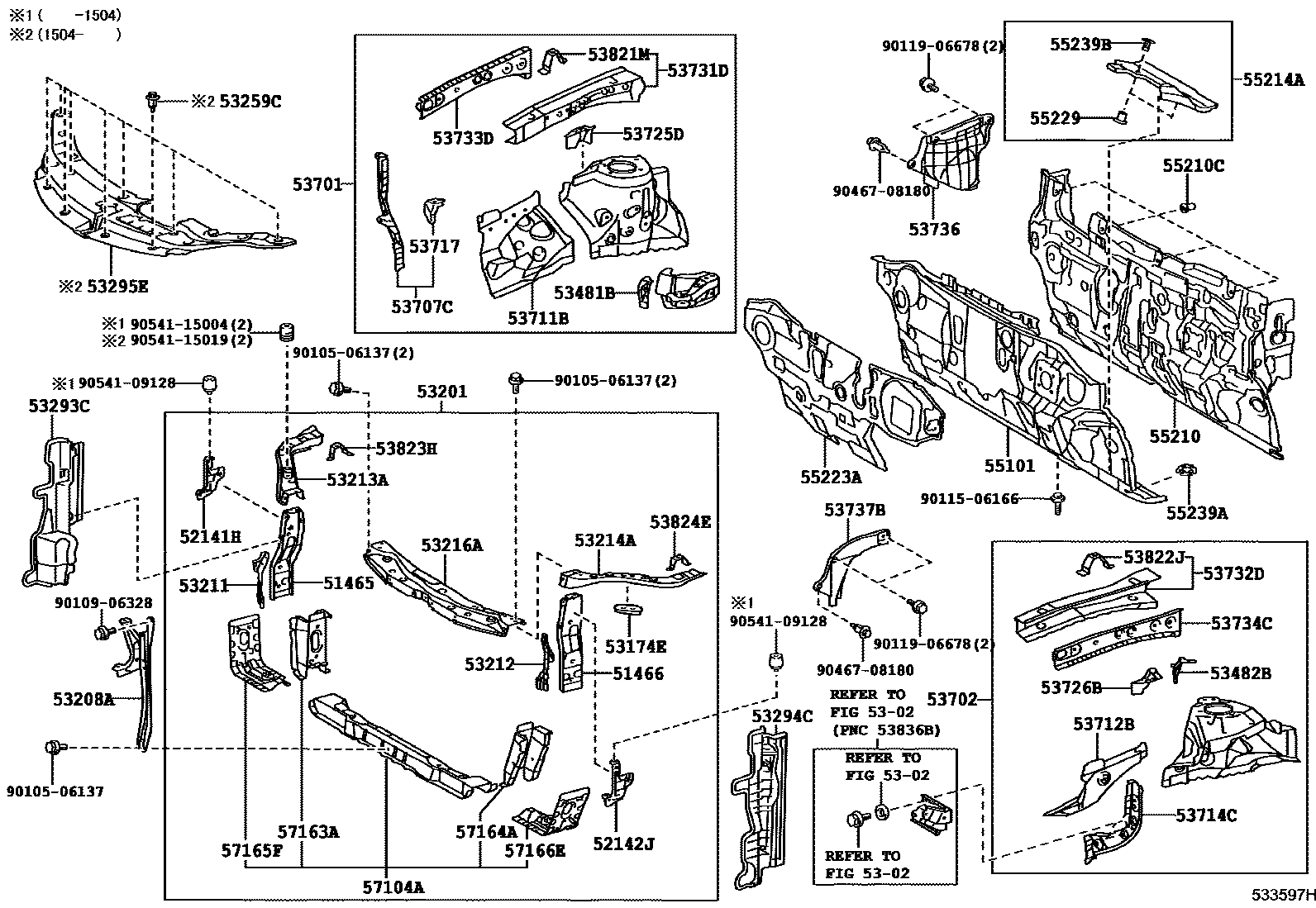

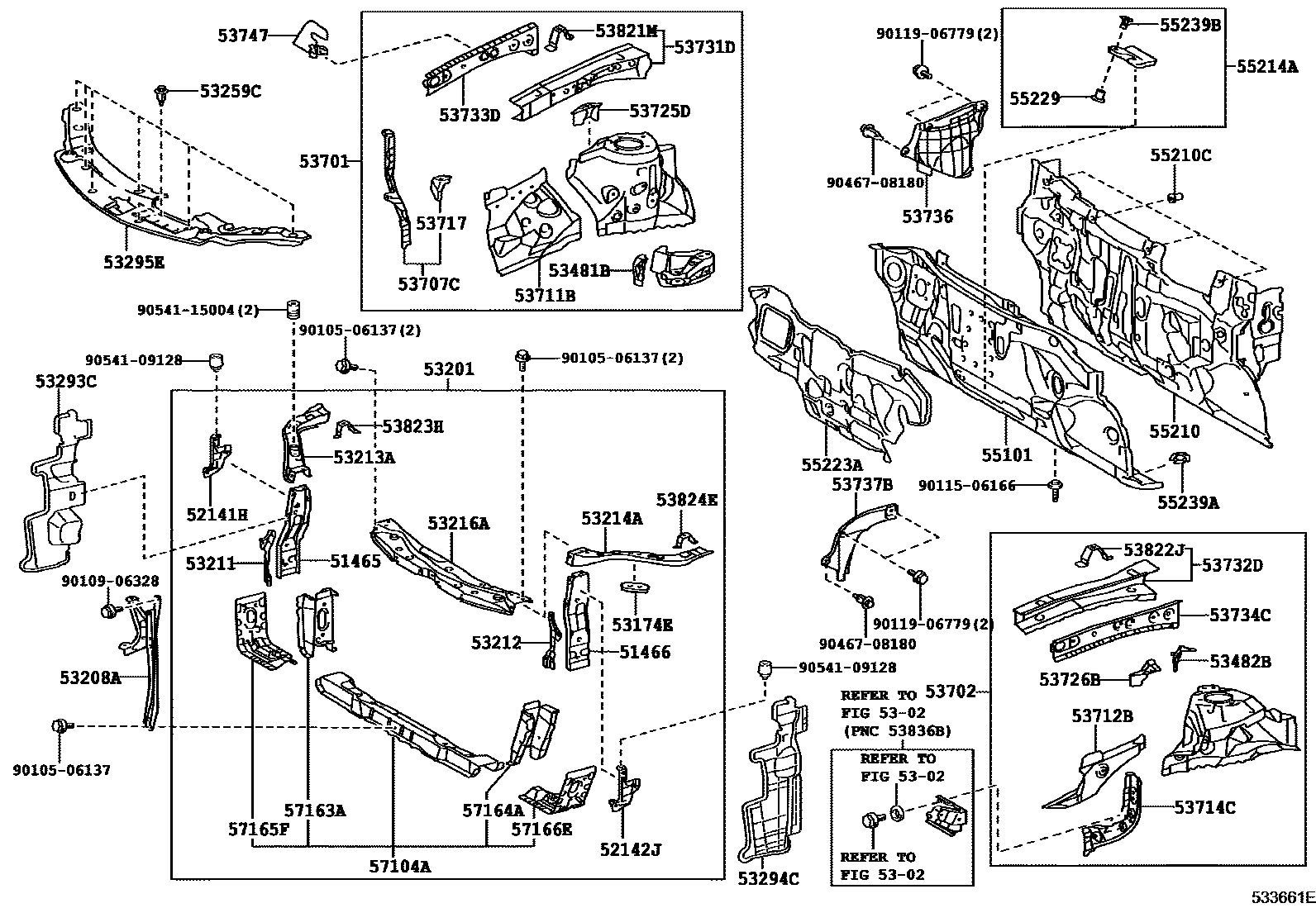

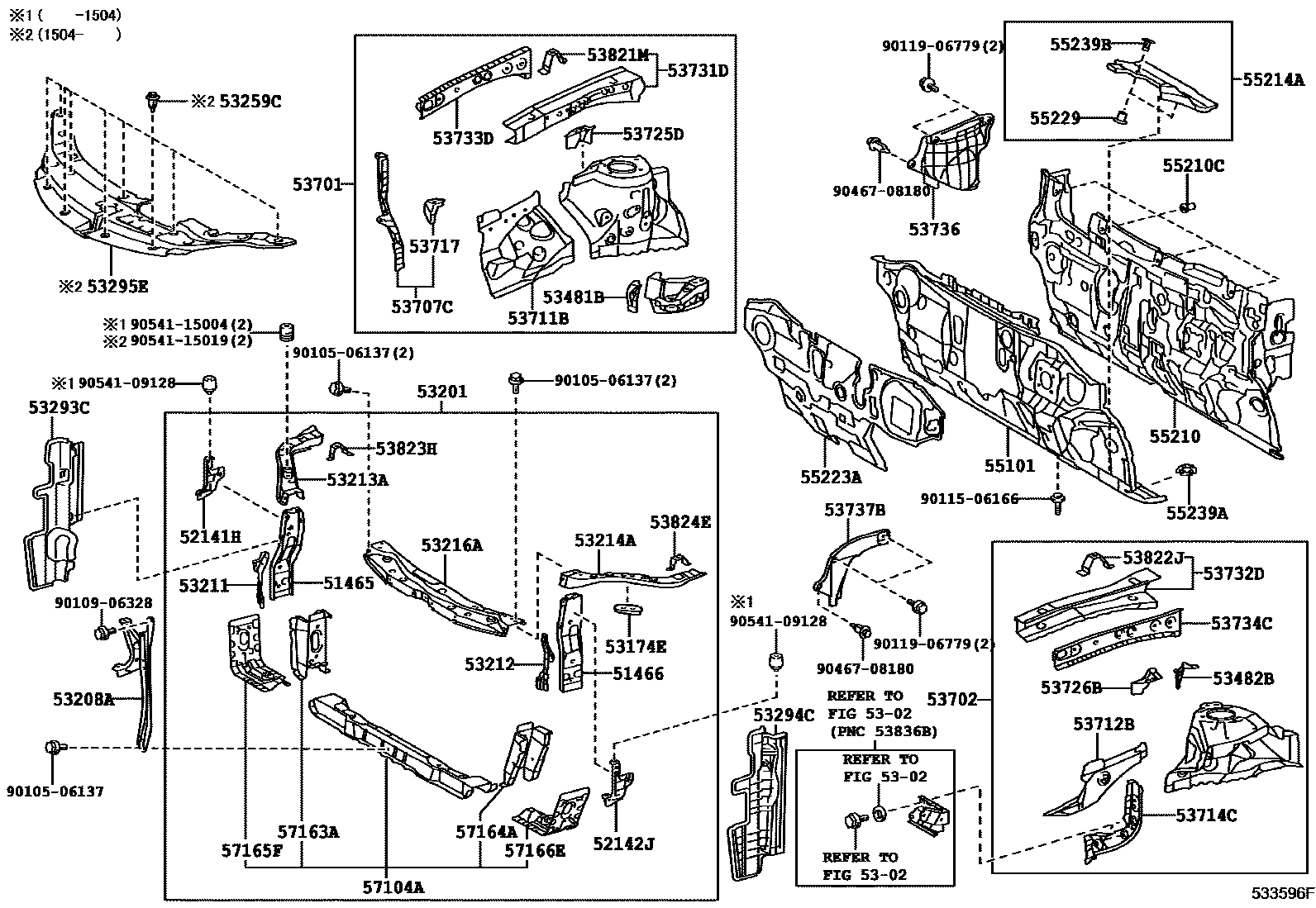

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 8 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51465 | Radiator upper right bracket | 51465-06120 |
| 51466 | Radiator upper left bracket | 51466-06120 |
| 52141H | Front bumper right upper arm | 52141-06110 · 52141-06160 |
| 52142J | Front bumper left upper arm | 52142-06090 · 52142-06150 |
| 53174E | Radiator bracket side bracket | 53174-06040 |
| 53201 | Radiator bracket sub-assembly | 53201-06190 · 53201-06231 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-06090 · 53208-06160 · 53208-06170 |
| 53211 | Radiator right side support | 53211-06110 |
| 53212 | Radiator left support | 53212-06110 |
| 53213A | Radiator upper right bracket | 53213-06110 · 53213-06111 |
| 53214A | Radiator upper left bracket | 53214-06130 · 53214-06131 |
| 53216A | Radiator upper bracket | 53216-06140 |
| 53259C | Clip (radiator bracket to frame seal) | 90467-07211 · 90467-07217 |
| 53293C | Radiator right baffle | 53293-06220 · 53293-06230 · 53293-06240 · 53293-06310 · 53293-06450 · 53293-06460 |
| 53294C | Radiator left baffle | 53294-06210 · 53294-06220 · 53294-06230 · 53294-06300 · 53294-06330 · 53294-06450 · 53294-06460 · 53294-06480 |
| 53295E | Cold air intake pipe seal | 53295-06110 · 53295-06120 · 53295-06170 |
| 53481B | Engine cover right support rod bracket | 53481-33050 |
| 53482B | Engine cover left support rod bracket | 53482-33040 |
| 53701 | Right front fender fender sub-assembly | 53701-06180 · 53701-06240 |
| 53702 | Left front fender fender sub-assembly | 53702-06160 · 53702-06220 |
| 53707C | Right front fender fender front extension sub-assembly | 53707-06010 · 53707-33010 |
| 53711B | Right front fender front fender | 53711-06130 |
| 53712B | Left front fender front fender | 53712-06090 |
| 53714C | Left front fender fender front extension | 53714-06100 |
| 53717 | Right fender fender side panel | 53719-33010 |
| 53725D | No. 2 front spring bracket right side reinforcement | 53725-33020 |
| 53726B | No. 2 front spring bracket left reinforcement | 53726-33020 |
| 53731D | Right front fender to cowl side upper beam | 53731-06905 · 53731-06907 |
| 53732D | Left front fender to cowl side upper beam | 53732-06904 · 53732-06906 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06100 · 53733-33050 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06100 · 53734-33050 |
| 53736 | Right front fender fender seal | 53736-06050 |
| 53737B | Left front fender fender seal | 53737-06050 · 53737-06060 |
| 53747 | Right air sealing plate | 53747-06020 · 53747-06030 |
| 53821M | No. 1 right front fender rear bracket | 53821-06120 · 53821-33050 |
| 53822J | No. 1 left front fender rear bracket | 53822-06120 · 53822-33040 |
| 53823H | Right front fender corner panel | 53823-06070 · 53823-06130 |
| 53824E | Left front fender corner panel | 53824-06070 · 53824-06130 |
| 55101 | Front apron sub-assembly | 55101-06480 · 55101-06490 · 55101-06500 |
| 55210 | Front wall insulation pad assembly | 55210-06340 · 55210-06380 · 55210-06391 |
| 55210C | clip | 90467-06197 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-06051 · 55214-06070 · 55214-06120 |
| 55223A | Front wall outer heat insulation pad | 55223-06310 · 55223-06320 · 55223-06330 · 55223-06340 · 55223-06420 · 55223-06440 · 55223-06460 · 55223-06470 · 55223-06480 · 55223-06490 · 55223-33190 · 55223-33191 · 55223-33200 · 55223-33210 · 55223-33220 · 55223-33280 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-48020 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-06010 |
| 55239B | Footrest No. 2, front floor | 55239-48020 |
| 57104A | Front cross member sub-assembly | 57104-06041 |
| 57163A | No. 1 front cross member right reinforcement | 57163-06050 |
| 57164A | No. 1 front cross member left reinforcement | 57164-06040 |
| 57165F | No. 2 front cross member right reinforcement | 57165-06041 |
| 57166E | No. 2 front cross member left reinforcement | 57166-06040 |
