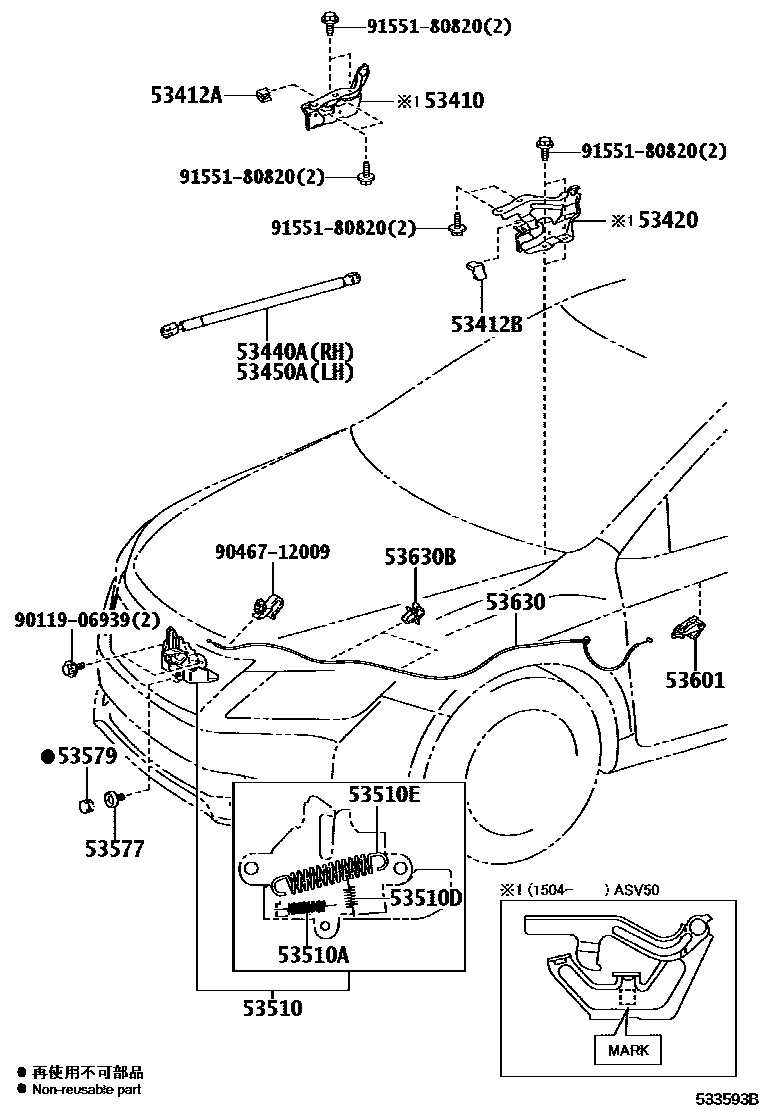

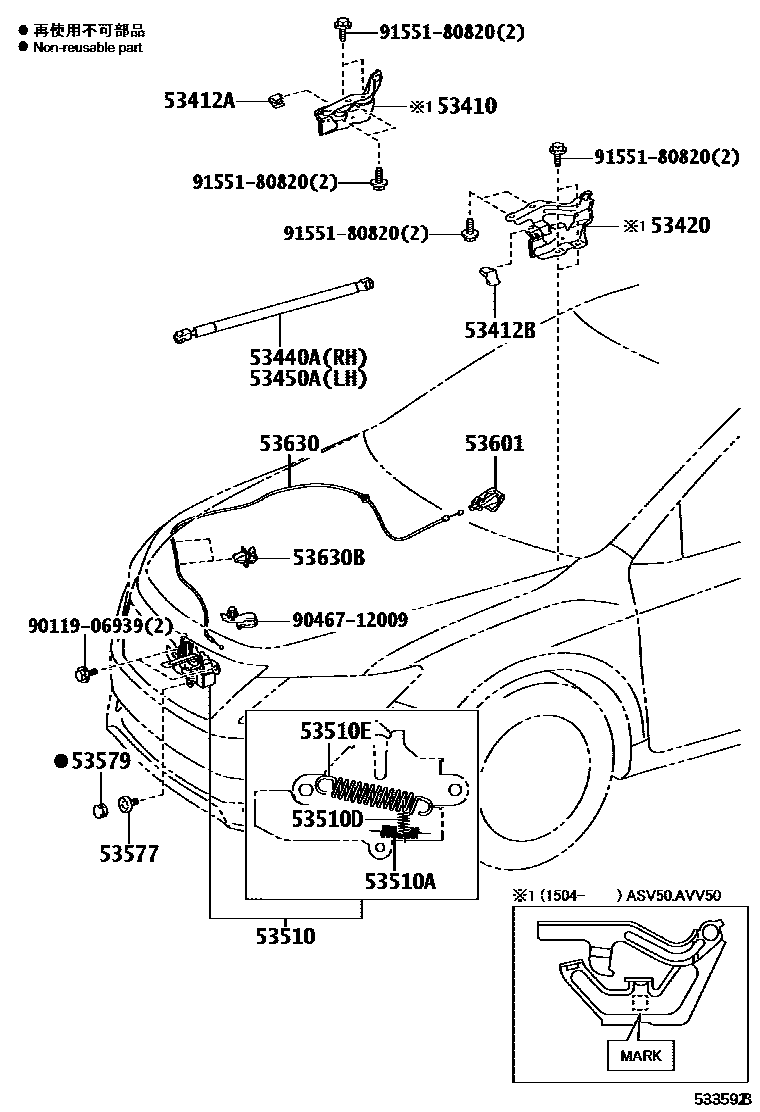

Toyota CAMRY 发动机盖锁和铰链 — Figure 5303
Toyota CAMRY EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-06200 · 53410-06330 |
| 53412A | Engine cover right hinge plate cushion pad | 53412-33090 |
| 53412B | Engine cover left hinge plate buffer pad | 53412-33100 |
| 53420 | Engine cover left hinge assembly | 53420-06200 · 53420-06330 |
| 53440A | Engine cover right support rod assembly | 53440-06100 · 53440-06140 |
| 53450A | Engine cover left support rod assembly | 53450-06090 · 53450-06130 |
| 53510 | Engine cover lock assembly | 53510-06210 · 53510-06220 · 53510-06260 · 53510-06261 · 53510-06270 · 53510-06271 · 53510-06300 · 53510-06310 · 53510-06321 |
| 53510A | Tension spring (for hood lock) | 90506-09055 |
| 53510D | Tension spring (for hood lock) | 90506-12063 |
| 53510E | Tension spring (for hood lock) | 90506-18067 |
| 53577 | engine cover lock bolt | 53577-33010 |
| 53579 | Engine hood lock nut cover | 53579-50010 |
| 53630 | Engine hood lock control cable assembly | 53630-06170 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 |
