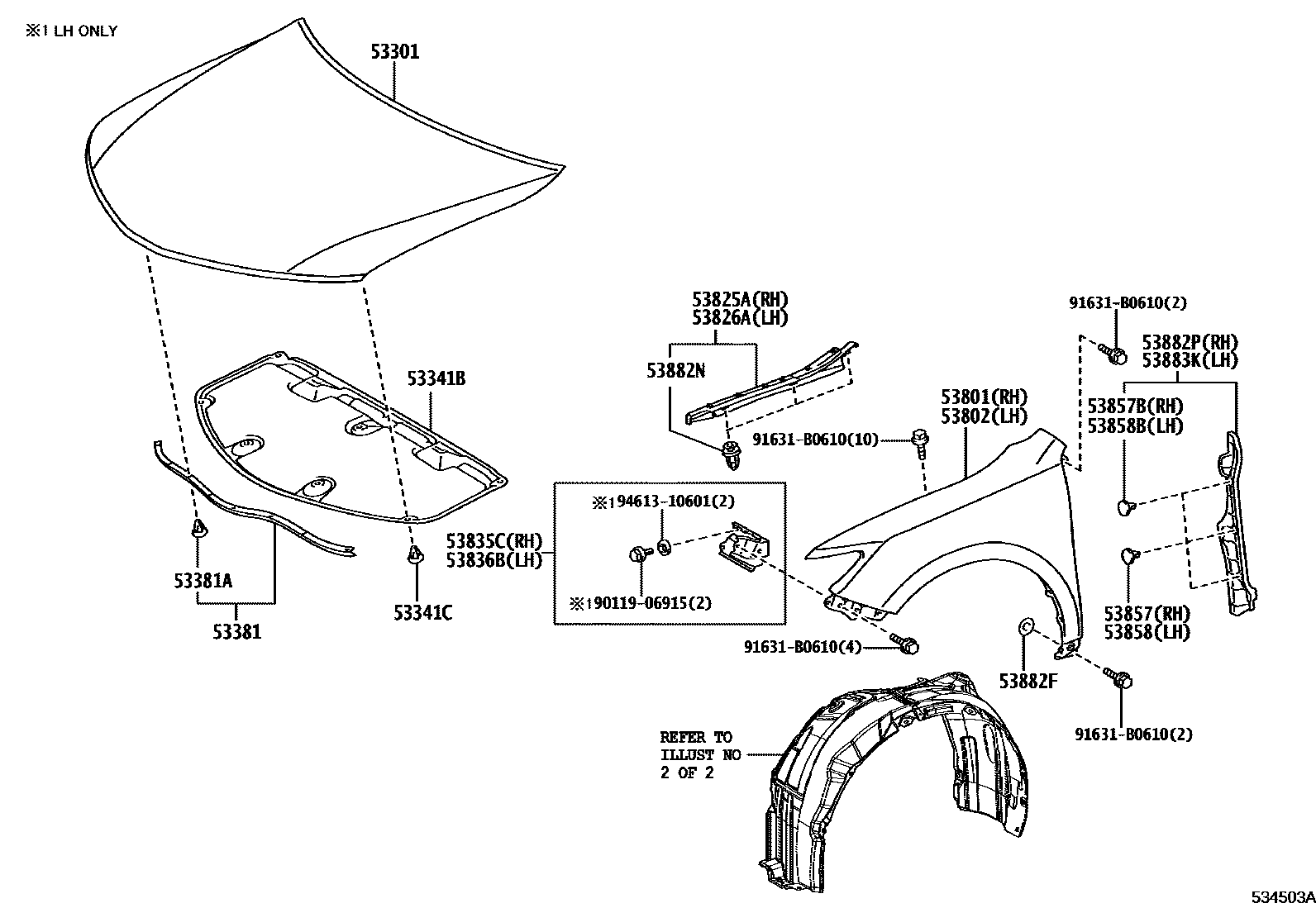

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-06170 · 53301-06210 · 53301-06240 |
| 53341B | engine cover gasket | 53341-06280 · 53341-06290 · 53341-06360 · 53341-06430 · 53341-06440 · 53341-06450 · 53341-06460 · 53341-06470 · 53341-33170 · 53341-33210 · 53341-33220 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53381 | Engine cover to radiator bracket seal | 53381-06110 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53384B | Engine cover center cushion | 53384-22080 |
| 53801 | Right front fender sub-assembly | 53811-06150 · 53811-06190 · 53811-06220 |
| 53802 | Left front fender sub-assembly | 53812-06160 · 53812-06200 · 53812-06230 |
| 53825A | Right front fender protection piece | 53825-06080 · 53825-06140 |
| 53826A | Protection piece on left front fender | 53826-06080 · 53826-06140 |
| 53835C | Right front side panel bracket | 53835-06120 · 53835-33080 |
| 53836B | Left front side panel bracket | 53804-06010 · 53804-33030 |
| 53857 | Right front fender external panel fixing piece | 53857-47011 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-47011 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |

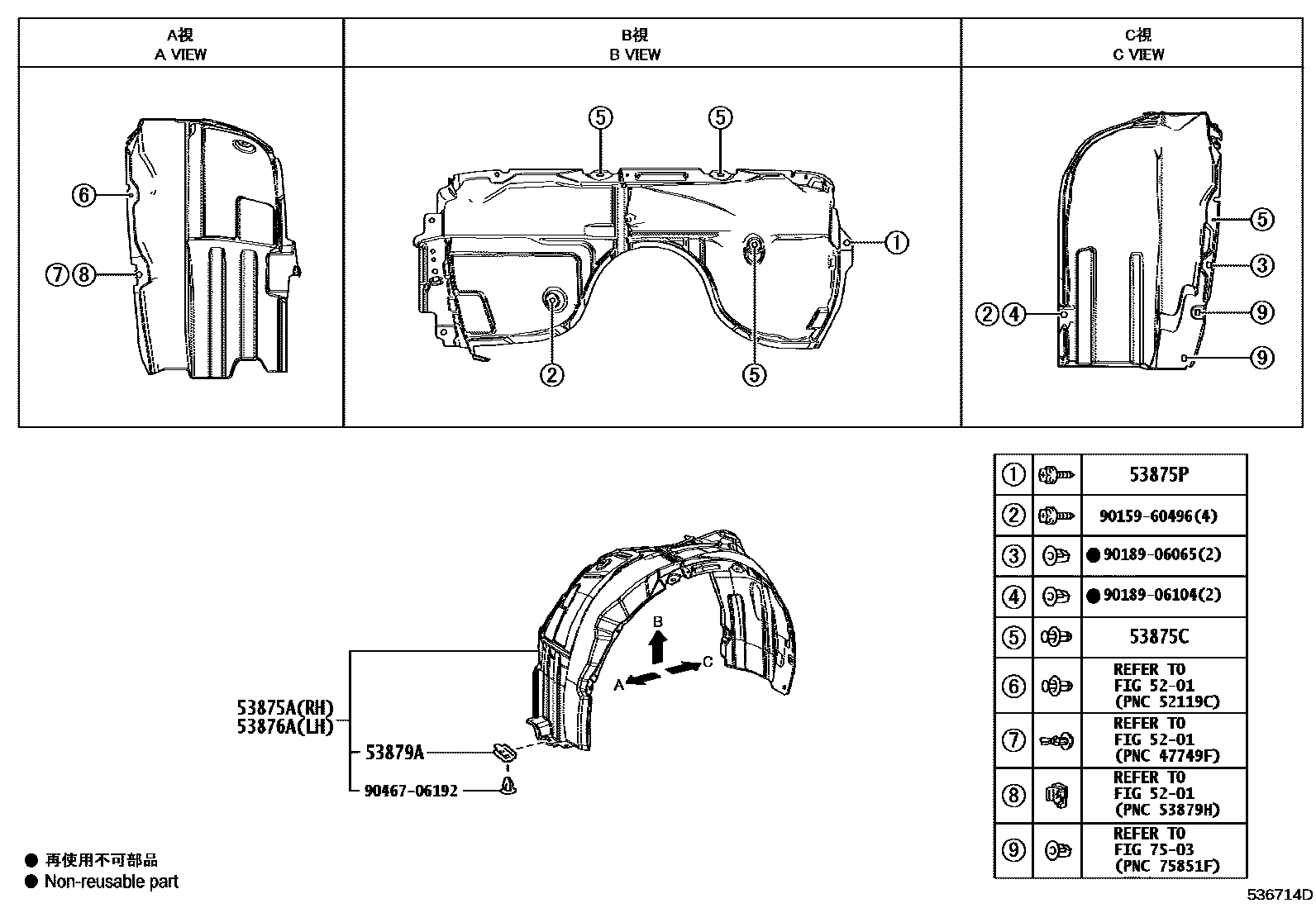

| 53875A | Right front fender lining | 53805-06050 · 53805-06140 · 53805-06200 · 53875-06130 · 53875-06180 · 53875-06260 |
| 53875C | Front fender lining clip | 90467-07166 · 90467-07214 |
| 53875P | Screw No. 1 | 90159-60431 · 90159-60602 |
| 53876A | Left front fender lining | 53806-06060 · 53806-06170 · 53806-06210 · 53876-06130 · 53876-06180 · 53876-06230 |
| 53879A | Front fender lining fixing parts | 53879-28040 |
| 53882F | front fender seal | 53882-33060 |
| 53882N | Clip (for front fender seal) | 90467-09219 |
| 53882P | Right front fender seal | 53882-06110 · 53882-06160 |
| 53883K | Left front fender seal | 53883-06100 · 53883-06150 |
