Toyota CAMRY radiator grille — Figure 5301

Toyota CAMRY EPC diagram 5301, radiator grille, with 5 images and 7 PNC and OE references.

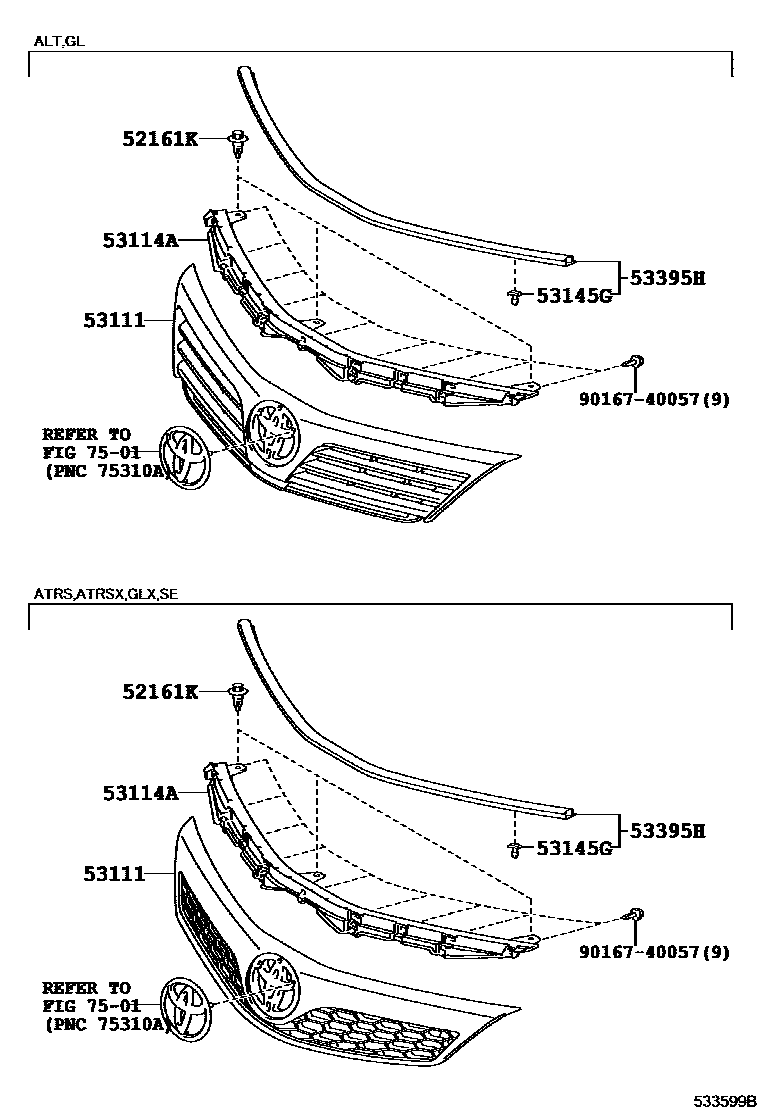

Toyota CAMRY radiator grille EPC diagram — 533599B
radiator grille — 533599B (201110 – 201504)
Toyota CAMRY radiator grille EPC diagram — 533653B
radiator grille — 533653B (201201 – 201504)

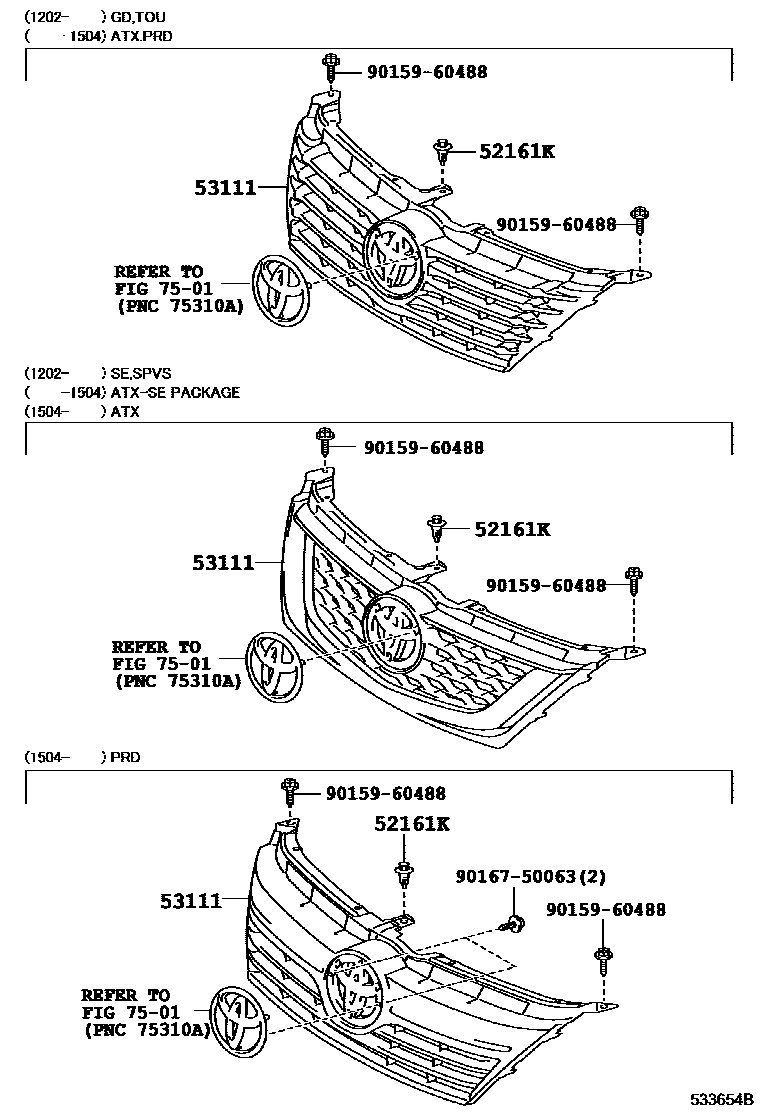

Toyota CAMRY radiator grille EPC diagram — 533654B
radiator grille — 533654B (201202 – 999999)

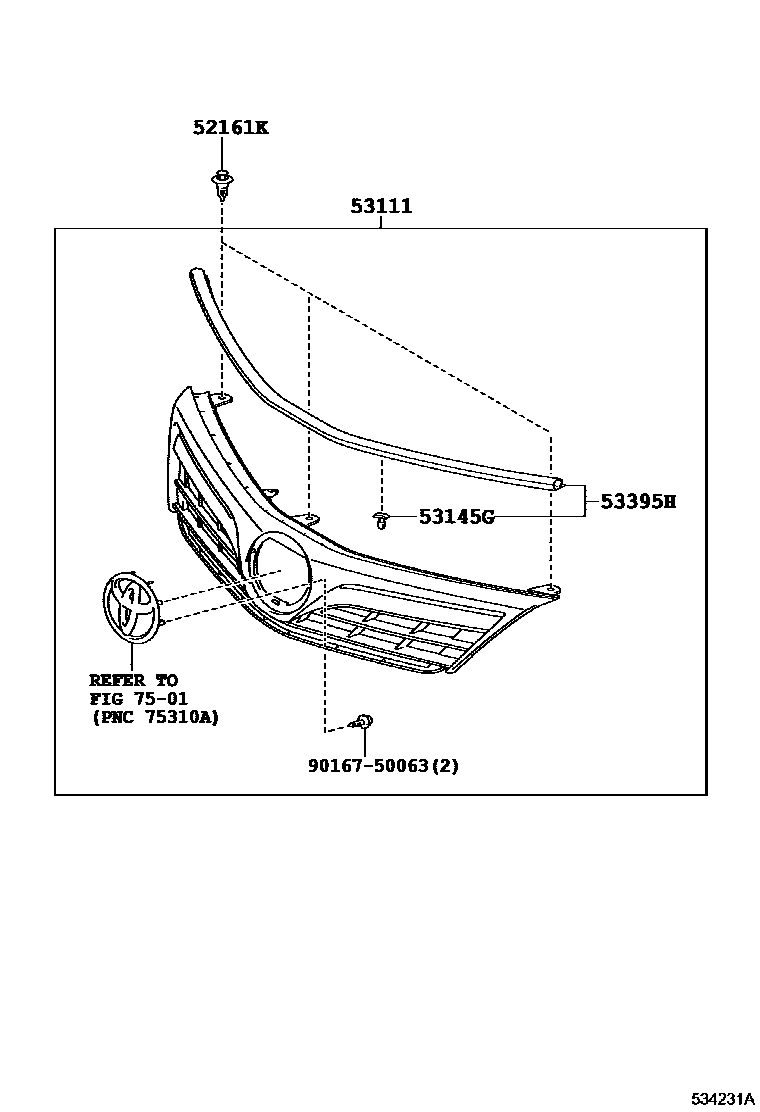

Toyota CAMRY radiator grille EPC diagram — 534231A
radiator grille — 534231A (201405 – 201504)

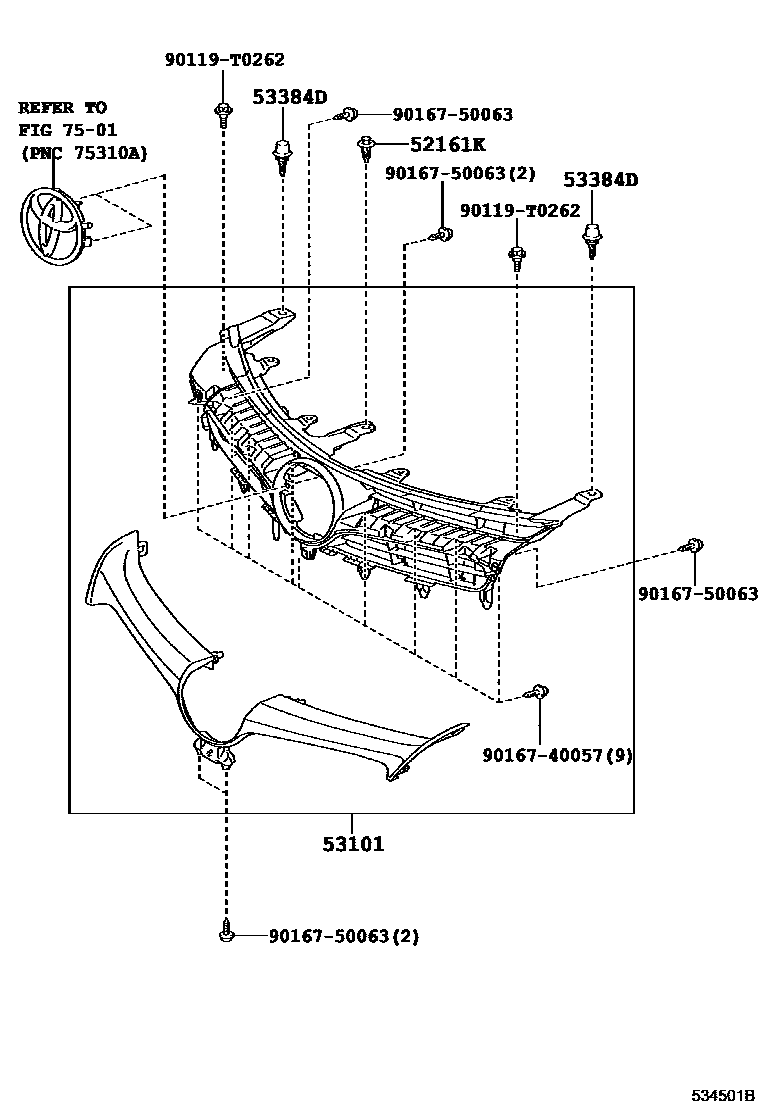

Toyota CAMRY radiator grille EPC diagram — 534501B
radiator grille — 534501B (201504 – 999999)

PNC and OE references

PNCPart nameOE numbers
52161Kfront bumper insert52161-16010
53101Radiator grille sub-assembly53101-06A00 · 53101-06A20
53111radiator grille53101-06400 · 53101-06550 · 53101-06690 · 53111-06580 · 53111-06620 · 53111-06901 · 53111-06903 · 53111-06904 · 53111-06905
53114Ainner radiator grille53114-06040
53145GRadiator grille clip53145-0K010 · 53145-60030
53384DEngine cover center cushion53384-75010
53395HEngine cover to radiator grille seal53395-06040
