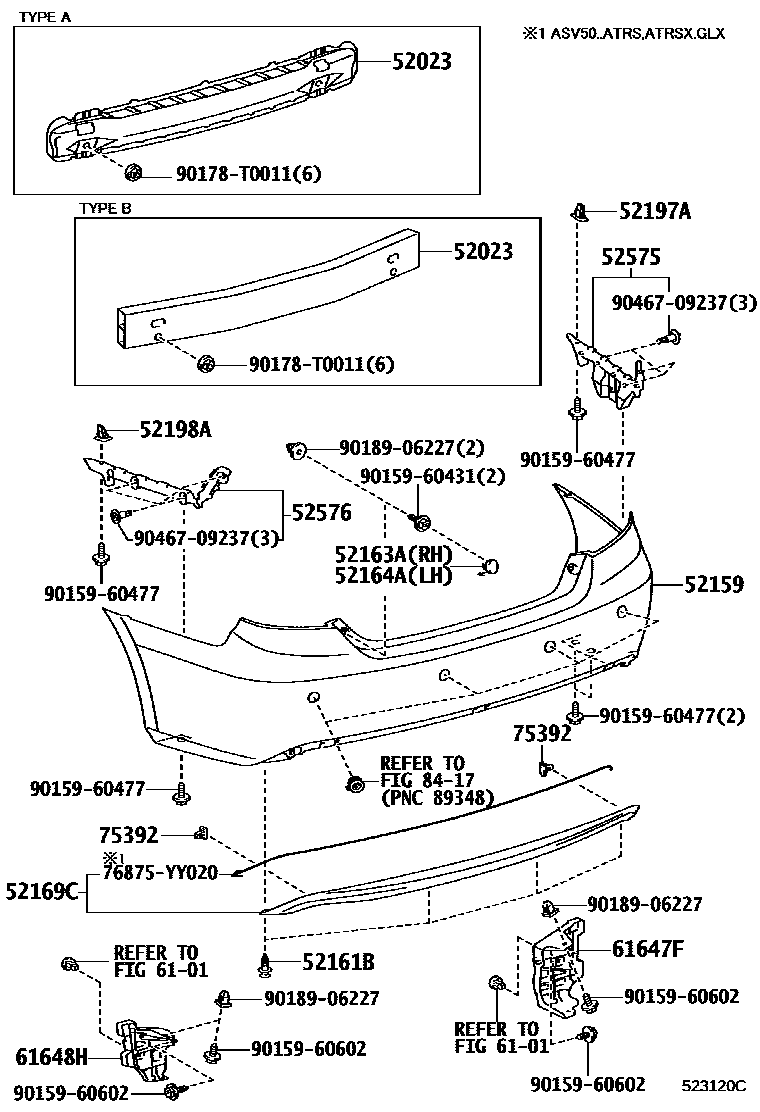

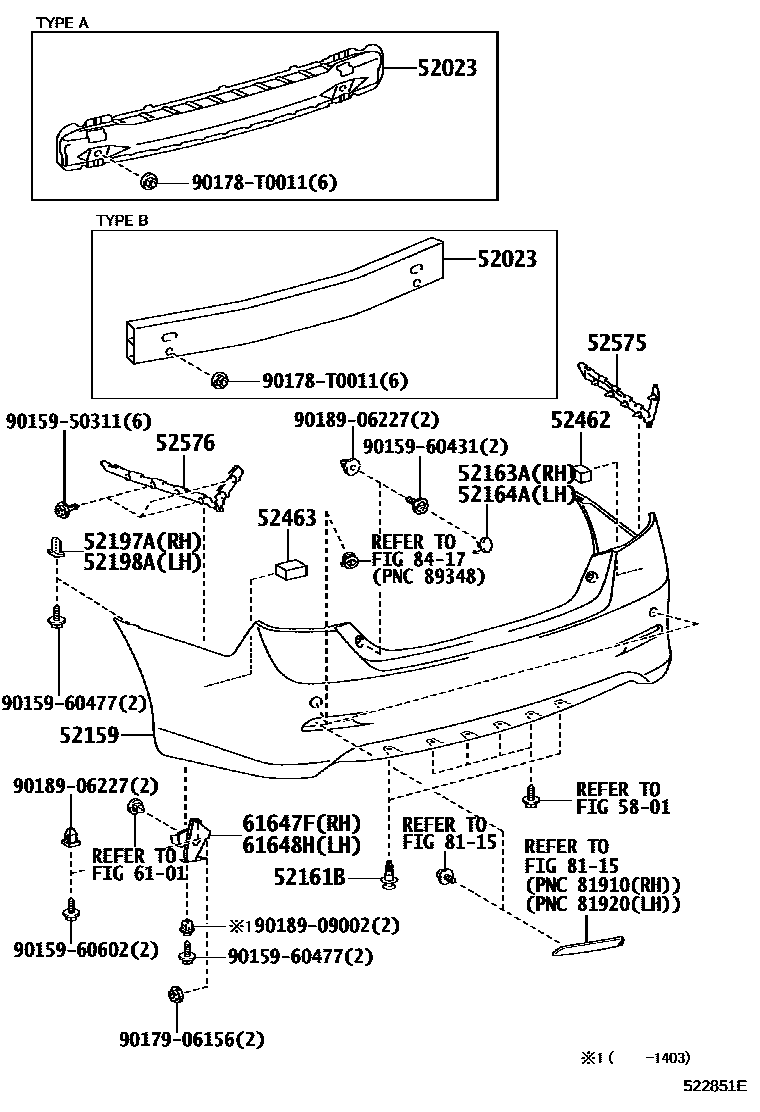

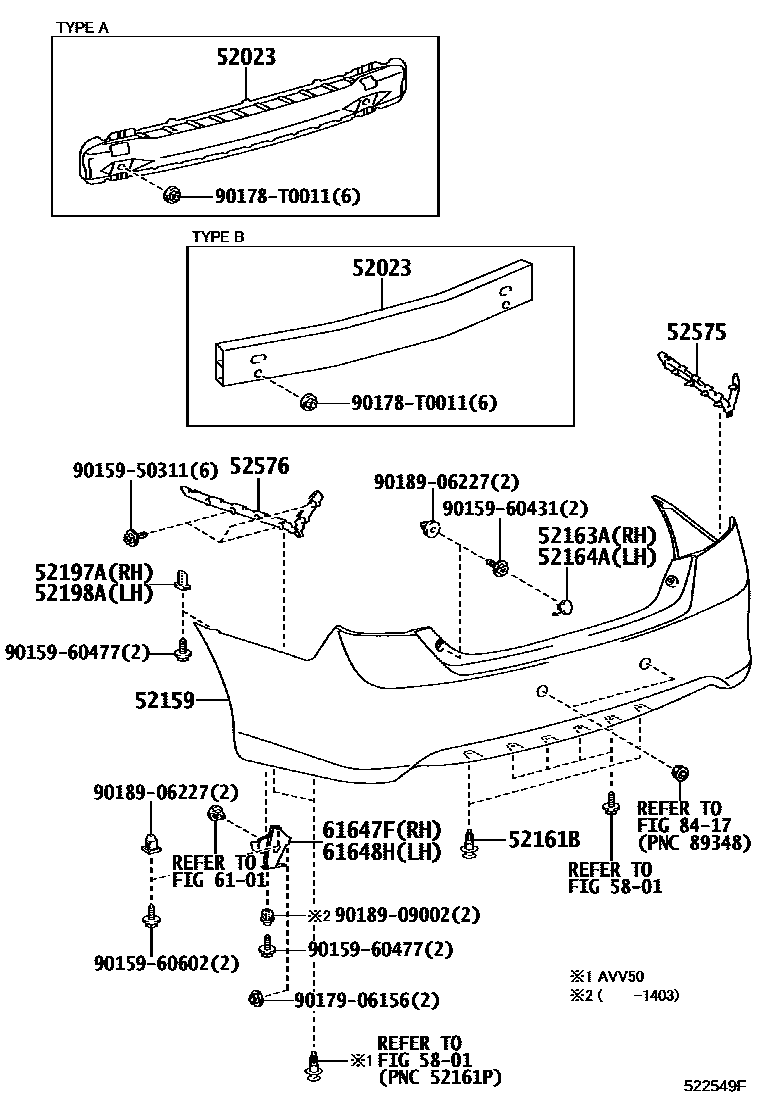

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-06130 · 52171-06150 |
| 52159 | rear bumper cover | 52159-06964 · 52159-06966 · 52159-06968 · 52159-0X908 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52163A | Rear bumper right side fender | 52163-06909 |
| 52164A | Rear bumper left fender | 52164-06909 |
| 52169C | Rear bumper lower cover | 52169-06100 · 52169-06110 · 52169-YY010 · 52169-YY020 |
| 52197A | Rear bumper right seal support | 52197-22020 |
| 52198A | Rear bumper left seal support | 52197-22020 |
| 52462 | Rear bumper right side lining | 52462-06140 |
| 52463 | Rear bumper left lining | 52463-06030 |
| 52575 | Rear bumper right side fixing bracket | 52575-06100 · 52575-06150 |
| 52576 | Rear bumper left side fixing bracket | 52576-06100 · 52576-06150 |
| 61647F | Right wheel arch reinforcement | 52155-06010 · 52155-06020 · 61647-06070 |
| 61648H | Left wheel arch reinforcement | 52156-06010 · 52156-06020 · 61648-06070 |
| 75392 | External protective strip fixings | 75392-35220 |
