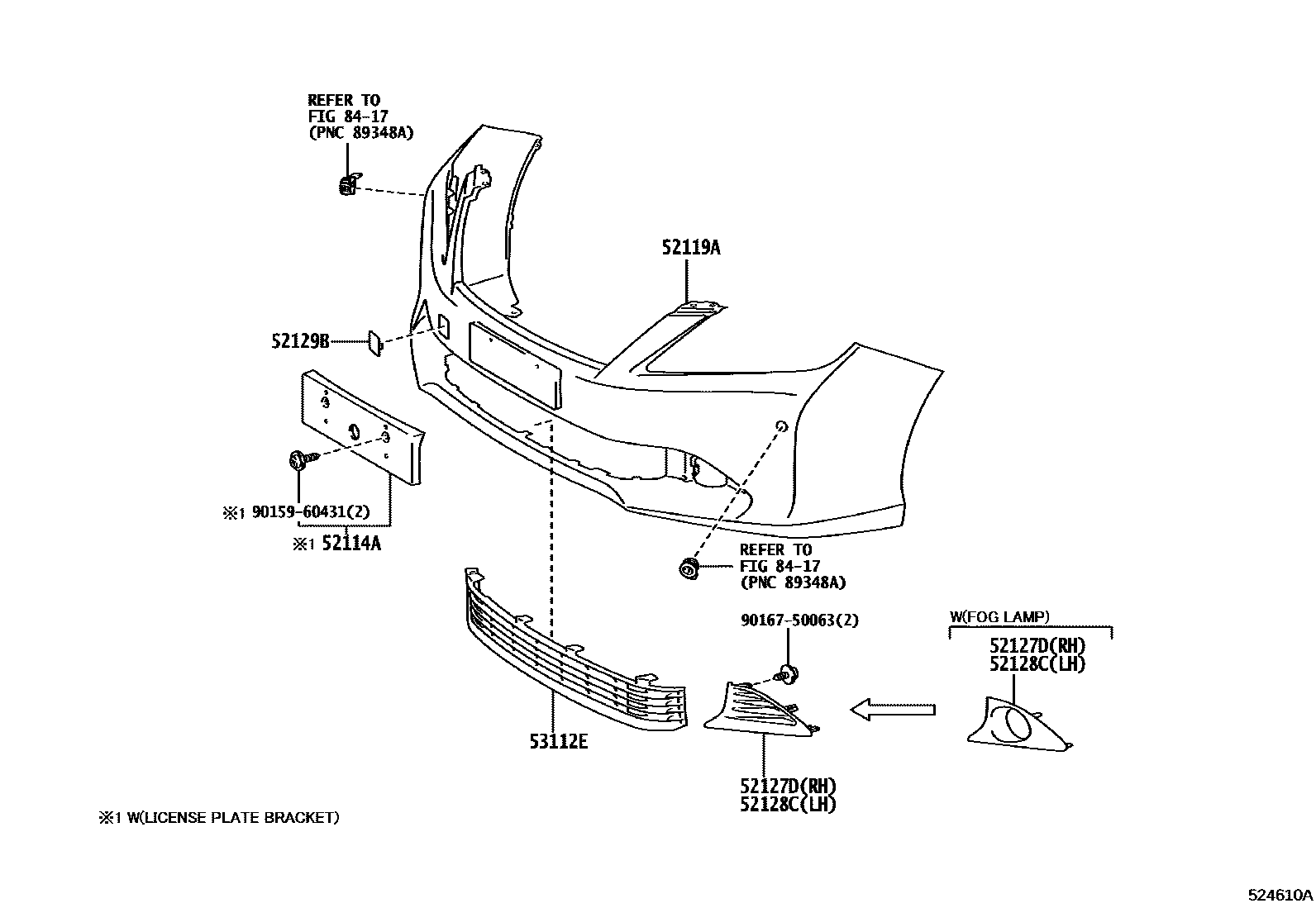

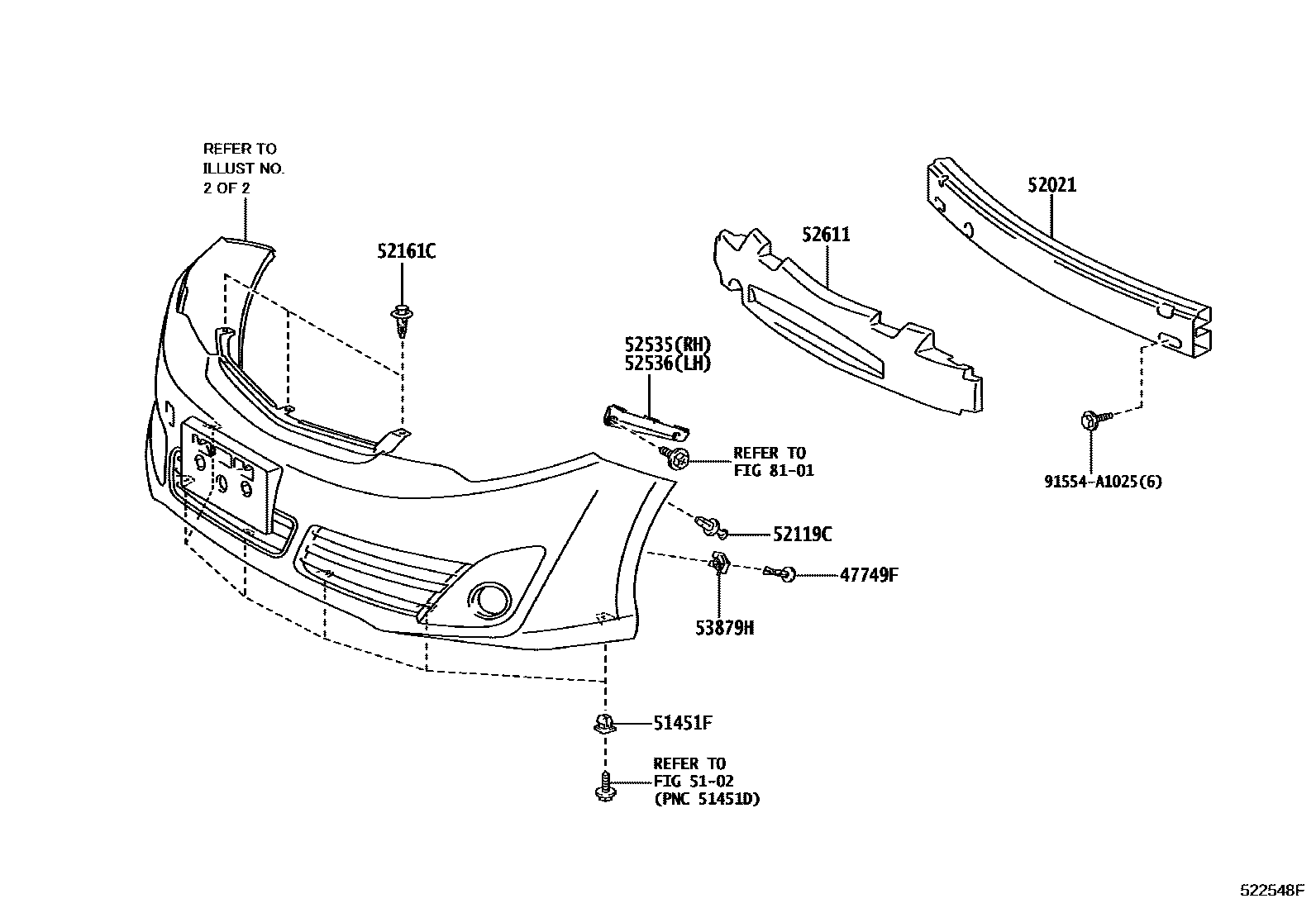

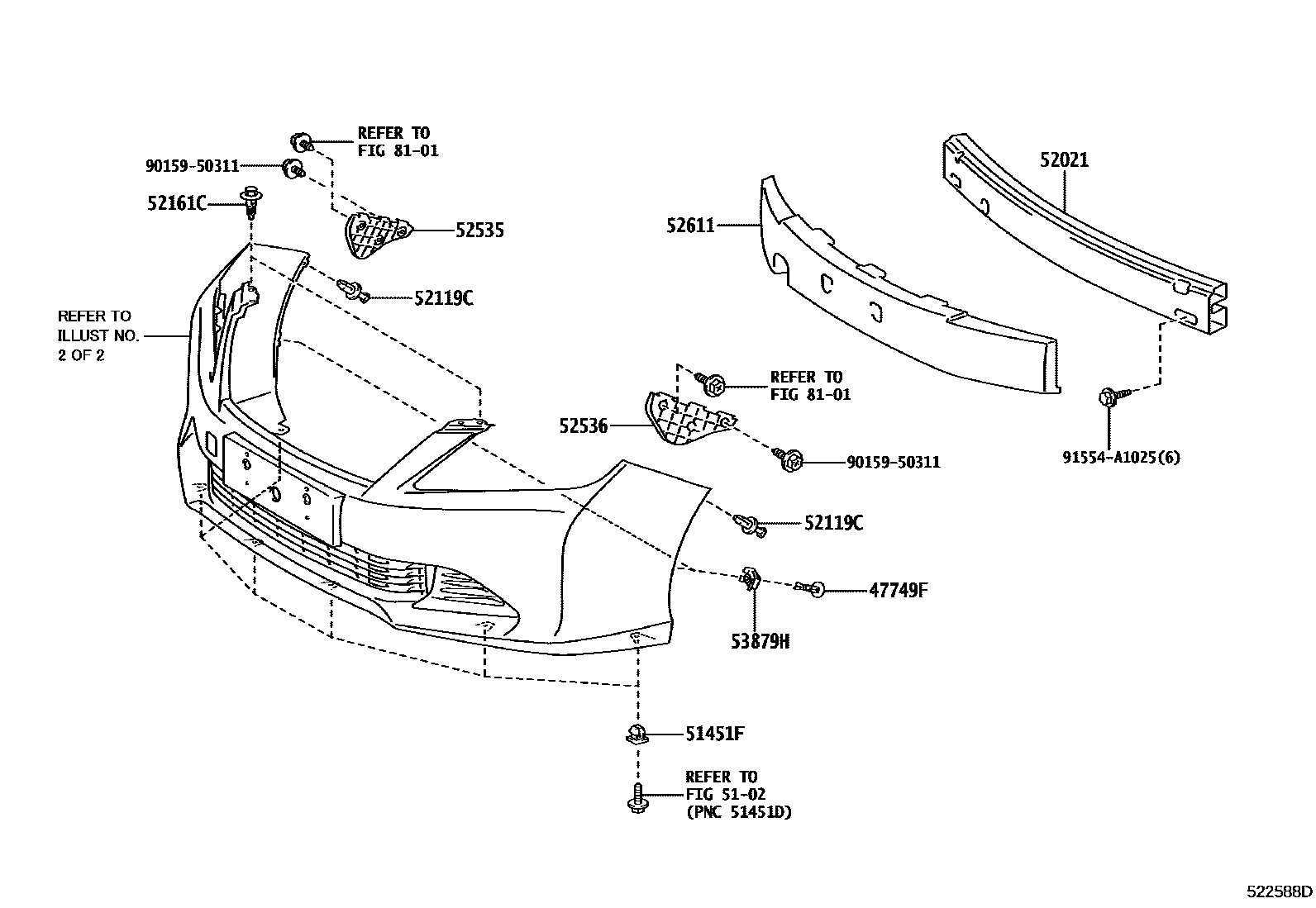

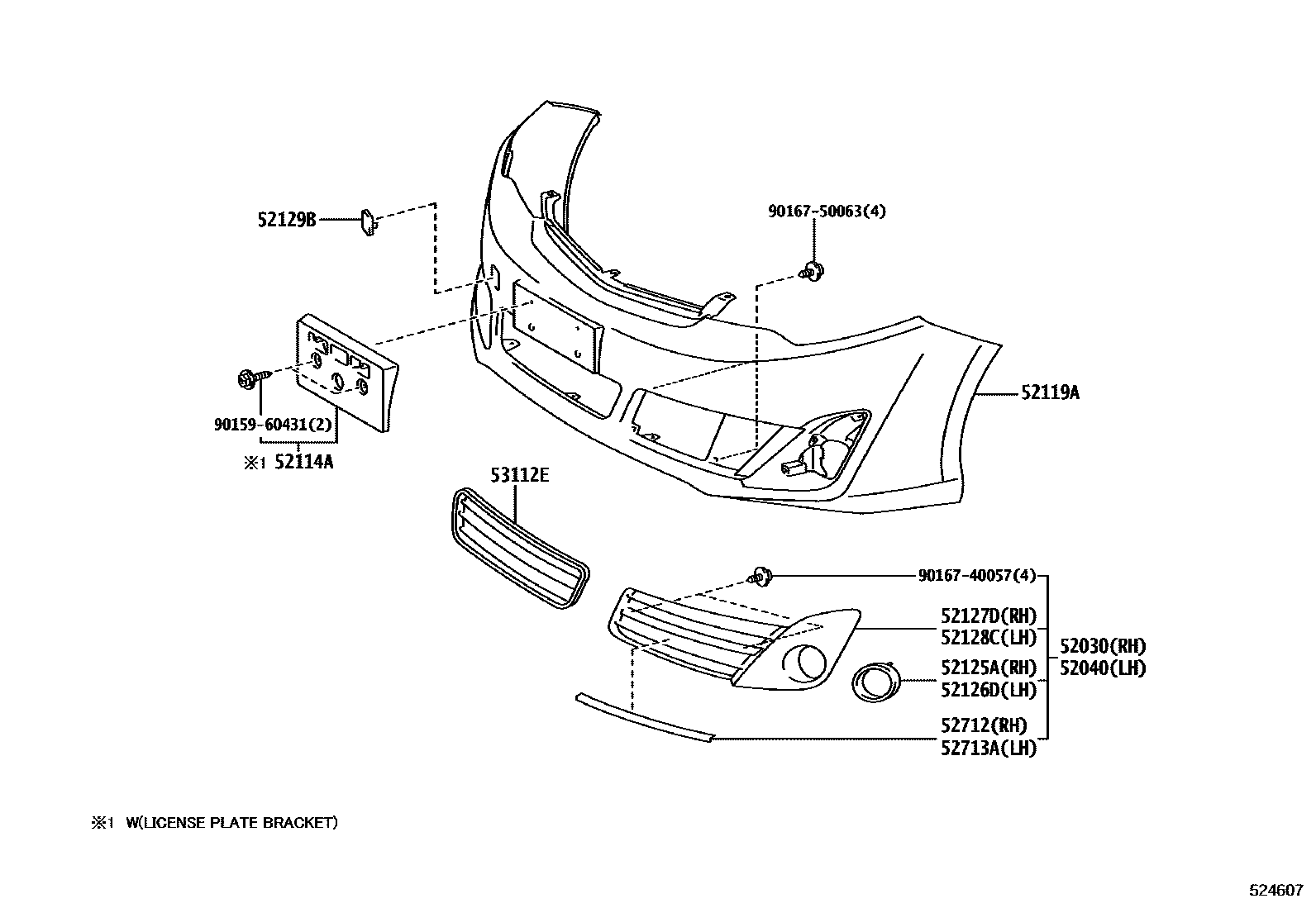

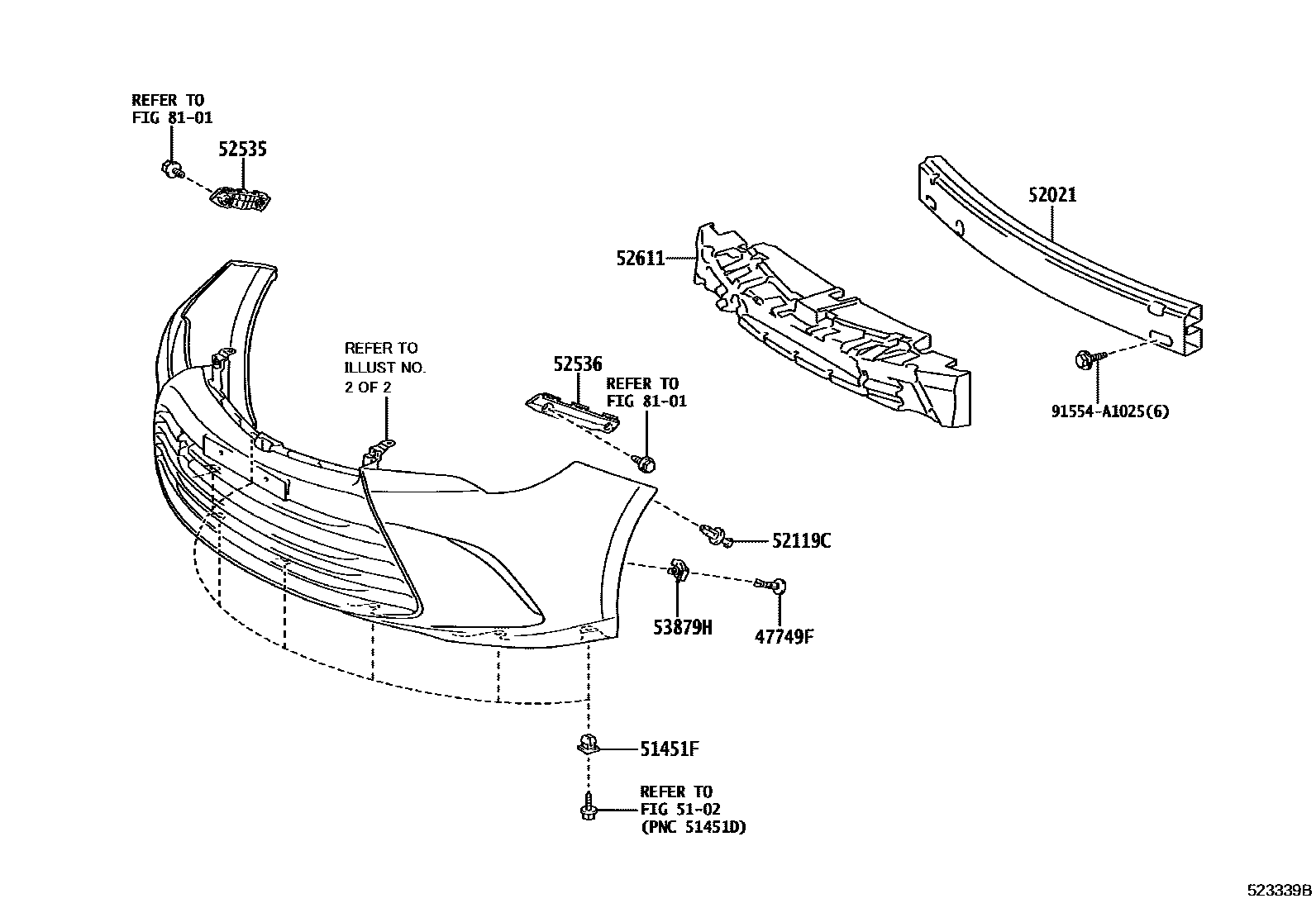

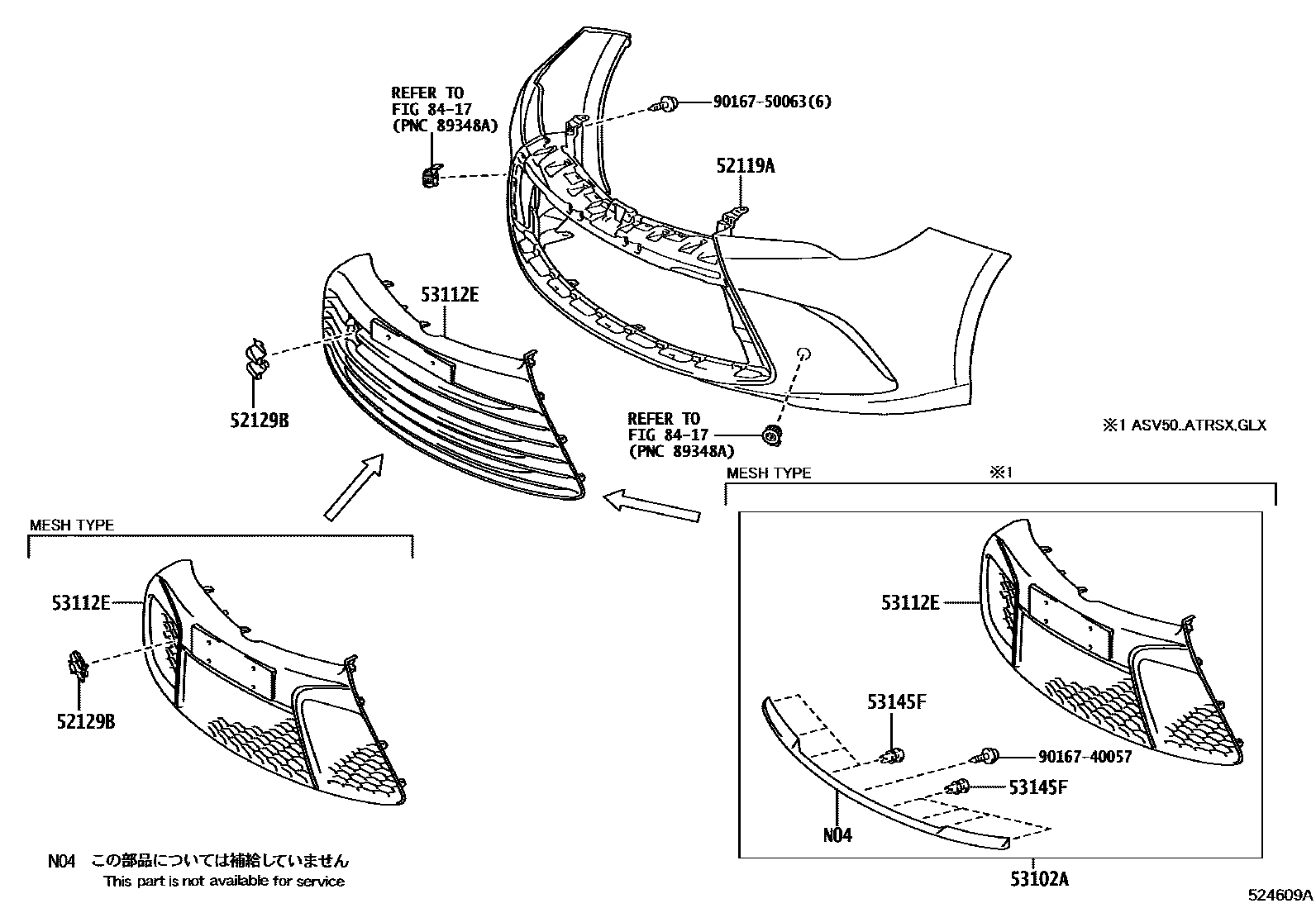

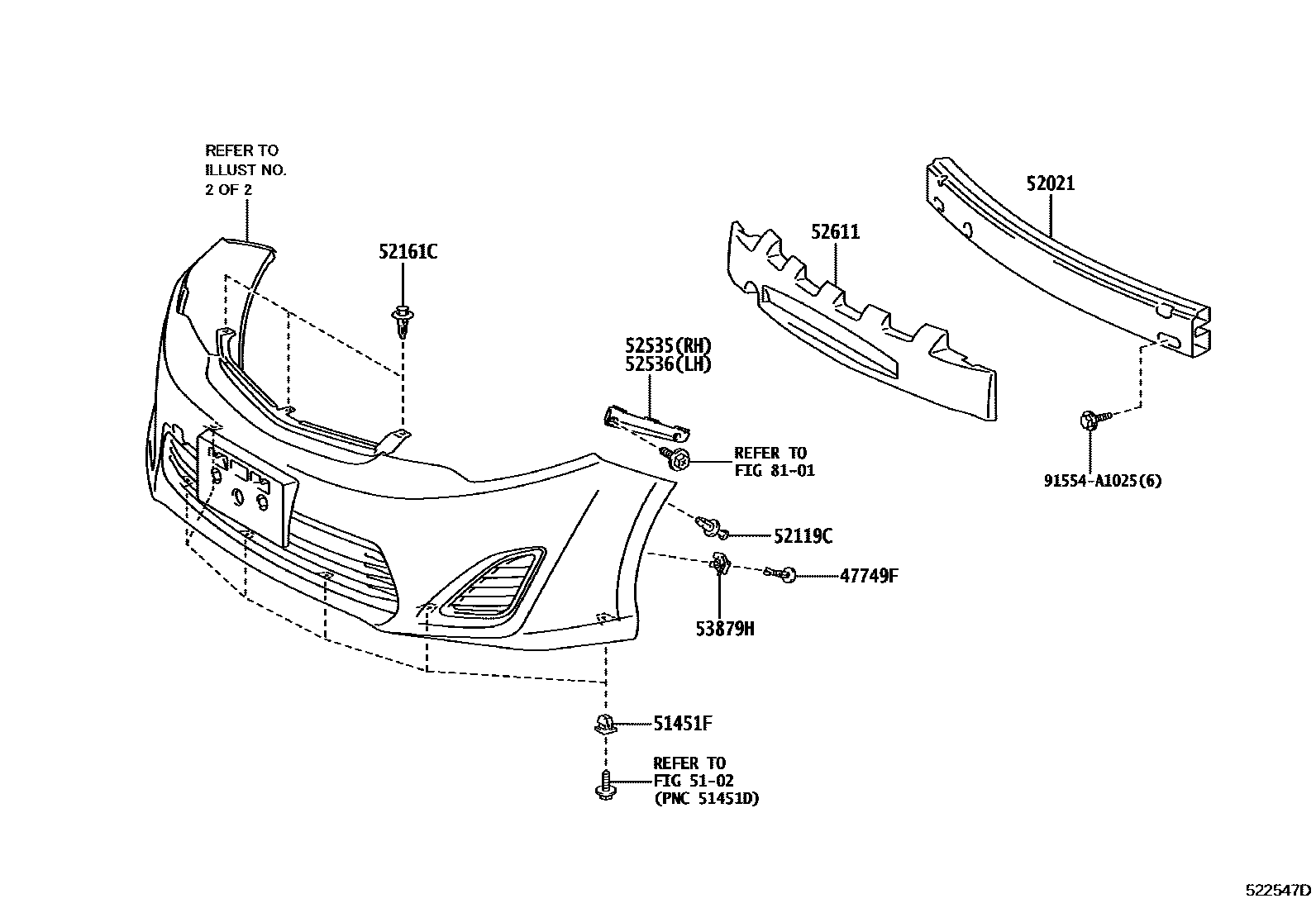

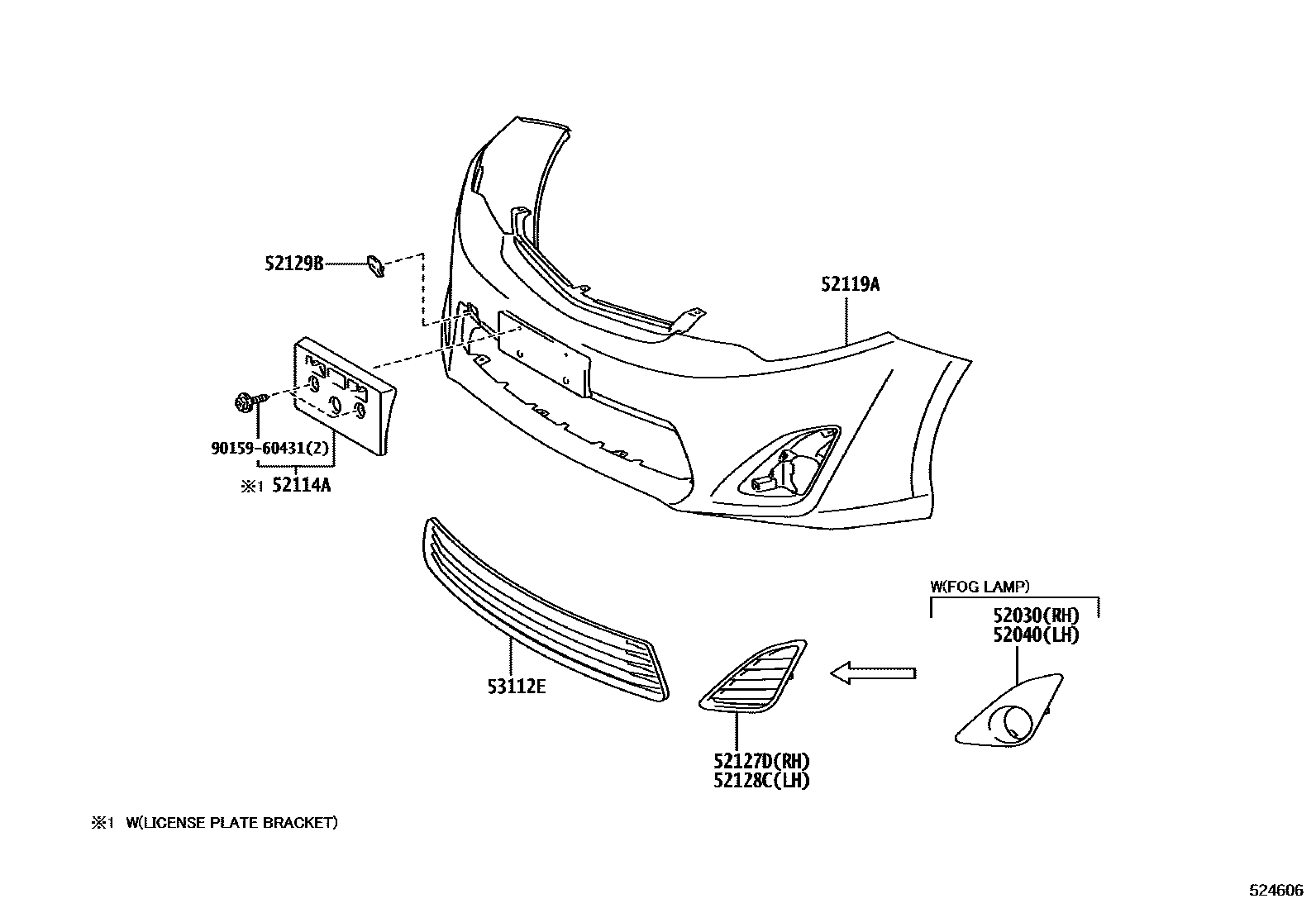

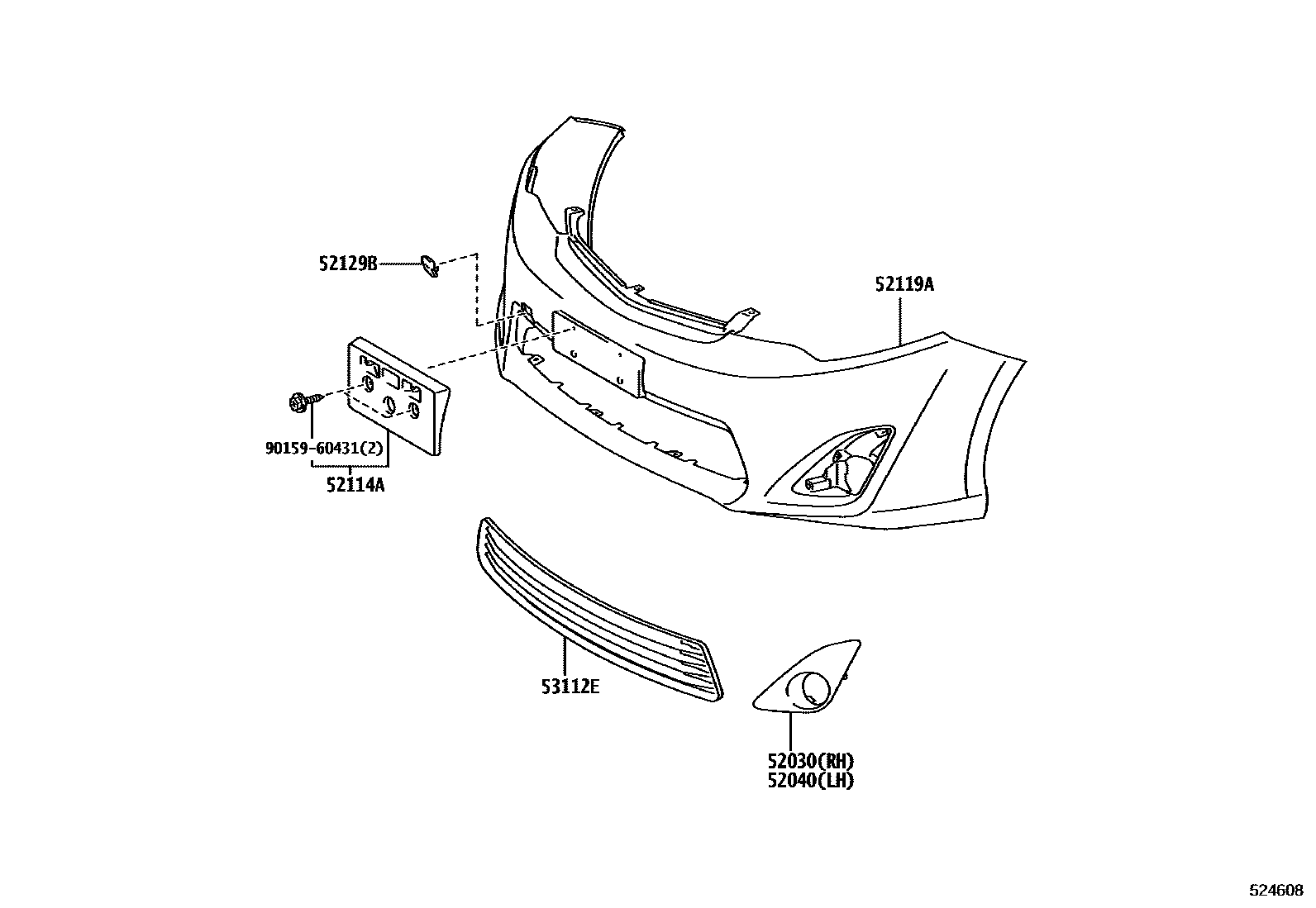

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 10 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-50090 |
| 51451F | Gasket No. 1 | 90189-06193 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-06110 · 52021-06111 |
| 52030 | Front bumper right hole cover assembly | 52030-06170 · 52030-06190 · 52030-06280 · 52030-06290 |
| 52040 | Front bumper left hole cover assembly | 52040-06170 · 52040-06190 · 52040-06280 · 52040-06290 |
| 52114A | Front bumper extension mounting bracket | 52114-06280 · 52114-06290 |
| 52119A | front bumper cover | 52119-06977 · 52119-06978 · 52119-06979 · 52119-0X924 |
| 52125A | Right fog light mounting bracket | 52125-06220 |
| 52126D | Left fog light mounting bracket | 52126-06220 |
| 52127D | Front bumper right hole cover | 52127-06320 · 52127-06340 · 52127-06440 · 52127-06450 · 52127-06560 |
| 52128C | Front bumper left hole cover | 52128-06320 · 52128-06340 · 52128-06440 · 52128-06450 · 52128-06570 |
| 52129B | Front bumper lower cover | 52129-06380 · 52129-06390 · 52129-06930 · 52129-06931 · 52129-06933 |
| 52161C | front bumper insert | 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-06140 · 52535-06180 · 52535-06200 |
| 52536 | Front bumper left fixed bracket | 52536-06130 · 52536-06170 · 52536-06200 |
| 52611 | front bumper energy absorber | 52611-06250 · 52611-06260 · 52611-06350 · 52611-06430 |
| 52712 | Front bumper right side protective strip | 52712-06050 · 52712-06060 |
| 52713A | Front bumper left protective strip | 52713-06050 · 52713-06060 |
| 53102A | Radiator lower grille sub-assembly | 53102-YY010 |
| 53112E | No. 1 radiator lower grille | 53112-06230 · 53112-06240 · 53112-06370 · 53112-06510 · 53112-06520 |
| 53145F | Radiator grille trim clip | 53145-YY010 |
| 53879H | Front fender lining fixing parts | 53879-30040 |
