Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102

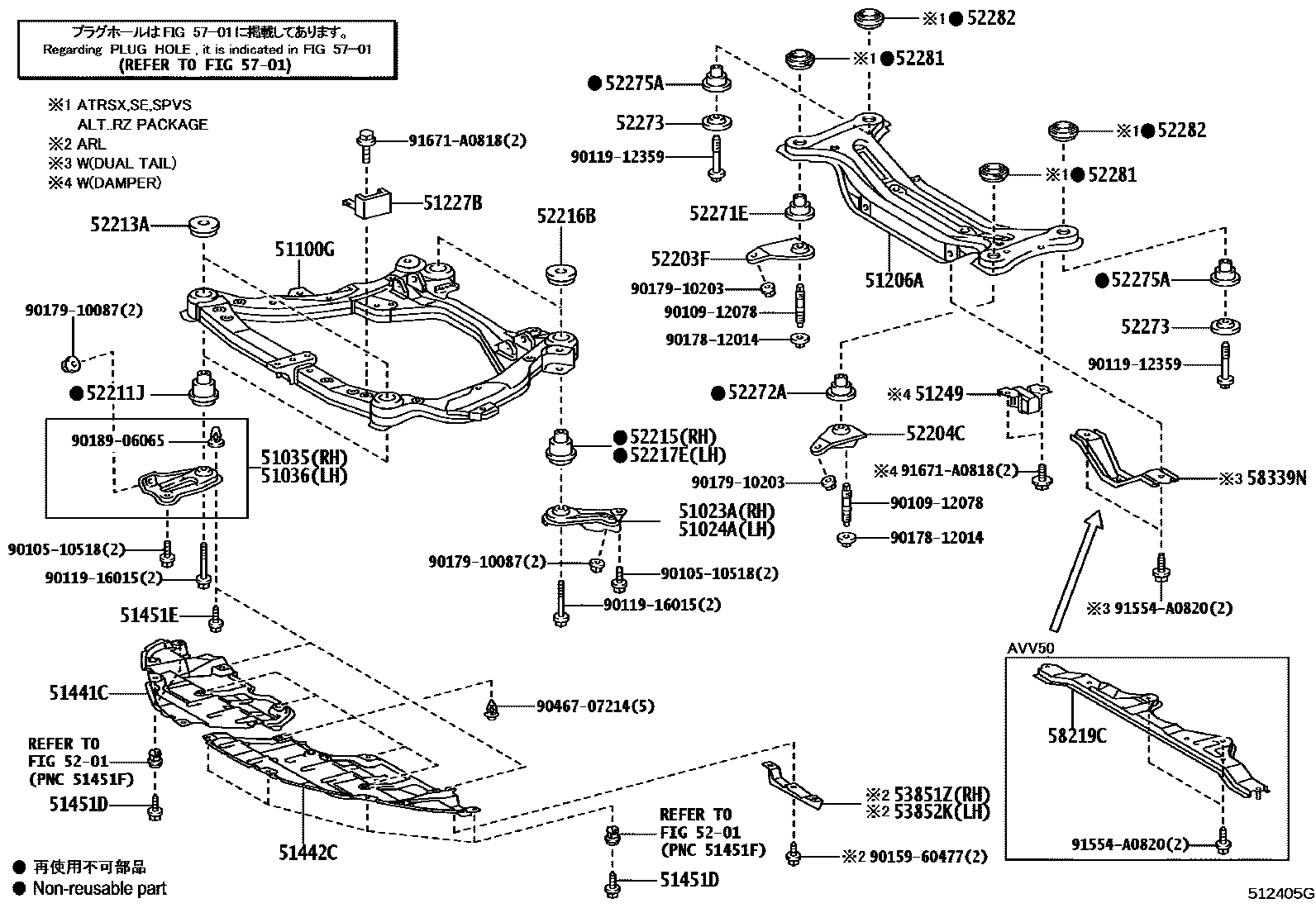

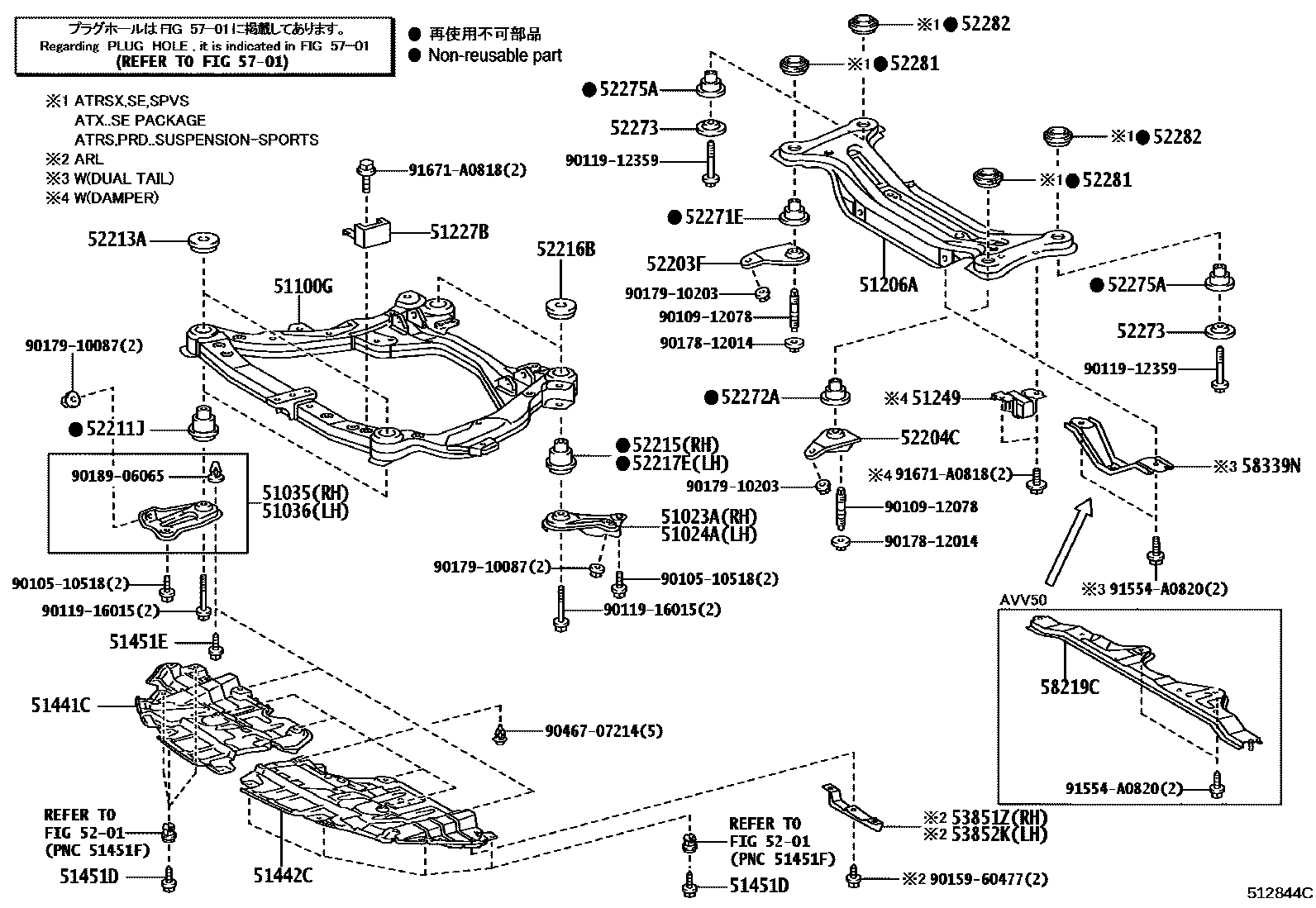

Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51023A | Front suspension cross member right side bracket sub-assembly | 51023-06030 |
| 51024A | Front suspension cross member left bracket sub-assembly | 51024-06030 |
| 51035 | Frame right longitudinal beam plate sub-assembly | 51035-06030 |
| 51036 | Frame left longitudinal beam plate sub-assembly | 51036-06030 |
| 51100G | Front frame assembly | 51100-06080 · 51100-06090 · 51100-06160 |
| 51206A | Rear suspension cross member sub-assembly | 51206-06070 |
| 51227B | Front suspension beam dynamic damper | 51227-06070 |
| 51249 | Rear suspension cross member shock absorber | 51249-06010 |
| 51441C | Engine right bottom cover | 51441-06160 · 51441-06210 · 51441-06270 |
| 51442C | Engine left bottom cover | 51442-06150 · 51442-06200 · 51442-06260 |
| 51451D | Screw No. 1 | 90159-60477 |
| 51451E | No. 2 screw | 90159-60477 |
| 52203F | Rear suspension cross member right lower block sub-assembly | 52203-33030 |
| 52204C | Rear suspension cross member left lower block sub-assembly | 52204-33030 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-06110 · 52211-06120 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-06110 · 52213-06120 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-06100 · 52215-06130 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-06100 |
| 52217E | Front suspension cross member left rear body fixed buffer pad | 52217-06080 · 52217-06110 |
| 52271E | Rear suspension cross member right front body fixed cushion | 52271-06080 · 52271-06090 |
| 52272A | Rear suspension cross member left front body fixed cushion | 52272-06070 · 52272-06080 |
| 52273 | Rear suspension cross member lower block | 52273-06020 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-06080 · 52275-06090 |
| 52281 | Differential support beam cushion | 52281-06020 |
| 52282 | Differential support beam upper stop | 52282-06050 |
| 53851Z | Right front fender outer panel pad | 53851-06050 |
| 53852K | Left front fender exterior panel pad | 53852-06050 |
| 58219C | Center floor rear end panel | 58219-33010 |
| 58339N | Lift the bracket | 58339-06010 |
