Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804

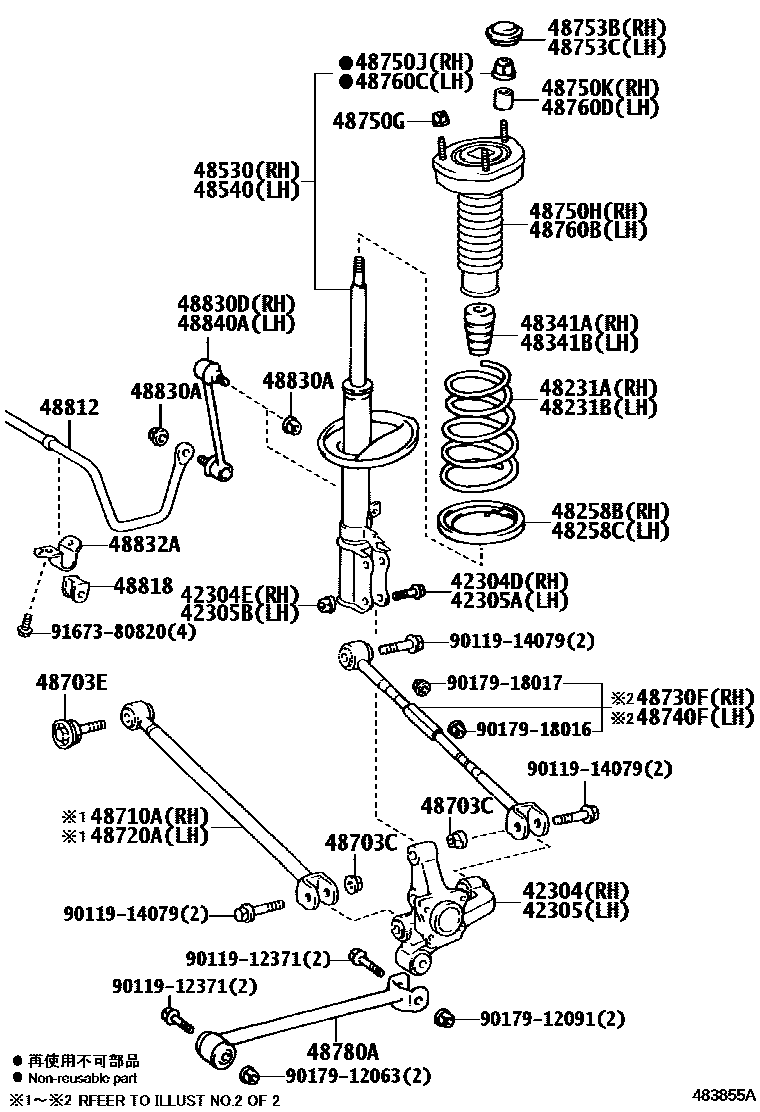

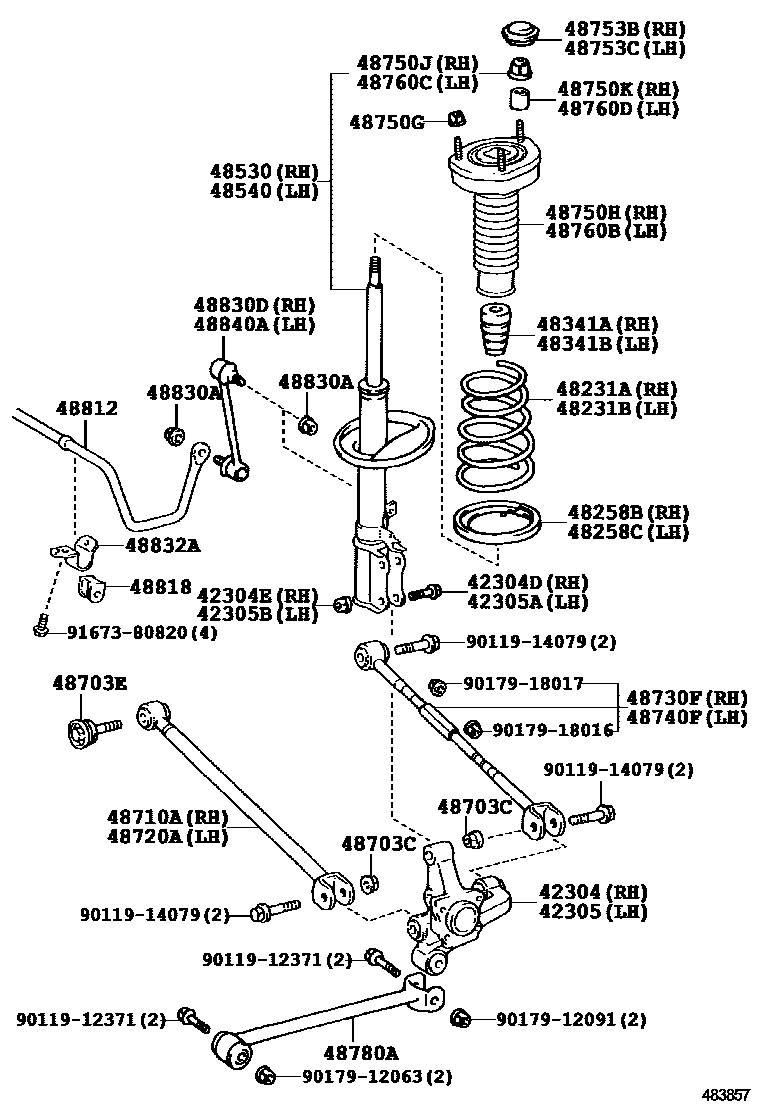

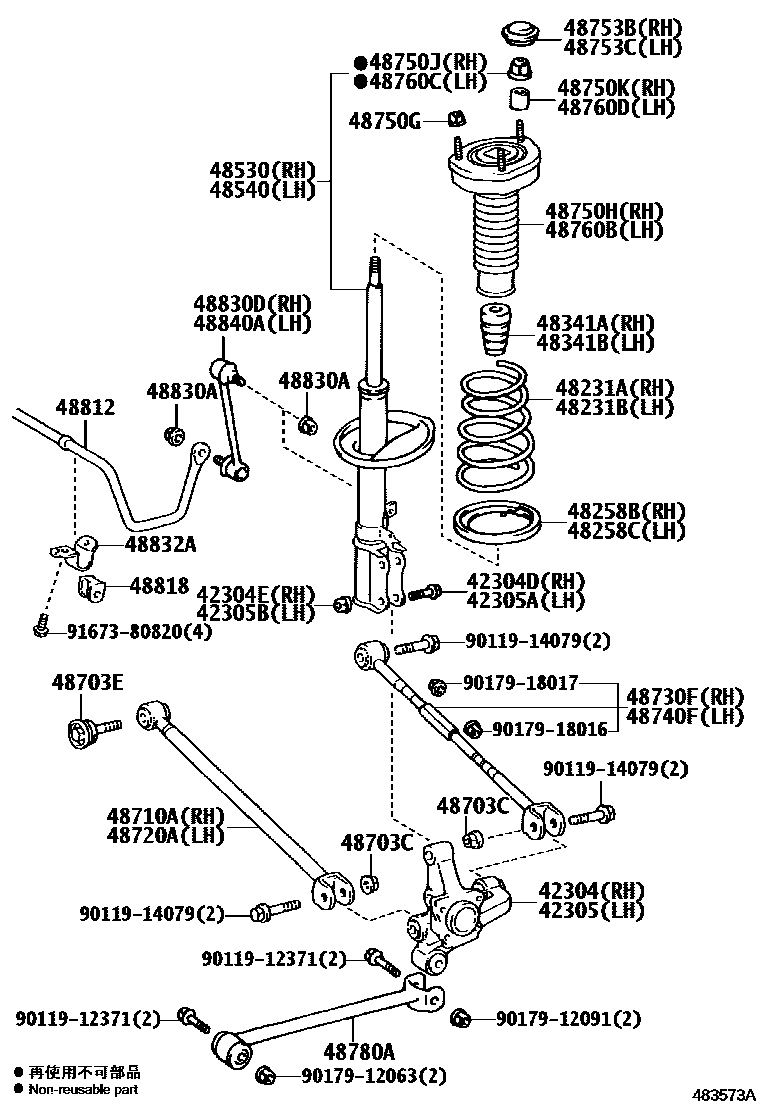

Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-06220 |
| 42304D | Bolt (for rear axle right bracket) | 90109-15001 · 90901-05001 |
| 42304E | Nut (for rear axle right bracket) | 90178-15002 |
| 42305 | Rear axle left bracket sub-assembly | 42305-06200 |
| 42305A | Bolt (for left rear axle bracket) | 90109-15001 · 90901-05001 |
| 42305B | Nut (for left rear axle bracket) | 90178-15002 |
| 48231A | Right rear coil spring | 48231-06580 · 48231-06590 · 48231-06600 · 48231-06601 · 48231-06610 |
| 48231B | Left rear coil spring | 48231-06580 · 48231-06590 · 48231-06600 · 48231-06601 · 48231-06610 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-06100 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-06130 |
| 48341A | No. 1 right rear spring buffer block | 48341-32053 · 48341-32054 · 48341-33020 |
| 48341B | No. 1 left rear spring buffer block | 48341-32053 · 48341-32054 · 48341-33020 |
| 48530 | Right rear shock absorber assembly | 48530-09U51 · 48530-09U60 · 48530-09V70 · 48530-8Z013 · 48530-8Z014 · 48530-8Z015 · 48530-8Z016 |
| 48540 | Left rear shock absorber assembly | 48540-09A71 · 48540-09A80 · 48540-09B60 · 48540-09D00 · 48540-09D10 · 48540-09D20 · 48540-09D30 |
| 48703C | Nut (for rear suspension arm) | 90179-14068 |
| 48703E | Bolts (for rear suspension arms) | 90901-19045 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-06080 · 48710-06090 · 48710-06120 · 48710-06130 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-06080 · 48710-06090 · 48710-06120 · 48710-06130 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-06110 · 48730-07050 · 48740-06100 · 48740-07020 |
| 48740F | Left rear suspension No. 2 arm assembly | 48740-06100 · 48740-07020 |
| 48750G | Nut (for rear suspension mount) | 90178-08007 |
| 48750H | Right rear suspension support assembly | 48750-06230 · 48750-06270 · 48750-06280 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 90179-14015 |
| 48750K | Collar (for rear mount to right rear shock absorber) | 90387-15027 |
| 48753B | Right rear suspension support cover No. 1 | 48753-06020 |
| 48753C | Left rear suspension support cover No. 1 | 48753-06020 |
| 48760B | Left rear suspension support assembly | 48760-06230 · 48760-06270 · 48760-06280 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 90179-14015 |
| 48760D | Collar (for rear mount to left rear shock absorber) | 90387-15027 |
| 48780A | Rear support rod assembly | 48780-06030 · 48780-06070 · 48780-06080 · 48780-07020 |
| 48812 | rear stabilizer bar | 48812-06110 · 48812-06160 |
| 48818 | Rear stabilizer bar bushing | 48818-06260 |
| 48830A | Nut (for rear stabilizer link) | 90179-10183 |
| 48830D | Right rear stabilizer bar link assembly | 48830-33040 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-06120 |
| 48840A | Left rear stabilizer bar link assembly | 48830-33040 |
