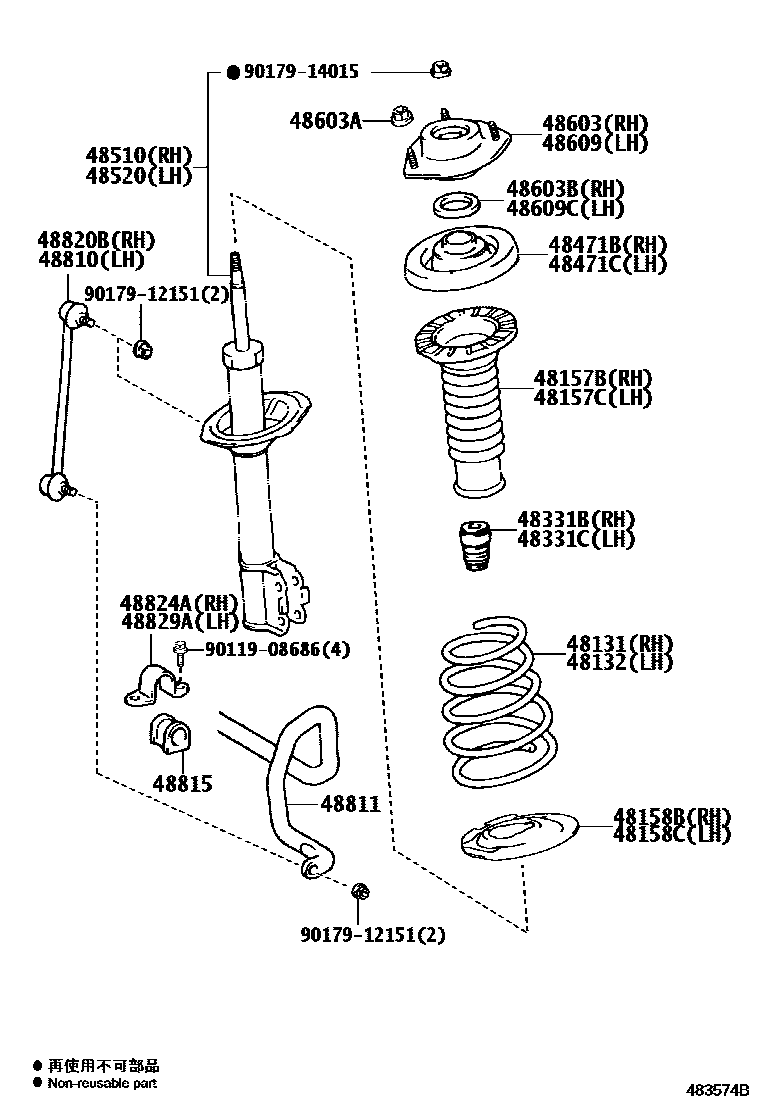

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-06D10 · 48131-06D20 · 48131-06D30 · 48131-06D31 · 48131-06E10 · 48131-06E20 · 48131-06E30 |
| 48132 | Left front coil spring | 48131-06D10 · 48131-06D20 · 48131-06D30 · 48131-06D31 · 48131-06E10 · 48131-06E20 · 48131-06E30 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-06130 · 48157-06191 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-06130 · 48157-06191 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-06100 · 48158-33080 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-06100 · 48158-33080 |
| 48331B | Right front spring buffer block | 48331-33070 · 48331-33071 |
| 48331C | Left front spring buffer block | 48331-33070 · 48331-33071 |
| 48471B | Front coil spring upper right seat | 48471-06020 |
| 48471C | Front coil spring upper left seat | 48471-06020 |
| 48510 | Right front shock absorber assembly | 48510-8Z035 · 48510-8Z036 · 48510-8Z037 · 48510-8Z038 · 48510-8Z220 · 48510-8Z221 · 48510-8Z222 · 48510-8Z223 · 48510-8Z224 · 48510-8Z225 |
| 48520 | Left front shock absorber assembly | 48520-09V80 · 48520-09V90 · 48520-09W10 · 48520-09W20 · 48520-8Z085 · 48520-8Z086 · 48520-8Z087 · 48520-8Z088 · 48520-8Z089 · 48520-8Z090 |
| 48603 | Right front suspension bearing sub-assembly | 48609-06280 · 48609-06290 · 48609-06300 · 48609-06370 |
| 48603A | Nut (for front suspension mount) | 90178-10017 |
| 48603B | Bearing (for right front suspension mount) | 90369-T0006 |
| 48609 | Left front suspension bearing sub-assembly | 48609-06280 · 48609-06290 · 48609-06300 · 48609-06370 |
| 48609C | Bearing (for left front suspension mount) | 90369-T0006 |
| 48810 | Left front stabilizer bar link assembly | 48820-33040 · 48820-33070 |
| 48811 | front stabilizer bar | 48811-06180 · 48811-06230 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-06170 · 48815-06180 · 48815-28130 |
| 48820B | Right front stabilizer bar link assembly | 48820-33040 · 48820-33070 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-06030 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-06030 |
