Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 7 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

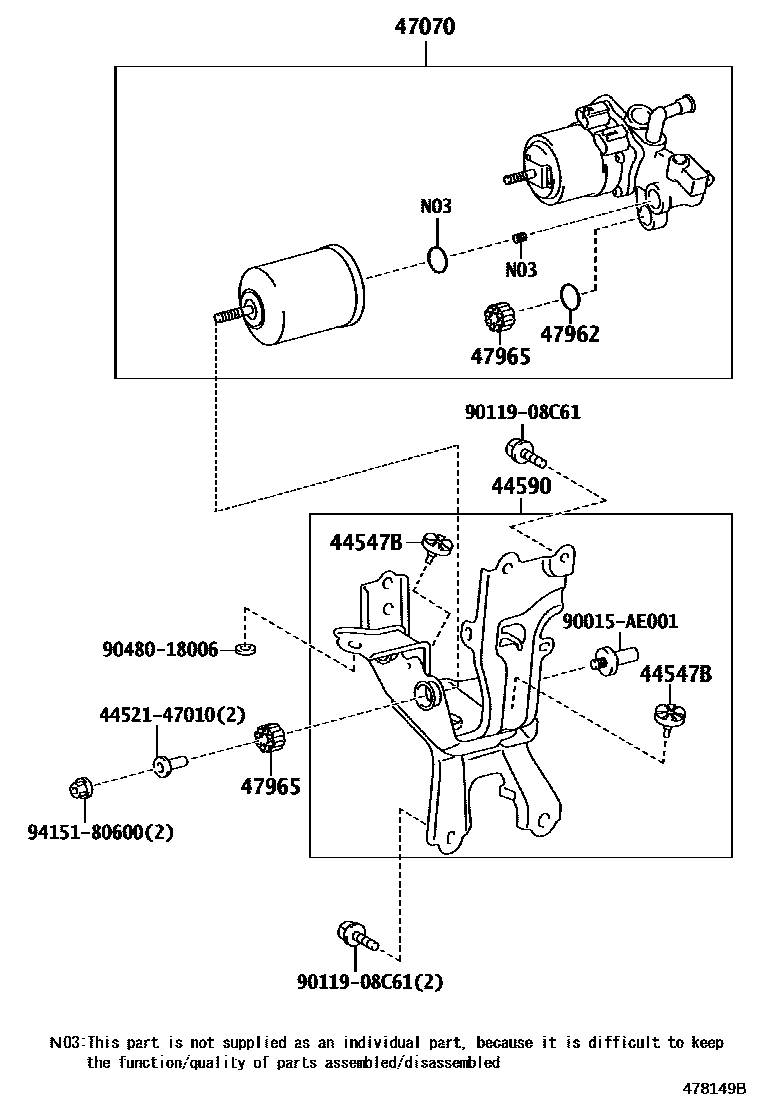

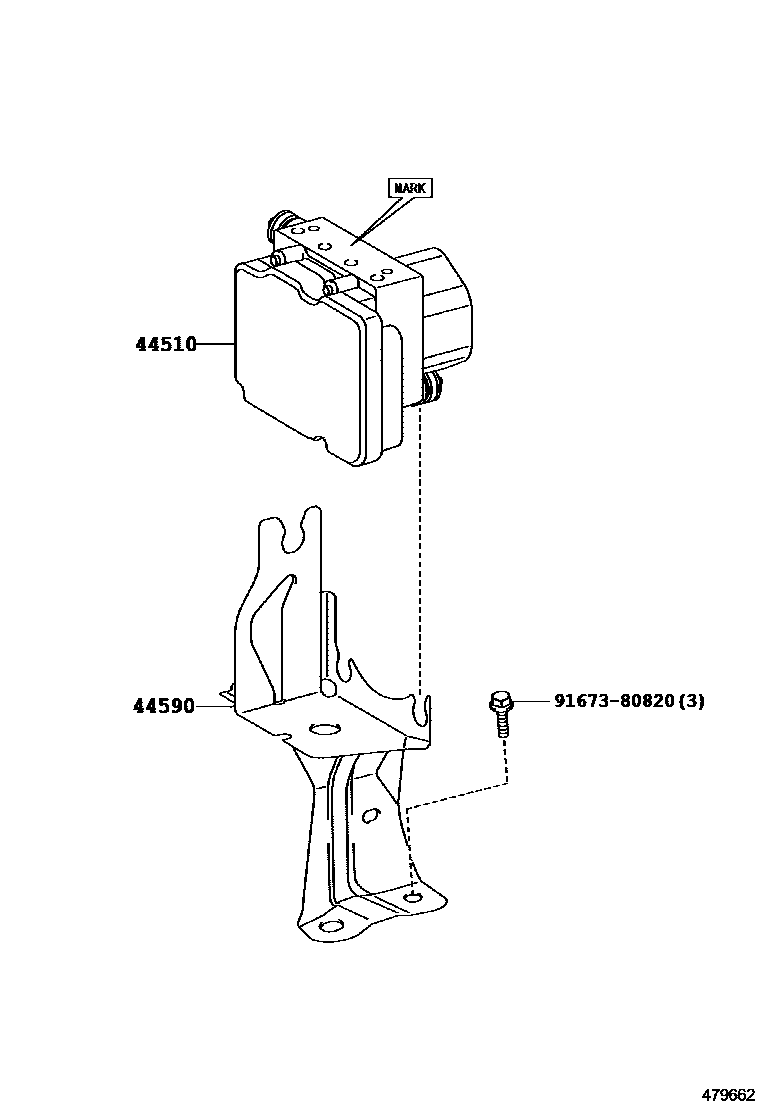

| 44510 | brake actuator assembly | 44050-06200 · 44050-06210 · 44050-06320 · 44050-06330 · 44050-06340 · 44050-06350 · 44050-06360 · 44050-33270 |
| 44547B | brake actuator bracket cushion | 47131-47070 |
| 44590 | Brake actuator bracket assembly | 44590-06250 · 47940-33010 |
| 47070 | Brake booster pump assembly | 47070-33040 |

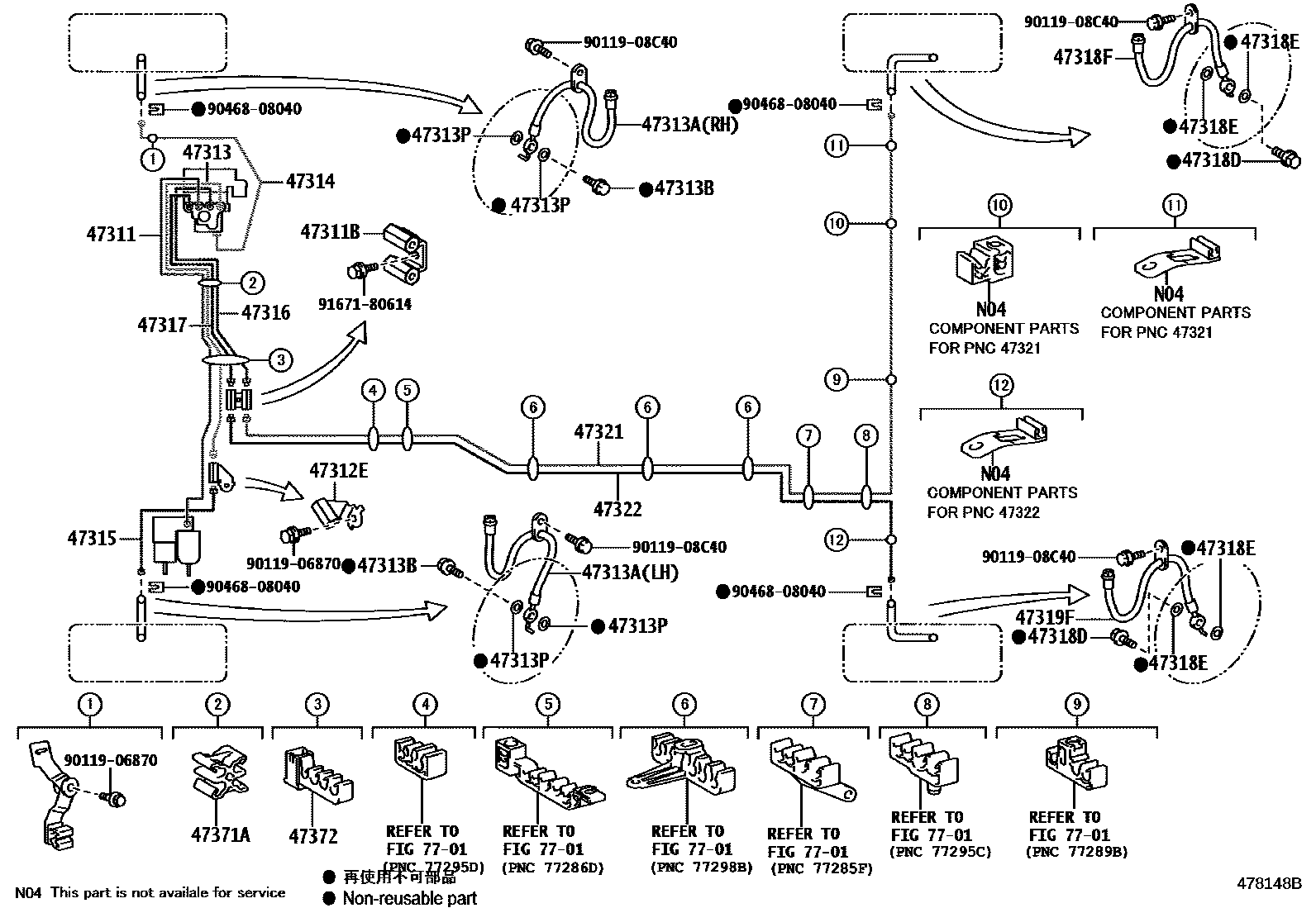

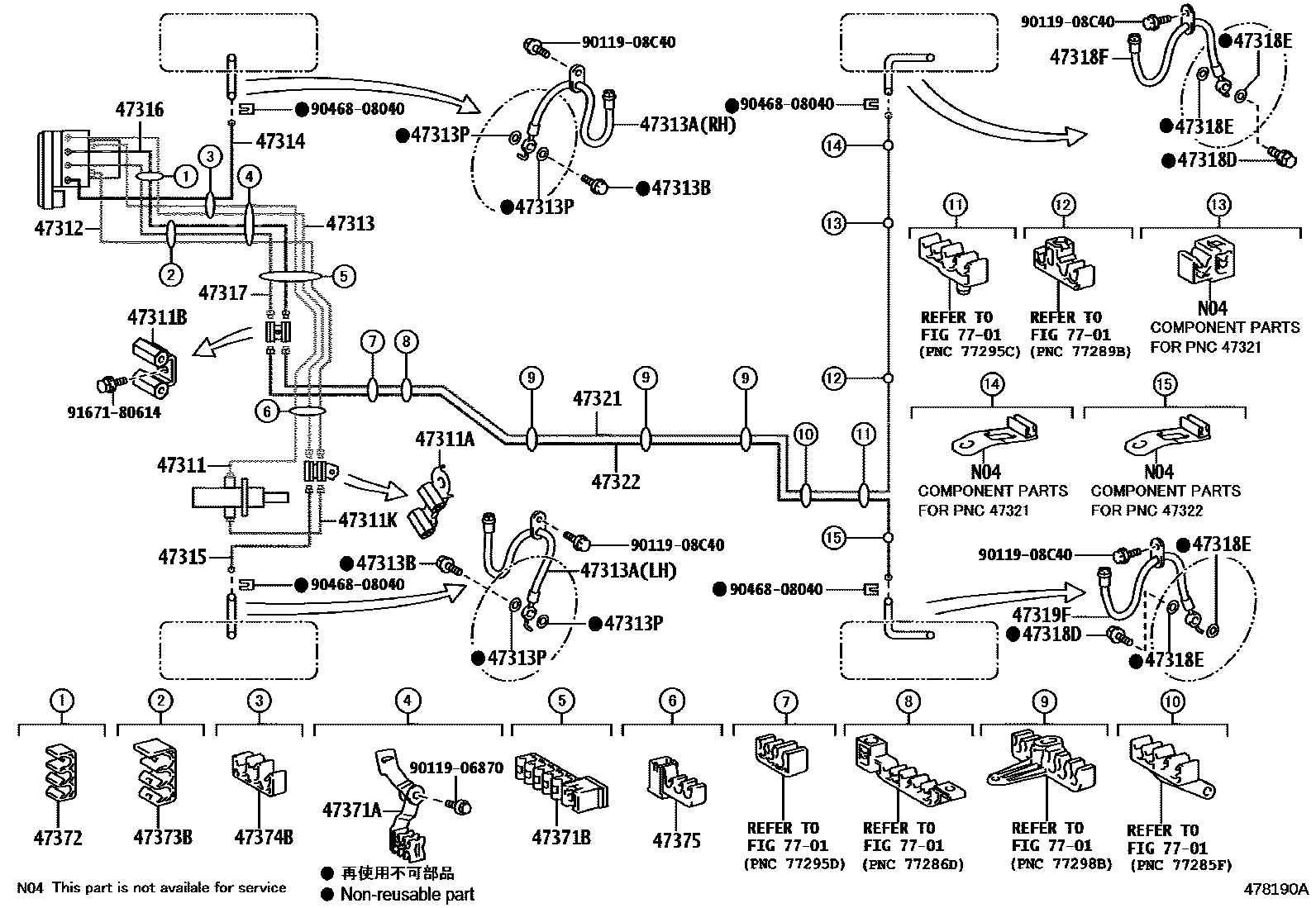

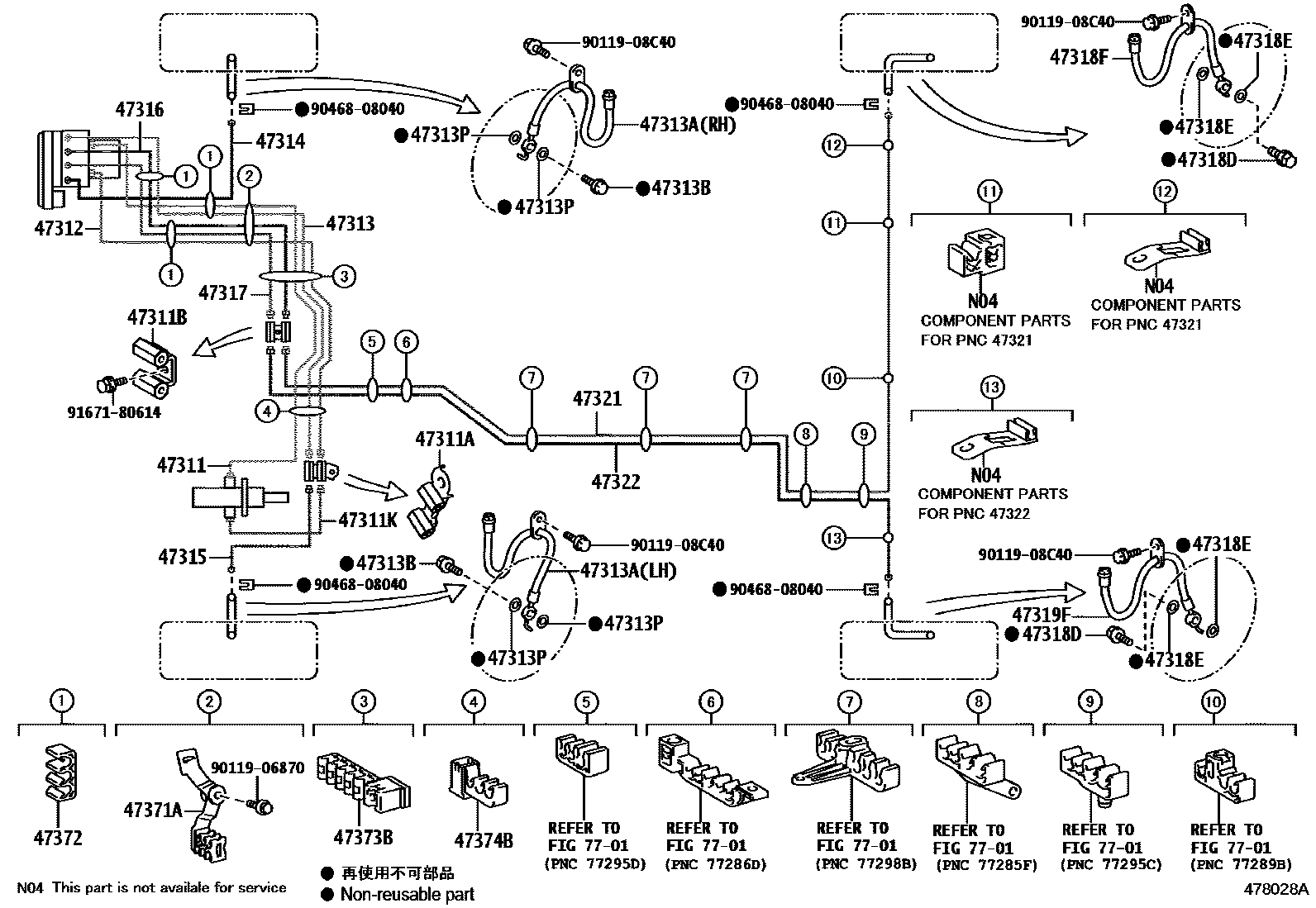

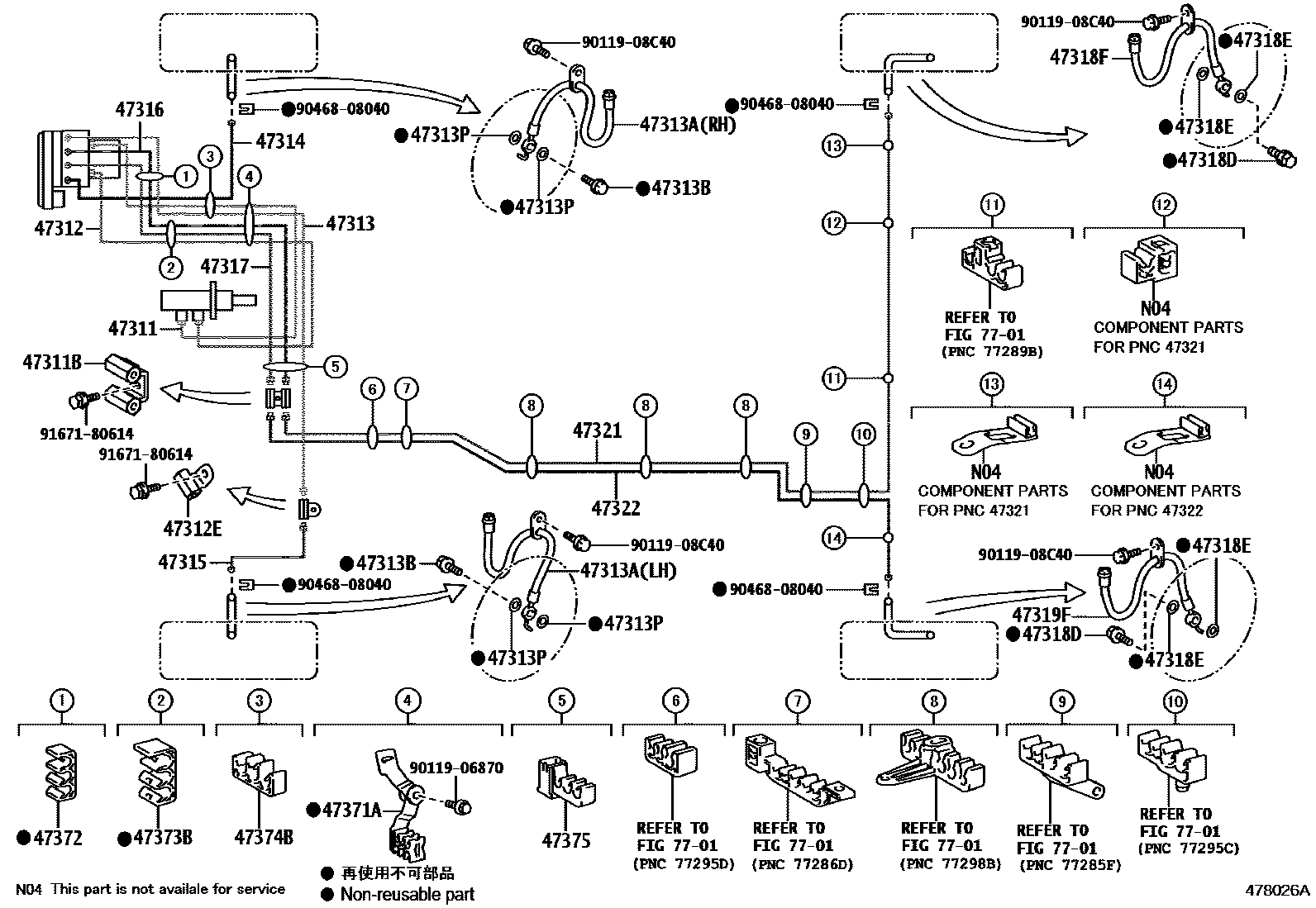

| 47311 | No. 1 front brake pipe | 47311-06410 · 47311-06420 · 47311-06430 · 47311-06450 · 47311-06451 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10287 · 90412-12066 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-33240 · 47311-33250 |
| 47312 | No. 2 front brake pipe | 47312-06340 · 47312-06350 · 47312-06360 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10272 · 90412-10280 |
| 47313 | No. 3 front brake pipe | 47313-06300 · 47313-06310 · 47313-06320 · 47313-06330 |
| 47313A | No. 1 front flexible hose | 90947-T2073 · 90947-T2074 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50021 · 90089-43002 |
| 47314 | No. 4 front brake pipe | 47314-06310 · 47314-06320 · 47314-06321 |
| 47315 | No. 5 front brake pipe | 47315-06300 · 47315-06311 · 47315-06321 · 47315-06330 |
| 47316 | No. 6 front brake pipe | 47316-06370 · 47316-06380 · 47316-06390 · 47316-06400 |
| 47317 | No. 7 front brake pipe | 47317-06350 · 47317-06360 · 47317-06370 · 47317-06380 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 · 90089-43002 |
| 47318F | Right rear flexible hose | 90947-T2069 |
| 47319F | Left rear flexible hose | 90947-T2070 |
| 47321 | No. 1 rear brake pipe | 47321-06160 |
| 47322 | No. 2 rear brake pipe | 47322-06160 |
| 47371A | No. 1 brake pipe clamp | 47371-33280 · 47371-33290 · 90464-00876 |
| 47371B | No. 6 brake pipe clamp | 90949-01D51 |
| 47372 | No. 2 brake pipe clamp | 90464-00857 · 90949-01D87 |
| 47373B | No. 3 brake pipe clamp | 90464-00894 · 90949-01D06 |
| 47374B | No. 4 brake pipe clamp | 90464-00919 · 90949-01D08 |
| 47375 | No. 5 brake pipe clamp | 90949-01D08 · 90949-01D50 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
