Toyota CAMRY 制动总泵 — Figure 4702

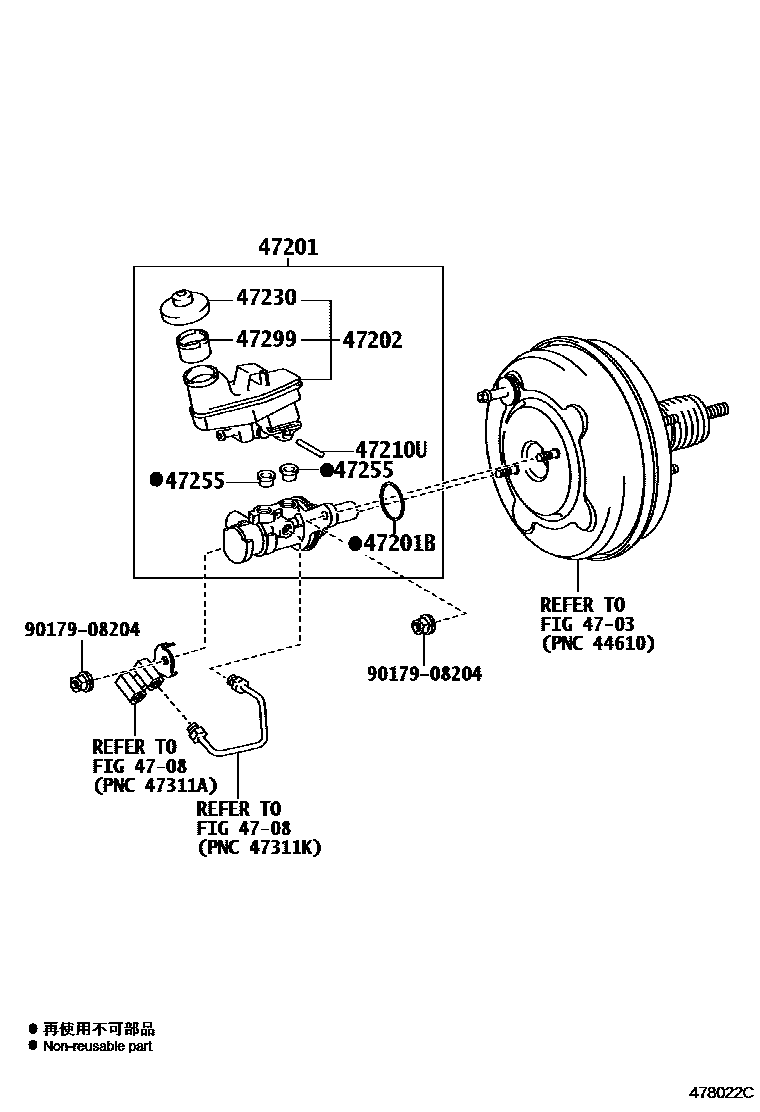

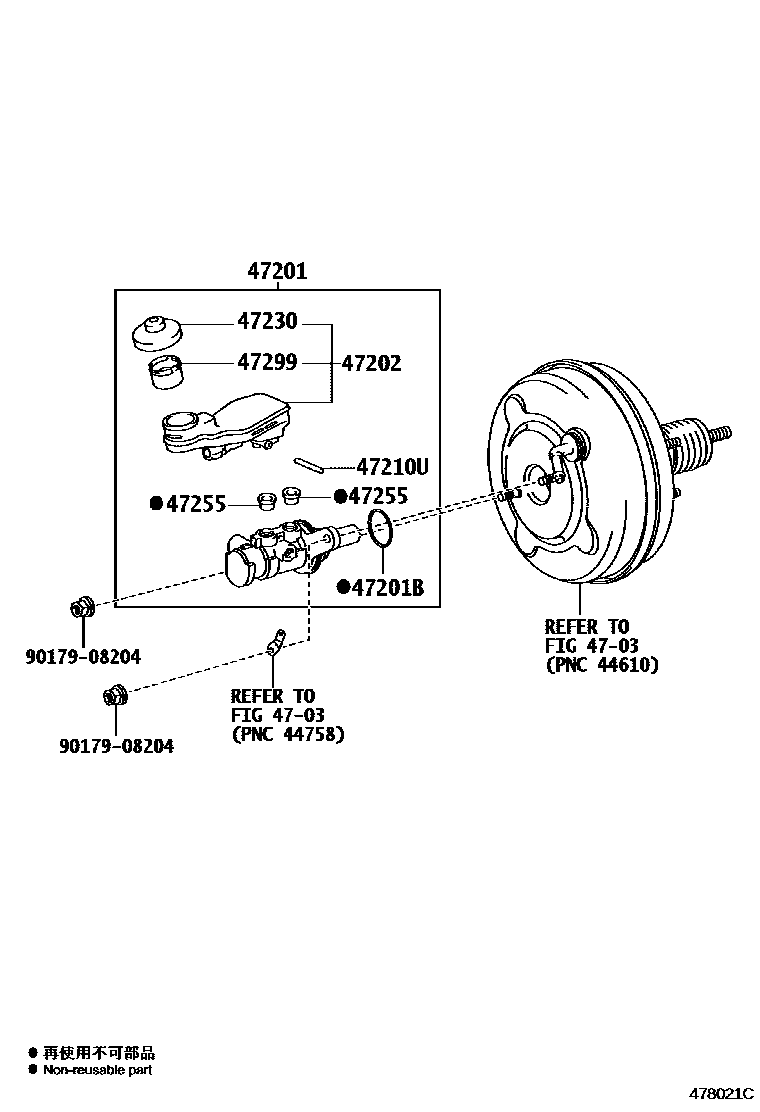

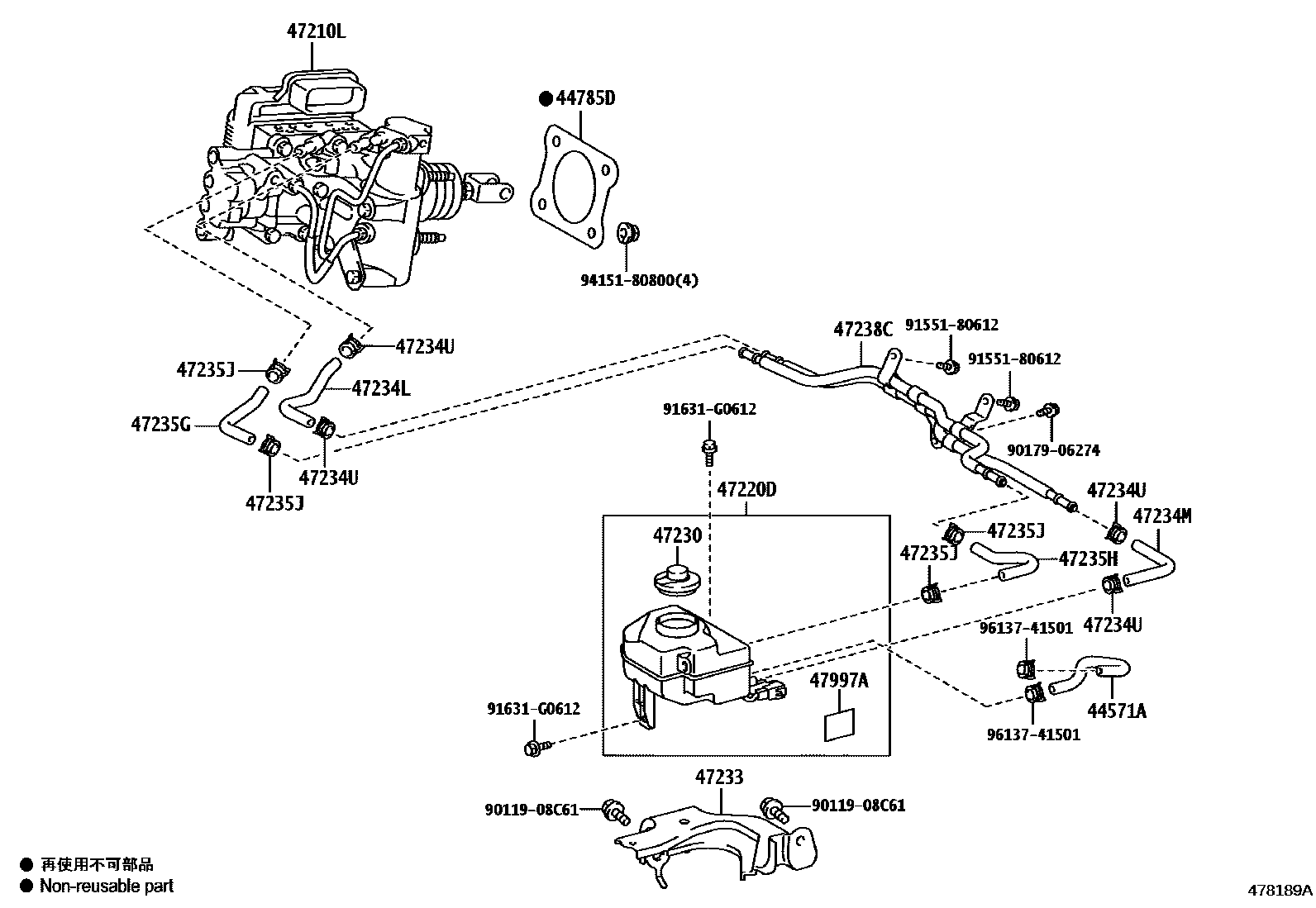

Toyota CAMRY EPC diagram 4702, 制动总泵, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44571A | No. 1 brake actuator hose | 44571-33120 |
| 44785D | brake master cylinder gasket | 44785-12040 |
| 47201 | Brake master cylinder sub-assembly | 47201-33550 · 47201-33551 · 47201-33552 · 47201-33553 · 47201-33560 · 47201-33570 · 47201-33580 · 47201-33620 · 47201-33621 · 47201-33622 · 47201-33630 · 47201-33631 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH001 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-33230 · 47220-33231 · 47220-33240 · 47220-33250 · 47220-33300 · 47220-33310 |
| 47210L | Brake booster assembly with master cylinder | 47050-33021 · 47050-33220 |
| 47210U | Direct sales (for brake master cylinder) | 90015-AE401 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-33260 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-20140 · 47230-33071 · 47230-33072 |
| 47233 | Reservoir tank bracket | 47233-06030 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-33040 |
| 47234M | Reservoir Tank No. 1 Hose | 47234-33050 |
| 47234U | Clamp (for reservoir tank No. 1 hose) | 96137-41501 |
| 47235G | Reservoir tank No. 2 hose | 47235-33030 |
| 47235H | Reservoir tank No. 2 hose | 47235-33040 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 96137-41501 |
| 47238C | Reservoir tube | 47238-06030 |
| 47255 | Master pump reservoir seal | 90015-AT001 |
| 47299 | Brake master cylinder reservoir filter | 47299-52110 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
