Toyota CAMRY Steering Wheel — Figure 4504

Toyota CAMRY EPC diagram 4504, Steering Wheel, with 2 images and 4 PNC and OE references.

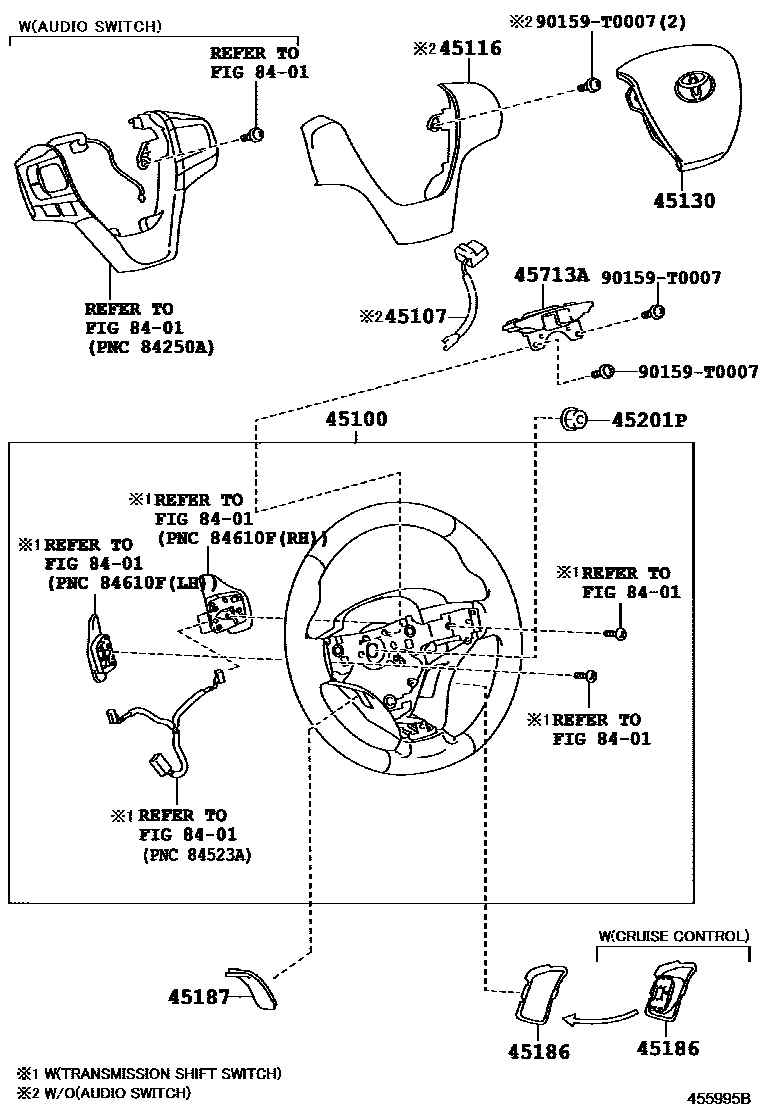

Toyota CAMRY Steering Wheel EPC diagram — 455995B
Steering Wheel — 455995B (201110 – 999999)

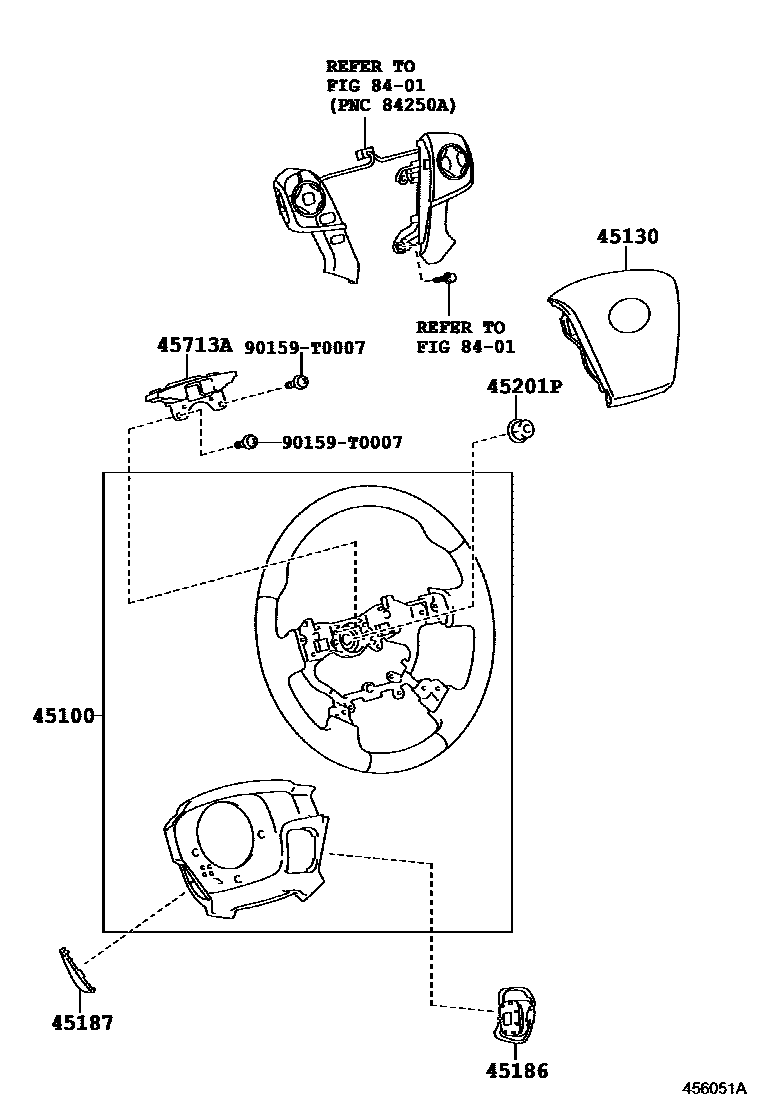

Toyota CAMRY Steering Wheel EPC diagram — 456051A
Steering Wheel — 456051A (201202 – 999999)

PNC and OE references

PNCPart nameOE numbers
45107Speaker button wiring harness sub-assembly45107-06050
45116No. 1 steering wheel decorative parts45116-06080
45201PSteering wheel fixing nut90179-12071
45713Asteering damper45713-33140 · 45713-33210
