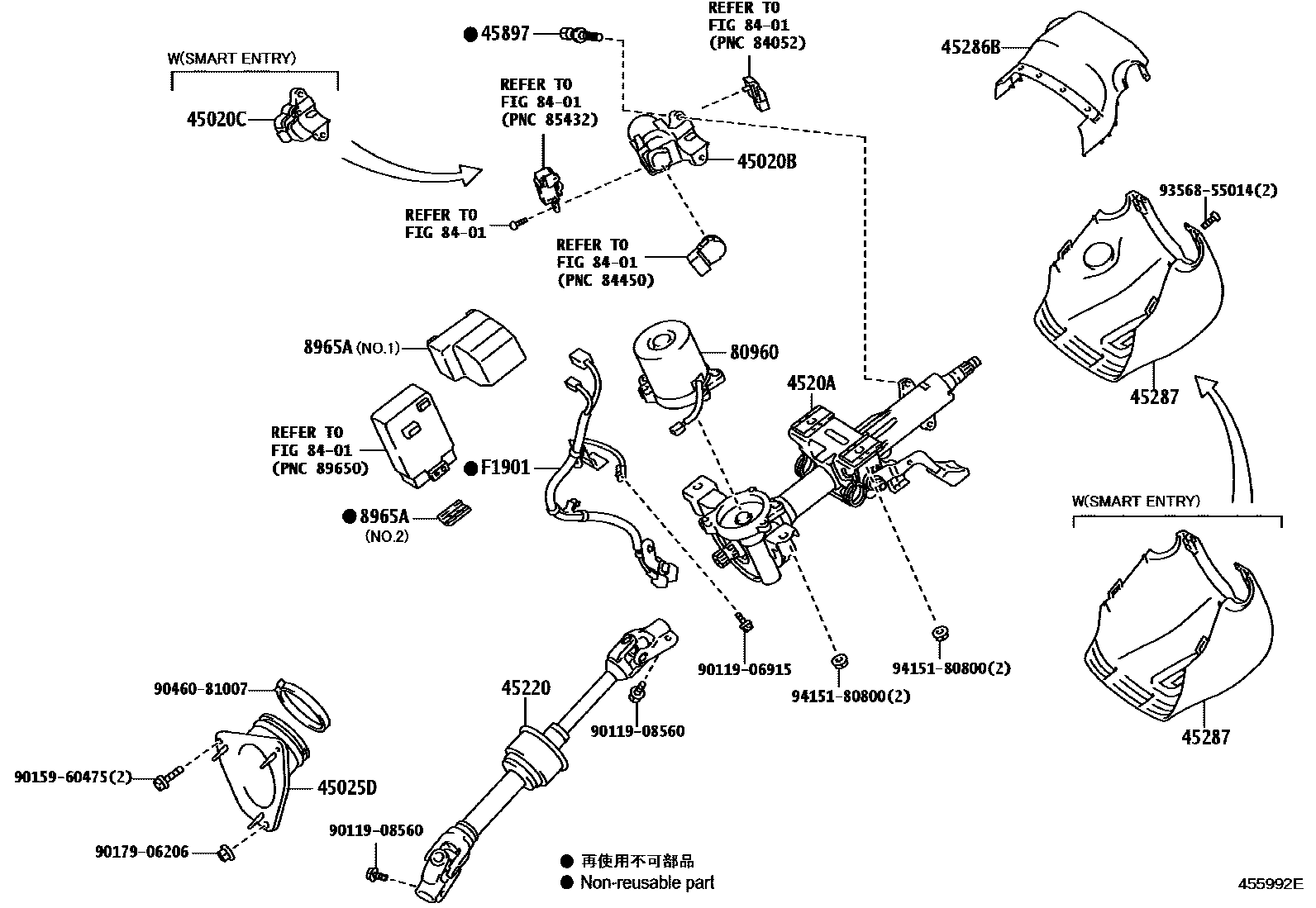

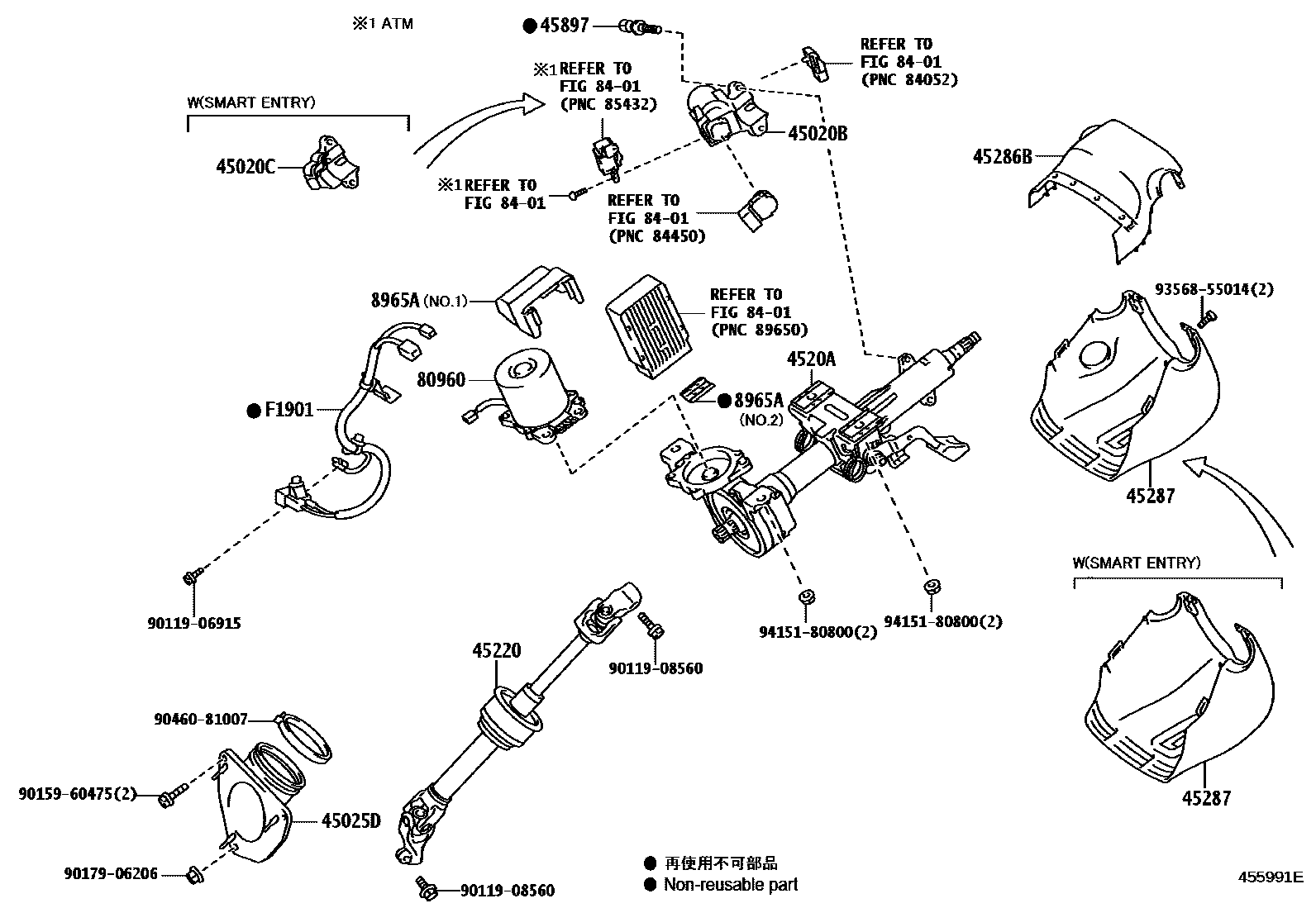

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | Steering lock actuator or upper bracket assembly | 45280-06120 · 45280-06130 |
| 45020C | Steering lock actuator assembly with ECU | 45020-33170 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-06160 · 45025-06161 · 45025-06170 · 45025-06171 |
| 4520A | Electric steering column sub-assembly | 4520A-06070 · 4520A-06080 · 4520A-06090 · 4520A-06100 |
| 45220 | Steering intermediate shaft assembly | 45220-06200 · 45220-06201 · 45220-06210 · 45220-06211 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 80960 | Power steering motor assembly | 80960-06050 · 80960-06060 |
| 8965A | Power steering ECU protection device | 8965A-06020 · 8965A-06030 · 8965A-06040 · 8965A-06050 |
| F1901 | ECU wiring harness sub-assembly | F1901-06040 · F1901-06050 |
