Toyota CAMRY Front Drive Shaft — Figure 4302

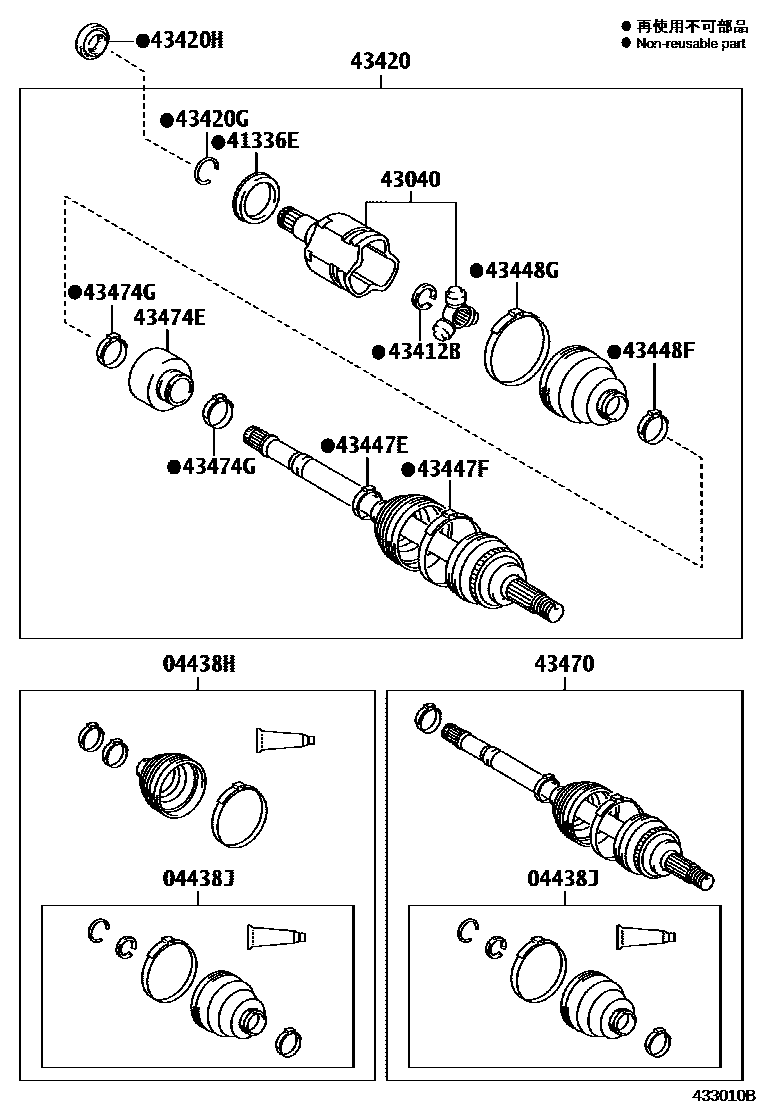

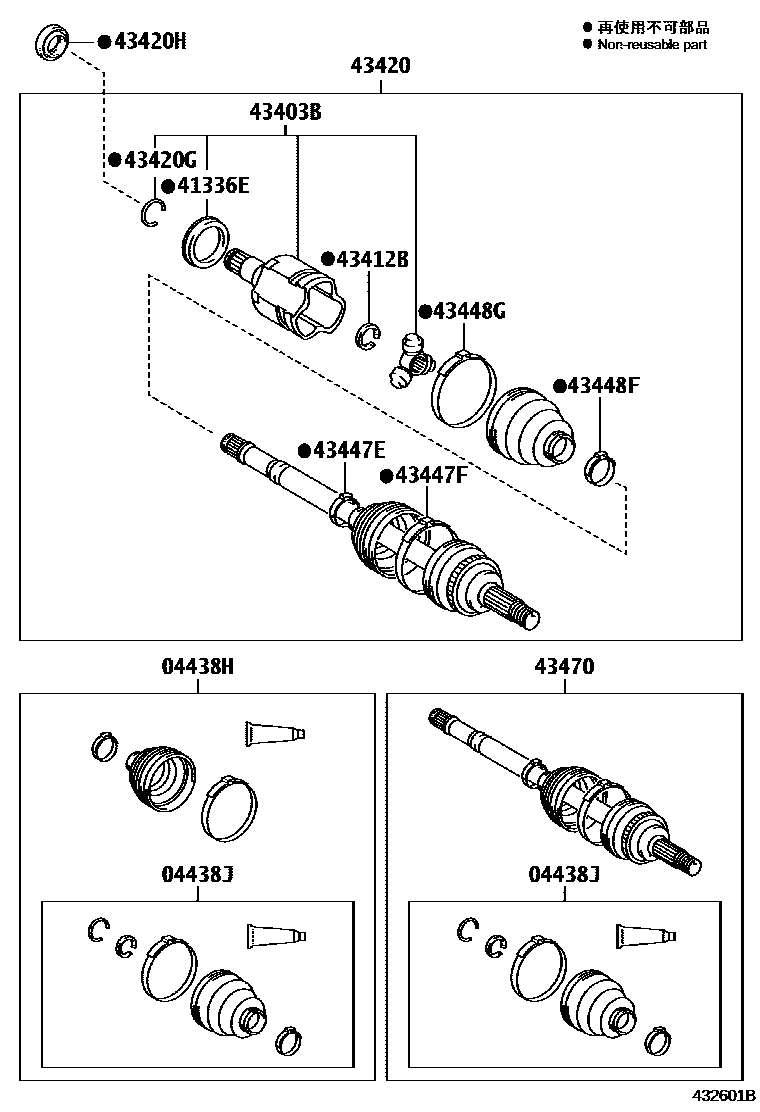

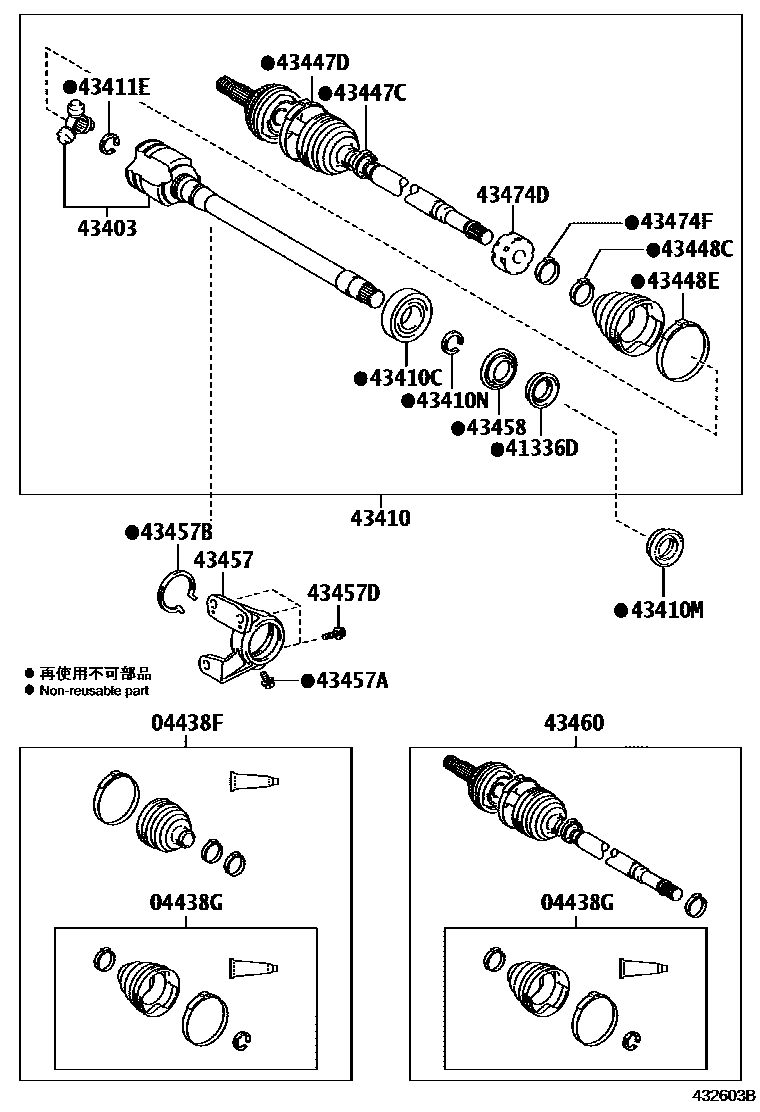

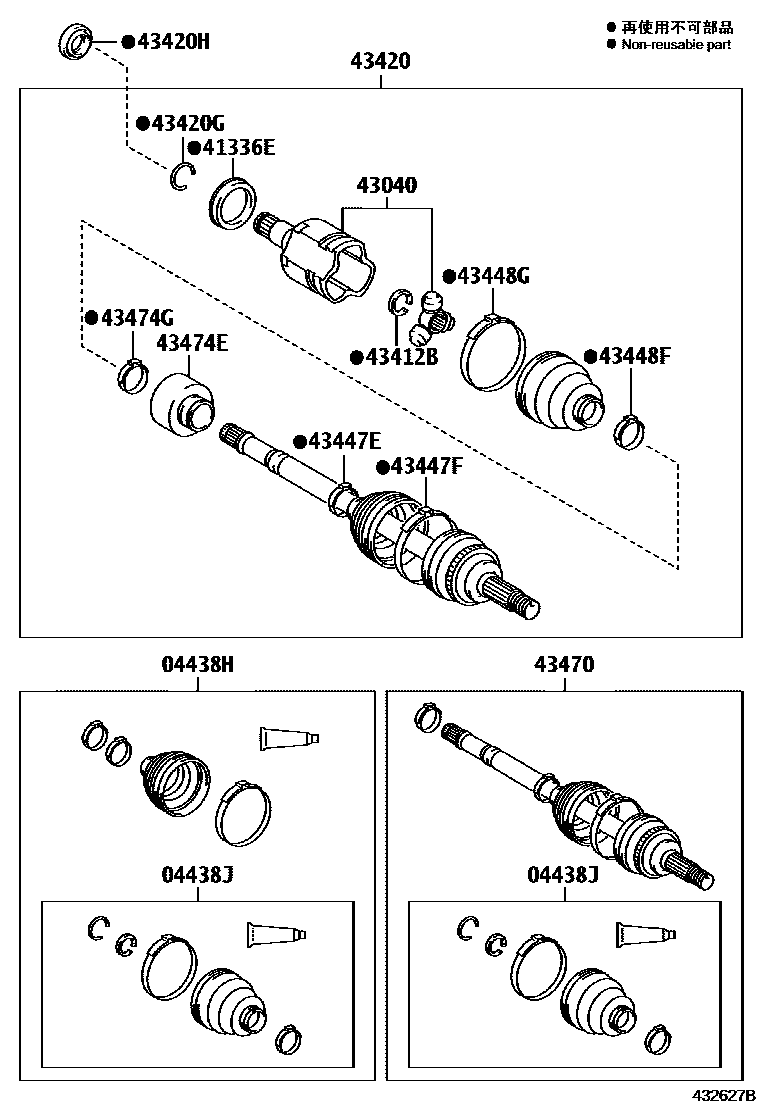

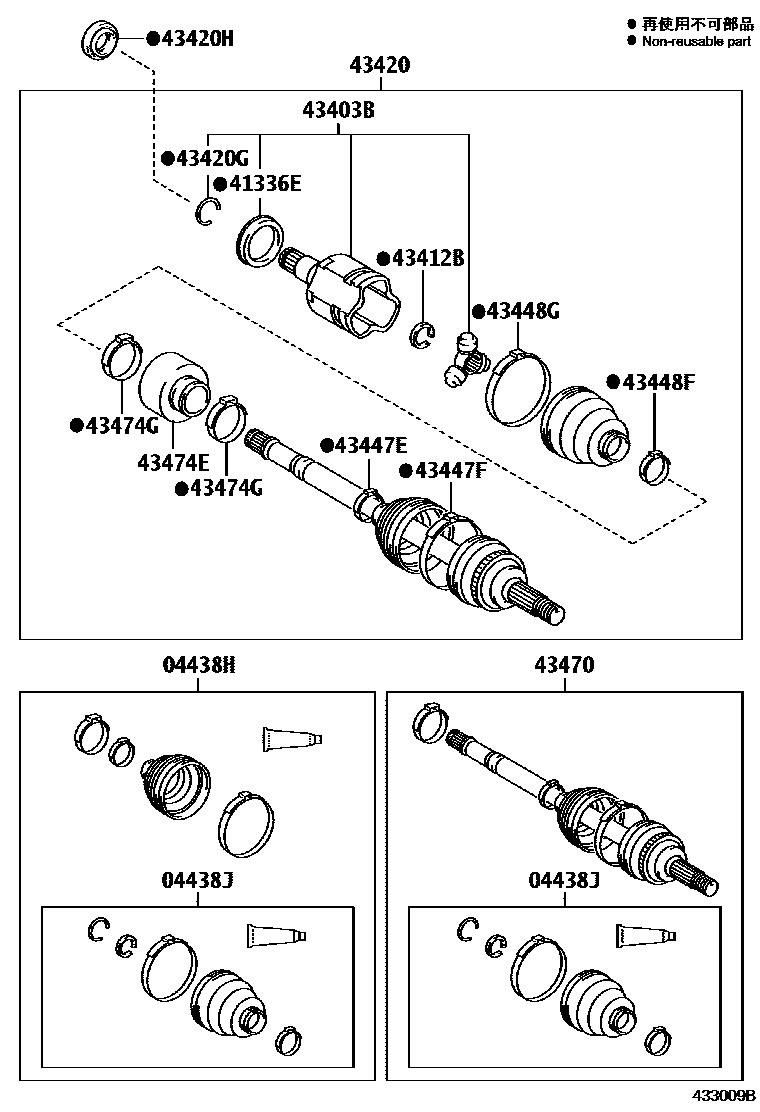

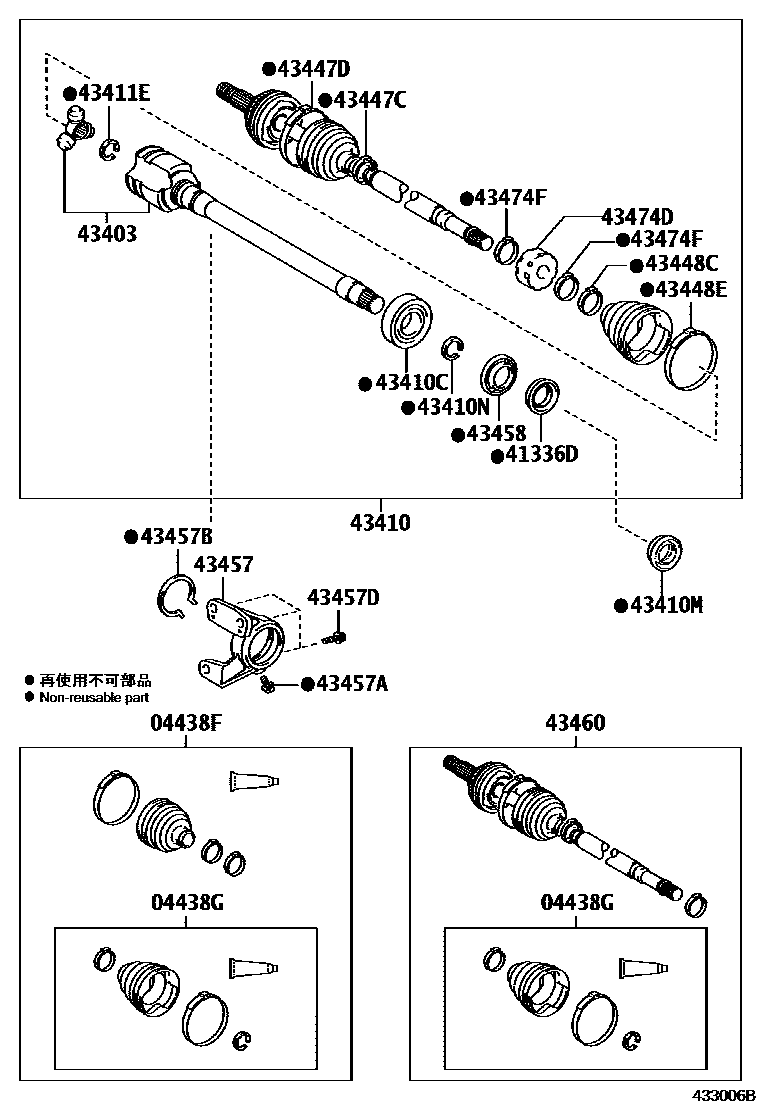

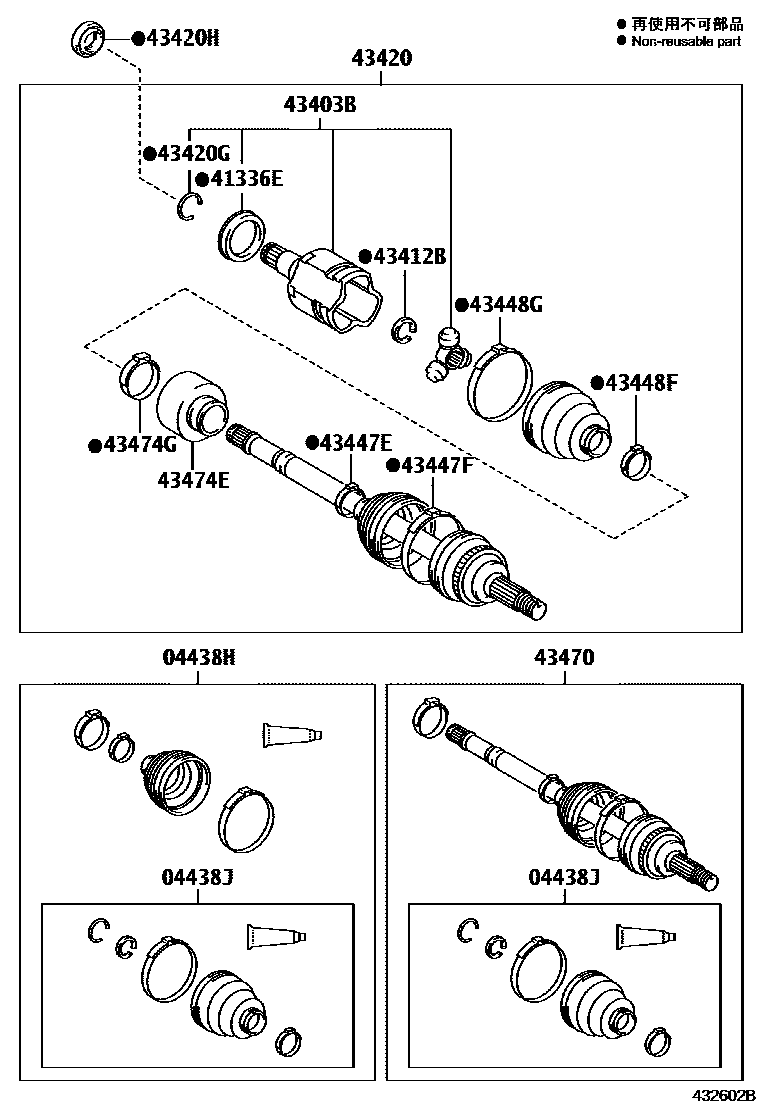

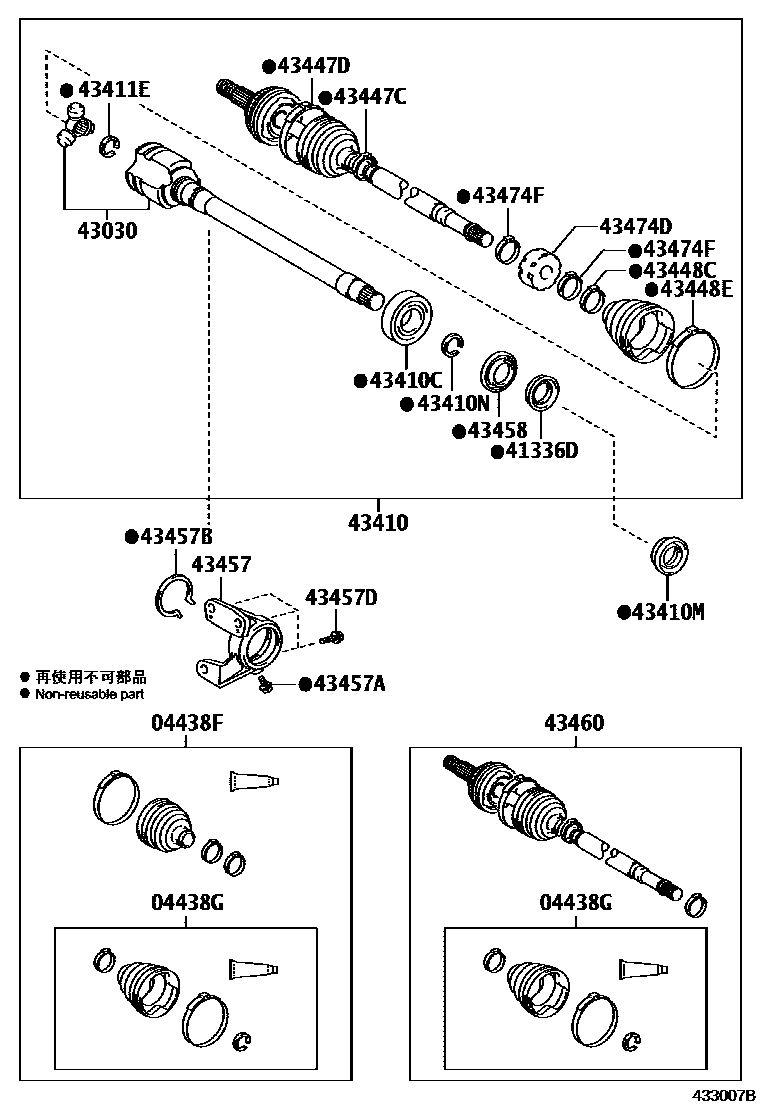

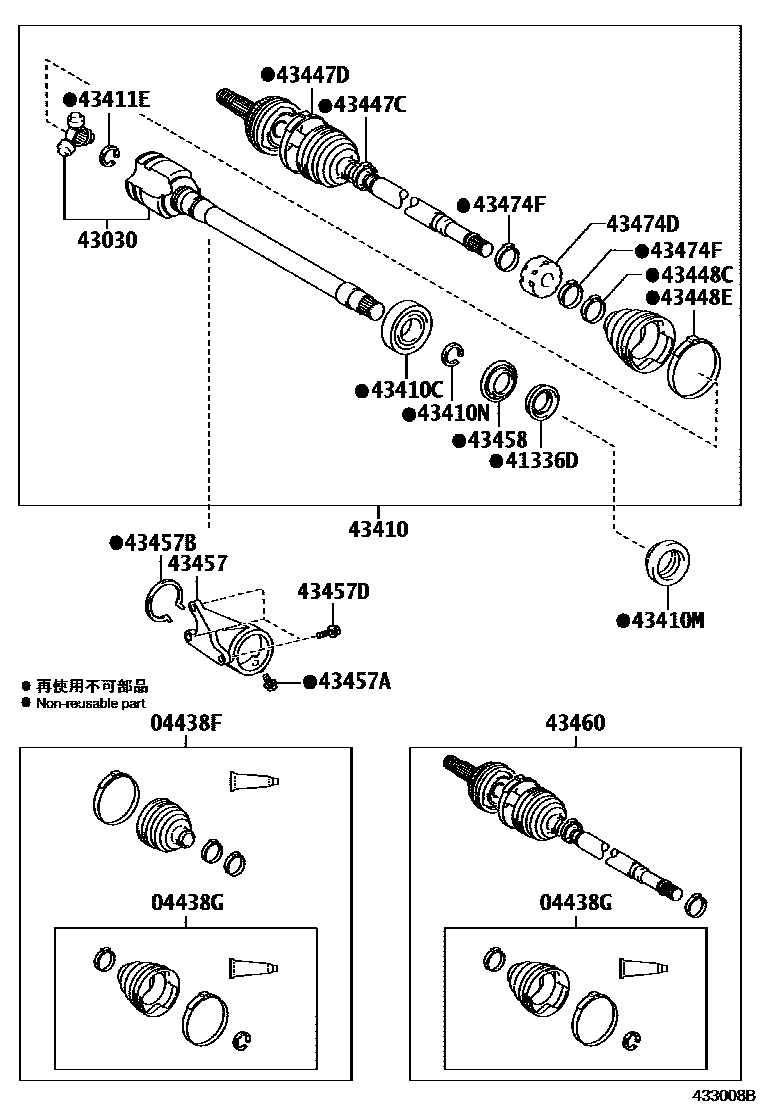

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 11 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-06360 · 04427-06361 · 04427-06470 · 04427-06471 · 04427-06480 · 04427-06481 · 04428-06411 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-06170 · 04437-06240 · 04437-06250 · 04438-06590 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-06470 · 04427-06471 · 04427-06480 · 04427-06481 · 04428-06410 · 04428-06411 · 04428-06430 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-06240 · 04437-06250 · 04438-06590 |
| 41336D | Right front driveshaft dust cover | 41336-06070 |
| 41336E | Left front driveshaft dust cover | 41336-06050 · 41336-06160 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-09030 · 43030-09080 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-09021 · 43040-09060 |
| 43403 | Right front axle inner universal joint assembly | 43030-09060 · 43030-09070 |
| 43403B | Left front axle inner universal joint assembly | 43040-09030 |
| 43410 | Right front driveshaft assembly | 43410-06790 · 43410-06800 · 43410-06810 · 43410-06A10 |
| 43410C | Bearings (for front driveshaft) | 90080-36200 |
| 43410M | Front drive shaft right oil seal | 90311-40029 · 90311-40036 · 90311-40038 · 90311-40039 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-06050 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-06020 · 43425-06060 · 43425-08040 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-06020 · 43425-06060 · 43425-08040 |
| 43420 | Left front drive shaft assembly | 43420-06870 · 43420-06880 · 43420-06890 · 43420-06A60 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-06010 |
| 43420H | Front drive shaft left oil seal | 90311-50031 · 90311-50045 · 90311-50046 · 90311-50053 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-06160 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-06170 · 42345-06490 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-06160 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-06170 · 42345-06490 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-06120 · 42345-06190 · 42345-06570 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-06130 · 42345-06460 · 42345-06560 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-06120 · 42345-06190 · 42345-06570 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-06130 · 42345-06460 · 42345-06560 |
| 43457 | drive shaft bearing bracket | 43457-06040 · 43457-06120 · 43457-33040 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-06030 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-8Z023 · 43470-8Z025 · 43470-8Z026 · 43470-8Z027 · 43470-8Z216 · 43470-8Z217 · 43470-8Z219 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-8Z025 · 43470-8Z028 · 43470-8Z029 · 43470-8Z030 · 43470-8Z218 · 43470-8Z220 · 43470-8Z221 |
| 43474D | Right front driveshaft shock absorber | 43474-06370 · 43474-0W030 |
| 43474E | Left front driveshaft shock absorber | 43474-06090 · 43474-06380 · 43474-06390 · 43474-0E010 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06110 · 42345-06860 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06110 · 42345-06860 |
