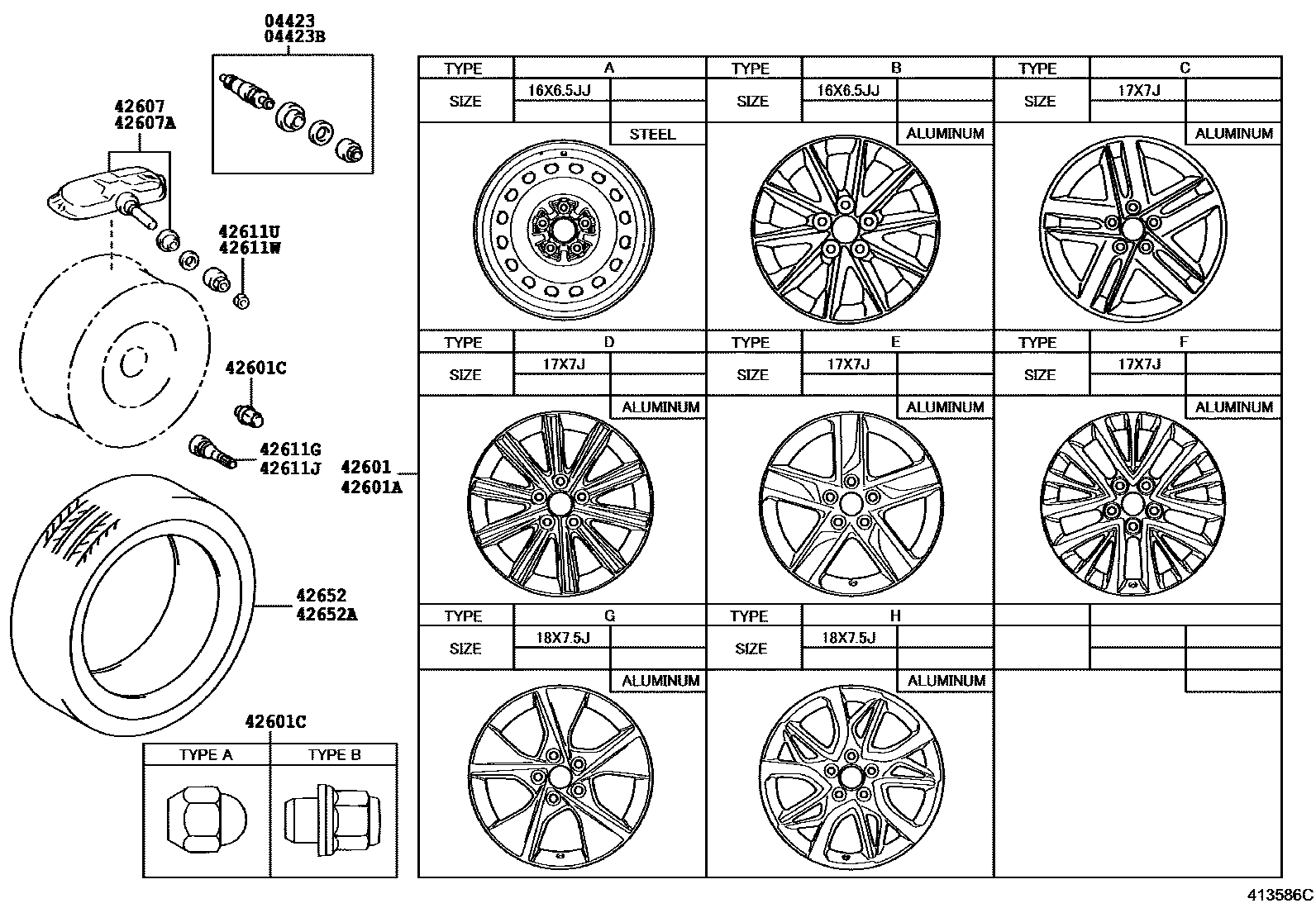

Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-33060 |
| 42601 | spoke wheel | 42611-06453 · 42611-06454 · 42611-06455 · 42611-06780 · 42611-06781 · 42611-06790 · 42611-06791 · 42611-06800 · 42611-06810 · 42611-06C80 · 42611-06C90 · 42611-06D00 · 42611-06D30 · 42611-YY630 · 42611-YY640 |
| 42601A | Spoke wheel (for spare tire) | 42611-06453 · 42611-06454 · 42611-06455 · 42611-06780 · 42611-06781 · 42611-06790 · 42611-06791 · 42611-06800 · 42611-06810 · 42611-06C90 · 42611-06D30 |
| 42601C | Hub nut (for axle) | 90942-01033 · 90942-01082 |

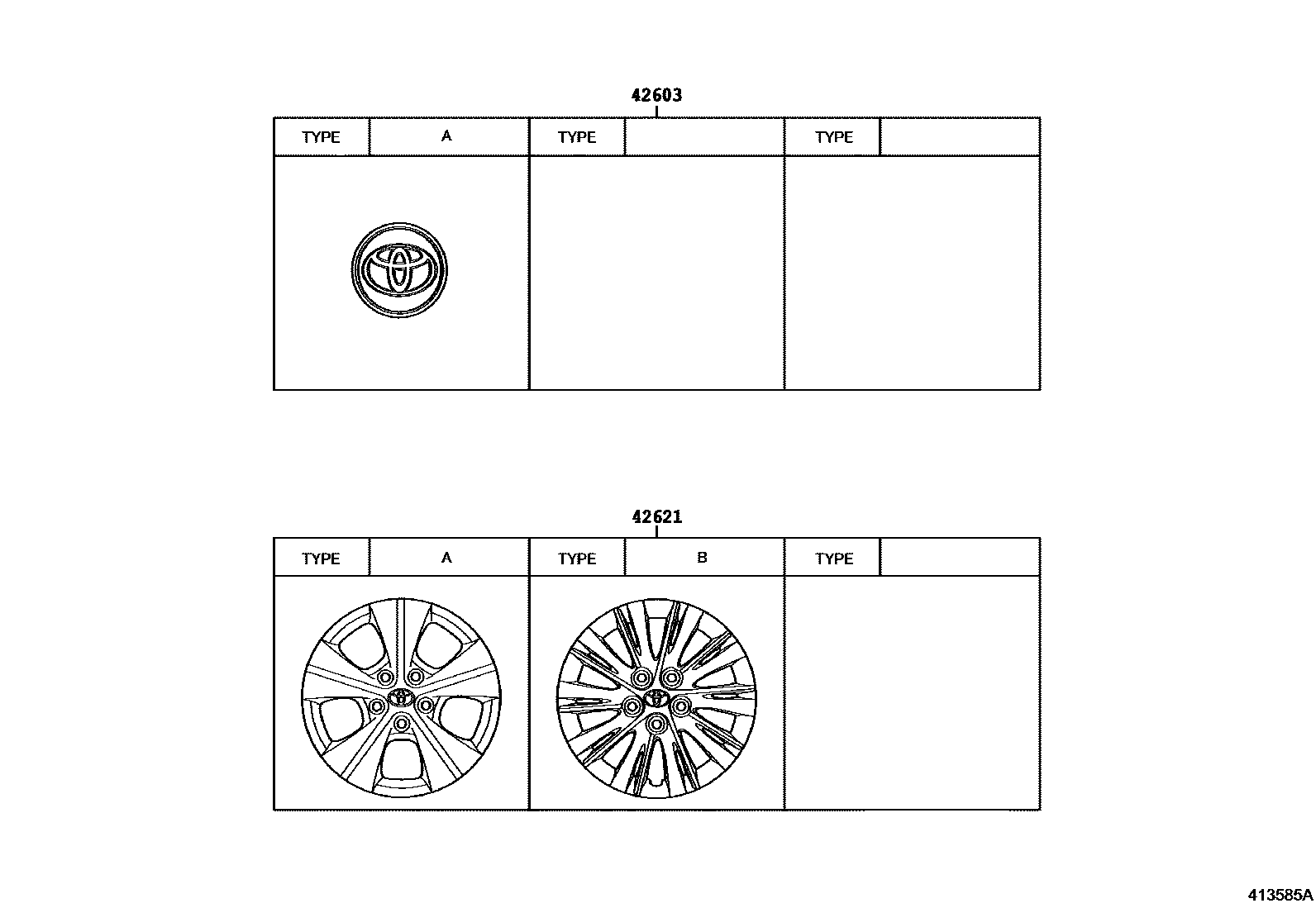

| 42603 | Wheel hub decorative parts sub-assembly | 42603-06110 · 42603-48140 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-42021 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-42021 |
| 42611G | Valve (for tubeless tires) | 90080-45006 · 90942-05009 · 90942-05039 |
| 42611J | Valve (for tubeless spare tire) | 90080-45006 · 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
| 42621 | wheel cover | 42602-06110 · 42602-06130 |
| 42652 | tires | 42652-06810 · 42652-06811 · 42652-06822 |
| 42652A | Tire (for Spare Wheel) | 42652-06810 · 42652-06811 · 42652-06822 |
