Toyota CAMRY 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510

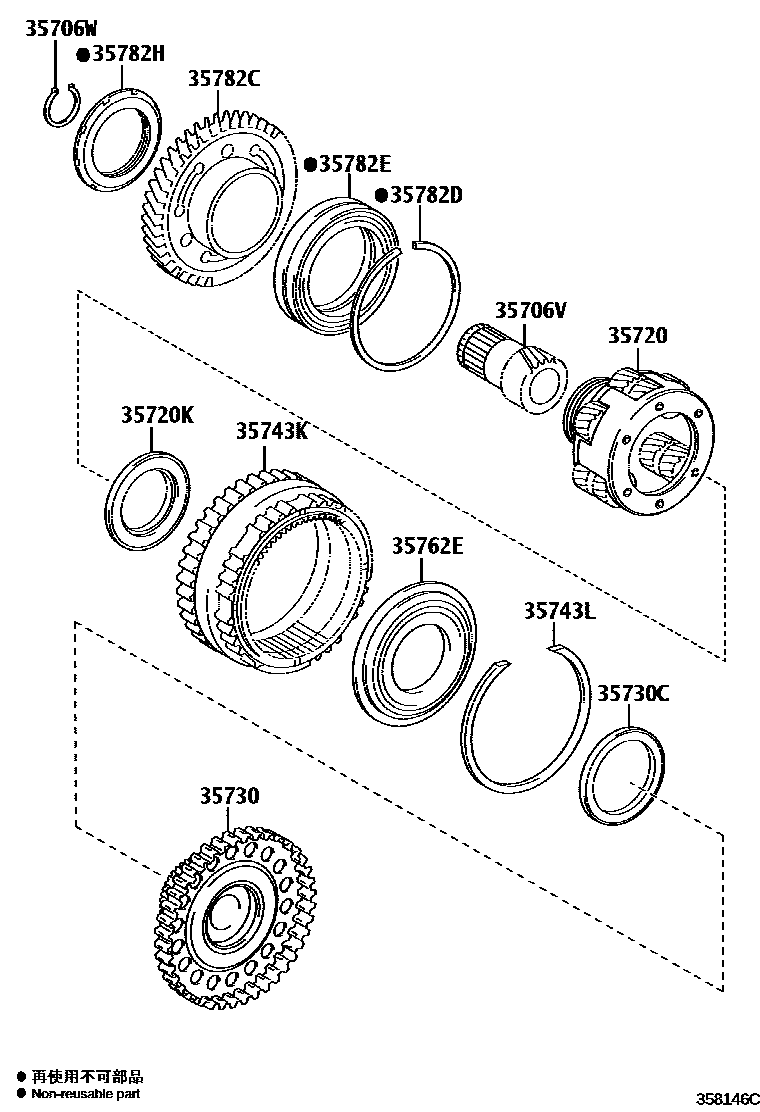

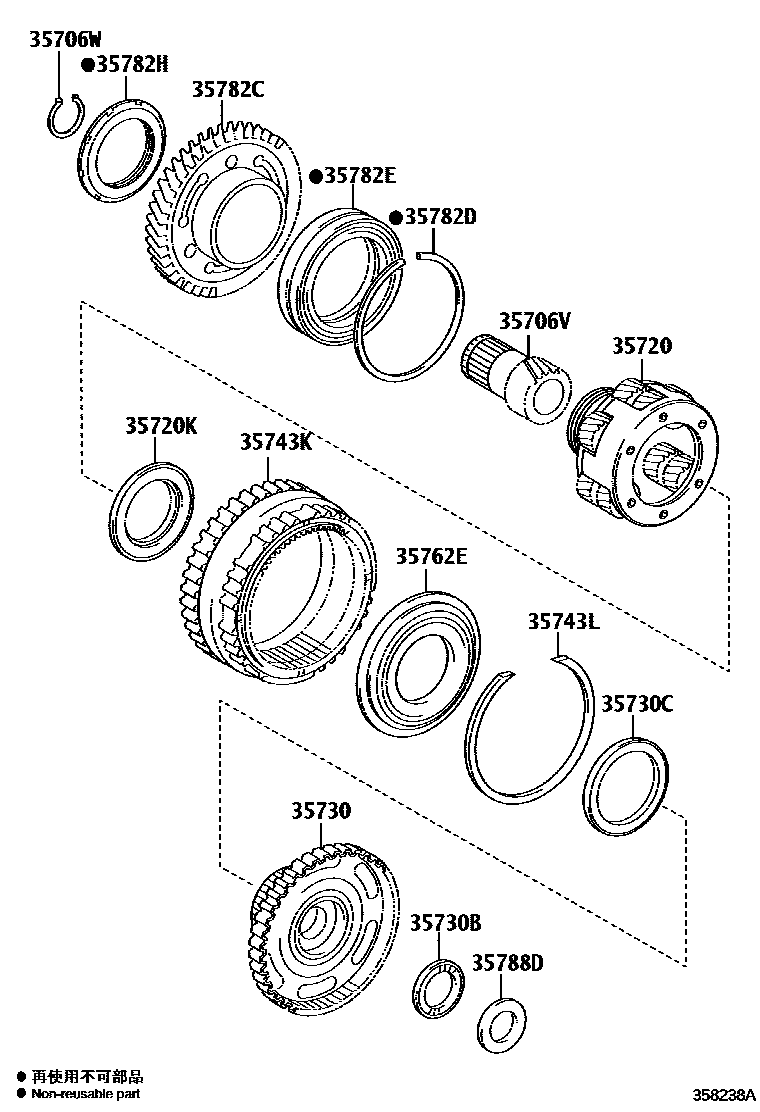

Toyota CAMRY EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35706V | Planetary gear train sun gear sub-assembly | 35706-33020 · 35706-73010 |
| 35706W | Snap ring (for planetary gear train sun gear) | 90520-34032 |
| 35720 | Front planetary gear assembly | 35720-33050 · 35720-33062 · 35720-33070 · 35720-73010 · 35720-73020 |
| 35720K | Rear thrust needle roller bearing (for planetary gears) | 90374-62002 · 90374-62004 · 90374-62007 · 90374-62011 |
| 35730 | Rear planetary gear train sun gear assembly | 35730-33021 · 35730-33030 · 35730-73010 |
| 35730B | Thrust needle roller bearing (for rear planetary gear train sun gear) | 90374-28015 |
| 35730C | Thrust needle roller bearing (for No. 2 rear planetary gear train sun gear) | 90374-61001 |
| 35743K | Planetary ring gear | 35743-33030 · 35743-33040 · 35743-73010 |
| 35743L | Snap ring (for planetary ring gear) | 90520-99108 |
| 35762E | Planetary ring gear flange | 35762-33020 · 35762-73010 |
| 35782C | countershaft driving gear | 35782-33031 · 35782-33040 · 35782-73010 |
| 35782D | Hole snap ring (for countershaft drive gear) | 90520-99110 · 90520-99154 |
| 35782E | Bearings (for countershaft drive gear) | 90369-72001 · 90369-72002 |
| 35782H | Nut (for countershaft drive gear) | 90179-60001 |
| 35788D | No. 3 thrust bearing race | 35788-33020 |
