Toyota CAMRY Shift Lever & Retainer — Figure 3312

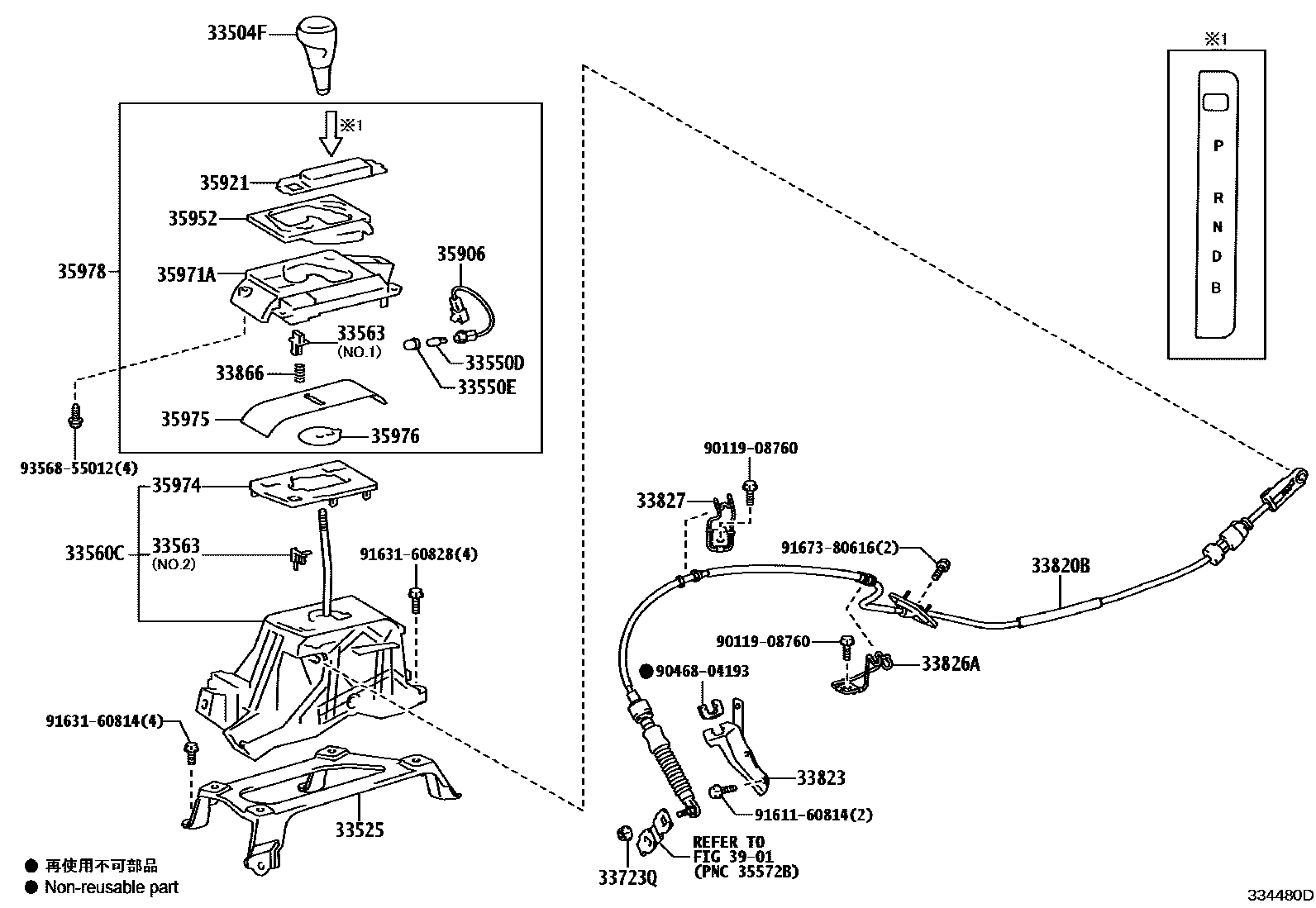

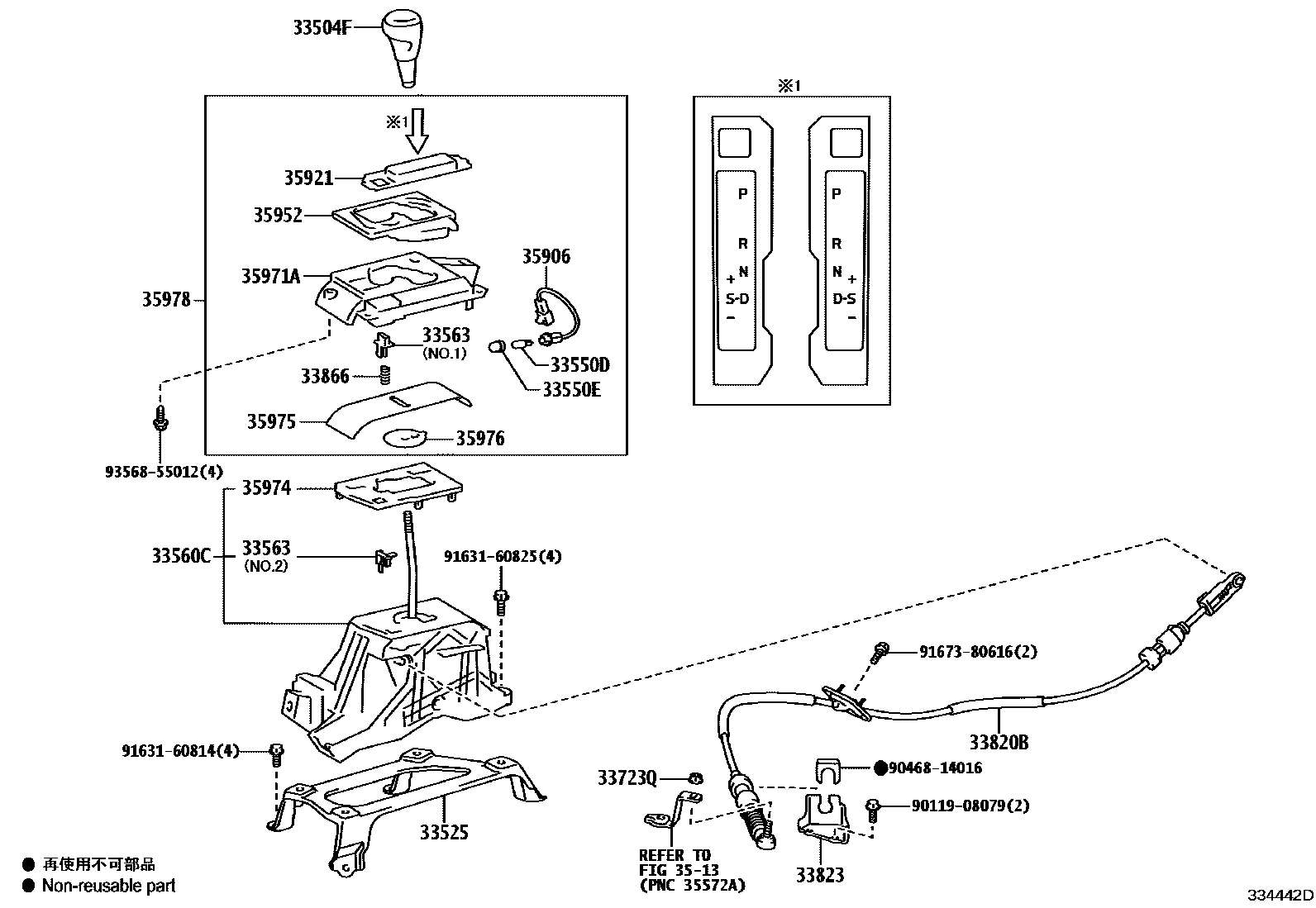

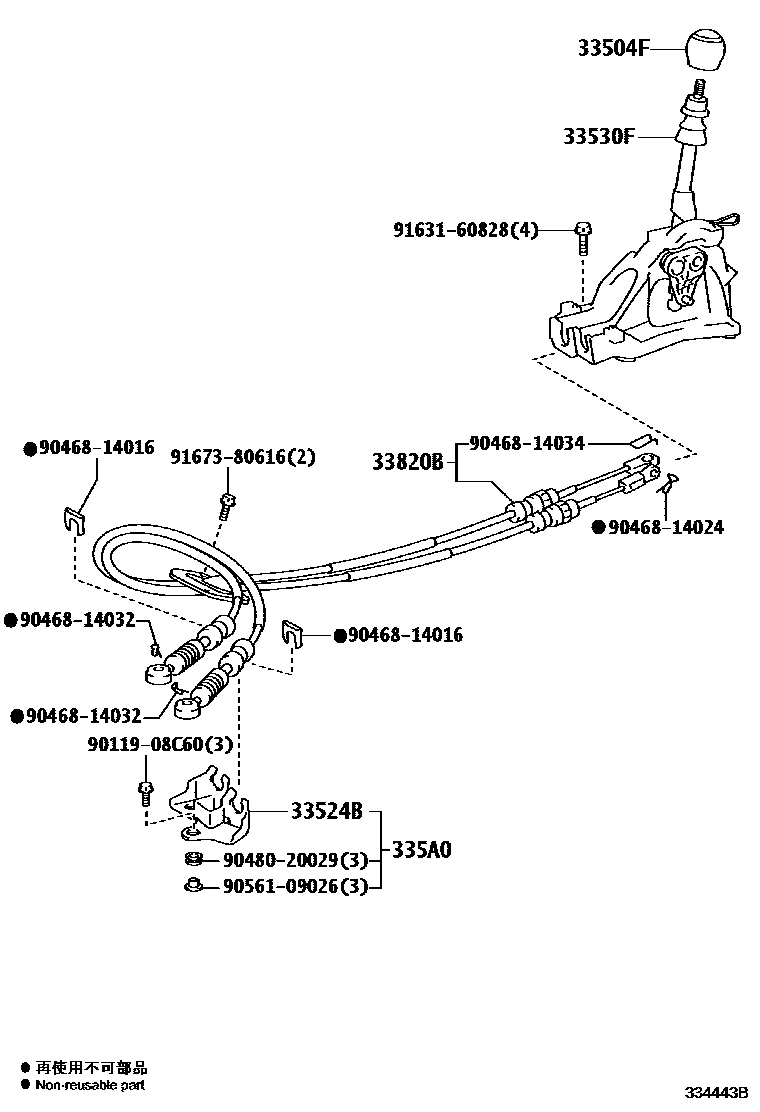

Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33524B | Control cable bracket | 33524-33040 |
| 33525 | shift lever bracket | 58123-06050 · 58123-06060 |
| 33530F | Shift lever assembly (for floor shift) | 33530-33150 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04049 |
| 33560C | Lower shift lever assembly | 33560-33240 · 33560-33250 · 33560-33260 · 33560-33280 · 33560-33310 |
| 33563 | Shift lock release button | 33563-06210 · 33563-06260 · 33563-06290 · 33563-06300 · 33563-33260 · 33563-33280 |
| 335A0 | Control cable bracket assembly | 335A0-33010 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08054 |
| 33820B | Transmission control cable assembly | 33820-06420 · 33820-06430 · 33820-06440 · 33820-06441 |
| 33823 | No. 1 transmission control cable bracket | 33823-33050 · 33823-33060 |
| 33826A | No. 2 transmission control cable bracket | 33826-33060 |
| 33827 | No. 3 transmission control cable bracket | 33827-33050 |
| 33866 | Shift lock release spring | 33866-06140 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-06220 |
| 35921 | control position indicator board | 35921-06230 · 35921-06240 · 35921-06250 · 35921-06260 · 35921-06270 |
| 35952 | Position indicator lampshade | 35952-06150 · 35952-06160 · 35952-06170 |
| 35971A | Position indicator light upper shell | 35971-06190 · 35971-06200 |
| 35974 | Position indicator light lower shell | 35974-33170 · 35974-33180 |
| 35975 | Slide cover (for position indicator light) | 35975-06140 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-06150 |
| 35978 | Shift lever position indicator light | 35978-06090 · 35978-06100 · 35978-06110 · 35978-06120 · 35978-06130 |
