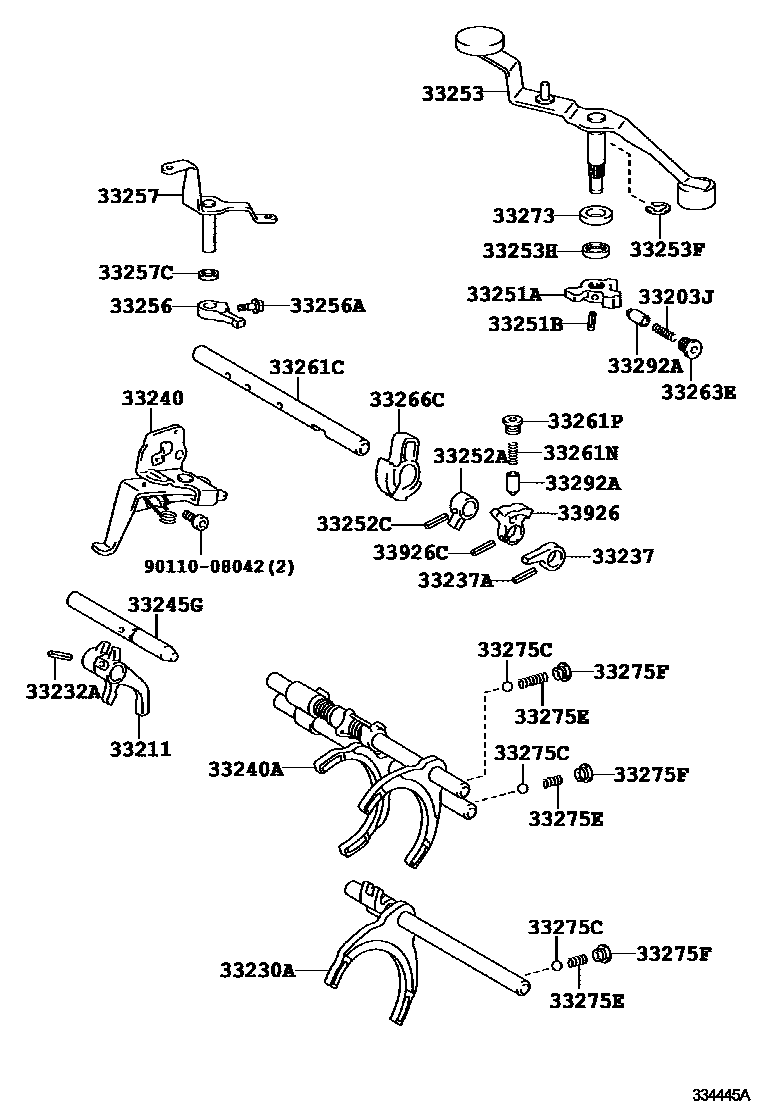

Toyota CAMRY 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota CAMRY EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 1 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33203J | Spring (steel ball for shift lever shaft) | 90501-12221 |
| 33211 | Reverse Shift Fork | 33211-20050 |
| 33230A | No. 1 shift fork shaft assembly | 33230-20060 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05001 |
| 33237 | Separate guide block | 33237-20010 |
| 33237A | Slotted spring pin (for detaching guide blocks) | 90254-05001 |
| 33240 | Reverse shift arm bracket assembly | 33240-20050 |
| 33240A | No. 2 shift fork shaft assembly | 33240-20080 |
| 33245G | No. 4 shift fork shaft | 33245-20030 |
| 33251A | Internal shift lever No. 1 | 33251-20130 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05011 |
| 33252A | Internal shift lever No. 2 | 33252-20070 |
| 33252C | Slotted spring pin (for inner shift lever No. 2) | 90254-05001 |
| 33253 | No. 1 outer shift lever | 33253-33020 |
| 33253F | E-ring (for outer shift lever) | 90523-15003 |
| 33253H | Oil seal (for outer shift lever) | 90310-18003 |
| 33256 | Internal gear selector | 33256-20040 |
| 33256A | Fixing bolt (for interior gear selector) | 90105-08079 |
| 33257 | External gear selector | 33257-33020 · 33257-33021 |
| 33257C | Oil seal (for external gear lever) | 90310-15005 |
| 33261C | shift lever shaft | 33261-20150 |
| 33261N | Compression spring (for shift lever shaft) | 90501-11107 |
| 33261P | Headed straight thread plug (for shift lever shaft) | 90341-16013 |
| 33263E | Screw plug (for gear selector shaft) | 90341-16013 |
| 33266C | shift interlock plate | 33266-20070 |
| 33273 | No. 1 shift lever shaft cover gasket | 90560-18017 |
| 33275C | Steel ball (for shift lock) | 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-13087 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33292A | Locking steel ball pin | 33292-20010 |
| 33926 | Front inner shift lever | 33926-20020 |
| 33926C | Slotted spring pin (for inner shift lever) | 90254-05001 |
