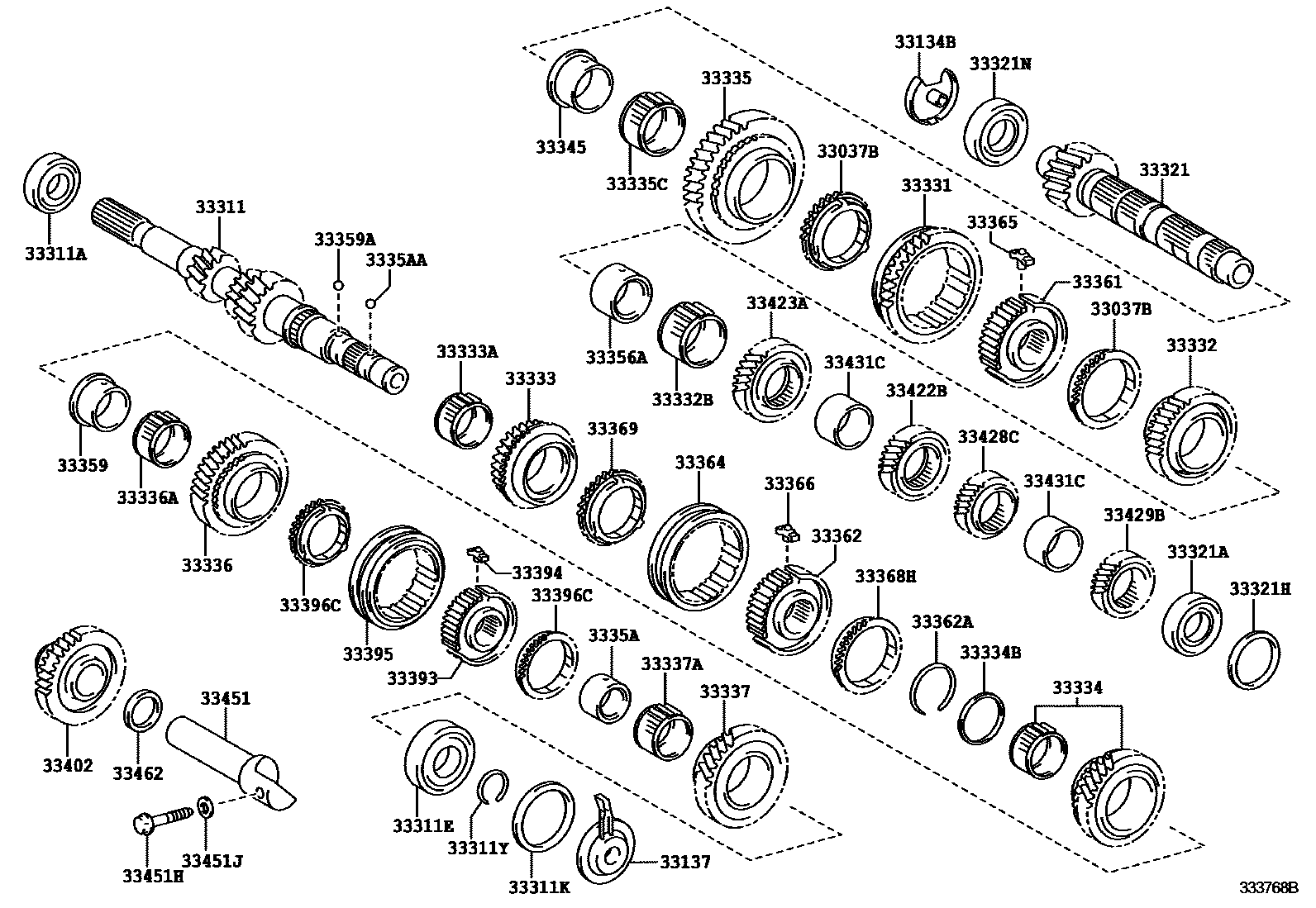

Toyota CAMRY 变速器齿轮(MTM) — Figure 3305
Toyota CAMRY EPC diagram 3305, 变速器齿轮(MTM), with 1 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-20110 |
| 33134B | Output shaft cover (MTM) | 33134-20030 |
| 33137 | Input shaft cover (MTM) | 33137-20010 |
| 33311 | input shaft | 33311-20270 |
| 33311A | Bearing (for front input shaft) | 90363-27002 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-35068 |
| 33311K | Spacer (for input shaft rear bearing) | 90564-61113 · 90564-61114 · 90564-61115 · 90564-61116 · 90564-61117 · 90564-61118 · 90564-61119 · 90564-61120 · 90564-61121 · 90564-61122 · 90564-61123 · 90564-61124 · 90564-61125 · 90564-61126 |
| 33311Y | Shaft snap ring (for input shaft rear bearing) | 90520-33037 · 90520-33038 · 90520-33039 · 90520-33040 · 90520-33041 · 90520-33042 · 90520-33043 · 90520-33044 · 90520-33045 · 90520-33046 · 90520-33047 |
| 33321 | output shaft | 33321-20290 |
| 33321A | Bearings (for rear output shaft) | 90366-28013 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-52066 · 90564-52067 · 90564-52068 · 90564-52069 · 90564-52070 · 90564-52071 · 90564-52072 · 90564-52073 · 90564-52074 · 90564-52075 · 90564-52076 · 90564-52077 · 90564-52078 · 90564-52079 · 90564-52080 · 90564-52081 · 90564-52082 · 90564-52083 · 90564-52084 · 90564-52085 · 90564-52086 · 90564-52087 · 90564-52088 · 90564-52089 · 90564-52090 |
| 33321N | Bearing (for front output shaft) | 90366-36013 |
| 33331 | reverse gear | 33331-20100 |
| 33332 | Second gear | 33332-20180 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-51002 |
| 33333 | Third gear | 33034-20140 |
| 33333A | Needle roller bearing (for third gear) | 90364-41004 |
| 33334 | fourth gear | 33025-33010 |
| 33334B | Spacer (for fourth gear bearing) | 90560-41005 |
| 33335 | first gear | 33335-20180 |
| 33335C | Needle roller bearing (for first gear) | 90364-51003 |
| 33336 | fifth gear | 33336-33040 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-45016 |
| 33337 | Sixth speed gear sub-assembly | 33337-33010 |
| 33337A | Needle roller bearing (for sixth gear) | 90364-42006 |
| 33345 | First gear bushing | 33345-20040 |
| 33356A | Second gear gear bearing inner race | 33356-20060 |
| 33359 | Fifth gear gear bearing inner race | 33359-20020 |
| 33359A | Fifth gear gear bearing inner race locking steel ball | 90360-05012 |
| 3335A | Sixth gear bearing inner race (MTM) | 3335A-20020 |
| 3335AA | Six-speed gear bearing inner race locking steel ball (MTM) | 90360-05012 |
| 33361 | No. 1 transmission clutch hub | 33361-20080 |
| 33362 | No. 2 transmission clutch hub | 33362-20050 |
| 33362A | Shaft snap ring (used to secure the No. 2 clutch hub) | 90520-39055 · 90520-39056 · 90520-39057 · 90520-39058 · 90520-39059 · 90520-39060 |
| 33364 | No. 2 transmission hub sleeve | 33364-20080 |
| 33365 | No. 1 synchromesh shift key | 33365-20070 |
| 33366 | No. 2 synchromesh shift key | 33365-20080 |
| 33368H | Synchronizer ring (for fourth gear) | 33381-20030 |
| 33369 | No. 3 synchronizer lock ring | 33369-20060 |
| 33393 | No. 3 transmission clutch hub | 33393-20050 |
| 33394 | No. 3 synchromesh shift key | 33365-20080 |
| 33395 | No. 3 transmission hub sleeve | 33395-20070 |
| 33396C | No. 5 synchronizer locking ring (MTM) | 33396-20020 |
| 33402 | Reverse idler gear sub-assembly | 33402-20090 |
| 33422B | Fourth gear driven gear | 33422-33010 |
| 33423A | Third gear driven gear | 33423-20100 |
| 33428C | fifth speed driven gear | 33428-33010 |
| 33429B | Sixth speed driven gear | 33429-33010 |
| 33431C | Output gear spacer | 33431-20100 |
| 33451 | Reverse gear idler shaft | 33451-20070 |
| 33451H | Bolt (for reverse idler shaft) | 90105-08150 |
| 33451J | Gasket (for reverse idler shaft) | 90430-08010 |
| 33462 | Reverse idler thrust washer | 33462-20080 |
