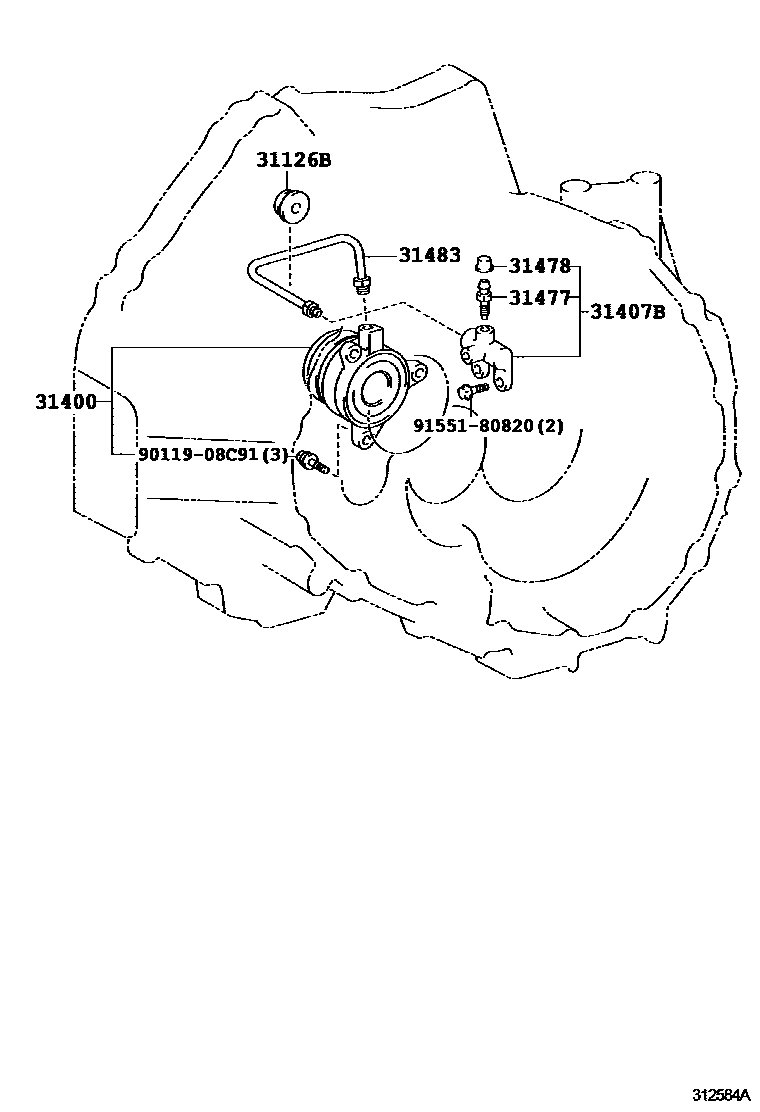

Toyota CAMRY 离合器分离缸 — Figure 3105
Toyota CAMRY EPC diagram 3105, 离合器分离缸, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126B | Clutch tube dust boot | 31126-20090 |
| 31400 | Clutch release cylinder assembly with bearing | 31400-39006 |
| 31407B | Clutch separation and bleeder device sub-assembly | 31407-20011 |
| 31477 | Bleed plug (for separation cylinder) | 47547-12130 |
| 31478 | Bleed plug cap (for separator cylinder) | 31478-30010 |
| 31483 | Clutch release bleeder pipe | 31482-20610 |
