Toyota CAMRY 离合器踏板和挠性软管 — Figure 3102

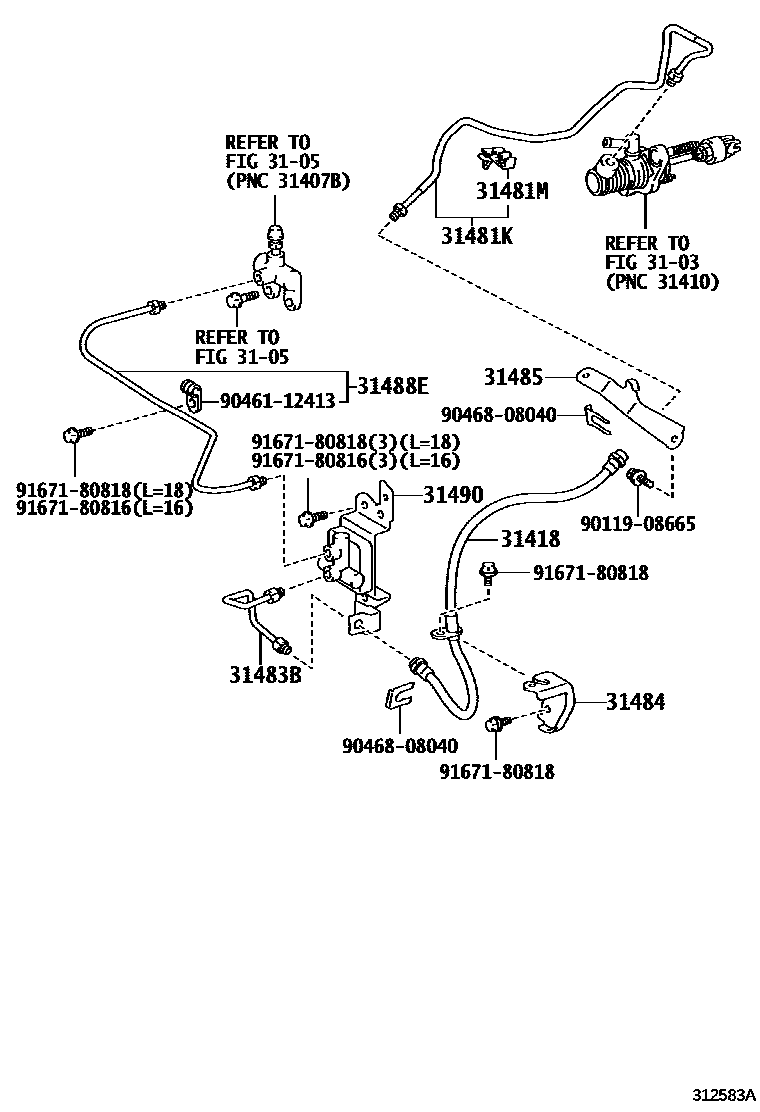

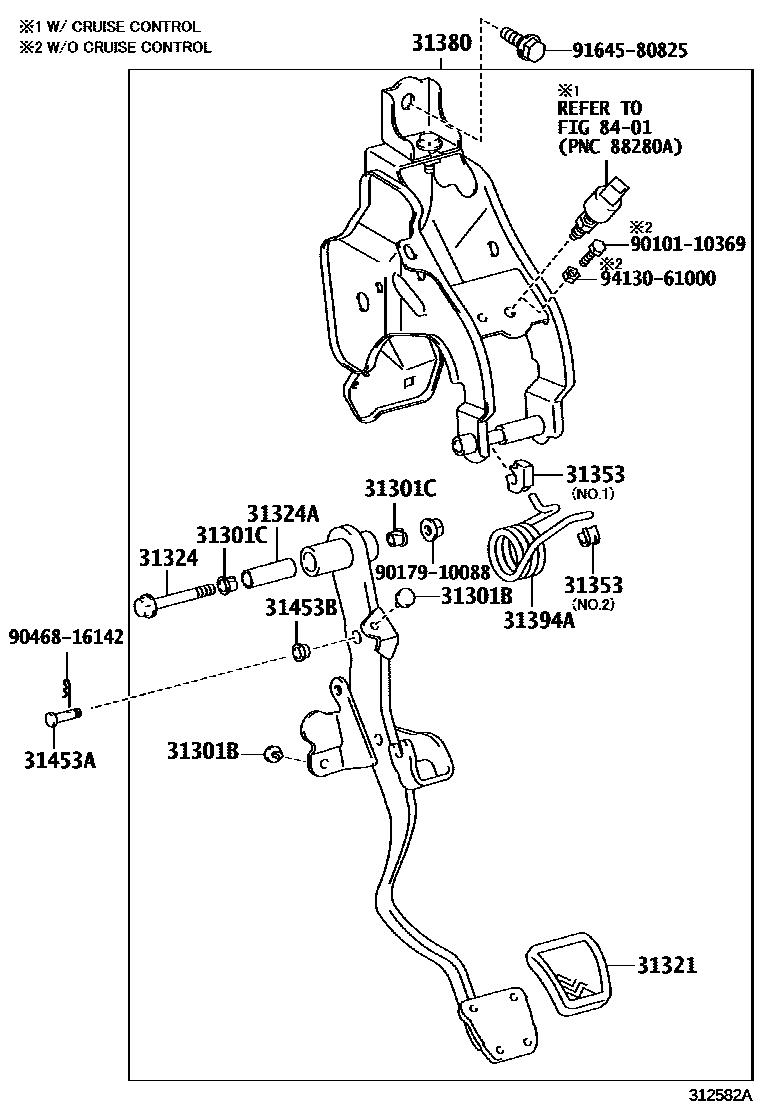

Toyota CAMRY EPC diagram 3102, 离合器踏板和挠性软管, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31321 | clutch pedal pad | 31321-33010 · 31321-53010 |
| 31324 | clutch pedal shaft | 90101-10164 |
| 31324A | clutch pedal collar | 90387-10105 |
| 31353 | Clutch pedal spring retainer | 31353-33010 · 31353-33020 |
| 31380 | Pedal bracket assembly | 31380-06170 · 31380-06180 · 31380-06190 |
| 31394A | Pedal spring with hook | 31394-33060 |
| 31418 | clutch hose | 90947-02G53 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08051 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08033 |
| 31481K | Master pump to pipe connector pipe | 31481-06111 |
| 31481M | Clamp (for clutch master cylinder tube) | 90469-07023 |
| 31483B | Accumulator to flexible hose pipe | 31483-06040 |
| 31484 | Flexible hose bracket (for clutch) | 31484-33061 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31485-33040 |
| 31488E | Pipe from bleeder to accumulator | 31488-33010 |
| 31490 | Clutch pressure accumulator assembly | 31490-33040 |
