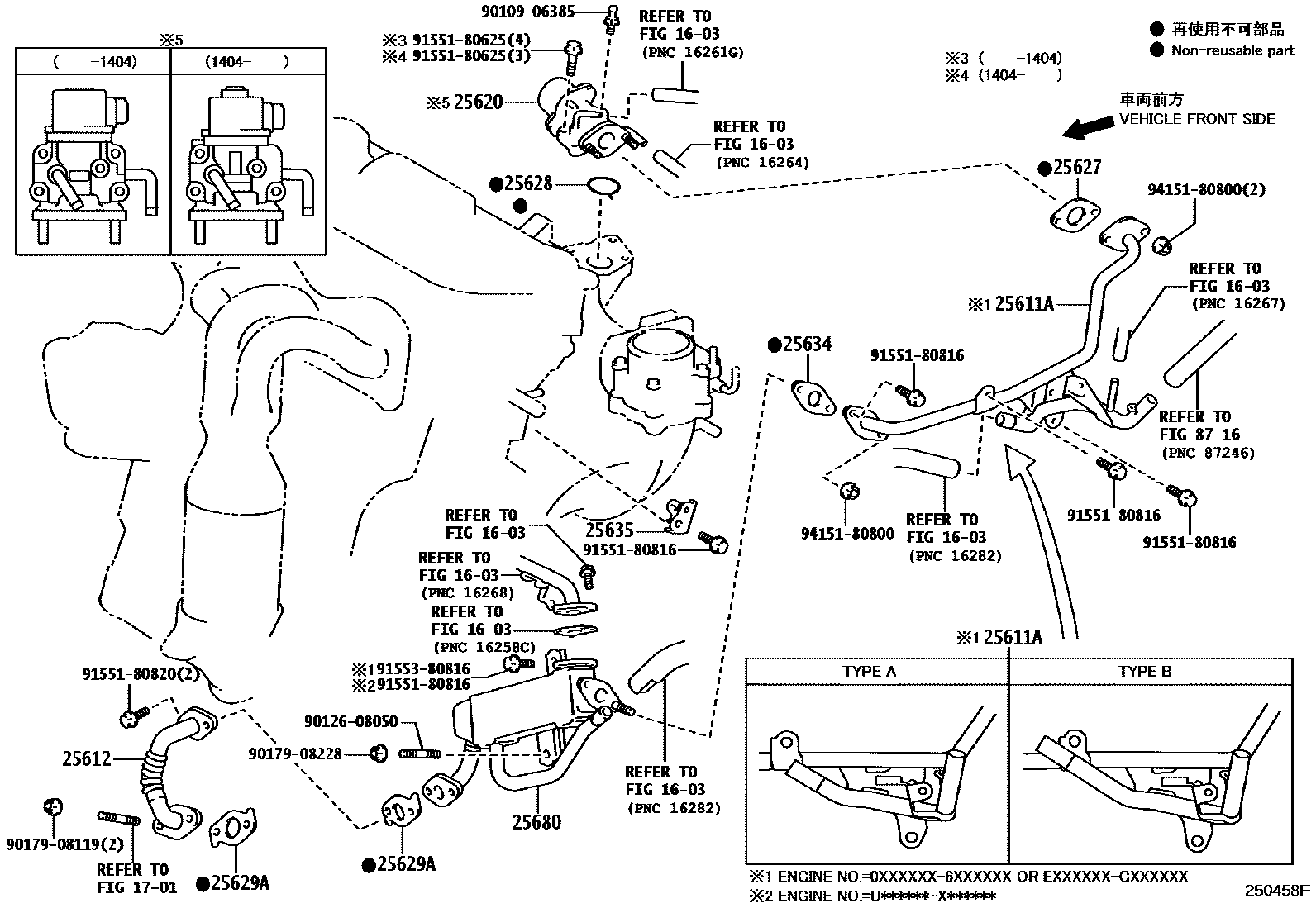

Toyota CAMRY 废气再循环系统 — Figure 2501
Toyota CAMRY EPC diagram 2501, 废气再循环系统, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25611A | No. 1 EGR tube | 25611-36010 · 25611-36011 |
| 25612 | No. 2 EGR tube | 25612-36010 |
| 25620 | EGR valve assembly | 25620-36030 · 25620-36060 |
| 25627 | EGR valve gasket | 25627-36010 |
| 25628 | EGR air intake gasket | 25628-36010 |
| 25629A | No. 2 EGR tube gasket | 25629-36010 |
| 25634 | EGR tube gasket | 25634-36010 |
| 25635 | No. 1 EGR tube holder | 25635-36010 |
| 25680 | EGR cooler assembly | 25680-36010 · 25680-36011 · 25680-36012 |
