Toyota CAMRY Alternator — Figure 1903

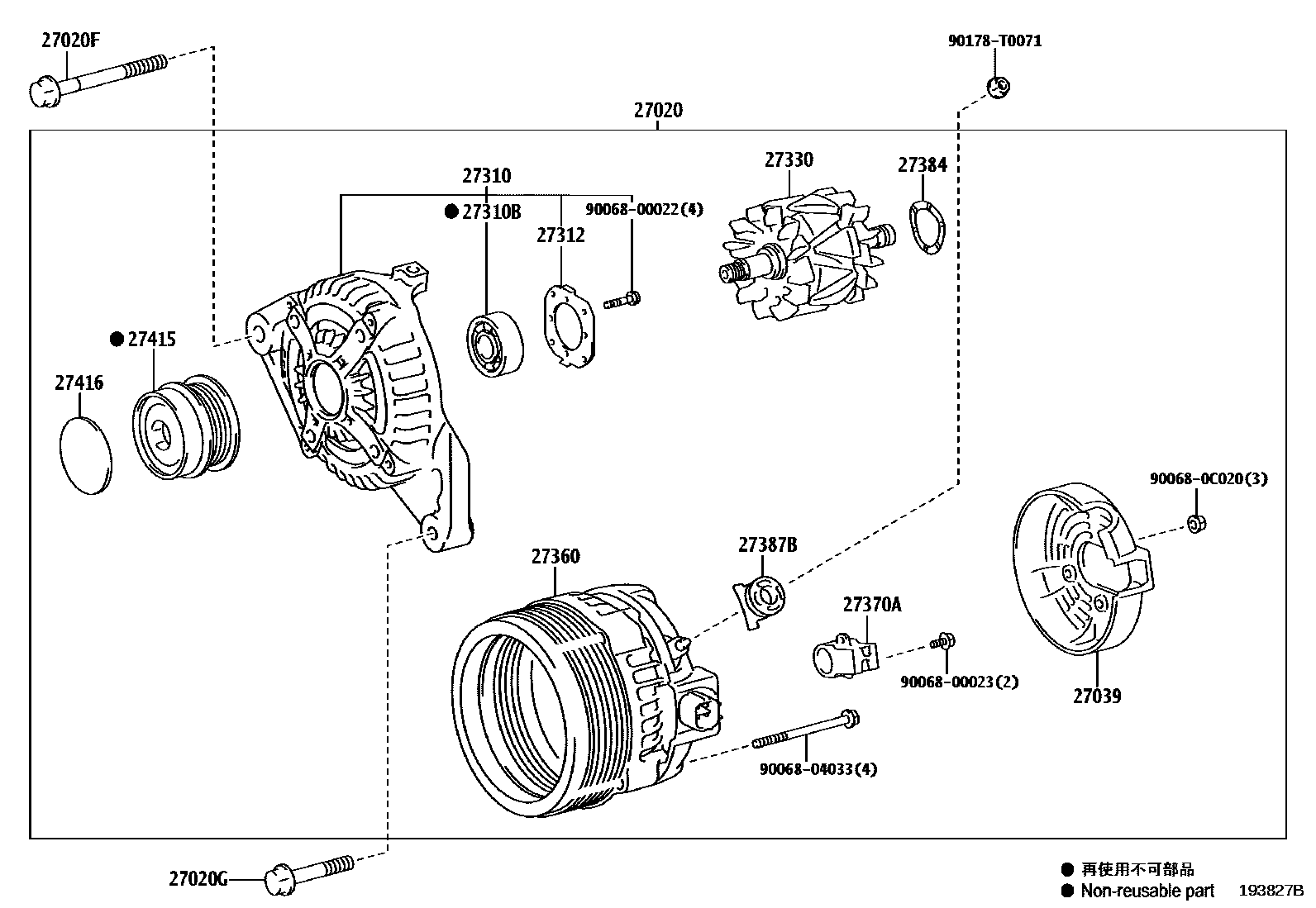

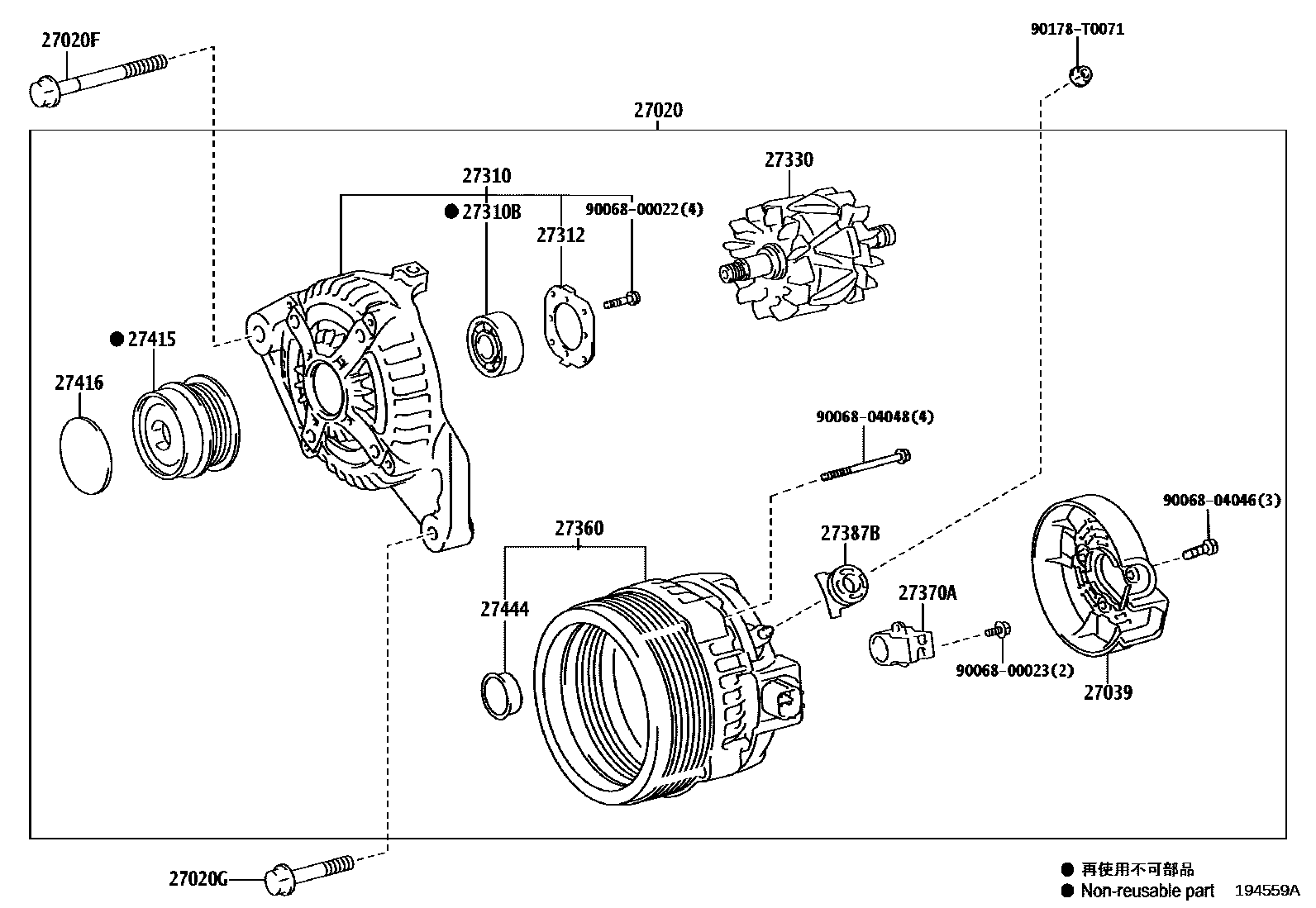

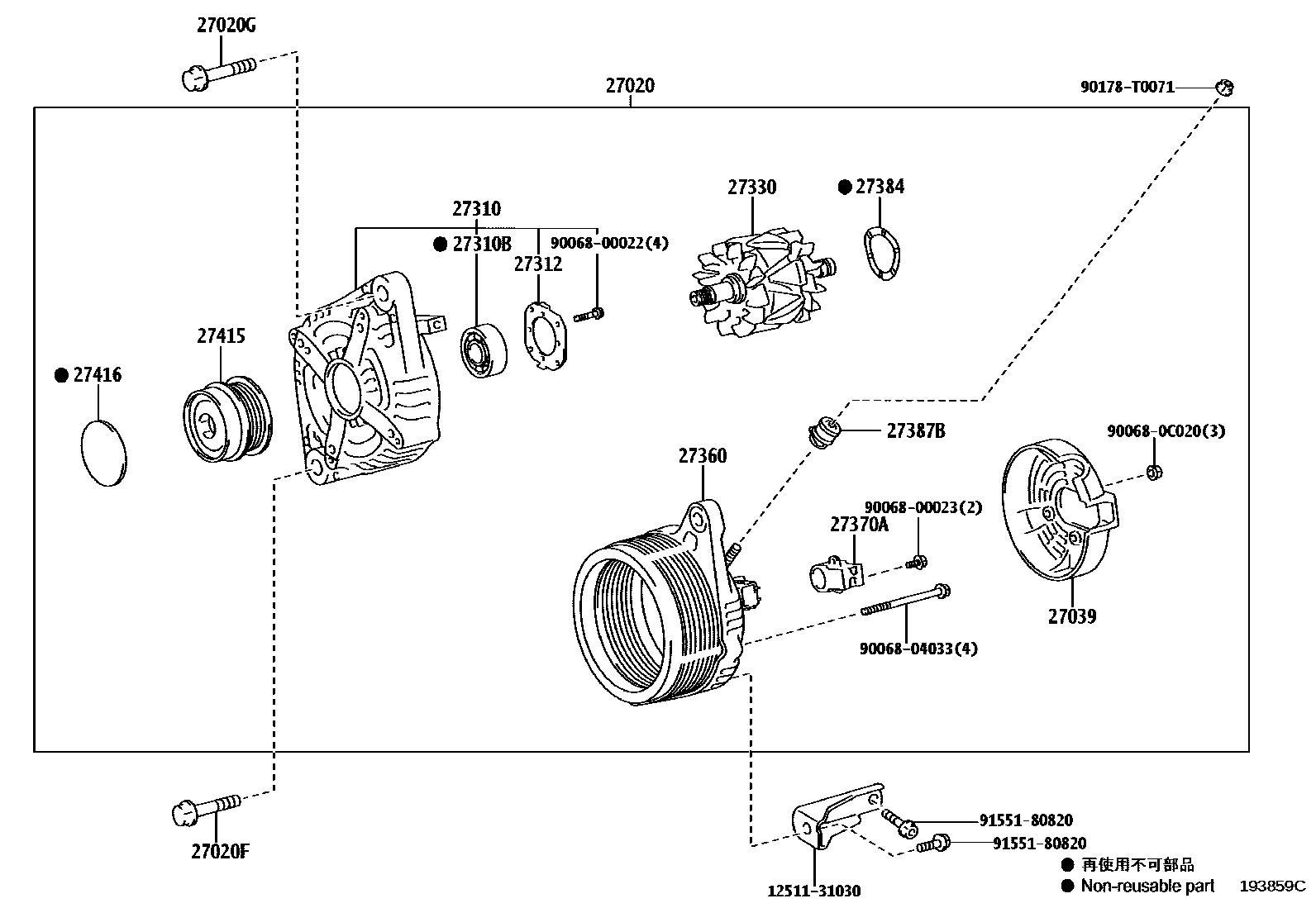

Toyota CAMRY EPC diagram 1903, Alternator, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0P070 · 27060-0V090 · 27060-0V100 · 27060-0V260 · 27060-0V270 |
| 27020F | Bolt No. 1 (for generator) | 90105-10562 · 91552-81040 |
| 27020G | Bolt No. 2 (for generator) | 90105-T0079 · 91552-81070 |
| 27039 | Alternator Rear End Cover | 27039-0P070 · 27039-0V220 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0P140 · 27310-0V010 · 27310-0V220 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10033 · 90068-10042 |
| 27312 | Retainer Plate | 27312-0C020 |
| 27330 | Alternator Rotor Assembly | 27330-0V090 · 27330-0V220 |
| 27360 | Alternator Stator Coil Assembly | 27360-0P140 · 27360-0V010 · 27360-0V100 · 27360-0V240 · 27360-0V250 |
| 27370A | Alternator Brush Holder Assembly | 27370-0M040 |
| 27384 | Washer | 27384-0C020 |
| 27387B | Generator terminal insulation pad | 27387-0C020 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W020 · 27415-0W021 · 27415-0W130 · 27415-0W131 |
| 27416 | Generator pulley cover | 27416-0W050 |
| 27444 | Generator bearing cap seals | 27444-0Y180 |
