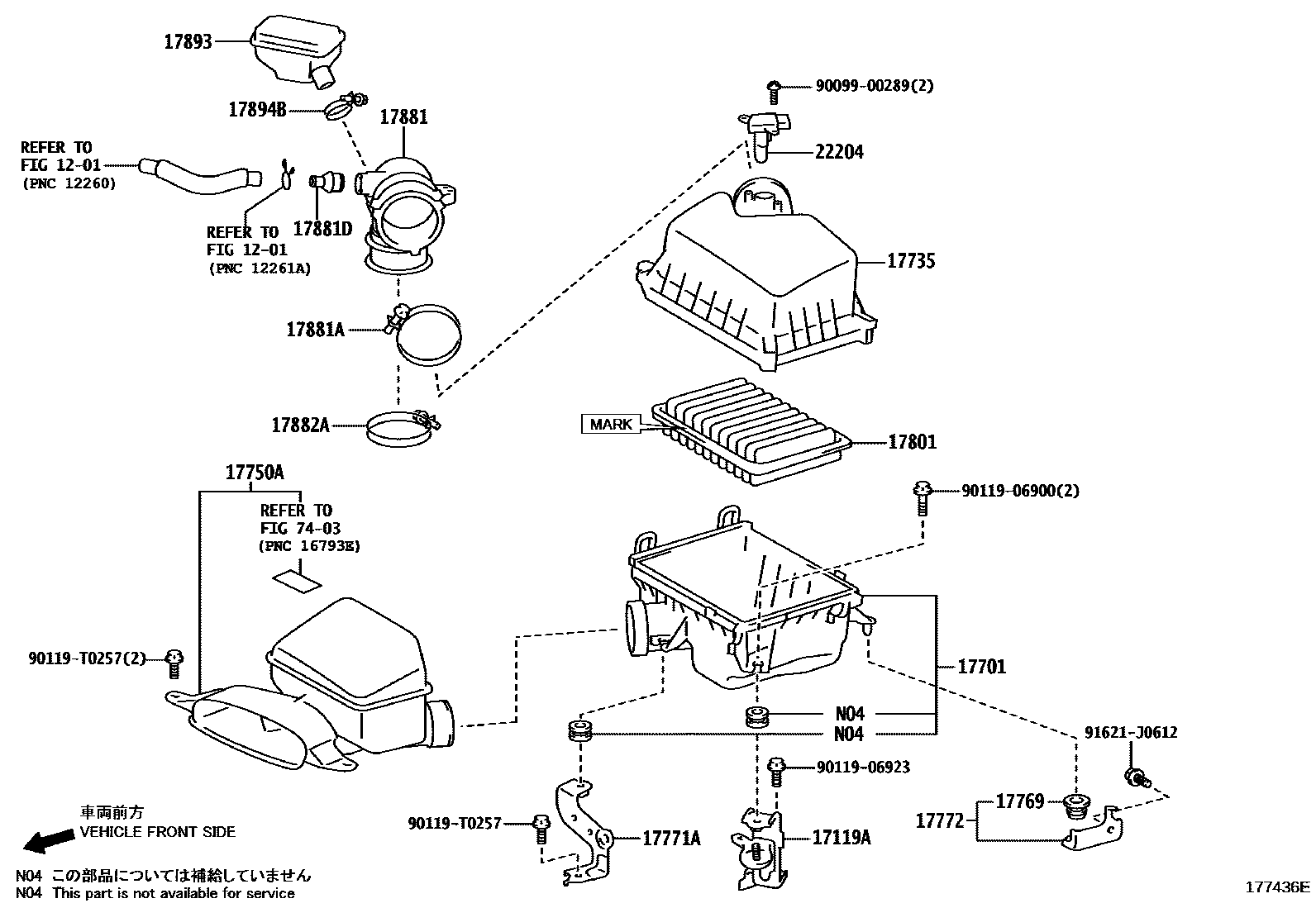

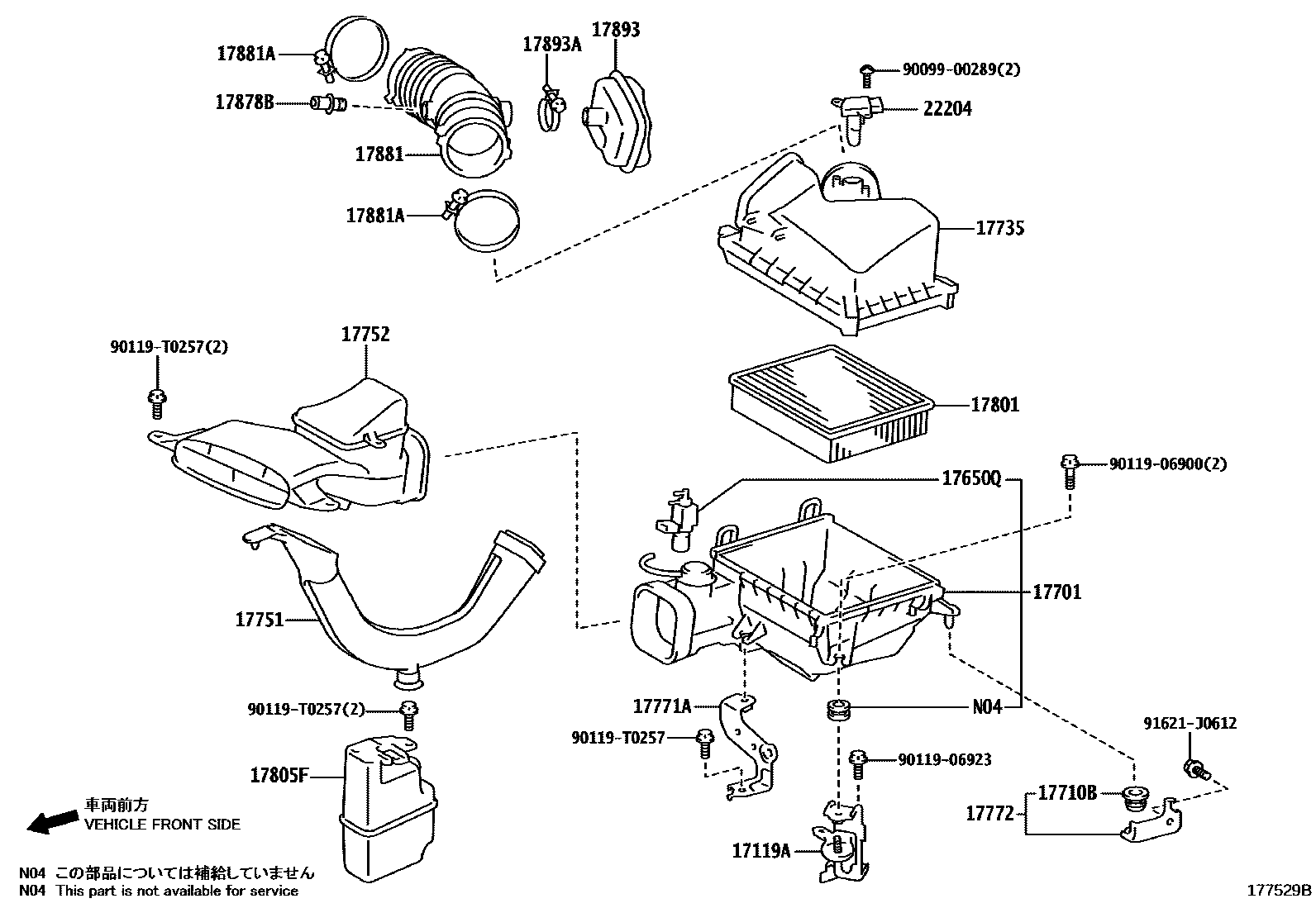

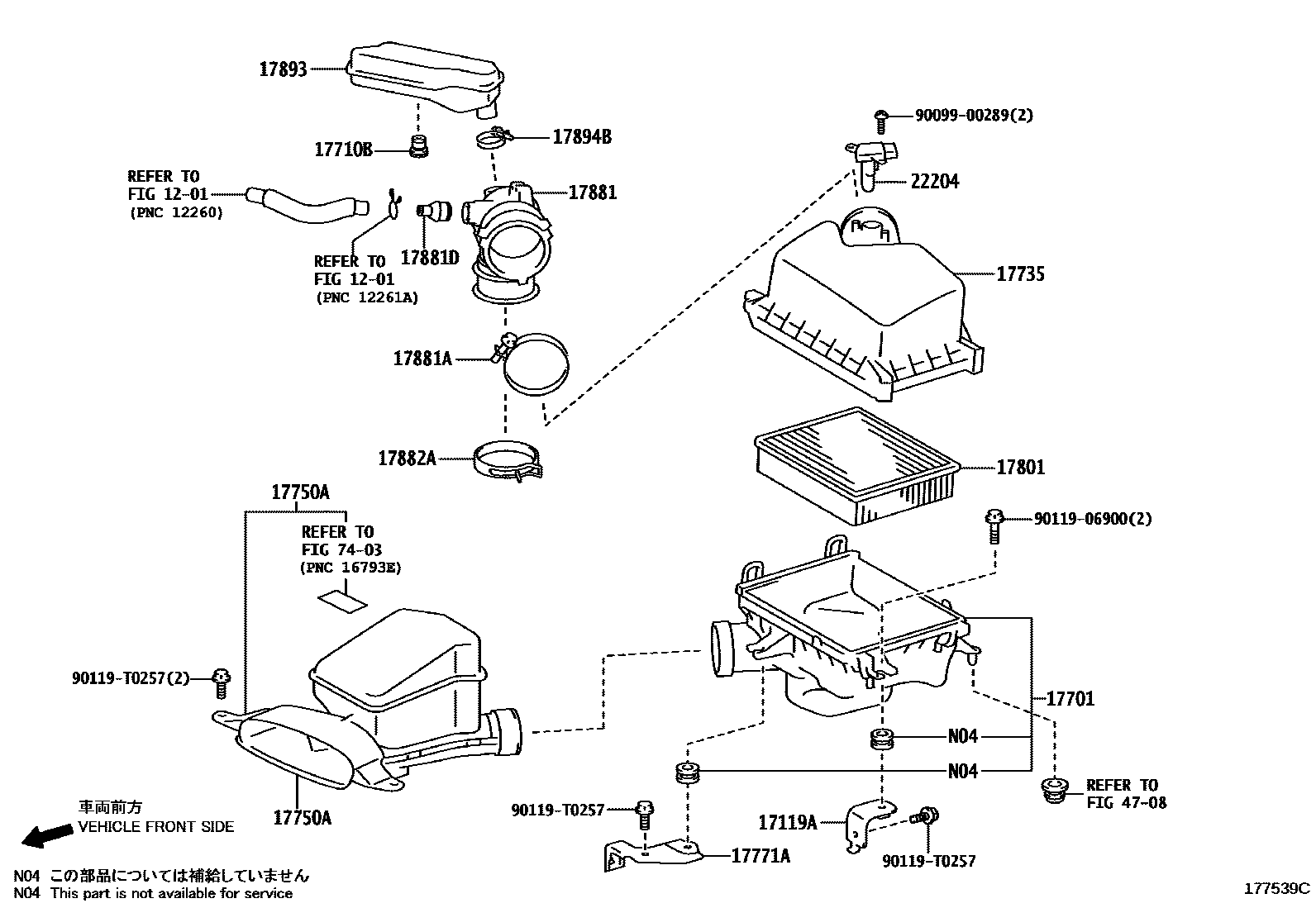

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-0V040 · 17119-0V050 |
| 17650Q | Vacuum switch valve | 90910-12088 |
| 17701 | Air filter housing sub-assembly | 17701-0P110 · 17701-0V040 · 17701-0V050 |
| 17710B | gasket | 90480-16049 · 90480-18006 |
| 17735 | air filter cover | 17735-0P110 · 17735-0V040 · 17735-0V050 |
| 17750A | Air filter air inlet assembly | 17750-0V050 · 17750-0V051 · 17750-0V060 |
| 17751 | No. 1 air filter air inlet | 17751-0P170 |
| 17752 | No. 2 air filter air inlet | 17752-0P110 · 17752-0P111 |
| 17769 | air filter bracket | 90480-18006 |
| 17771A | air filter bracket | 17771-0V030 · 17771-0V040 |
| 17772 | No. 2 intake connecting pipe bracket | 17772-0V030 |
| 17801 | Air filter element sub-assembly | 17801-0H030 · 17801-28030 · 17801-31131 · 17801-38011 |
| 17805F | Intake resonator sub-assembly | 17805-0P040 |
| 17878B | ventilation duct | 17878-31010 |
| 17881 | No. 1 air cleaner hose | 17881-0P140 · 17881-0V100 · 17881-0V110 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10880 · 96111-10900 |
| 17881D | Connector tube (for air cleaner hose) | 90904-06008 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 96111-10850 |
| 17893 | Intake resonator | 17893-0P130 · 17893-0V080 · 17893-0V090 |
| 17893A | hose clamp | 96111-10380 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10430 |
| 22204 | Intake air flow meter assembly | 22204-0V020 · 22204-28010 |
