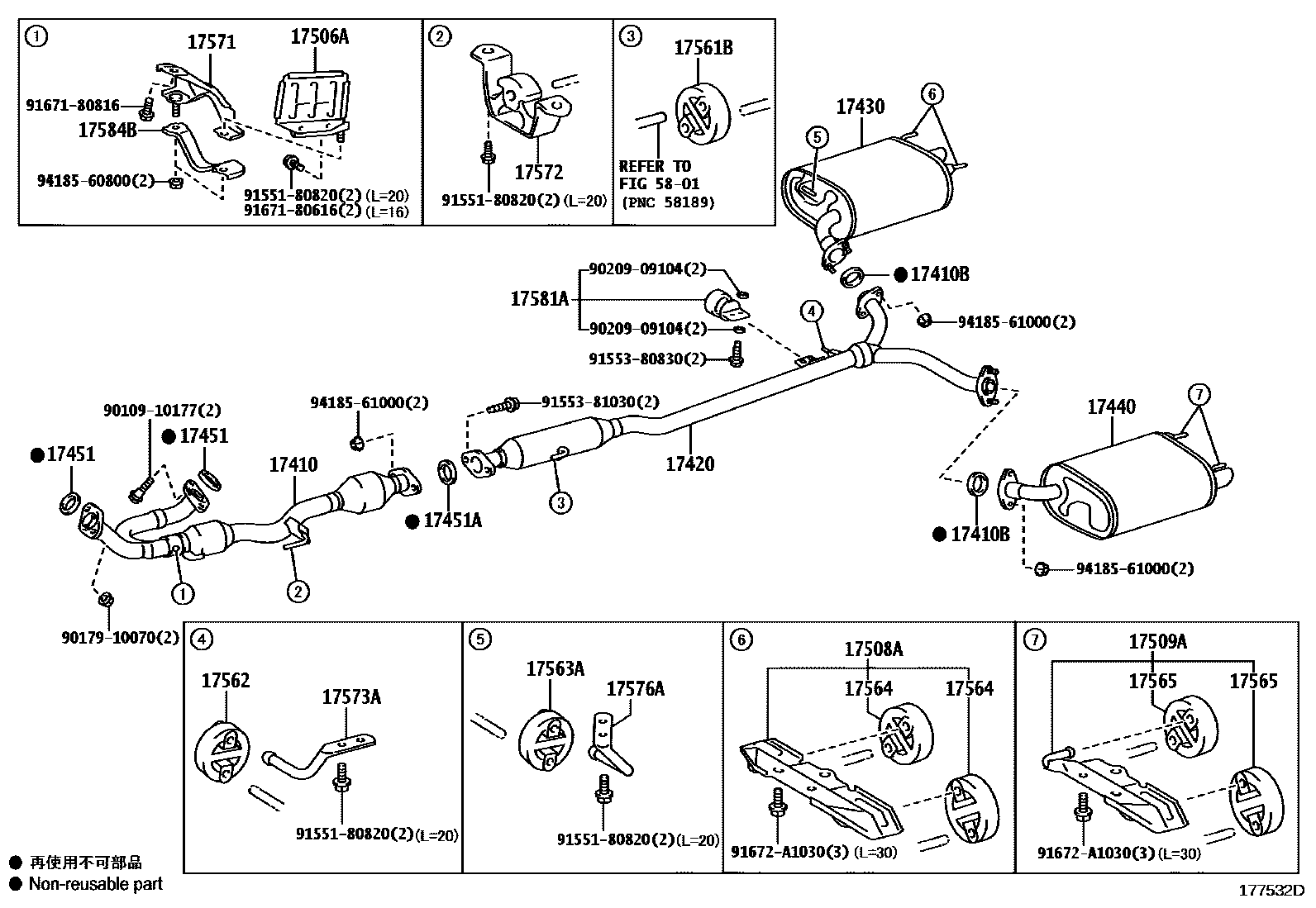

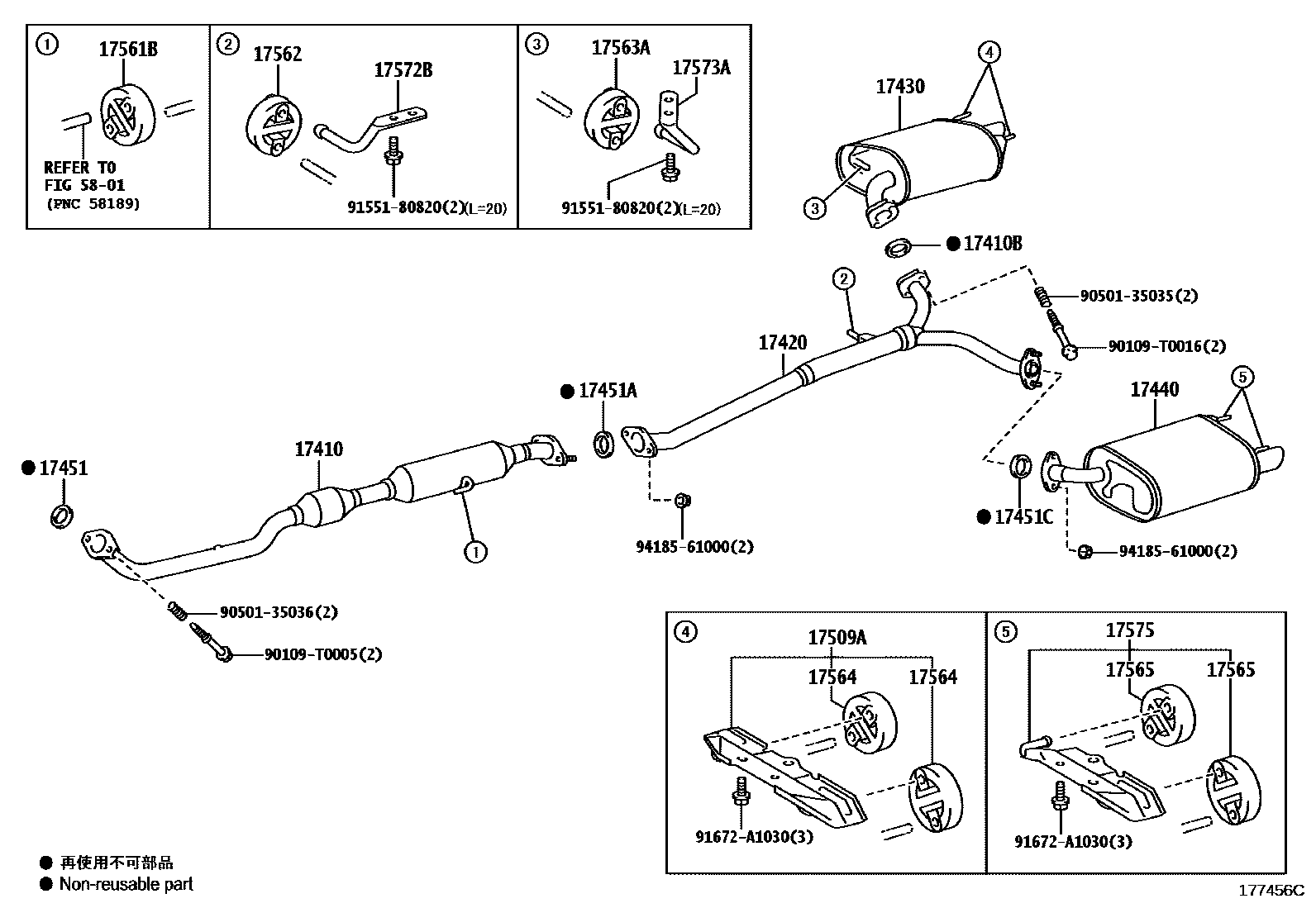

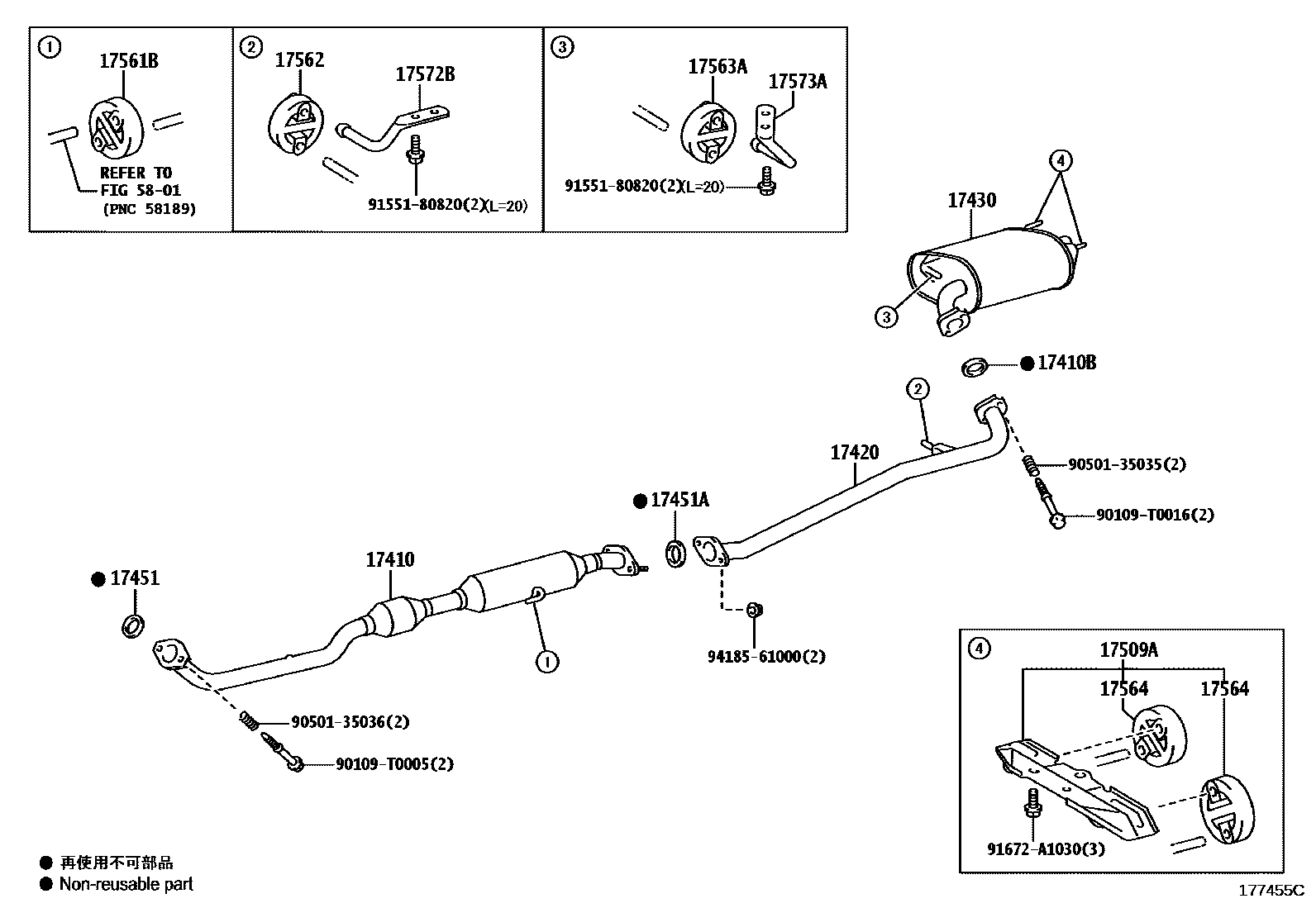

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0P370 · 17410-0V120 · 17410-0V130 · 17410-0V260 · 17410-0V570 |
| 17410B | Exhaust pipe gasket | 17451-0V050 · 17451-28032 · 90917-06045 |
| 17420 | Central exhaust pipe assembly | 17420-0P240 · 17420-0V110 · 17420-0V130 |
| 17430 | Exhaust tailpipe assembly | 17430-0P300 · 17430-0P310 · 17430-0V130 · 17430-0V170 · 17430-0V171 |
| 17440 | Left exhaust tailpipe | 17440-0P070 · 17440-0V010 · 17440-0V050 |
| 17451 | Exhaust pipe gasket | 17451-28040 · 17451-36010 · 90917-06089 |
| 17451A | No. 2 exhaust pipe gasket | 90917-06076 · 90917-06078 |
| 17451C | No. 3 exhaust pipe gasket | 90917-06045 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-0P050 |
| 17508A | No. 3 exhaust pipe bracket sub-assembly | 17508-0V060 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17508-0V060 · 17509-0V050 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-0P090 · 17565-0P100 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-0P100 · 17565-0P110 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0P110 |
| 17564 | No. 4 exhaust pipe lifting lug | 17565-0P100 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0P100 |
| 17571 | No. 1 exhaust pipe bracket | 17571-0P070 |
| 17572 | No. 1 exhaust pipe bracket | 17572-0P030 |
| 17572B | No. 2 exhaust pipe bracket | 17573-0P060 |
| 17573A | No. 3 exhaust pipe bracket | 17573-0P060 · 17576-0P060 |
| 17575 | No. 5 exhaust pipe bracket | 17509-0V050 |
| 17576A | No. 6 exhaust pipe bracket | 17576-0P060 |
| 17581A | Exhaust pipe damper | 17581-70080 |
| 17584B | No. 1 exhaust pipe bracket | 17584-0P100 |
