Toyota CAMRY Manifold — Figure 1701

Toyota CAMRY EPC diagram 1701, Manifold, with 4 images and 20 PNC and OE references.

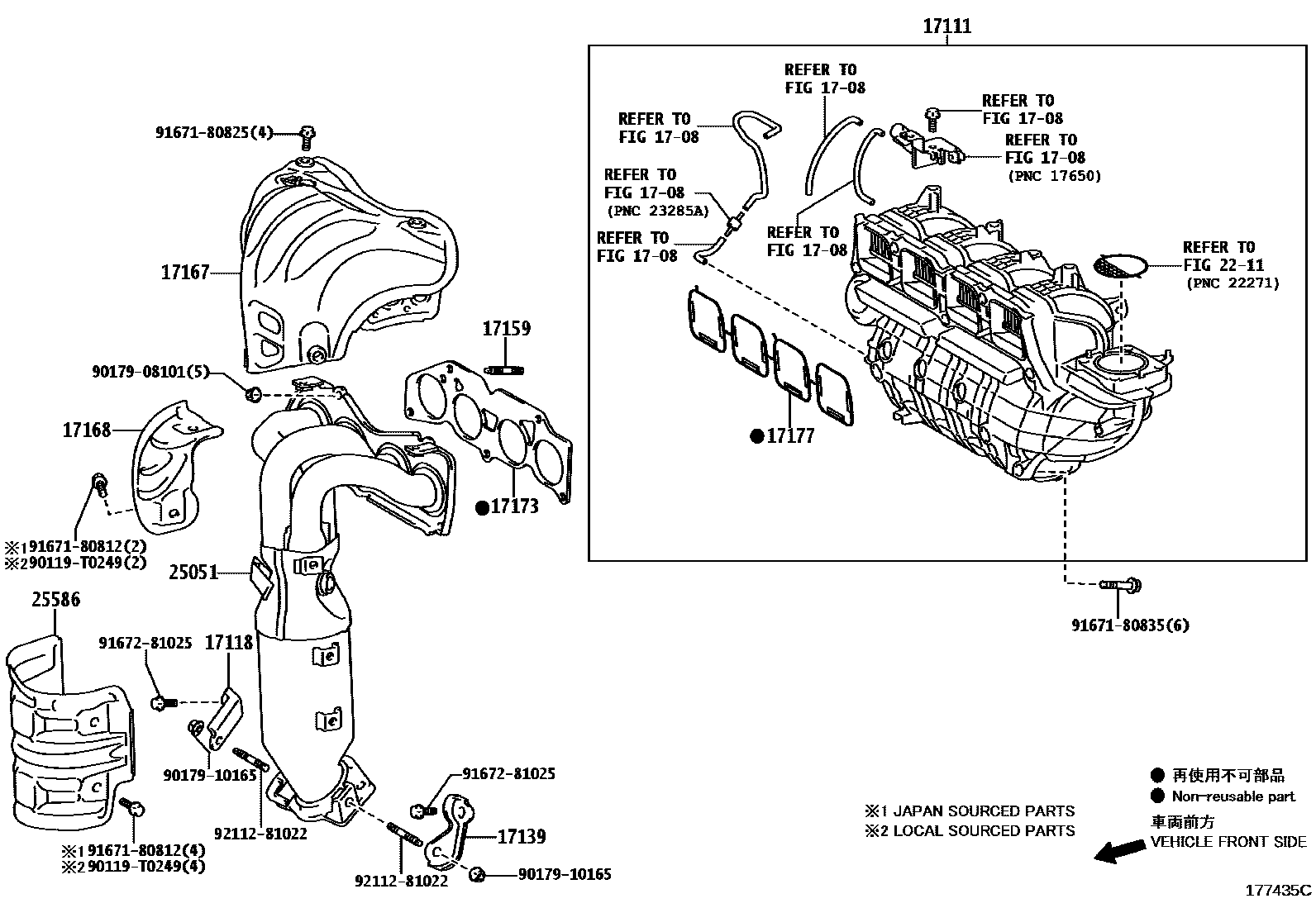

Toyota CAMRY Manifold EPC diagram — 177435C
Manifold — 177435C (201110 – 999999)

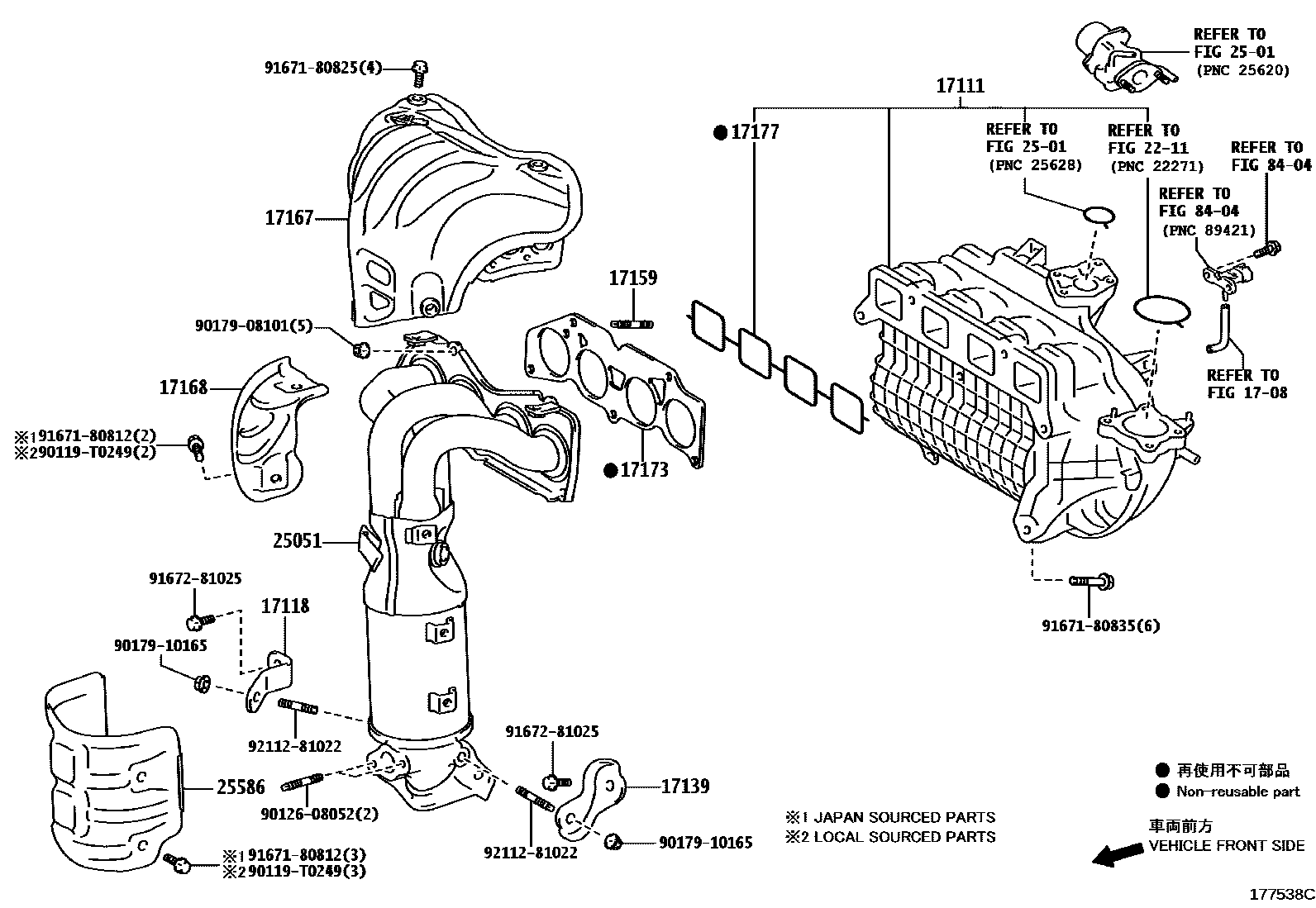

Toyota CAMRY Manifold EPC diagram — 177538C
Manifold — 177538C (201201 – 999999)

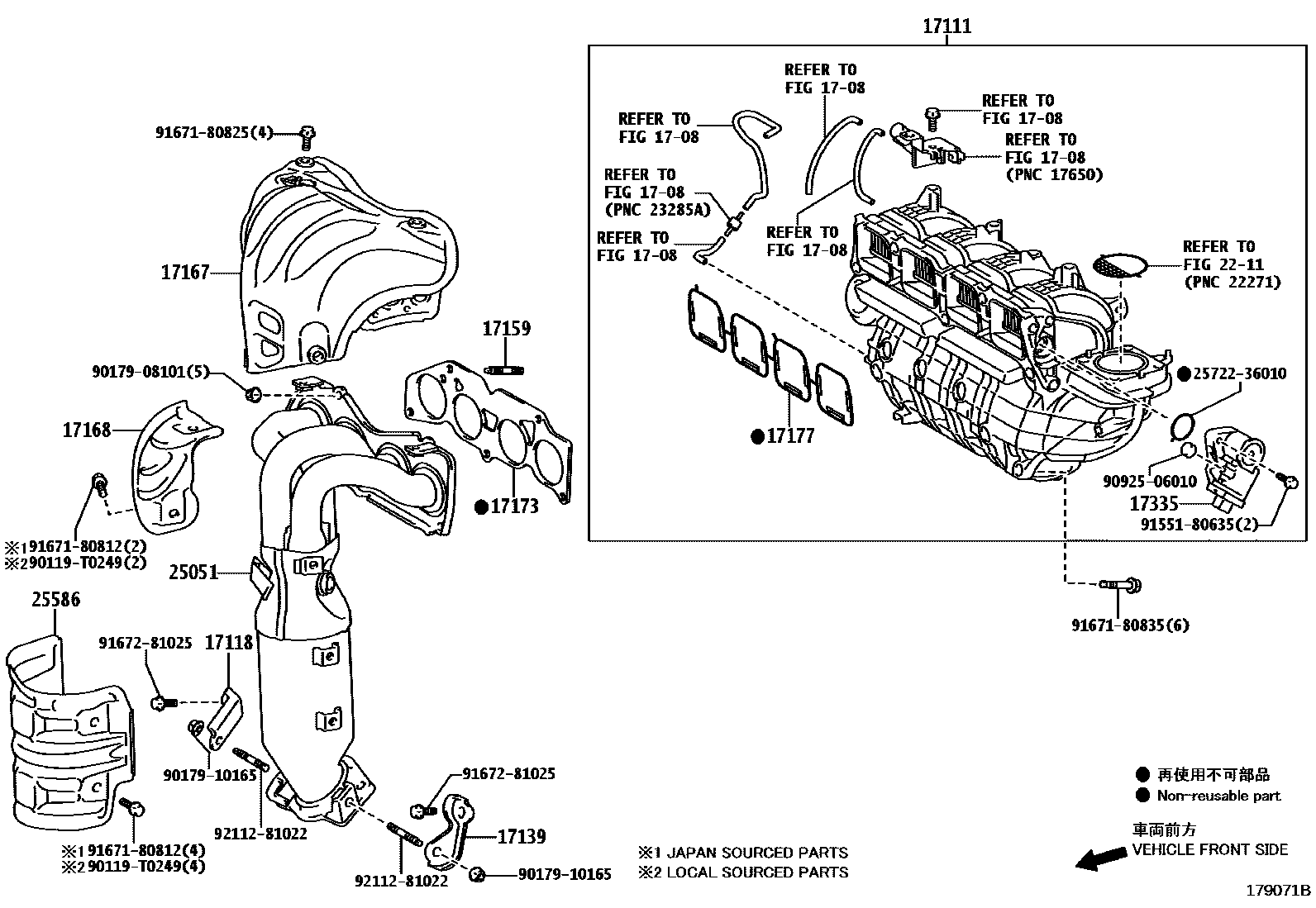

Toyota CAMRY Manifold EPC diagram — 179071B
Manifold — 179071B (201605 – 999999)

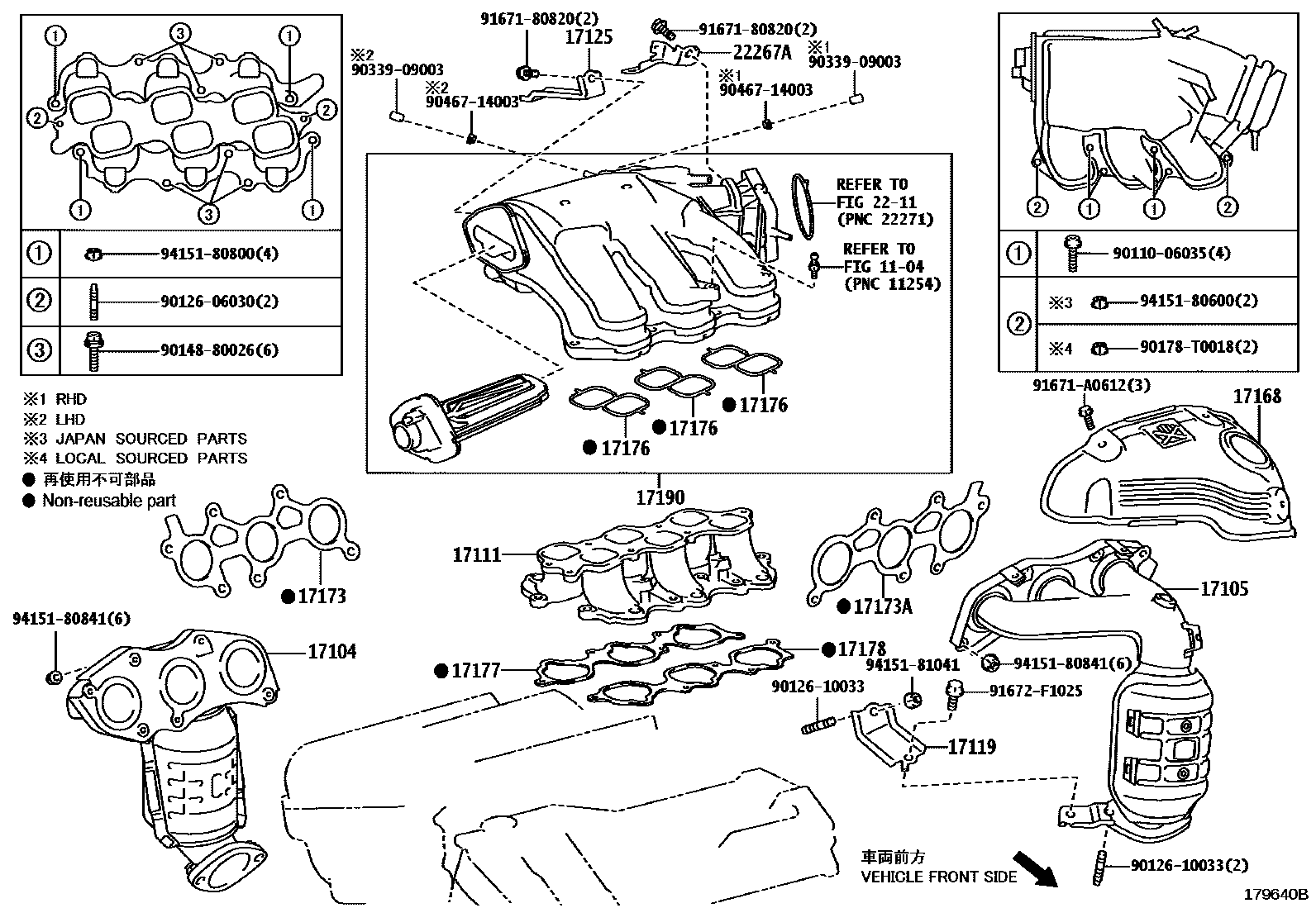

Toyota CAMRY Manifold EPC diagram — 179640B
Manifold — 179640B (201202 – 999999)

PNC and OE references

PNCPart nameOE numbers
17104Right exhaust manifold sub-assembly17140-31720
17105Left exhaust manifold sub-assembly17150-31720
17111Intake Manifold17111-31141 · 17120-36010 · 17120-36011 · 17120-36050 · 17120-36070
17118Manifold stays17118-36010 · 17118-36020
17119No. 2 manifold stay17119-31020
17125No. 1 pressure tank stay17125-31040
17139No. 2 manifold stay17139-36020 · 17139-36040
17159Studs (for manifold to cylinder head)90126-08037 · 90126-08052
17167Exhaust manifold No. 1 heat shield17167-36011
17168Exhaust manifold No.2 insulation pad17168-0V030 · 17168-31011 · 17168-31100 · 17168-36010
17173Gasket (exhaust manifold to cylinder head)17173-31020 · 17173-36020
17173ALeft side gasket (exhaust manifold to cylinder head)17173-31020
17176Gasket (intake surge tank to intake manifold)17176-31040 · 17176-31090
17177No. 1 gasket (intake manifold to cylinder head)17171-36010 · 17171-36011 · 17171-36020 · 17177-31040
17178No. 2 gasket (intake manifold to cylinder head)17178-31030
17190Intake pressure regulator tank assembly17190-31081 · 17190-31200
17335Intake control valve actuator17335-36010
22267AThrottle body bracket22267-31030
25051Exhaust manifold three-way catalytic converter sub-assembly25051-0V120 · 25051-0V130 · 25051-0V210 · 25051-36120 · 25051-36130
25586No. 1 manifold three-way catalytic converter vibration isolation pad25586-0V050 · 25586-0V060 · 25586-36010 · 25586-36020
