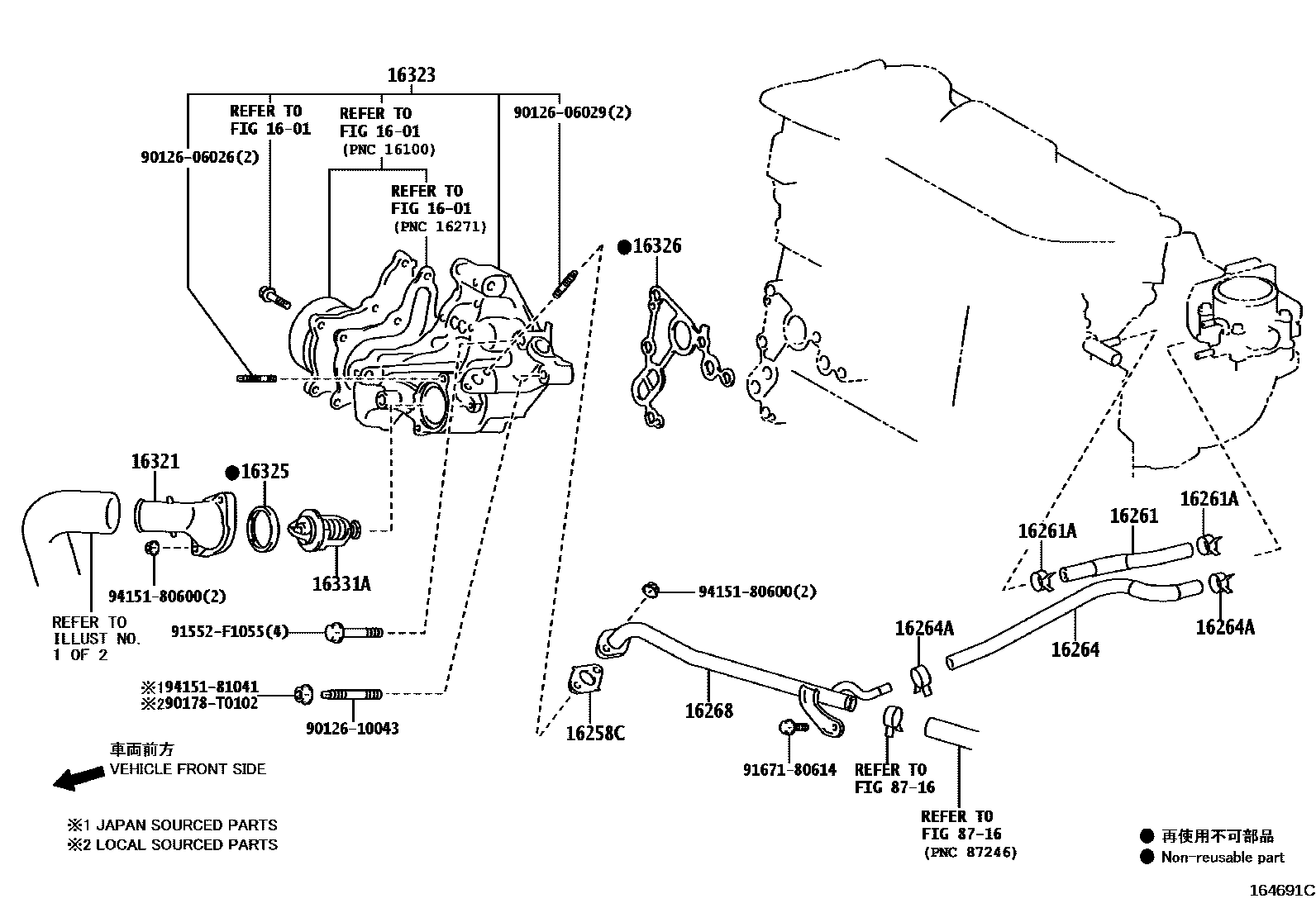

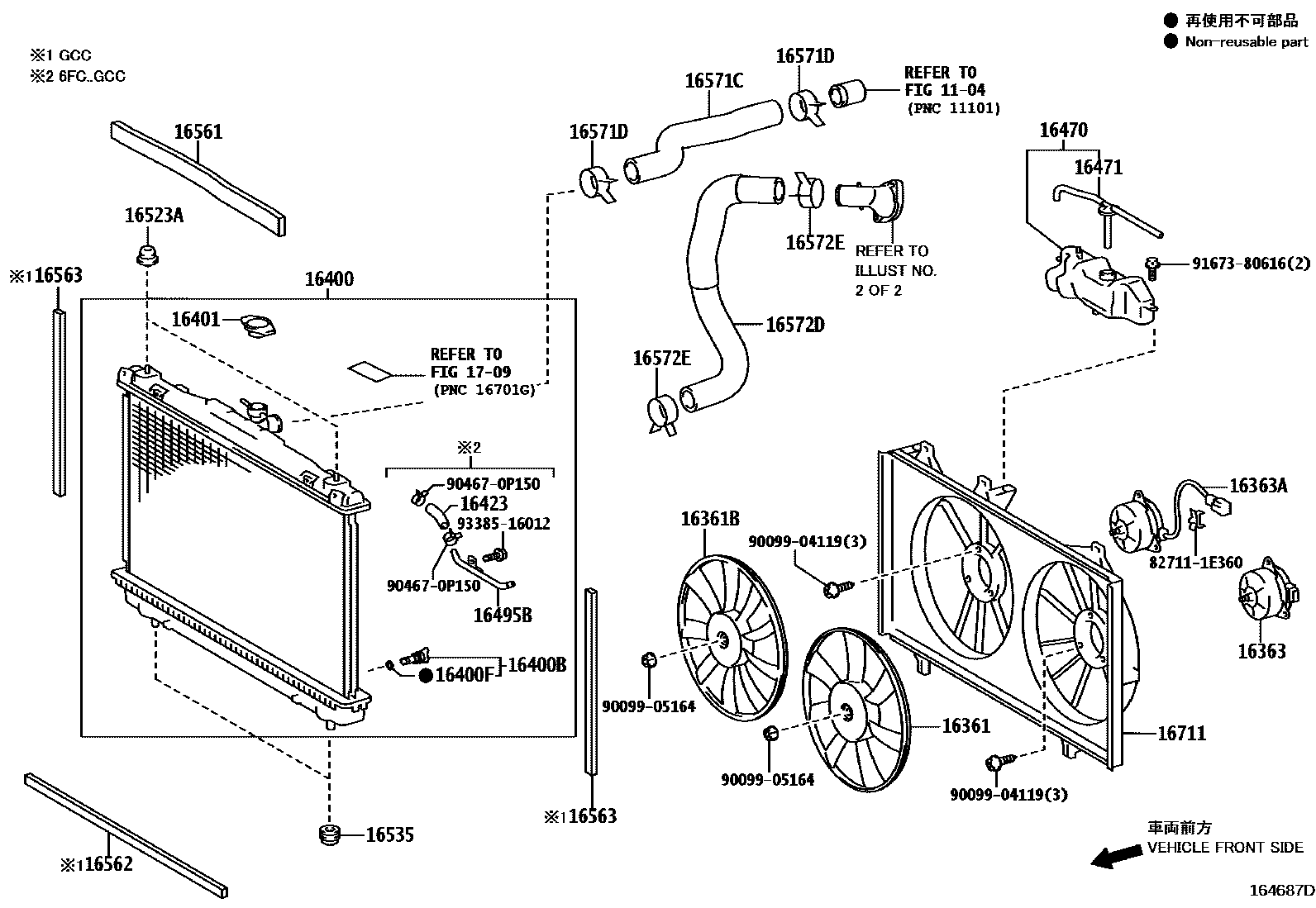

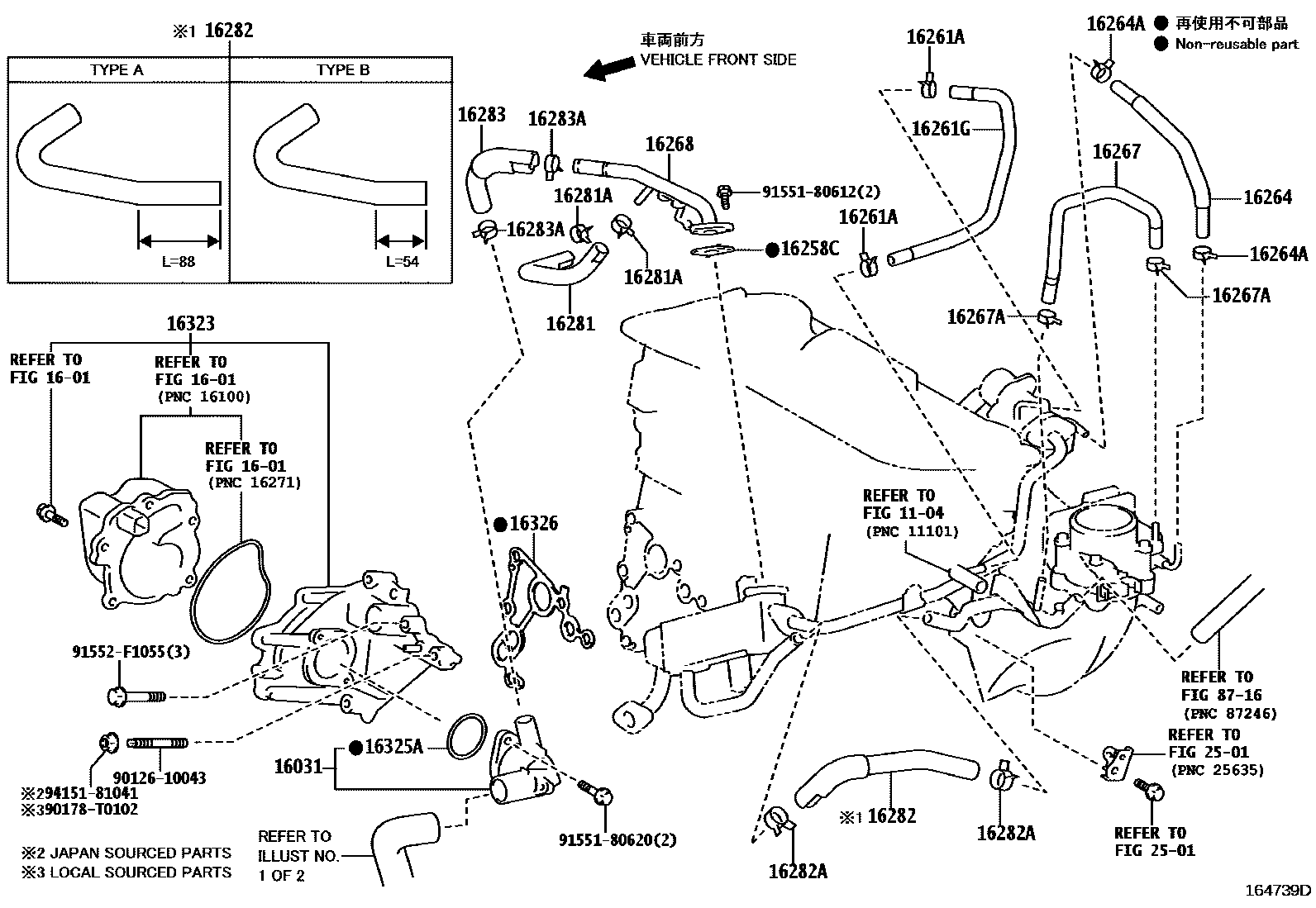

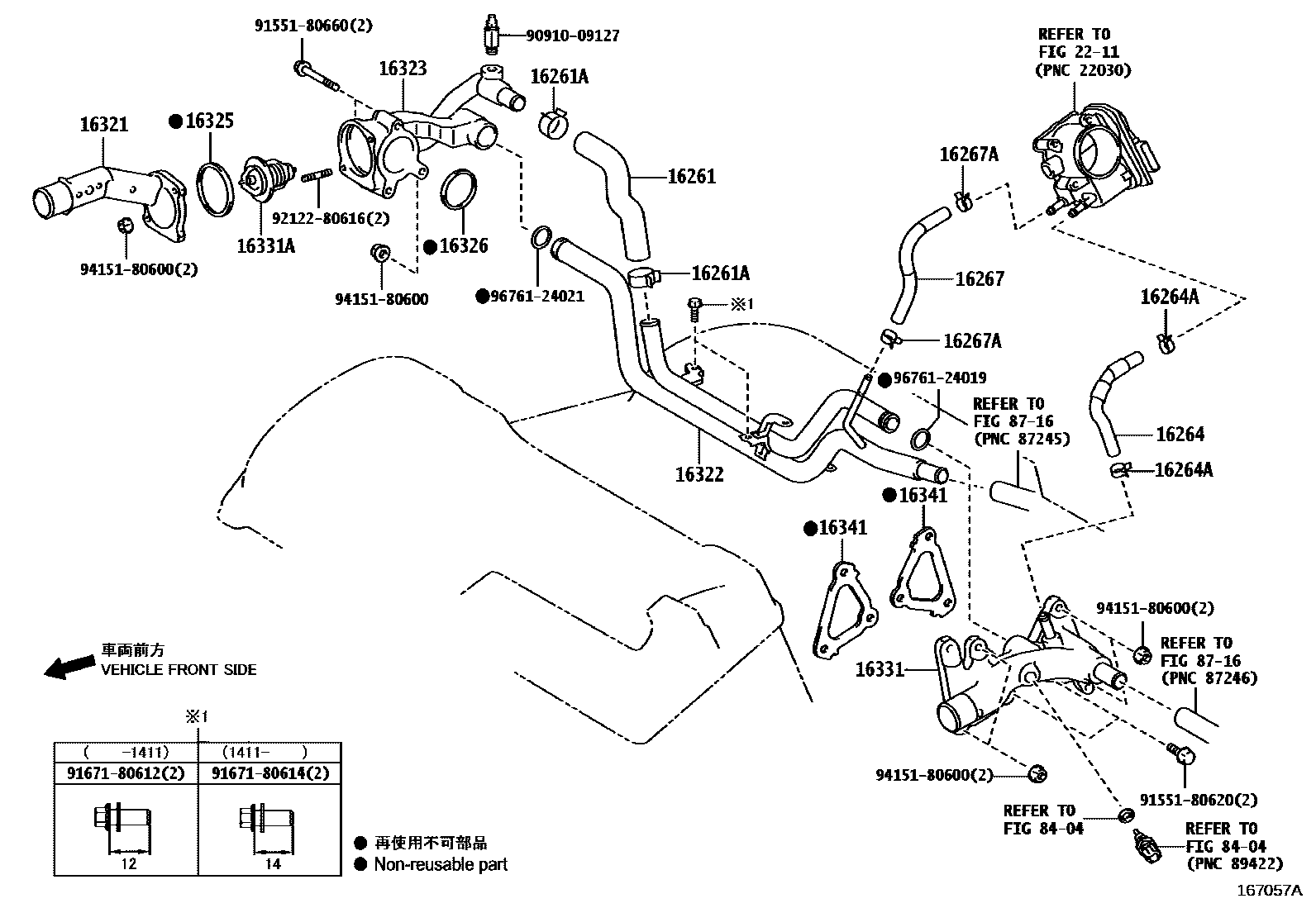

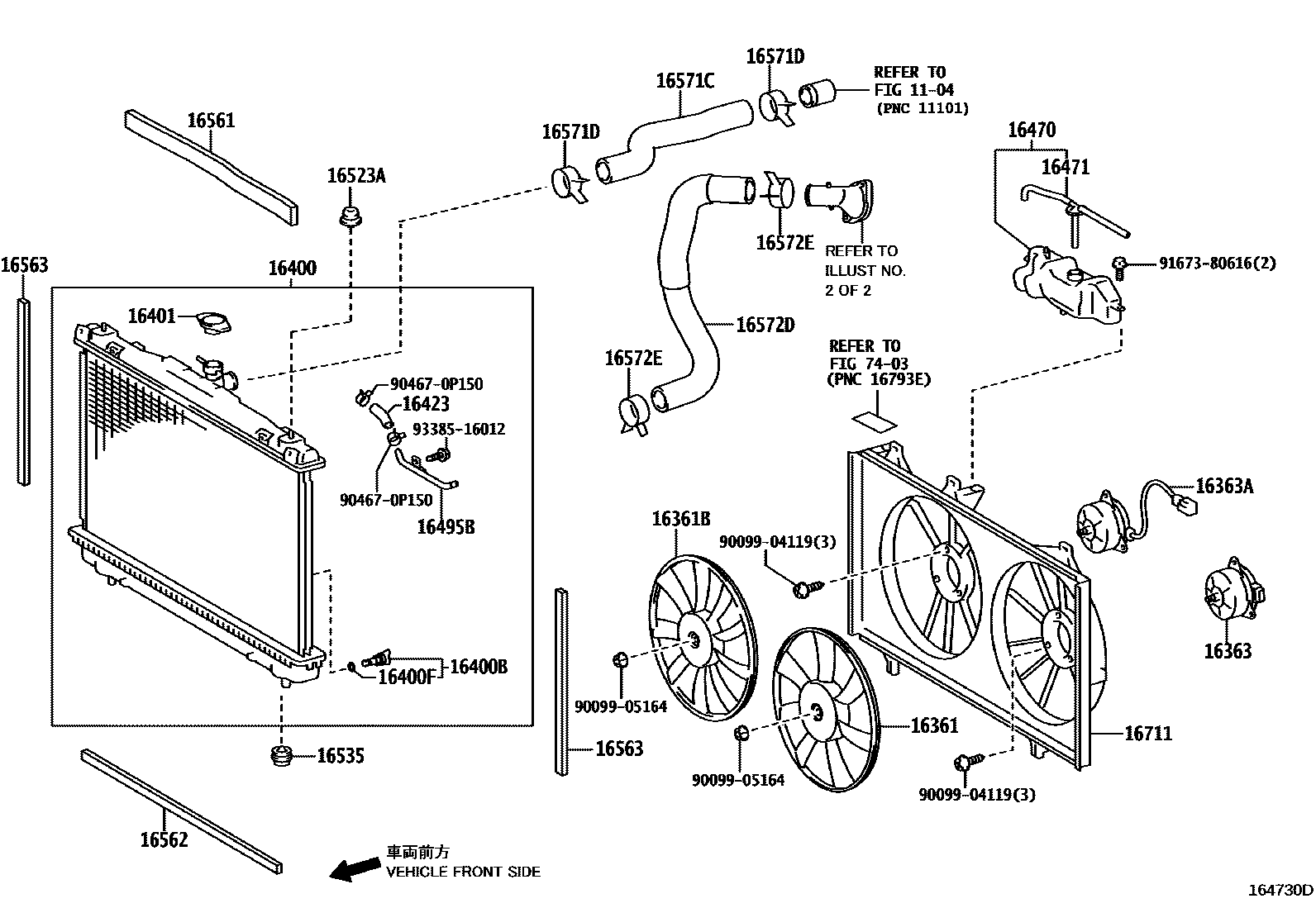

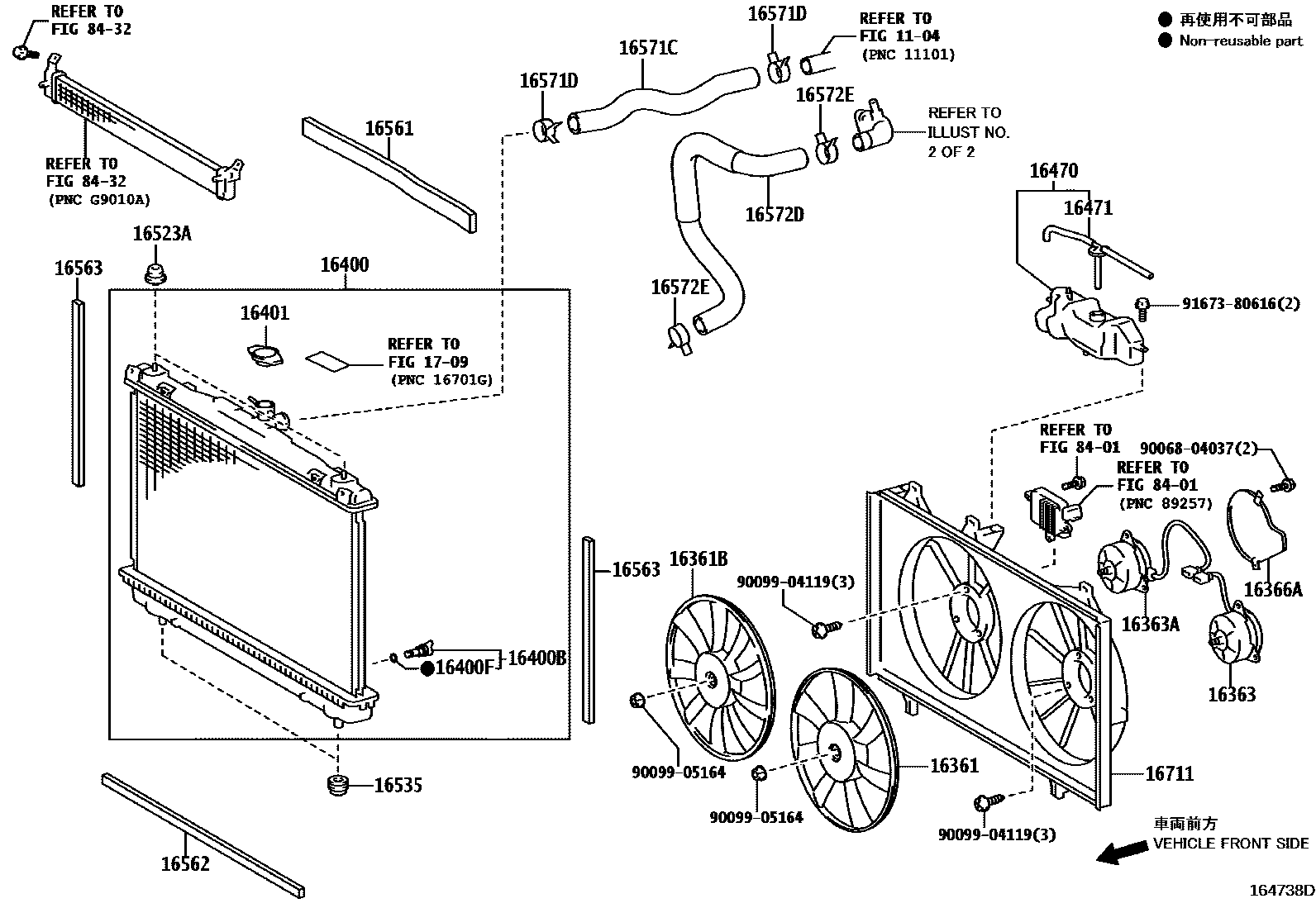

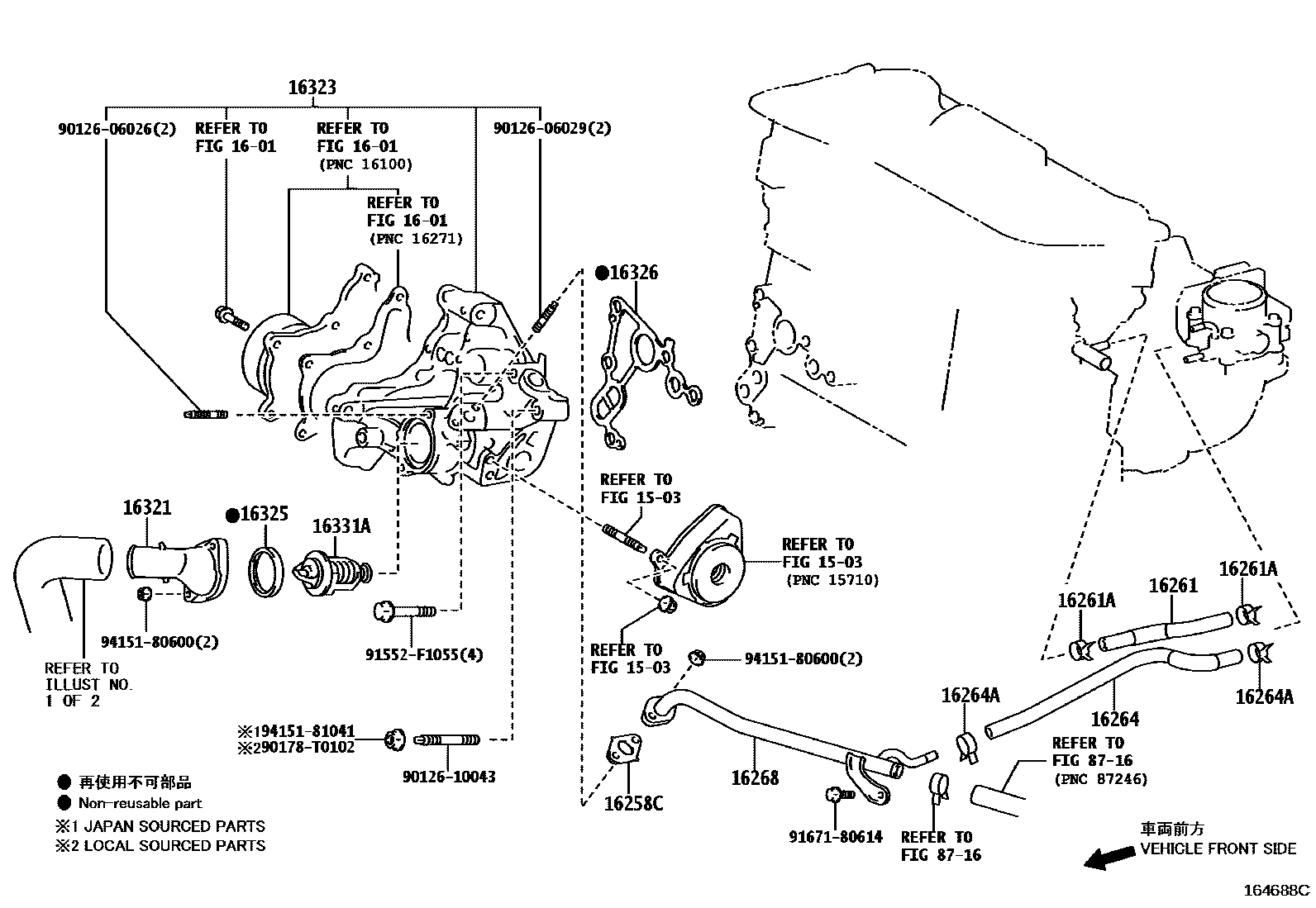

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 7 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-36010 |
| 16258C | Gasket (for water bypass pipe) | 16258-36010 · 16258-36020 · 16258-36100 |
| 16261 | HOSE, WATER BY-PASS | 16261-31050 · 16261-36010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96136-42701 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-36040 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-31081 · 16264-36010 · 16264-36030 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-31040 · 16267-36040 · 16267-36080 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-36050 · 16268-36080 · 16268-36081 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-36020 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96137-41501 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-36020 · 16282-36021 · 16282-36022 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-21001 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-36030 · 16283-36031 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-21001 |
| 16321 | water inlet | 16321-31030 · 16321-36010 |
| 16322 | PIPE, WATER INLET | 16322-31030 |
| 16323 | HOUSING, WATER INLET | 16032-36011 · 16032-36021 · 16032-36050 · 16323-31040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 · 16325-62010 |
| 16325A | Water inlet shell gasket | 16325-36010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16325-31010 · 16326-36010 |
| 16331 | Water outlet | 16331-31150 |
| 16331A | thermostat | 90916-03129 · 90916-03140 |
| 16341 | GASKET, WATER OUTLET | 16341-31010 |
| 16361 | Fan | 16361-0P270 · 16361-0P290 · 16361-0V130 |
| 16361B | Fan No. 2 | 16361-0P280 · 16361-0P300 · 16361-0V140 |
| 16363 | cooling fan motor | 16363-0H110 · 16363-0M010 · 16363-0P080 |
| 16363A | Cooling fan motor No. 2 | 16363-0P290 · 16363-0V180 · 16363-0V190 · 16363-0V220 |
| 16366A | Cooling fan motor vibration isolation pad | 16366-0V140 |
| 16400 | Radiator assembly | 16400-0P360 · 16400-0P361 · 16400-0V130 · 16400-0V140 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-0M010 · 16401-0Y060 · 16401-31480 · 16401-36020 |
| 16423 | Radiator tank hose | 16492-0P150 |
| 16470 | Radiator reservoir assembly | 16470-0V050 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-0V020 |
| 16495B | Tube (for automatic transmission oil cooler) | 16495-0P150 |
| 16523A | Radiator bracket cushion | 16523-20020 |
| 16535 | Radiator lower support | 16535-0A040 · 16535-28060 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0H030 · 16561-0V090 |
| 16562 | Seal No. 2 (radiator to bracket) | 16562-0P010 · 16562-0V050 |
| 16563 | Seal No. 3 (radiator to bracket) | 16563-0V080 |
| 16571C | Radiator hose No. 1 | 16571-0P260 · 16571-0V090 · 16571-0V100 |
| 16571D | No. 1 radiator hose clip | 90466-35001 |
| 16572D | Radiator hose No. 2 | 16572-0P260 · 16572-0V080 · 16572-0V090 |
| 16572E | No. 2 radiator hose clip | 90466-35001 |
| 16711 | fan cover | 16711-0P210 · 16711-0V120 · 16711-0V130 · 16711-0V200 |
