Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 2 images and 9 PNC and OE references.

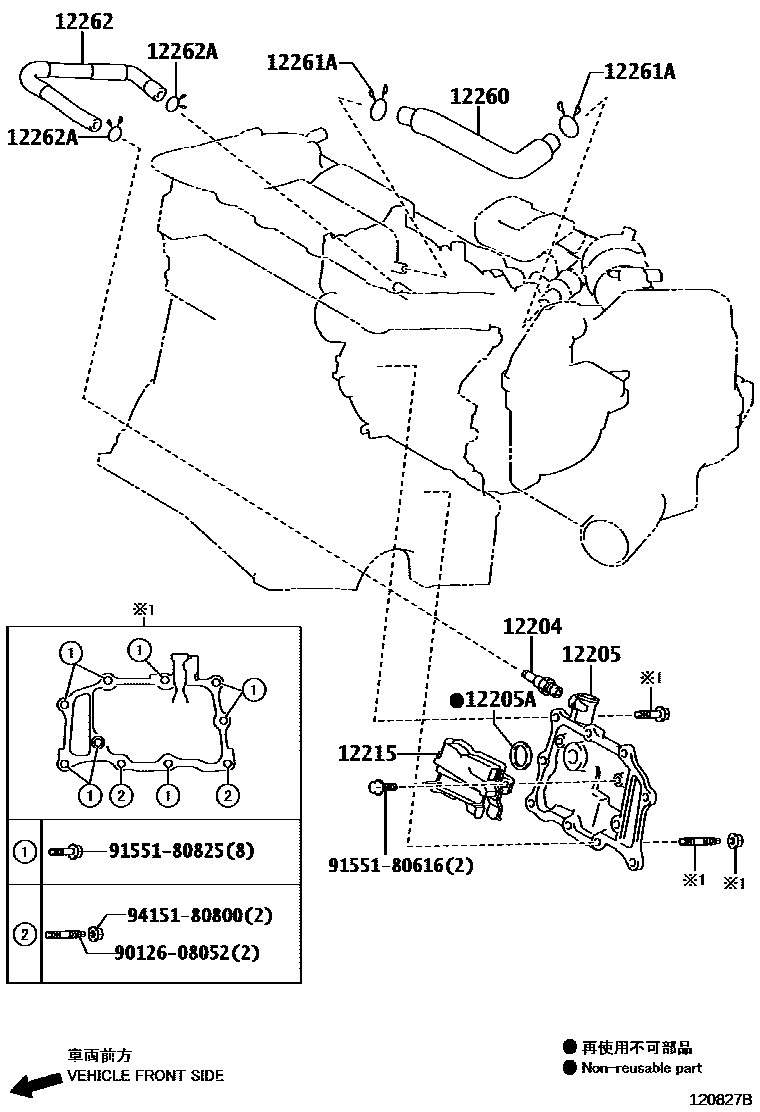

Toyota CAMRY Ventilation Hose EPC diagram — 120827B
Ventilation Hose — 120827B (201110 – 999999)

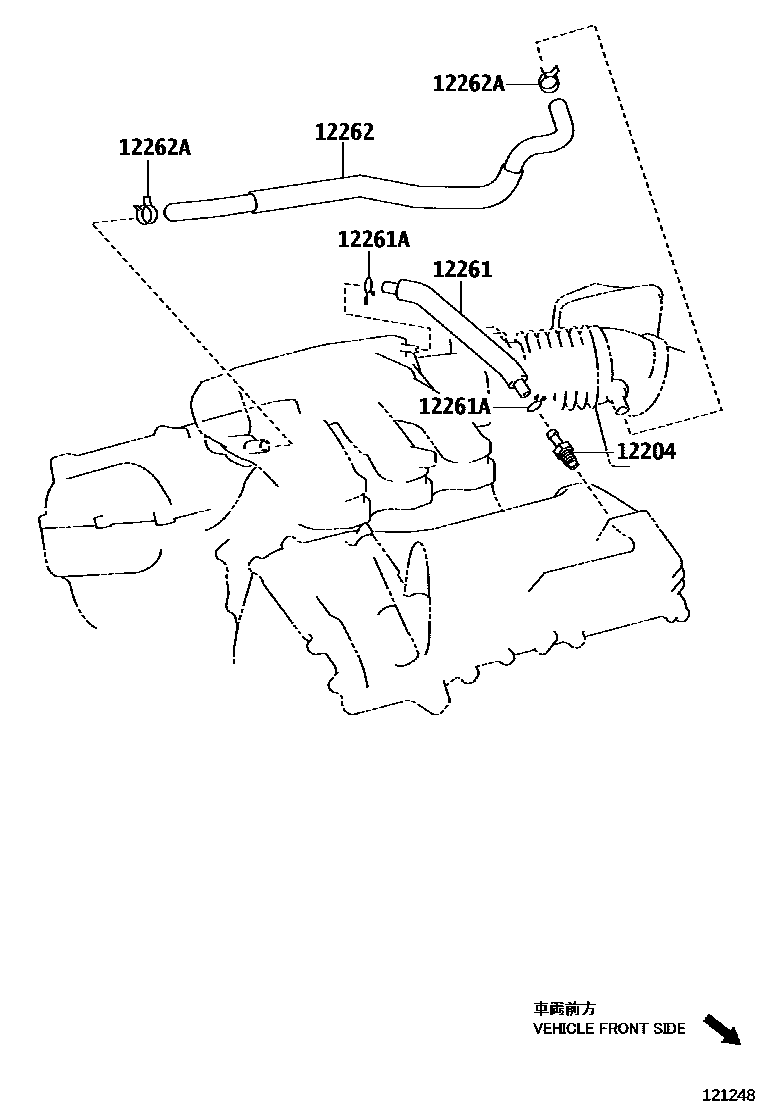

Toyota CAMRY Ventilation Hose EPC diagram — 121248
Ventilation Hose — 121248 (201202 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-31120 · 12204-36020 · 12204-36030
12205Ventilation box sub-assembly12205-36010
12205AO-ring (for ventilation box)12273-36010
12215Ventilation box isolation device12215-36010
12260Ventilation hose assembly12260-0V070
12261Ventilation Hose12261-31070
12261AClip or clip (for vent hose)90467-14017 · 90467-21004
12262Ventilation hose No. 212262-31100 · 12262-36030 · 12262-36040 · 12262-36080
12262AClamp (for vent hose No. 2)90467-16035 · 90467-21004
