Toyota CAMRY Engine Mounting — Figure 1107

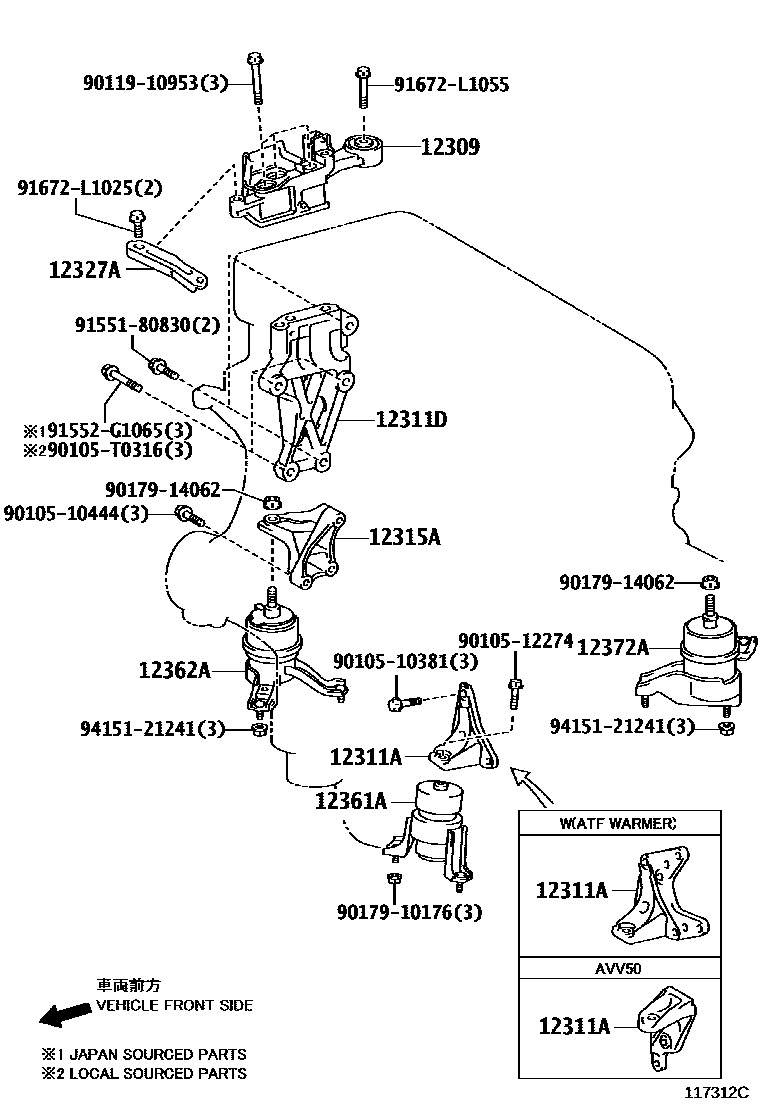

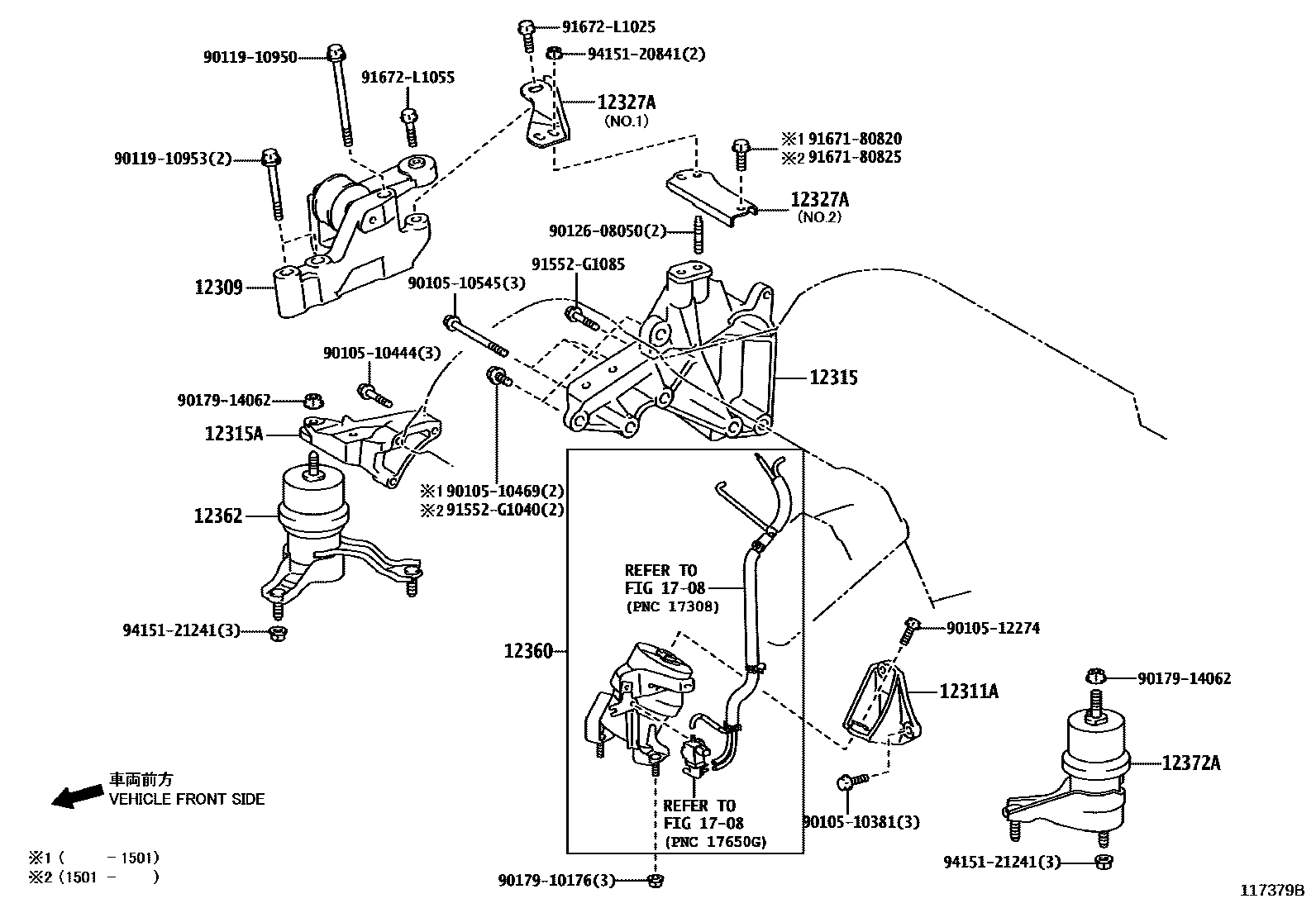

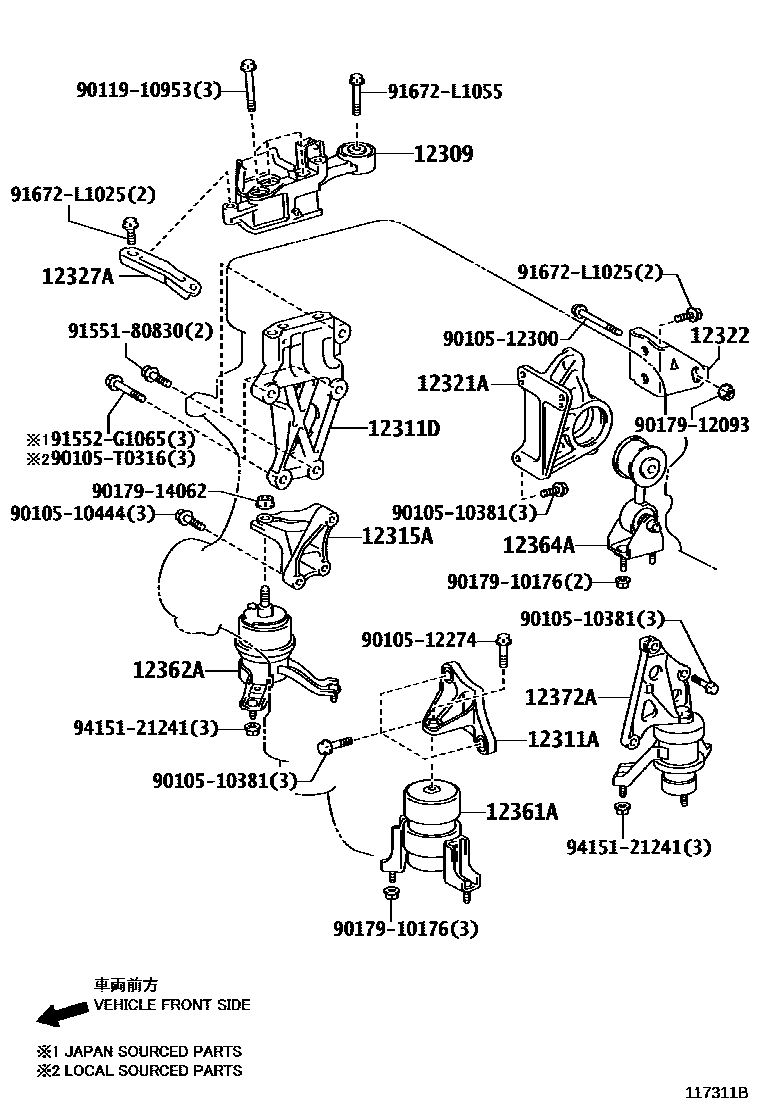

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12309 | Engine motion control lever sub-assembly | 12309-0P032 · 12309-0P033 · 12309-0V090 · 12309-0V100 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0V050 · 12311-0V060 · 12311-0V140 · 12311-31060 · 12311-36040 |
| 12311D | engine mounting bracket | 12313-36010 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-31091 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0P050 · 12319-0V050 · 12319-0V060 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-36020 |
| 12322 | Engine No. 2 rear suspension bracket | 12322-0V010 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-0V060 · 12327-31010 · 12327-31020 · 12327-31120 |
| 12360 | Engine front mount vibration isolation pad assembly | 12360-31060 · 12360-31061 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0V110 · 12361-0V120 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-31080 |
| 12362A | Engine left front mounting vibration isolation pad | 12362-0V100 · 12362-0V101 |
| 12364A | Engine lateral control lever | 12308-0V020 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12306-36010 · 12372-0H100 · 12372-28250 · 12372-31010 |
