Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

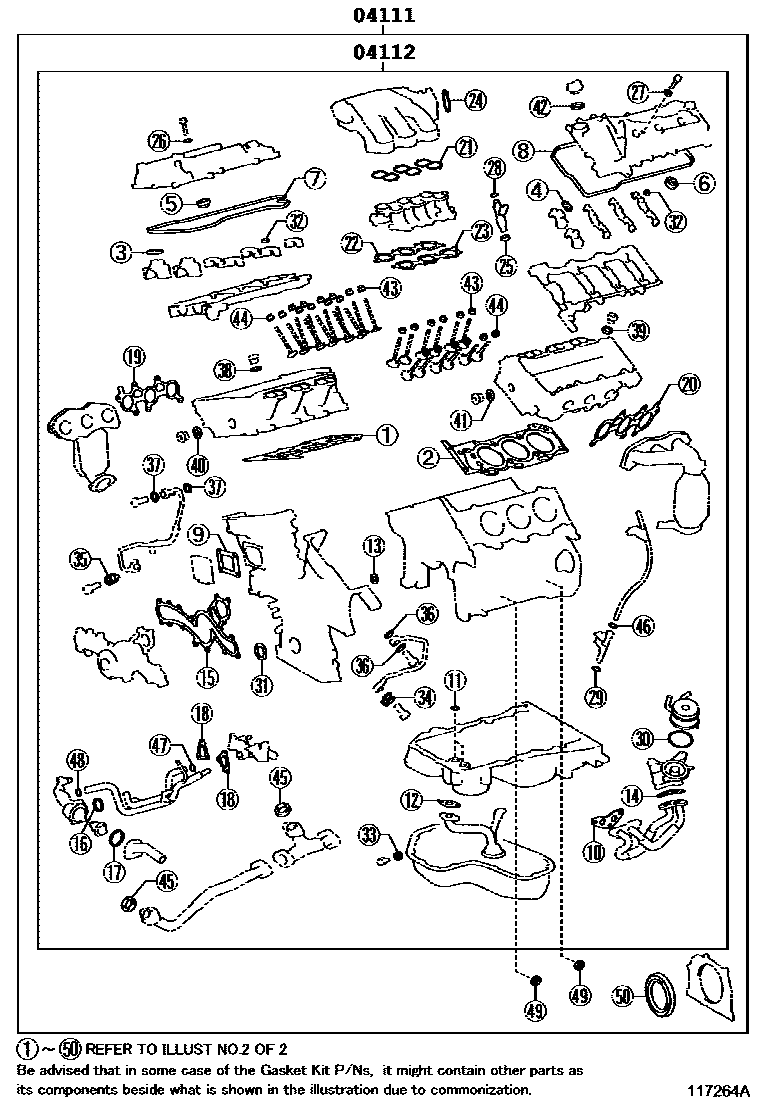

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 117264A
Engine Overhaul Gasket Kit — 117264A (201202 – 999999)

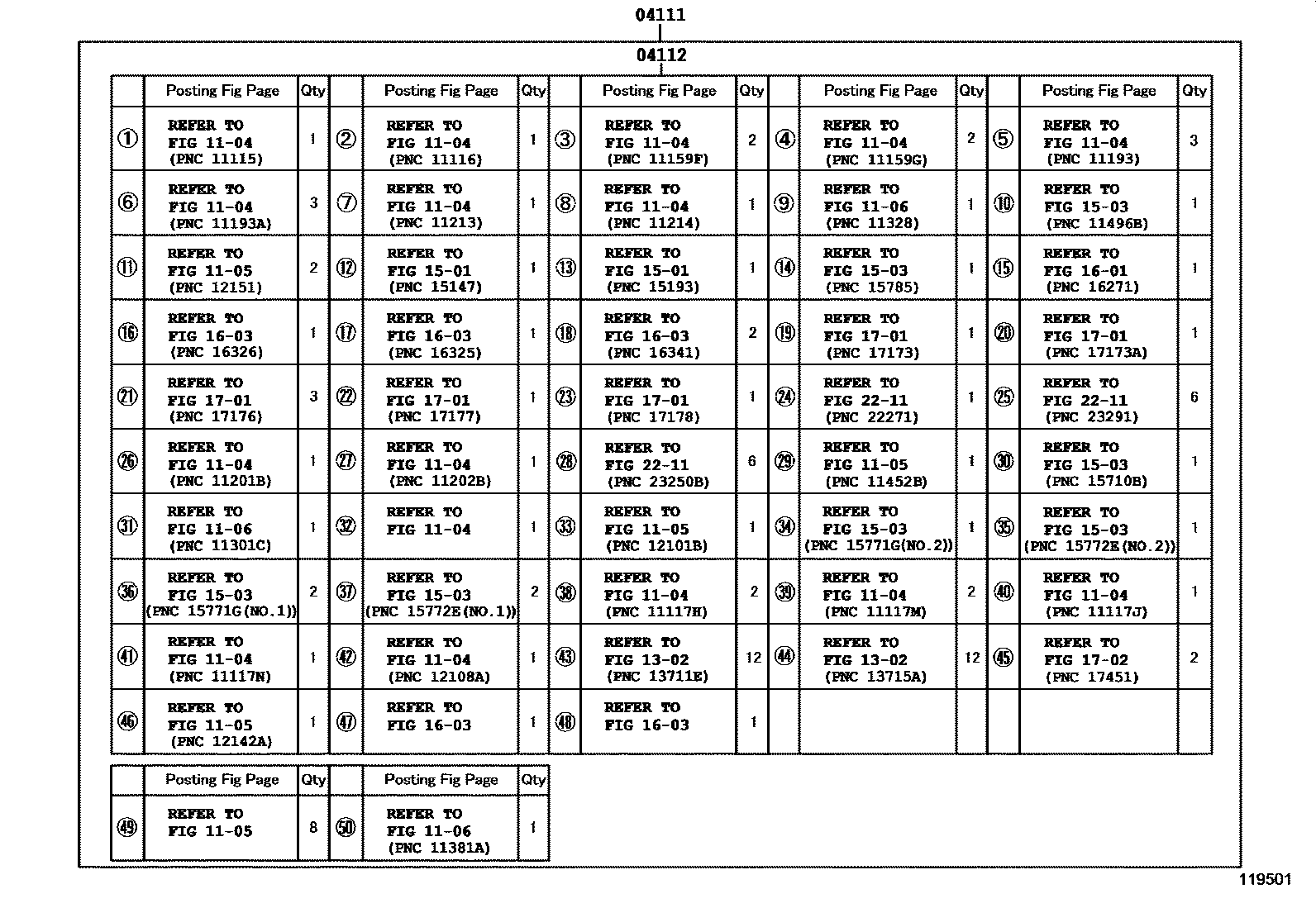

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 119501
Engine Overhaul Gasket Kit — 119501 (201202 – 999999)

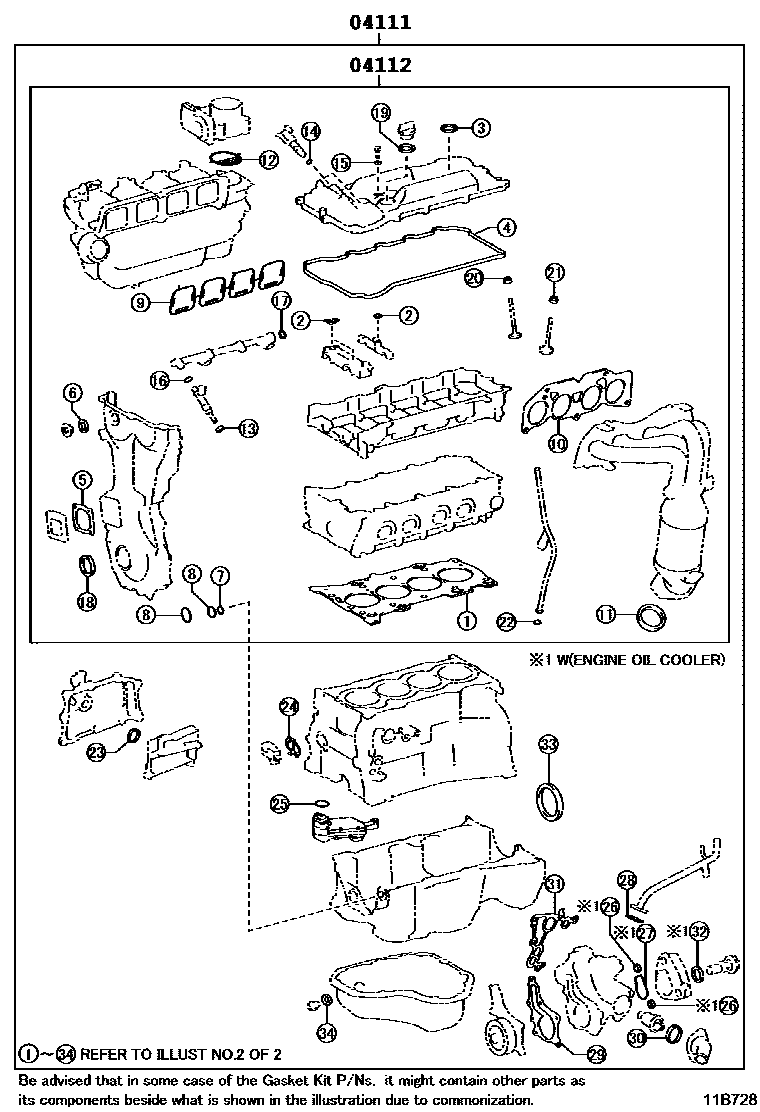

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11B728
Engine Overhaul Gasket Kit — 11B728 (201110 – 999999)

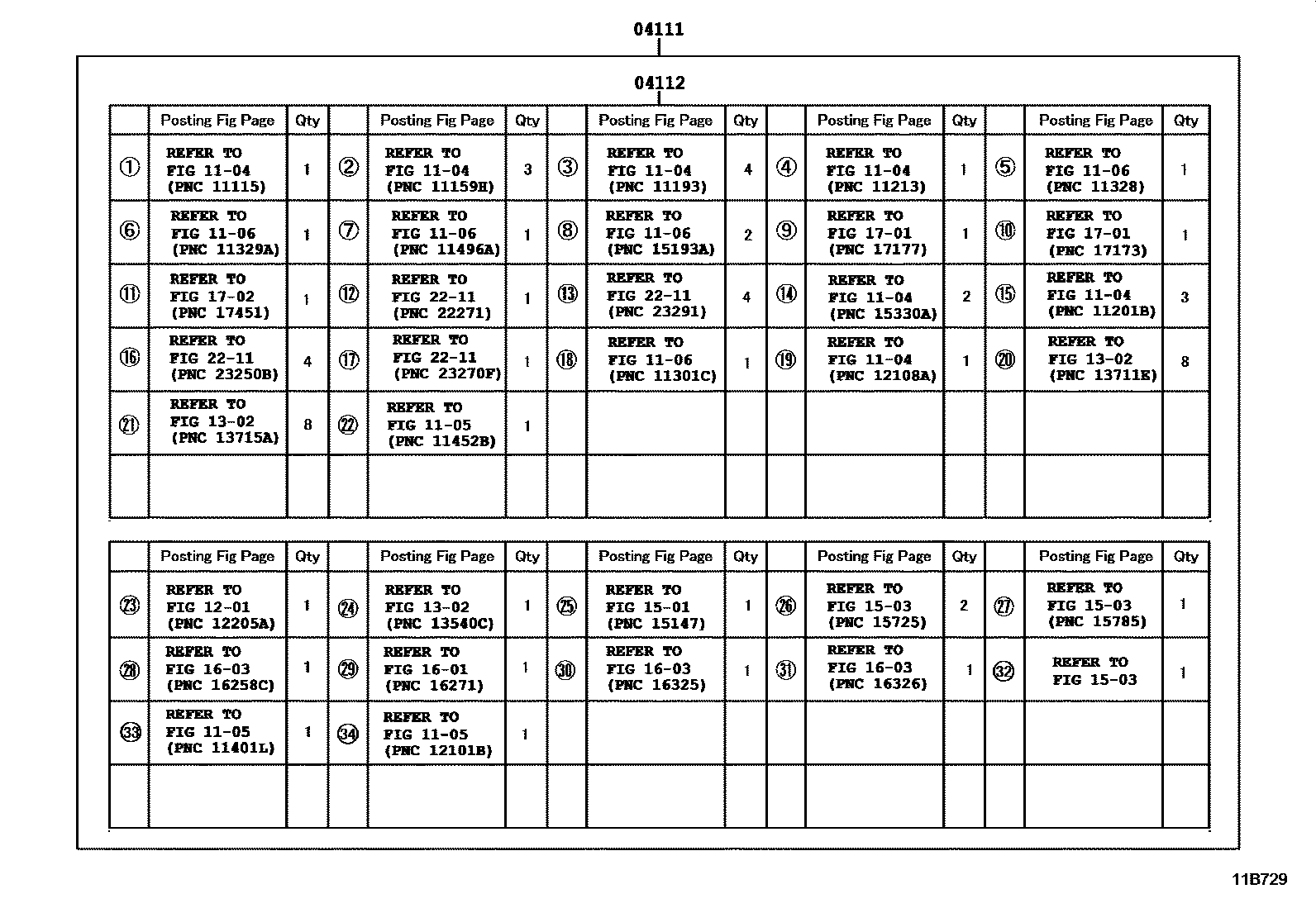

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11B729
Engine Overhaul Gasket Kit — 11B729 (201110 – 999999)

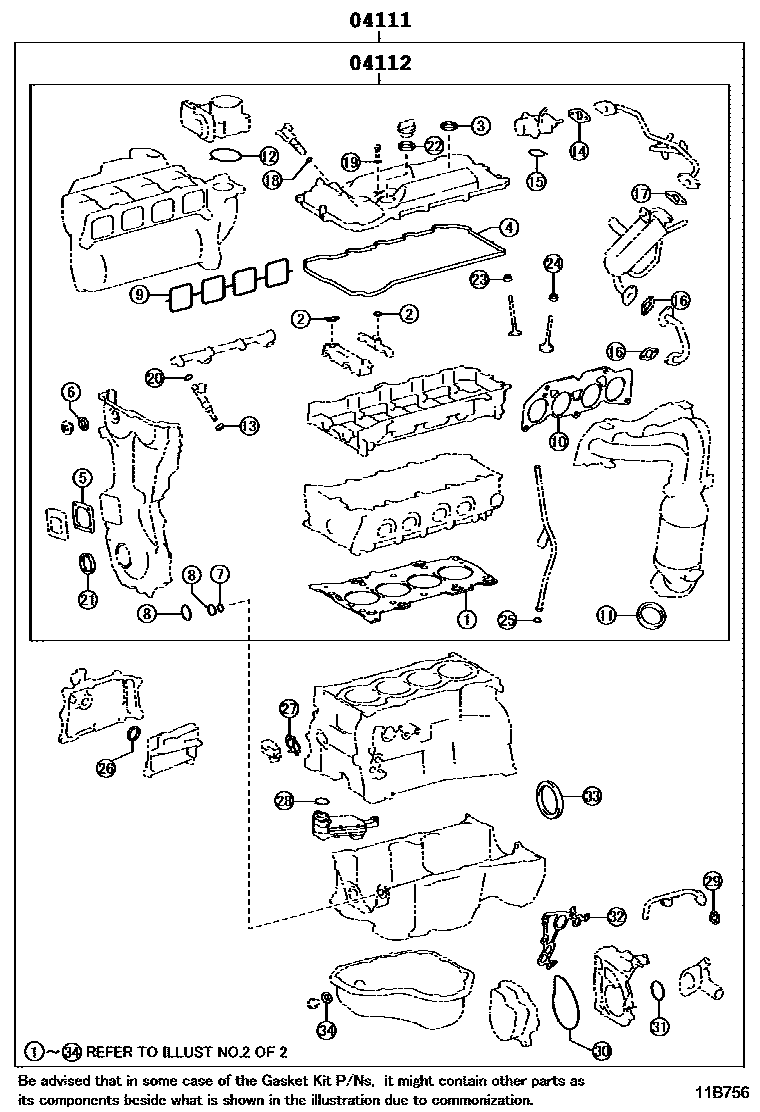

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11B756
Engine Overhaul Gasket Kit — 11B756 (201201 – 999999)

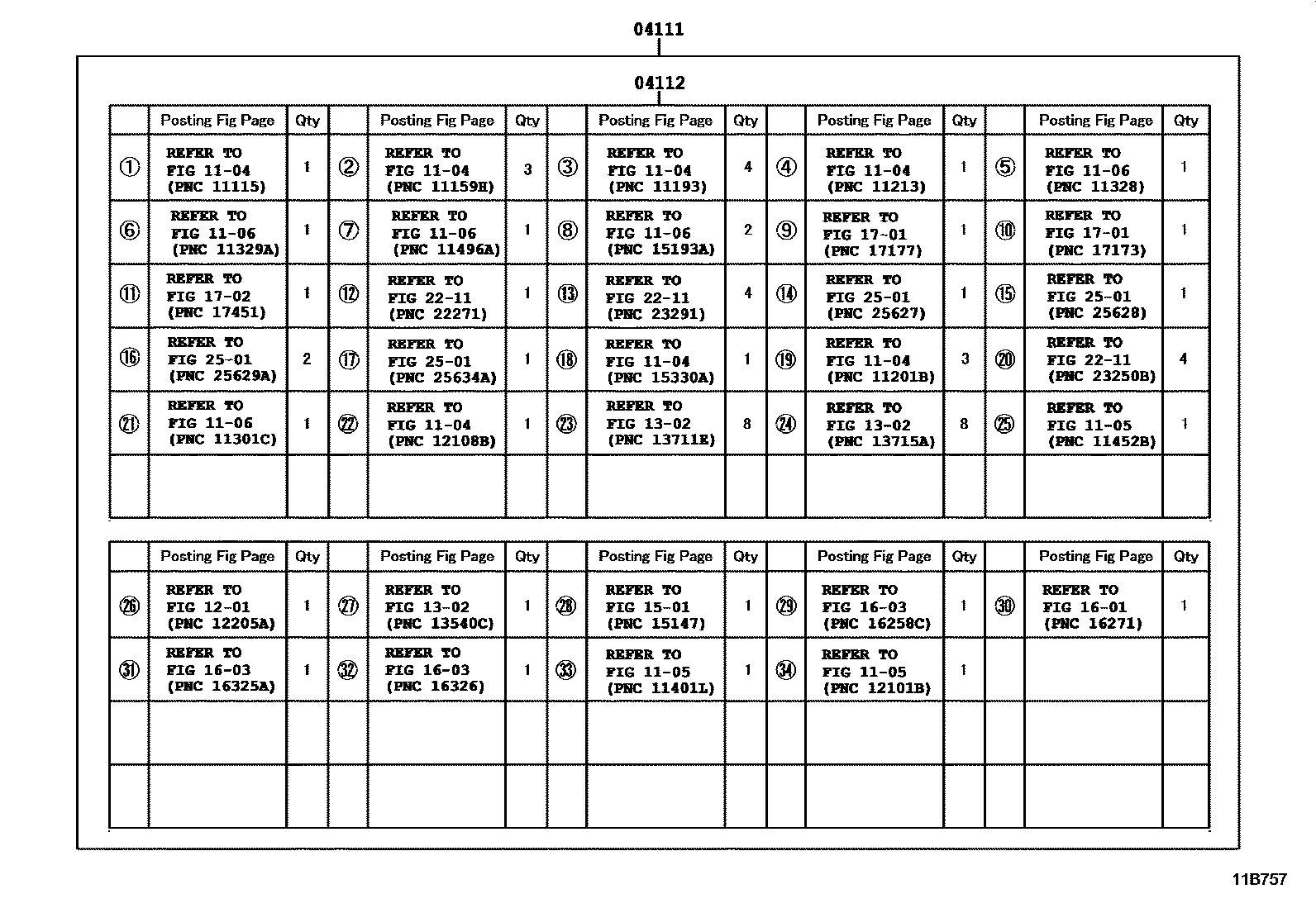

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11B757
Engine Overhaul Gasket Kit — 11B757 (201201 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-31683 · 04111-31684 · 04111-31853 · 04111-31873 · 04111-36112 · 04111-36113 · 04111-36114 · 04111-36115 · 04111-36120 · 04111-36121 · 04111-36122 · 04111-36123 · 04111-36124 · 04111-36125 · 04111-36126 · 04111-36130 · 04111-36131 · 04111-36132 · 04111-36133 · 04111-36134 · 04111-36135 · 04111-36136 · 04111-36137 · 04111-36138
04112Engine valve grinding pad assembly04112-31741 · 04112-31751 · 04112-31760 · 04112-36091 · 04112-36092 · 04112-36093 · 04112-36114 · 04112-36115 · 04112-36120 · 04112-36121 · 04112-36122 · 04112-36123 · 04112-36124
