Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

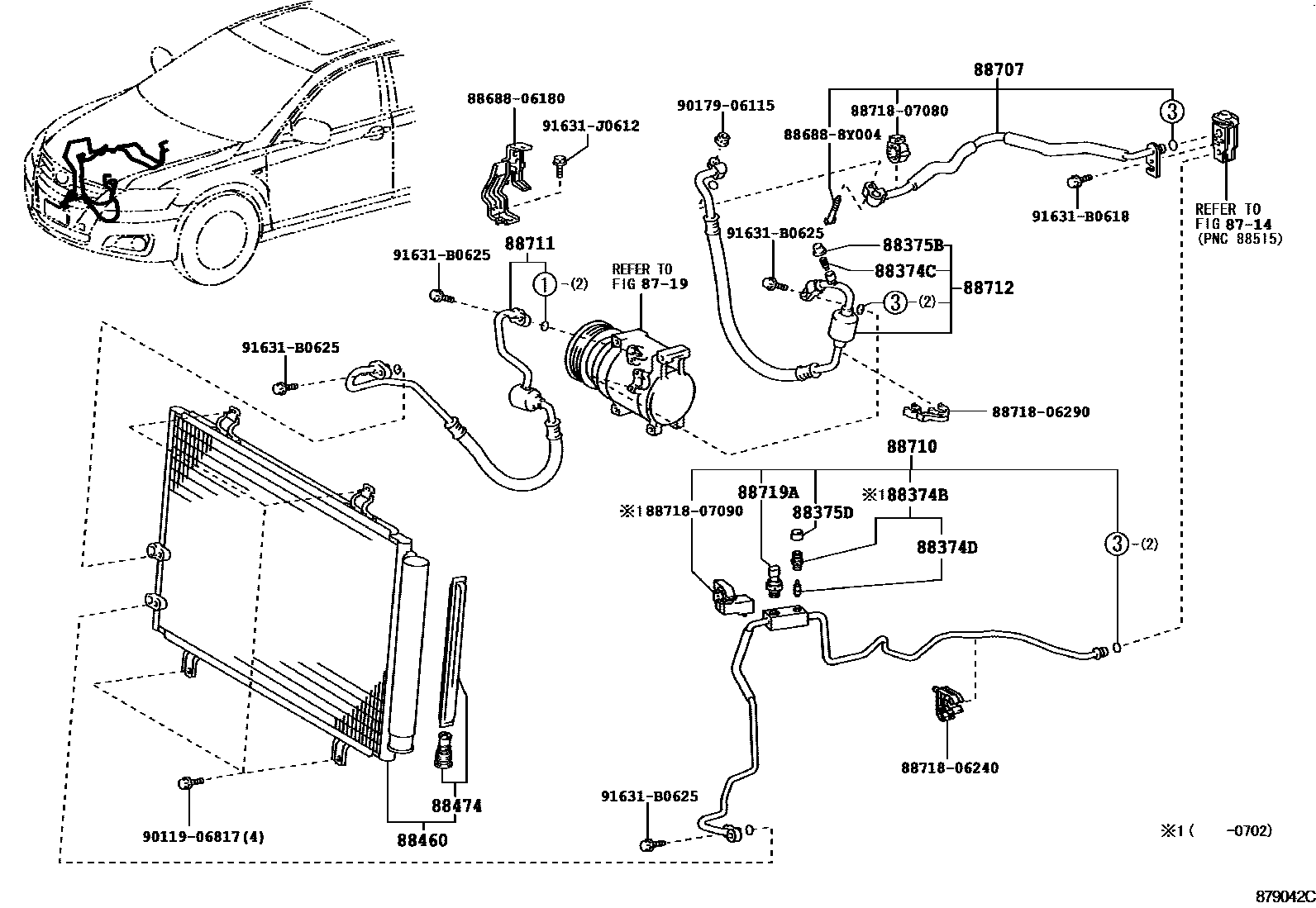

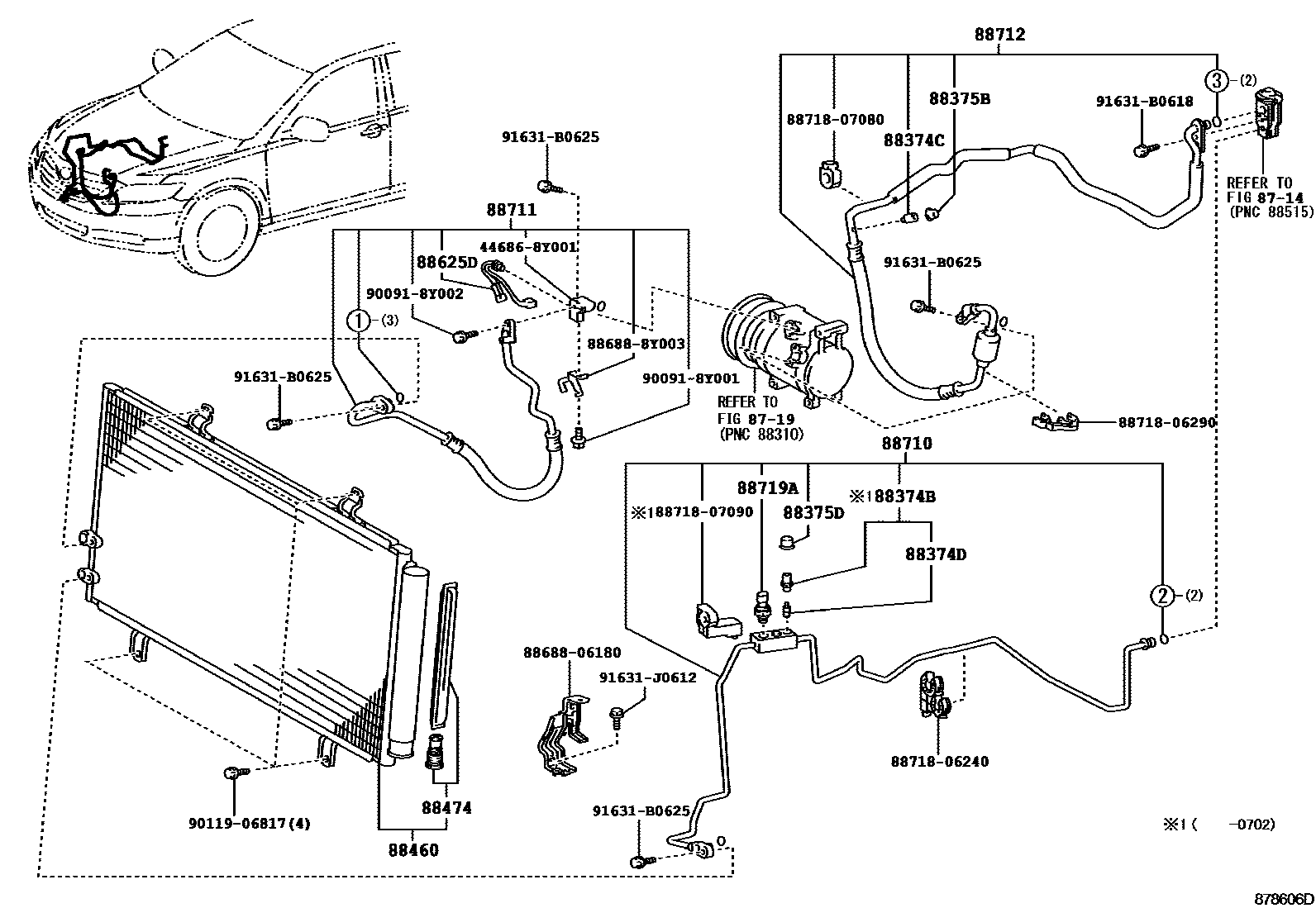

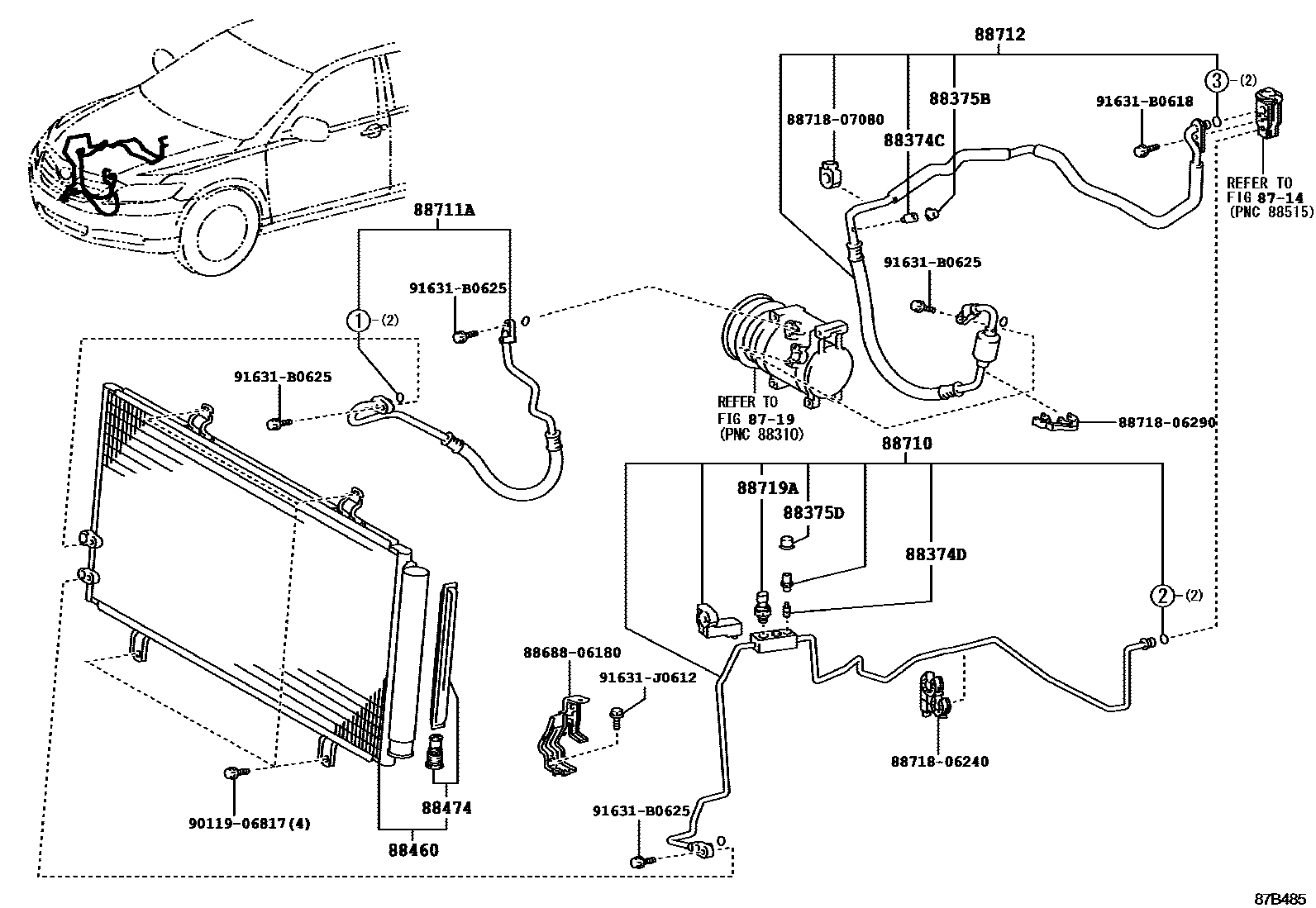

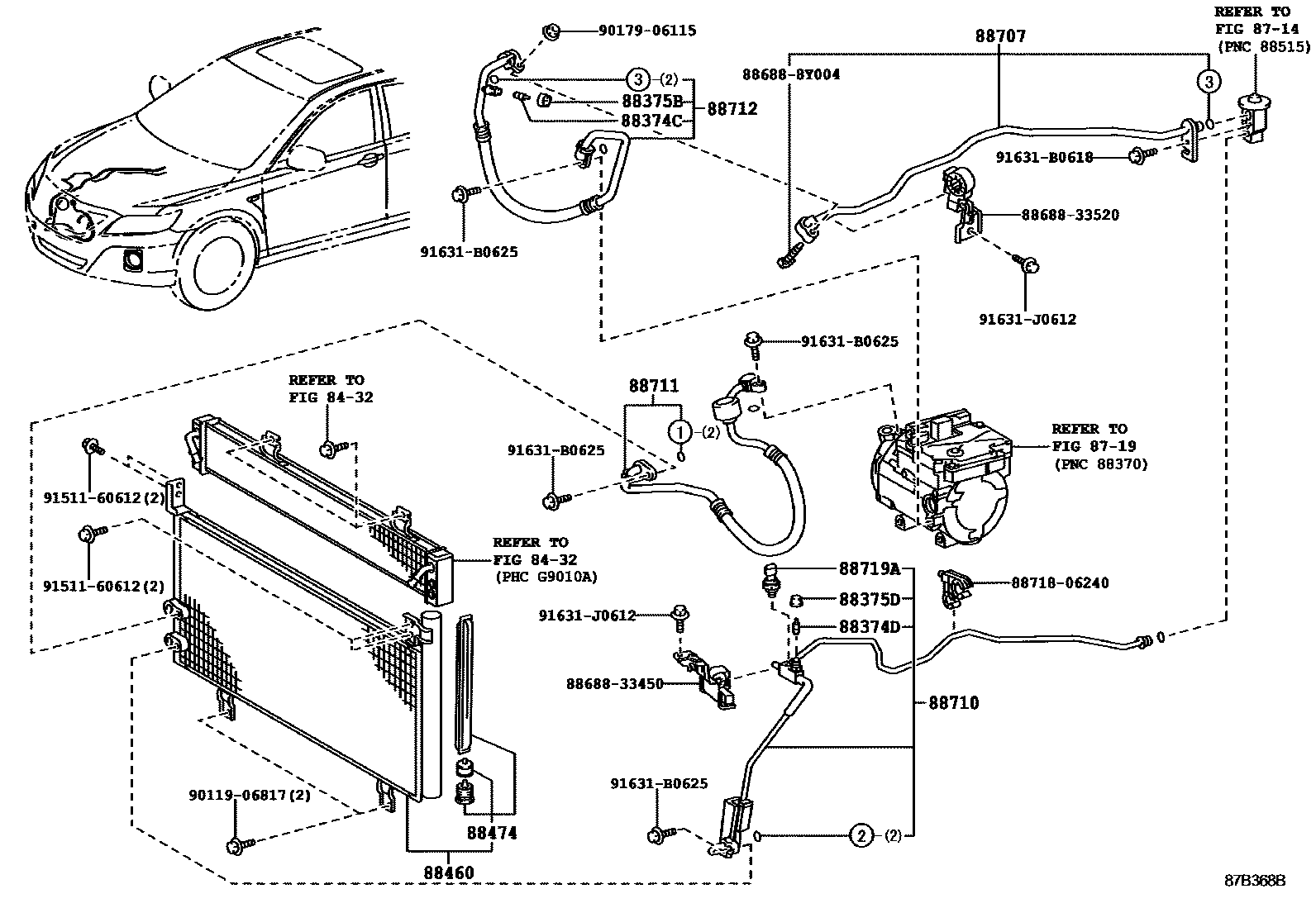

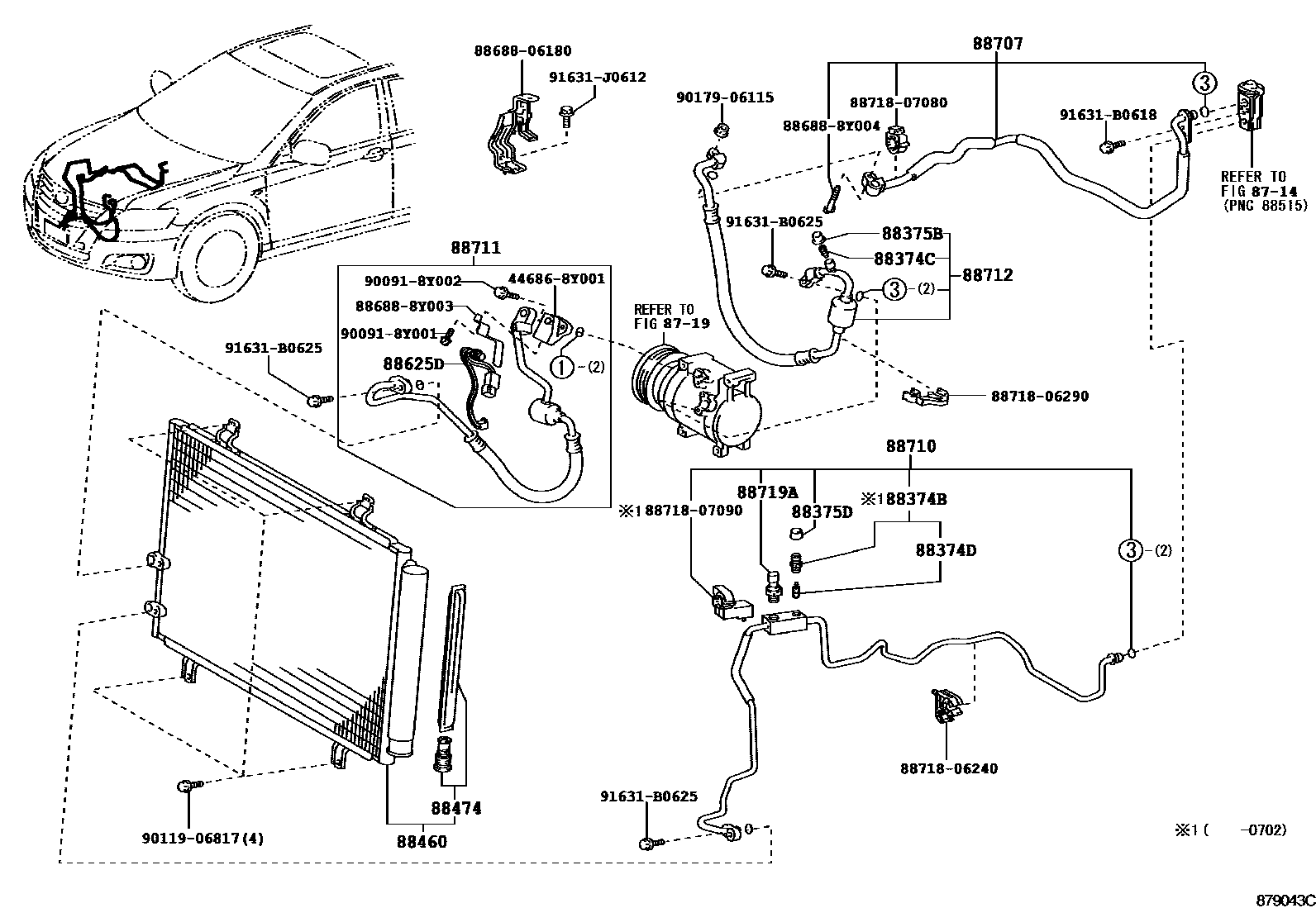

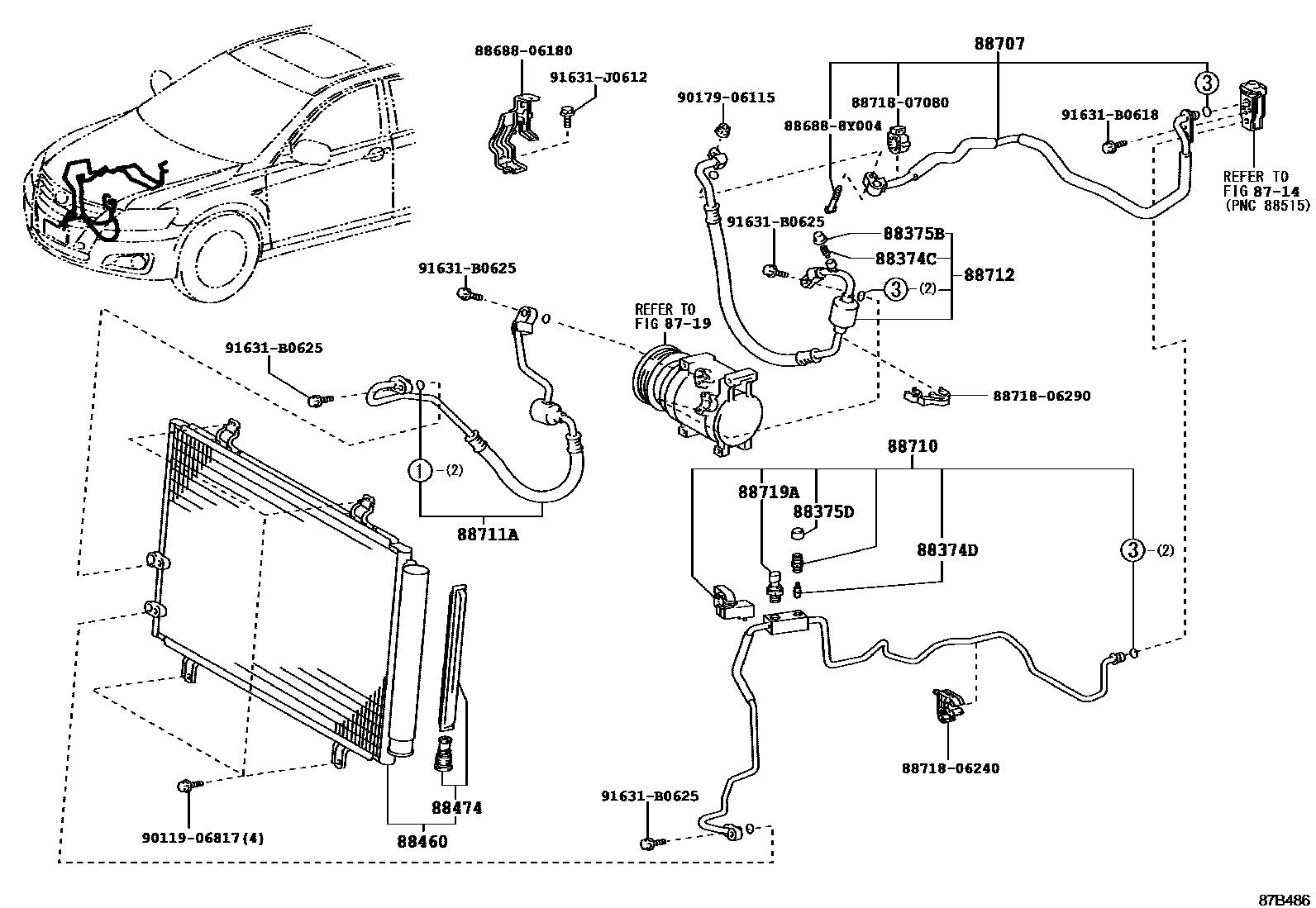

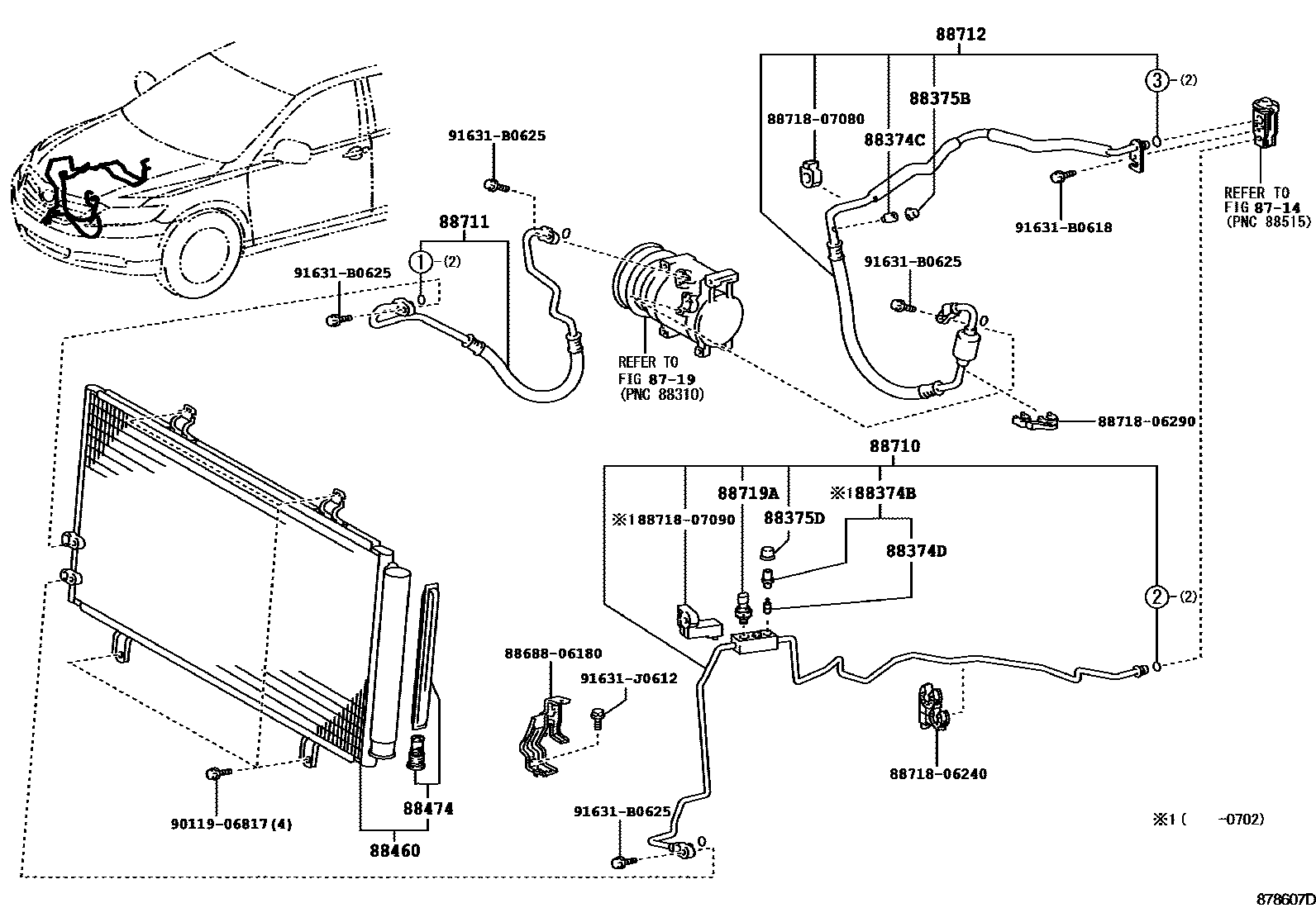

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 8 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-33070 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88374D | No. 3 maintenance valve | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-02060 |
| 88460 | Air conditioning condenser assembly | 88460-06190 · 88460-33090 |
| 88474 | cooler dryer | 88474-47020 · 88474-YC020 |
| 88625D | Cooler thermistor | 88625-07040 |
| 88707 | Suction pipe sub-assembly | 88707-06060 · 88707-06070 · 88707-06120 |
| 88710 | Air conditioning pipe assembly | 88710-06250 · 88710-06260 · 88710-06310 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-06230 · 88703-06240 · 88711-06300 · 88711-06310 · 88711-06410 |
| 88711A | Cooler No. 2 refrigerant drain hose | 88711-06300 · 88711-06310 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-06310 · 88704-06320 · 88712-06160 · 88712-06250 |
| 88719A | Air conditioning pressure sensor | 88719-33020 · 88719-40020 |
