Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

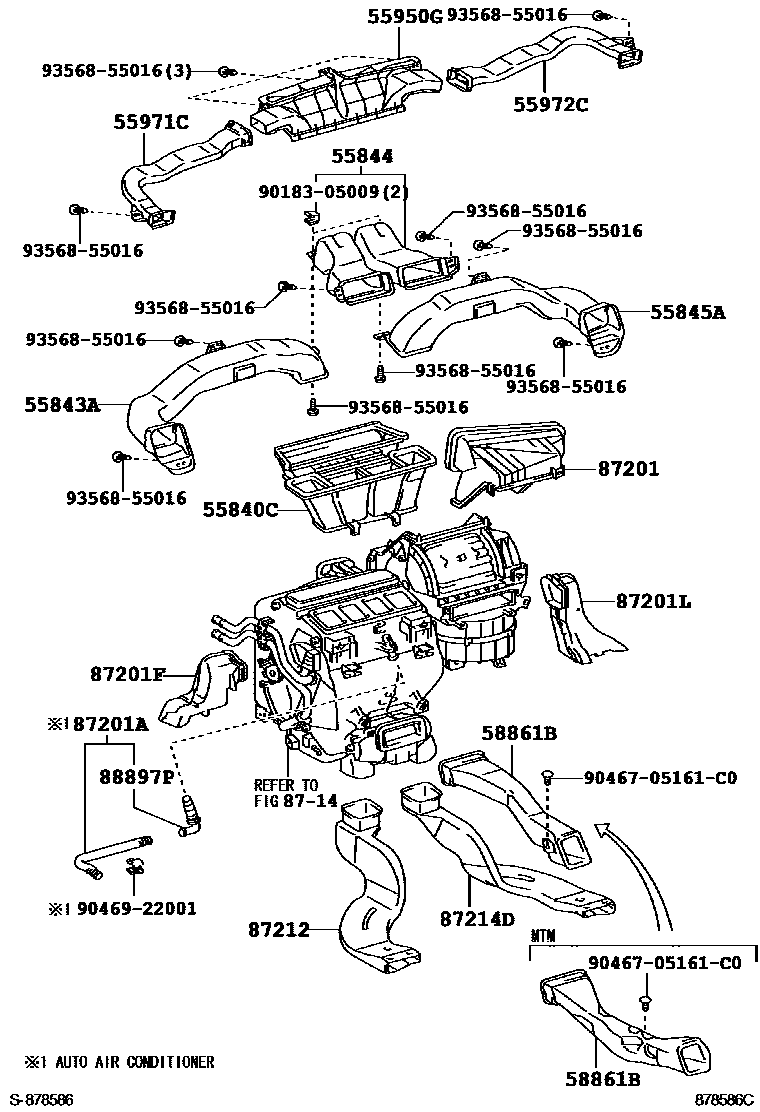

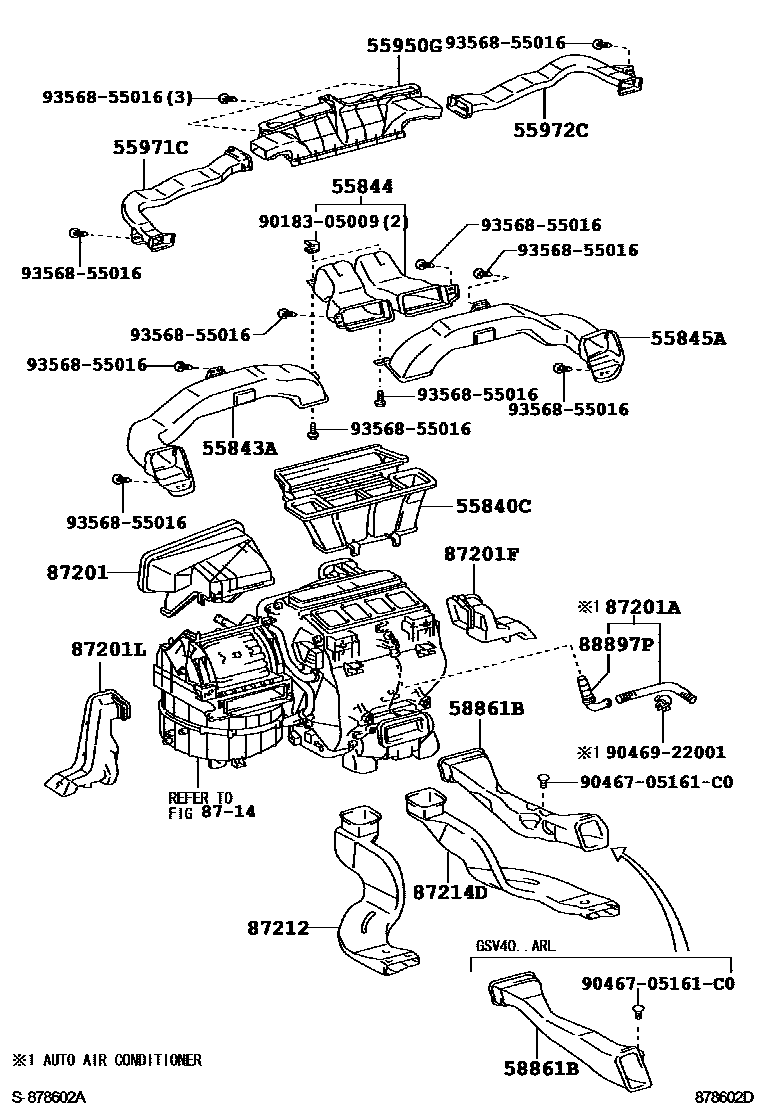

| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-06060 |
| 55843A | Air duct No. 1 from heater to air register | 55843-06090 · 55843-06091 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-06070 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-06050 · 55845-06051 |

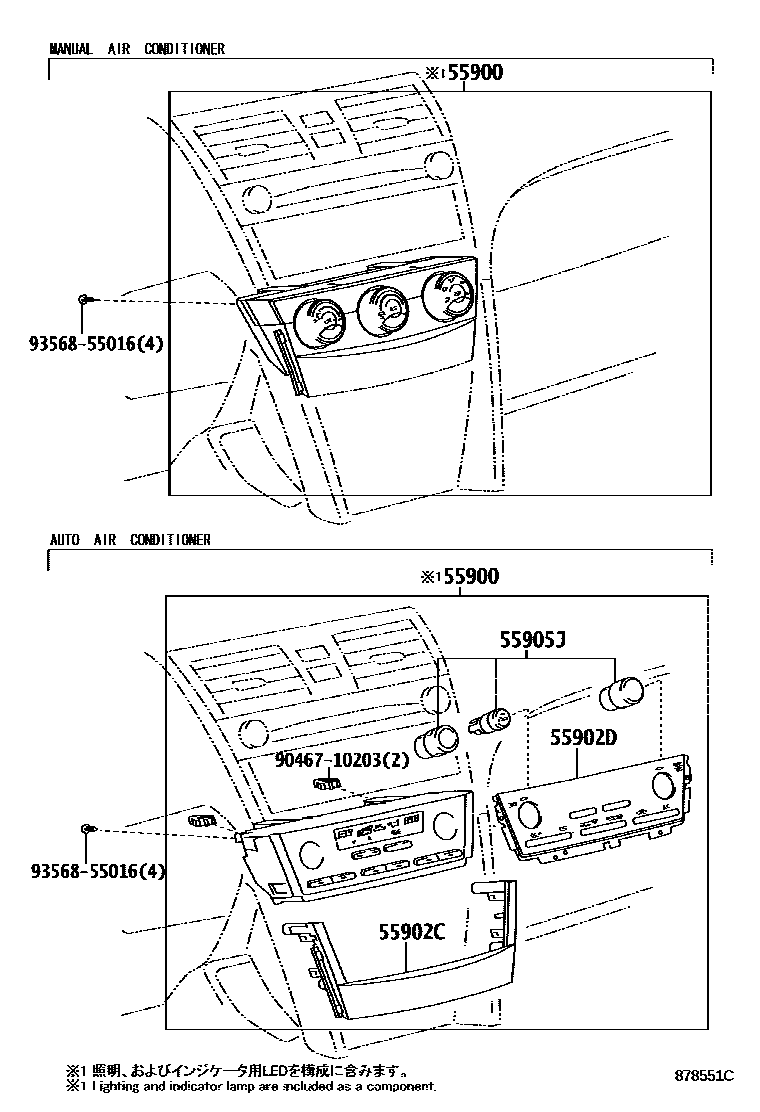

| 55900 | Air conditioning control assembly | 55900-06190 · 55900-06191 · 55900-06200 · 55900-06201 · 55900-06210 · 55900-06211 · 55900-33B80 · 55900-33B81 · 55900-33B90 · 55900-33B91 · 55900-33B92 · 55900-33C00 · 55900-33C01 · 55900-33C02 · 55900-33C41 · 55900-33C42 · 55900-33D01 · 55900-33D02 · 55900-33D11 · 55900-33D12 |
| 55902C | Air conditioning panel sub-assembly | 55902-33820 · 55902-33850 · 55902-33851 |
| 55902D | Air conditioning panel sub-assembly | 55902-33870 · 55902-33880 · 55902-33A60 · 55902-33A70 |
| 55905J | Control lever handle sub-assembly | 55905-33220 · 55905-33240 |
| 55950G | Defroster nozzle assembly | 55950-06060 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06040 · 55971-06041 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06040 · 55972-06041 |
| 58861B | Air duct No. 1 for armrest box | 58861-06040 · 58861-06050 · 58861-06110 |
| 87201 | No. 1 air duct sub-assembly | 87201-06330 · 87201-06350 |
| 87201A | Air duct sub-assembly | 87201-06340 |
| 87201F | No. 3 air duct sub-assembly | 87201-06320 · 87201-06360 |
| 87201L | No. 4 air duct sub-assembly | 87201-06310 · 87201-06370 |
| 87212 | No. 1 rear air duct | 87213-06060 |
| 87214D | No. 3 rear air duct | 87212-06060 |

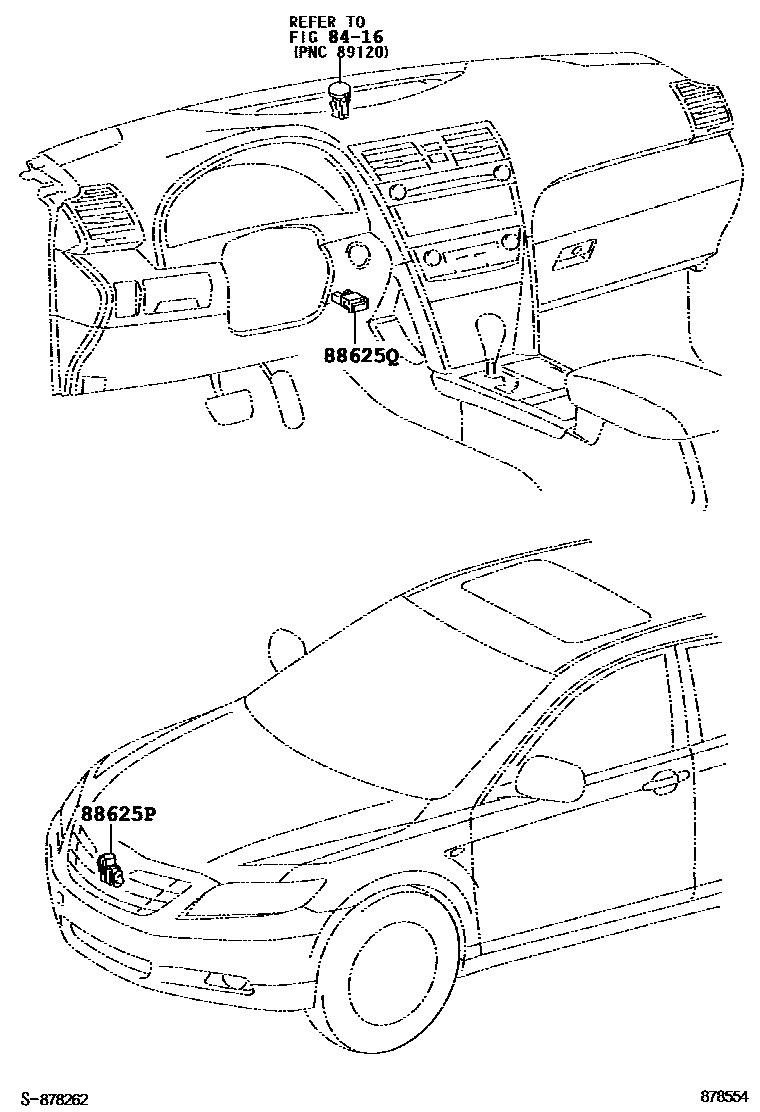

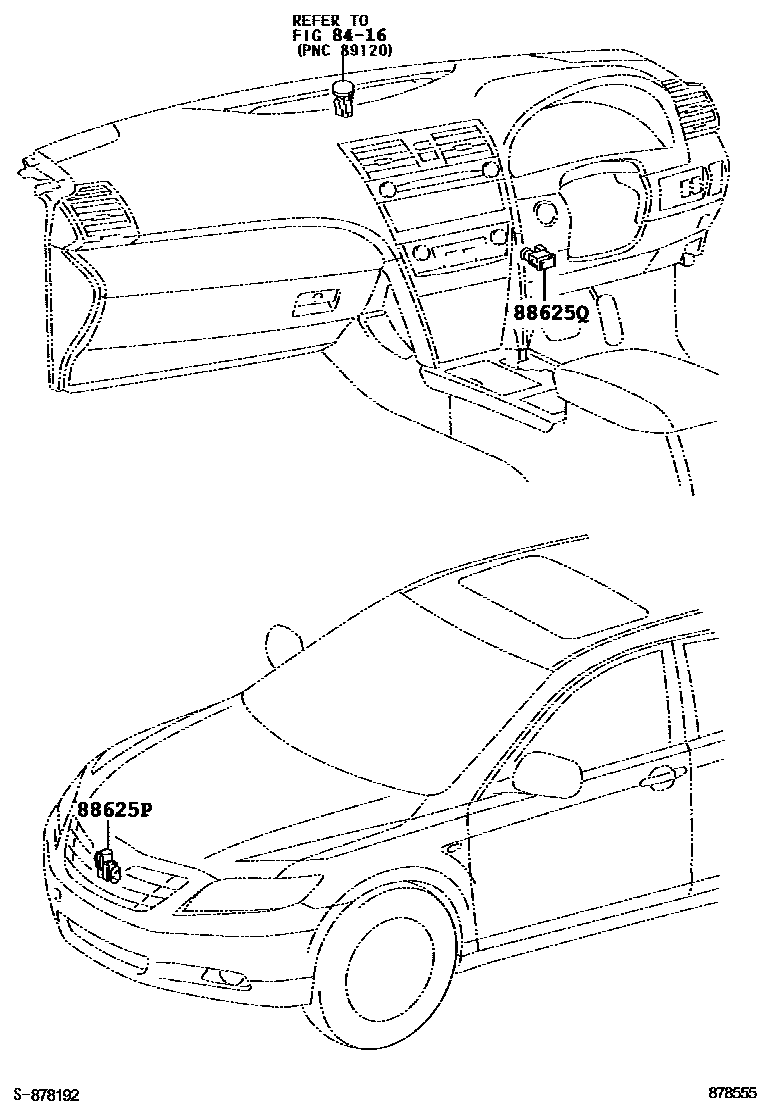

| 88625P | Cooler thermistor (ambient temperature sensor) | 88625-YC041 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-06030 |
| 88897P | aspirator | 88897-06020 |
