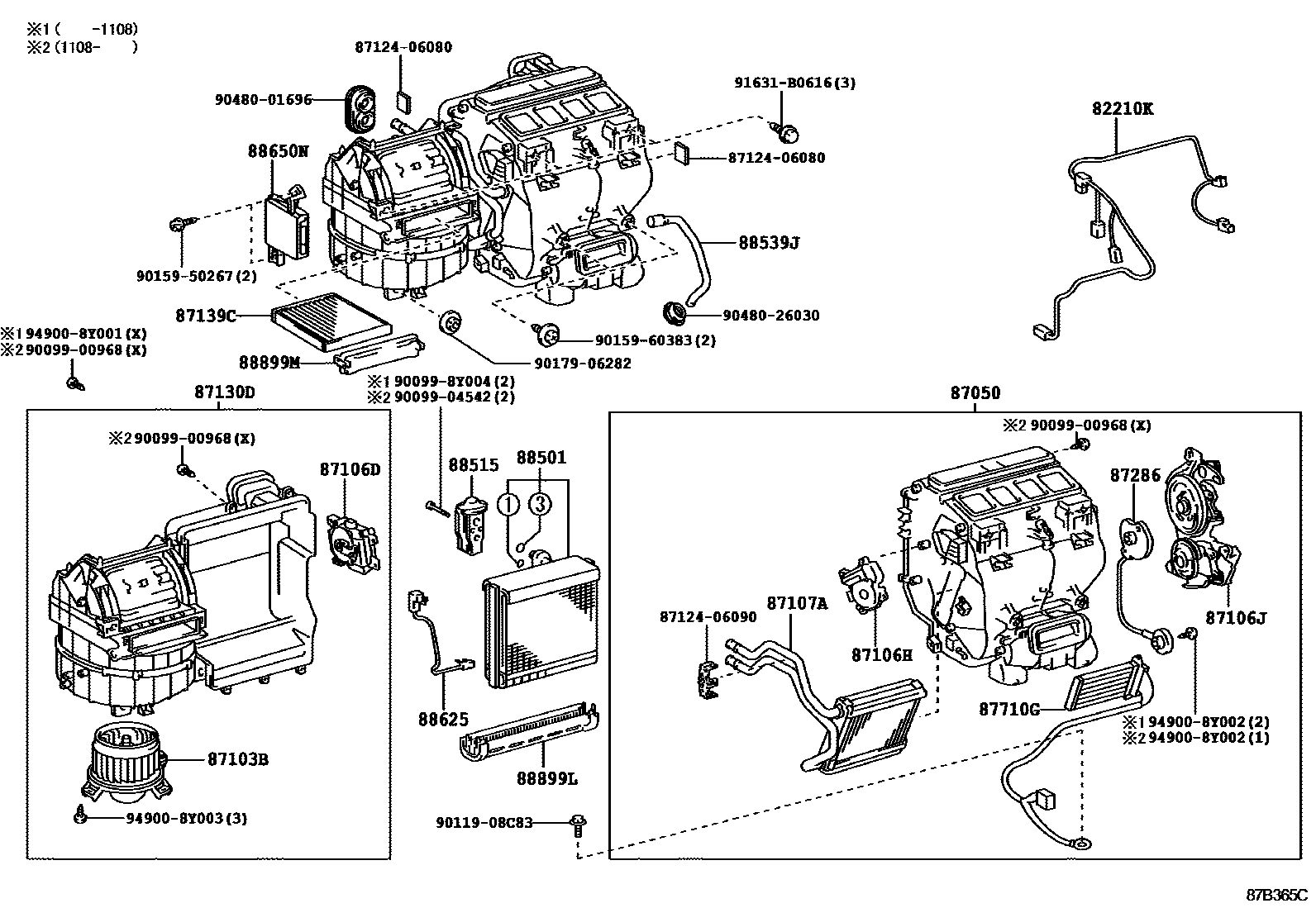

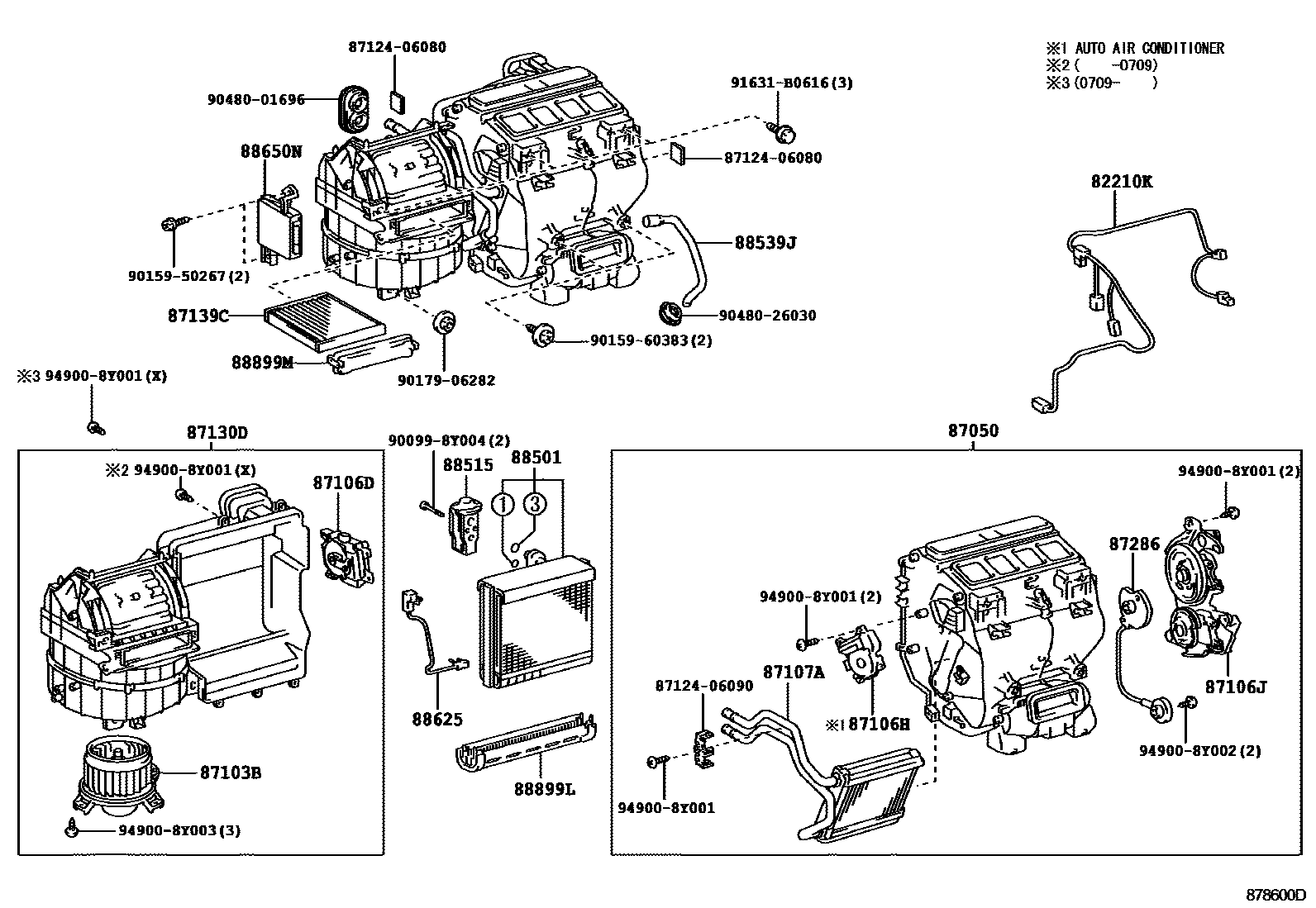

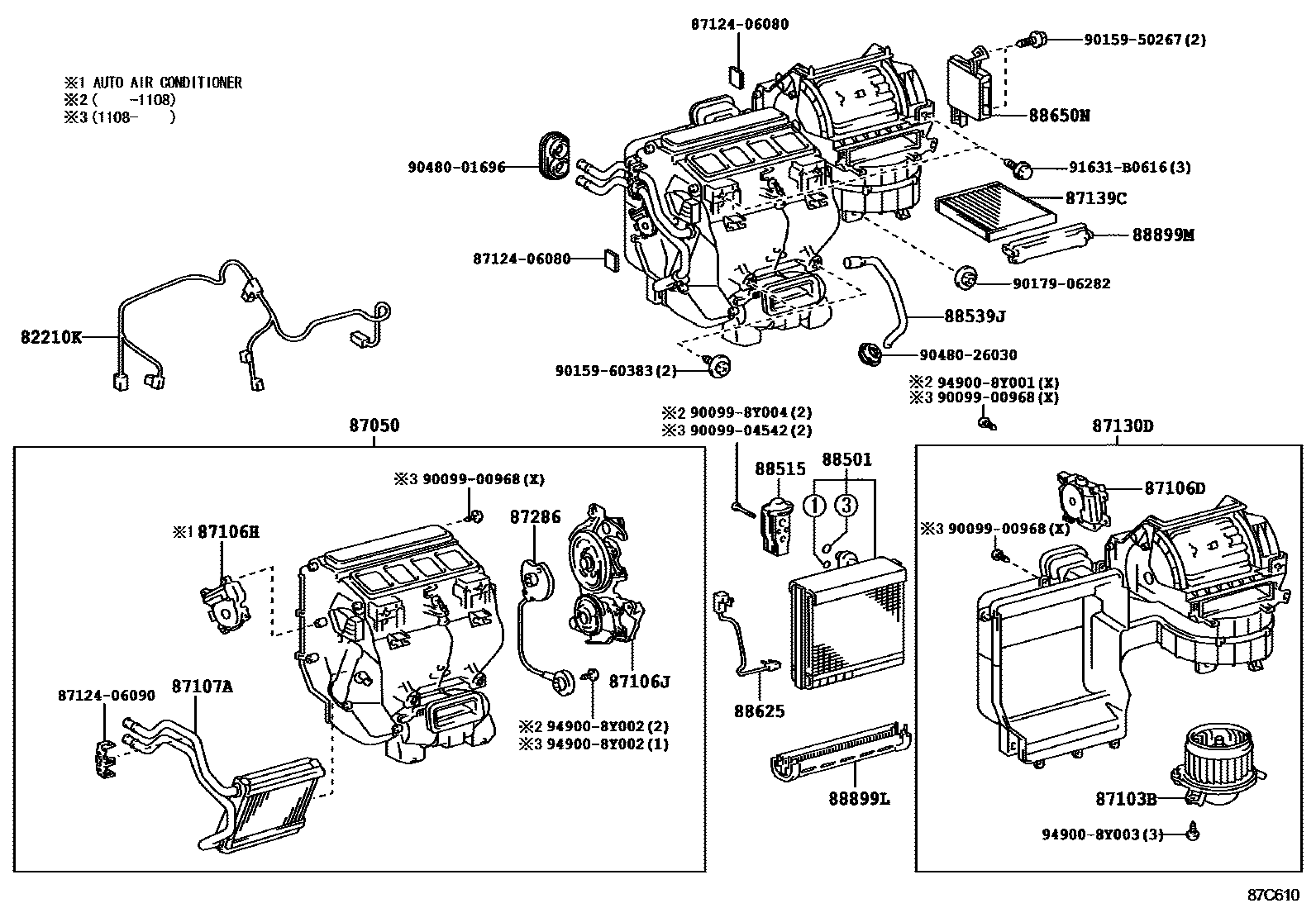

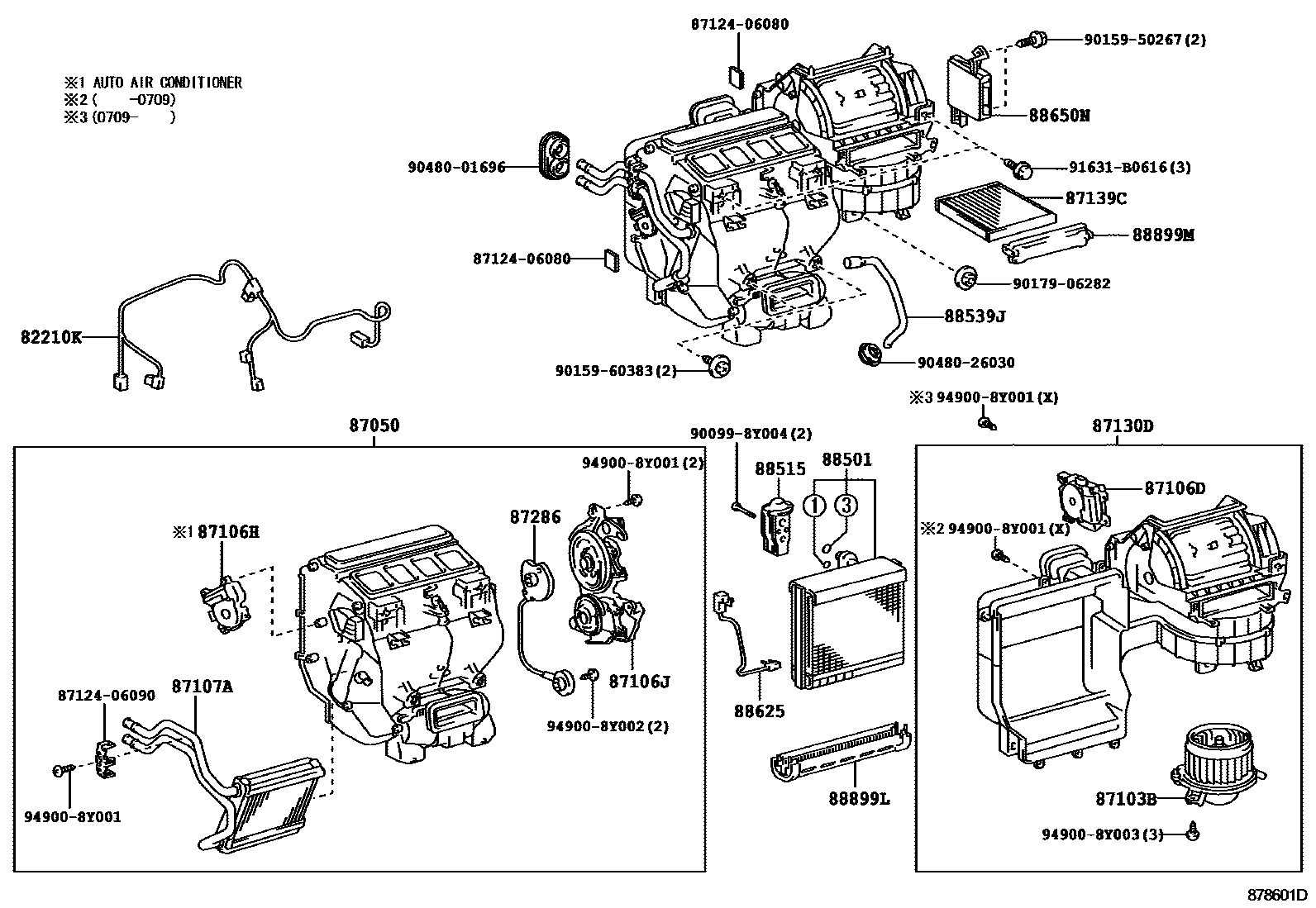

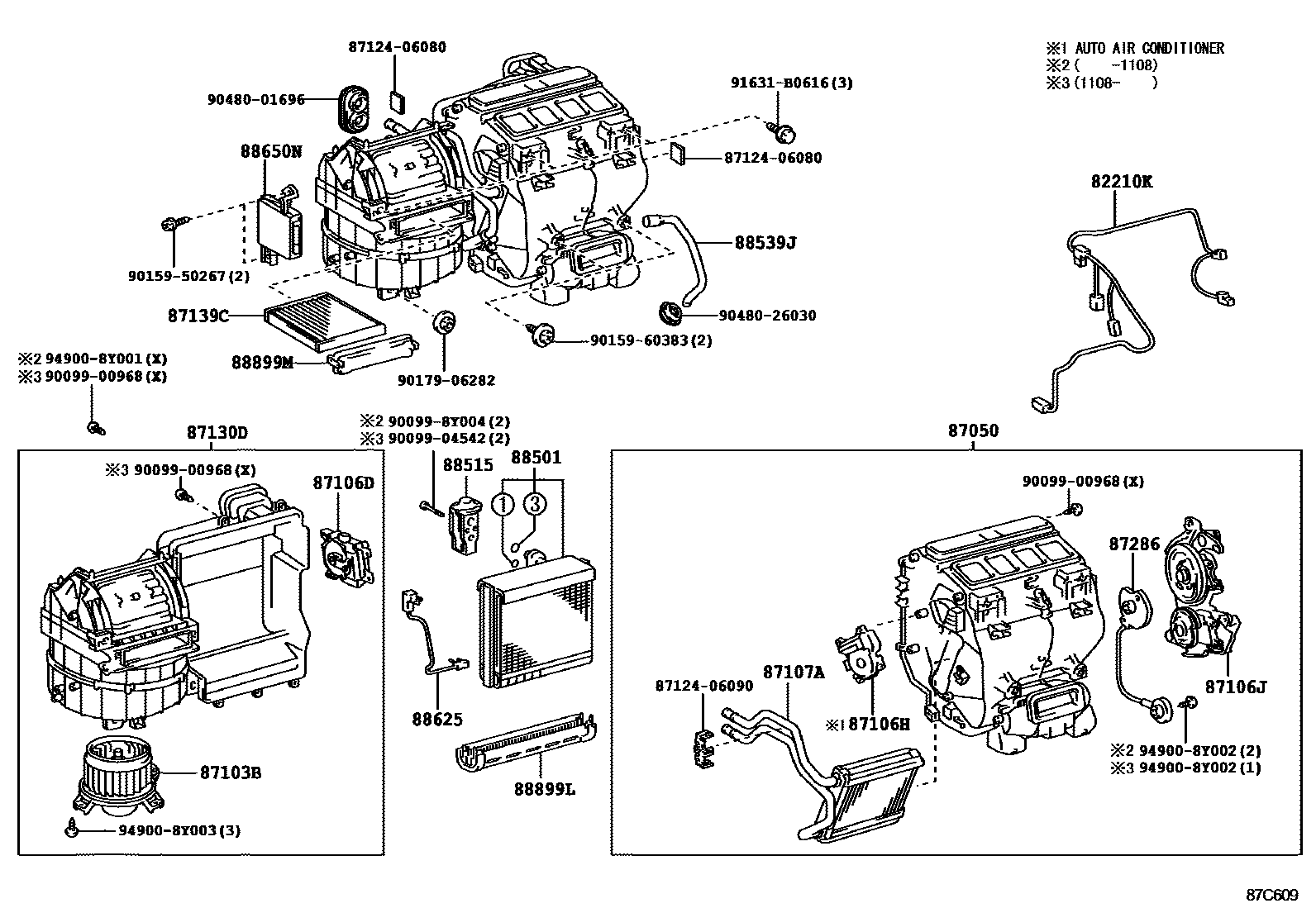

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 6 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06070 · 82212-06080 · 82212-06090 · 82212-06100 |
| 87050 | Air conditioning radiator assembly | 87050-06460 · 87050-06461 · 87050-06470 · 87050-06471 · 87050-06560 |
| 87103B | Blower motor sub-assembly with fan | 87103-06070 · 87103-06071 · 87103-06080 · 87103-06081 |
| 87106D | No. 1 damper servo mechanism sub-assembly | 87106-06200 · 87106-06210 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-06190 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-06180 · 87106-06181 |
| 87107A | Heater radiator device sub-assembly | 87107-06070 |
| 87130D | Blower assembly | 87130-06300 · 87130-06310 |
| 87139C | air purification filter | 87139-06050 |
| 87286 | control cable | 87286-8Y003 |
| 87710G | Rapid heater assembly | 87710-06030 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06060 · 88501-06150 · 88501-06260 · 88501-06270 |
| 88515 | Cooler expansion valve | 88515-06060 |
| 88539J | Cooler drain hose | 88539-06100 |
| 88625 | Cooler No. 1 Thermistor | 88620-06050 · 88625-33190 |
| 88650N | Air conditioning amplifier assembly | 88650-06150 · 88650-06151 · 88650-06160 · 88650-06161 · 88650-06240 · 88650-06241 · 88650-06250 · 88650-06251 · 88650-06370 · 88650-06371 · 88650-06380 · 88650-06381 · 88650-06400 · 88650-06420 · 88650-06480 |
| 88899L | Cooling unit parts | 88578-8Y001 · 88899-06120 |
| 88899M | cover (for air cleaner) | 88899-06060 |
