Toyota CAMRY 后视镜 — Figure 8701

Toyota CAMRY EPC diagram 8701, 后视镜, with 2 images and 10 PNC and OE references.

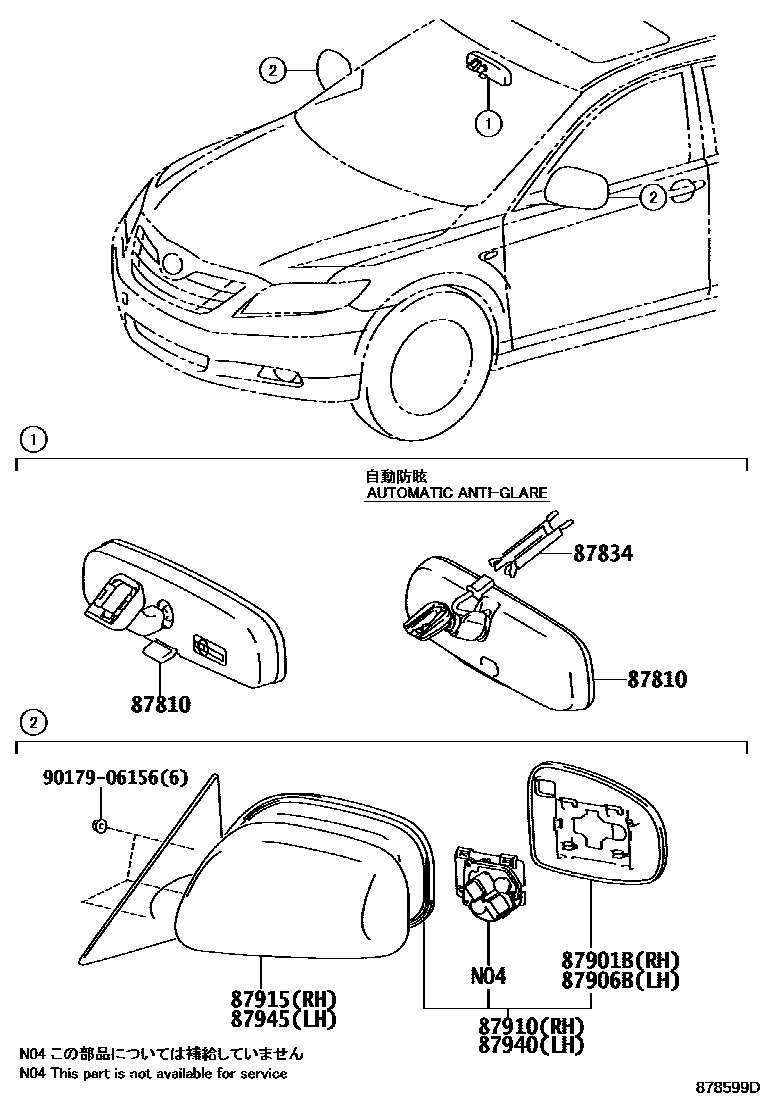

Toyota CAMRY 后视镜 EPC diagram — 878599D
后视镜 — 878599D (200606 – 999999)

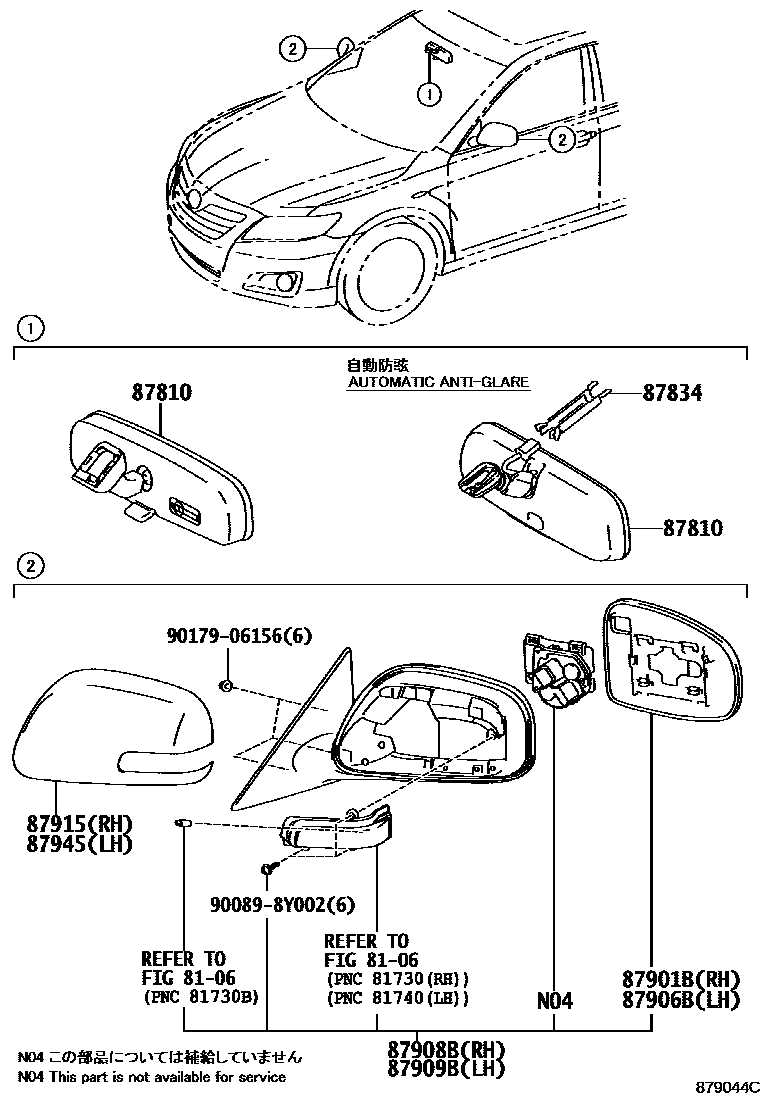

Toyota CAMRY 后视镜 EPC diagram — 879044C
后视镜 — 879044C (200610 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-06100 · 87810-33030 · 87810-33031
87834Interior rearview mirror stay fixing cover87818-33020
87901BRight exterior rearview mirror sub-assembly87931-06220 · 87931-06300 · 87931-06380
87906BLeft exterior rearview mirror sub-assembly87961-06210 · 87961-06290 · 87961-06380
87908BRight rearview mirror sub-assembly87908-06290 · 87908-06300 · 87908-06310 · 87908-06380
87909BLeft rearview mirror sub-assembly87909-06290 · 87909-06300 · 87909-06310 · 87909-06380
87910Right exterior rearview mirror assembly87910-06908 · 87910-06909
87915Right exterior rearview mirror cover87915-06902 · 87915-06904
87940Left exterior rearview mirror assembly87940-06908 · 87940-06909
87945Left exterior rearview mirror cap87945-06902 · 87945-06904
