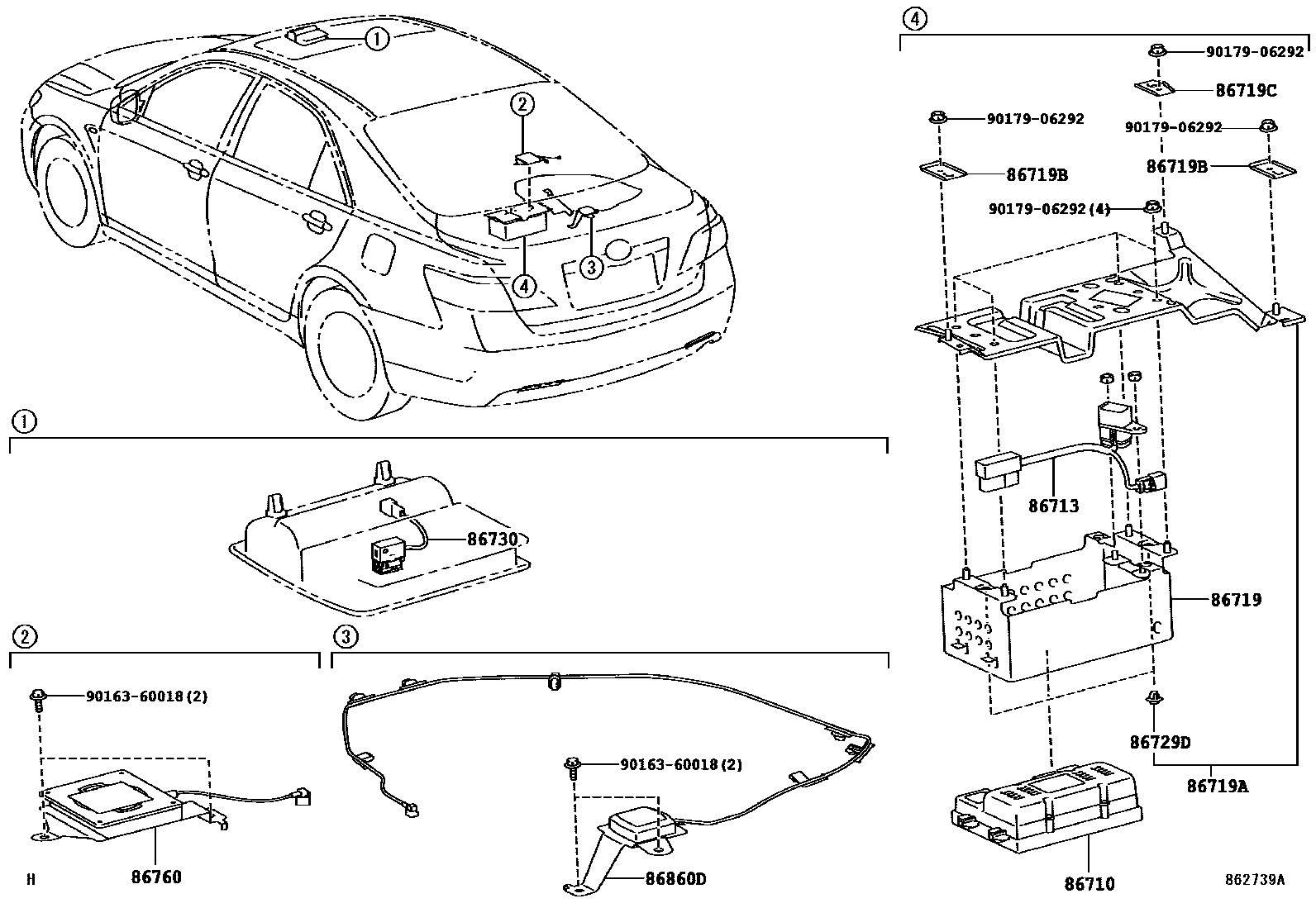

Toyota CAMRY 车载电话和呼救装置 — Figure 8615
Toyota CAMRY EPC diagram 8615, 车载电话和呼救装置, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86710 | Telephone ECU assembly | 86710-YY070 |
| 86713 | Telephone ECU wiring harness | 86713-YY020 |
| 86719 | phone holder | 86719-YY020 |
| 86719A | Phone holder No. 1 | 86719-YY060 |
| 86719B | Phone holder No. 2 | 86719-YY070 |
| 86719C | No. 3 phone holder | 86719-YY080 |
| 86729D | No. 1 mobile phone holder clip | 76817-YC010 |
| 86730 | Telephone amplifier assembly | 86730-33020 · 86730-33070 · 86730-73010 |
| 86760 | Telephone antenna assembly | 86760-YY030 |
| 86860D | navigation antenna | 86860-YY030 |
