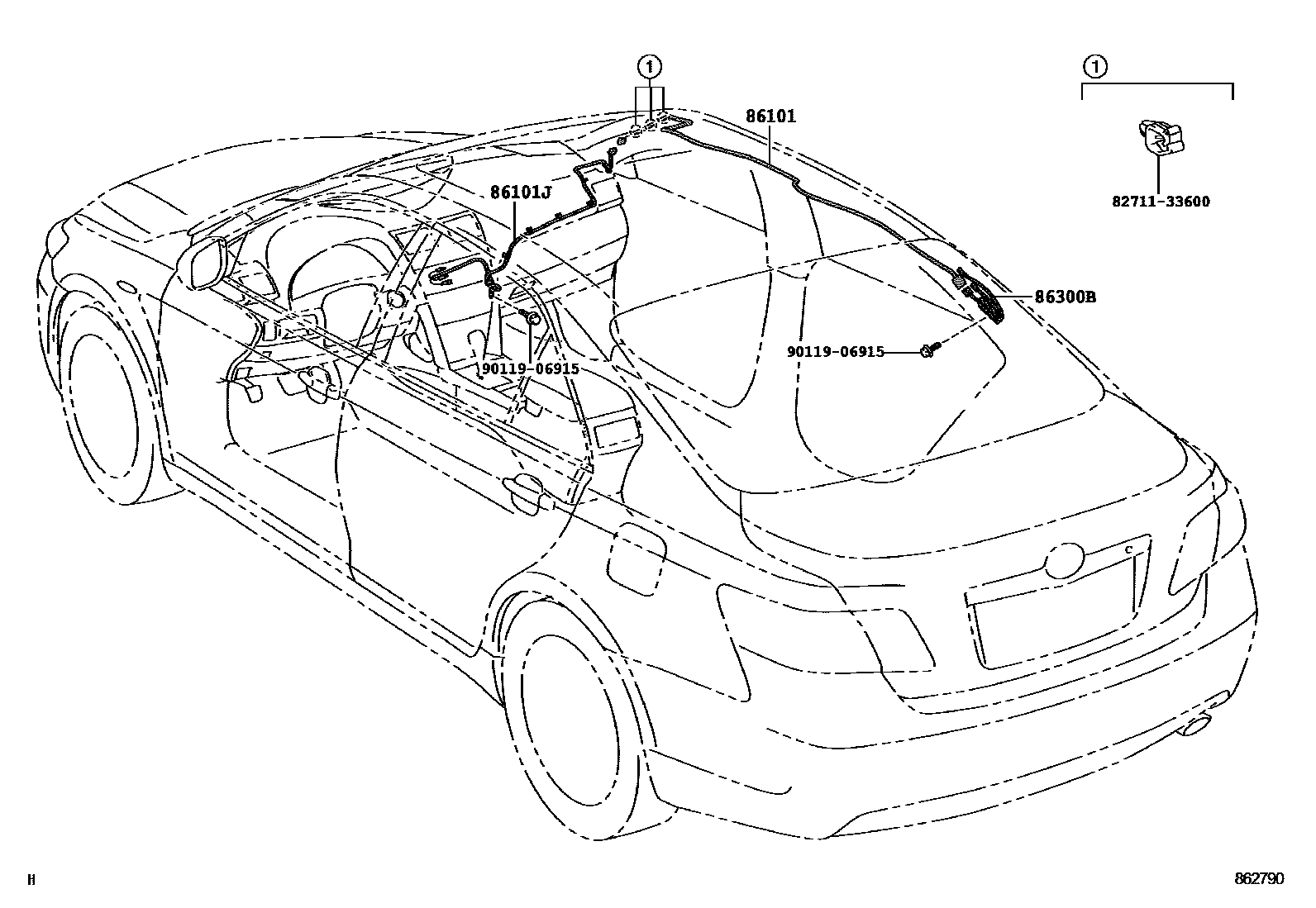

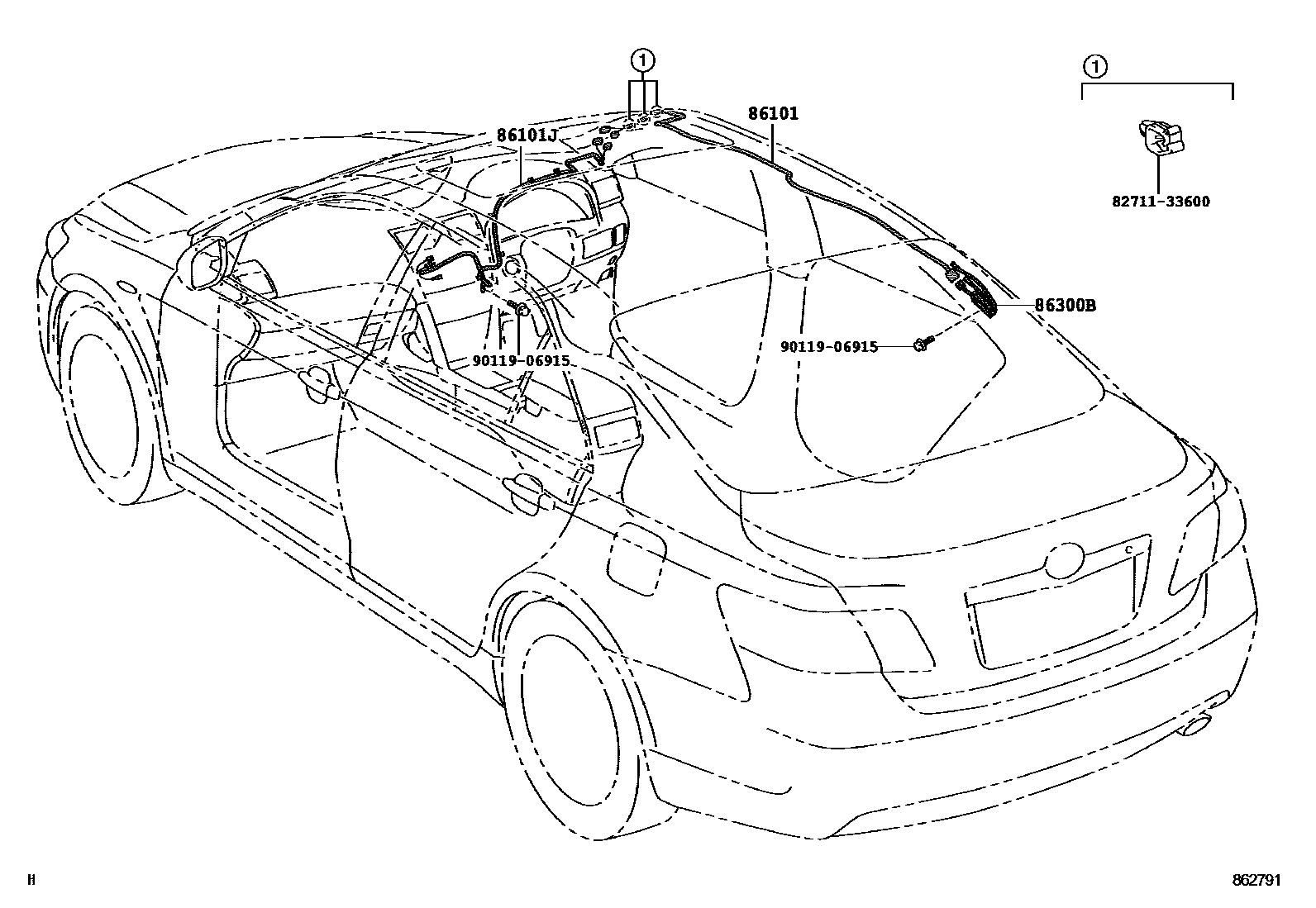

Toyota CAMRY antenna — Figure 8604
Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-33560 · 86101-33660 · 86101-33670 · 86101-33680 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-33580 · 86101-33620 |
| 86300B | No. 1 amplifier antenna assembly | 86300-06100 · 86300-06101 · 86300-06110 · 86300-06111 |
