Toyota CAMRY 导航和前监视器显示屏 — Figure 8603

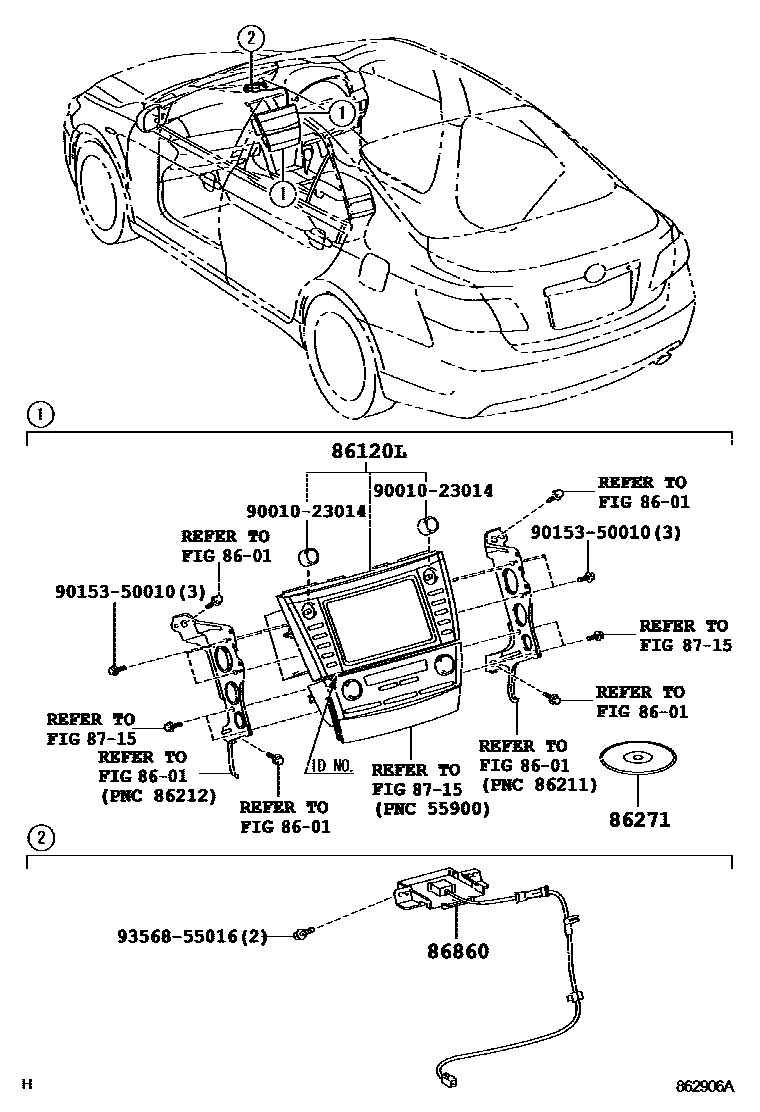

Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-06400 · 86120-06410 · 86120-06640 · 86120-06650 |
| 86271 | CD | 86271-47070 · 86271-47071 · 86271-47072 · 86271-47073 · 86271-53011 · 86271-53012 · 86271-53013 |
| 86860 | Navigation antenna assembly | 86860-33130 · 86860-33150 |
