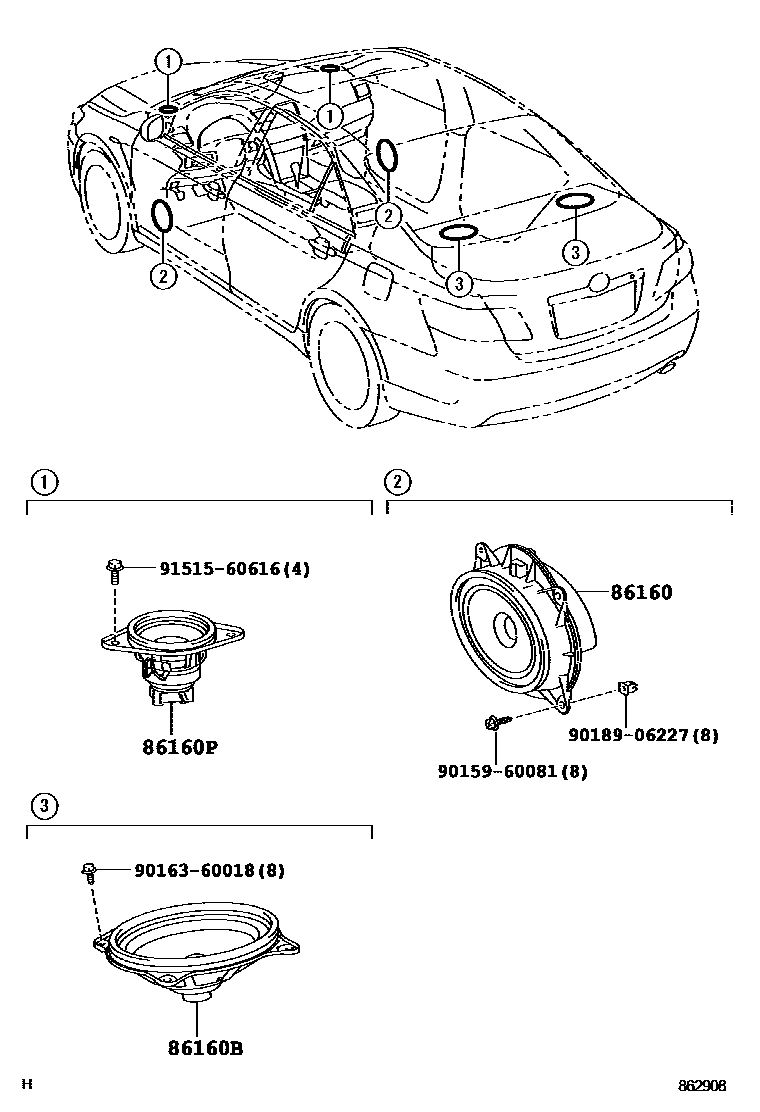

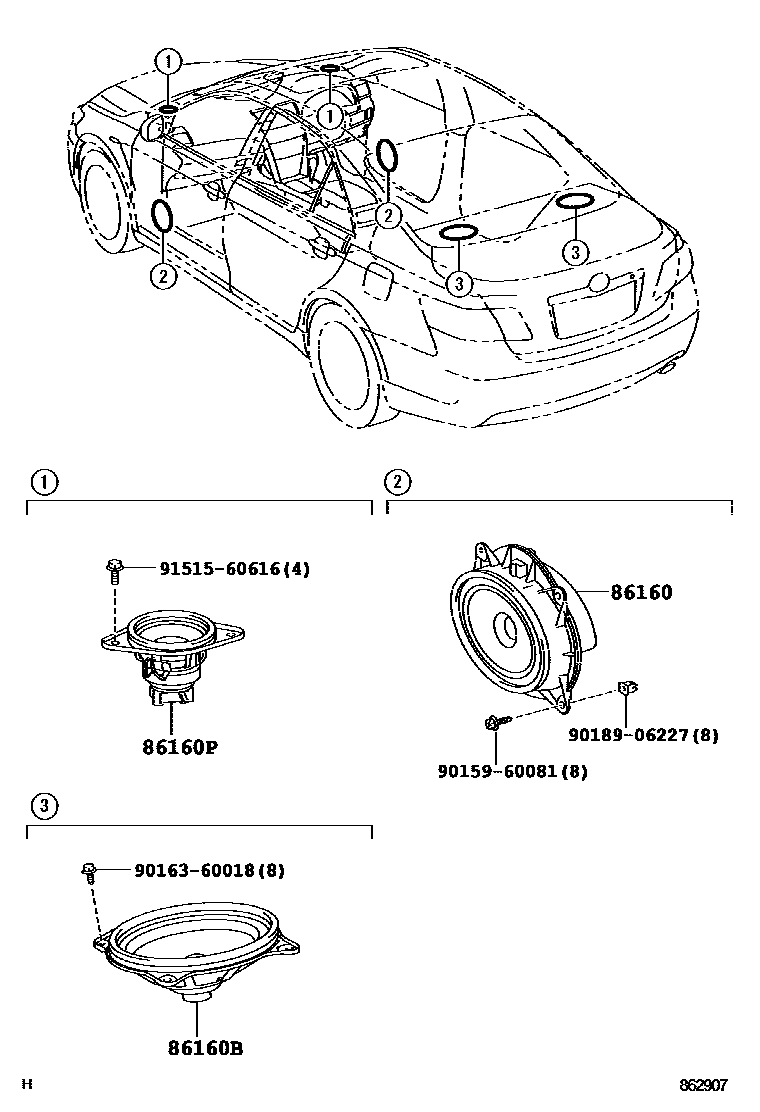

Toyota CAMRY 扬声器 — Figure 8602
Toyota CAMRY EPC diagram 8602, 扬声器, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-06400 · 86160-06610 |
| 86160B | Rear speaker assembly | 86160-06410 · 86160-06620 |
| 86160P | No. 2 front speaker assembly | 86160-06530 · 86160-06590 |
