Toyota CAMRY 前大灯清洗器 — Figure 8505

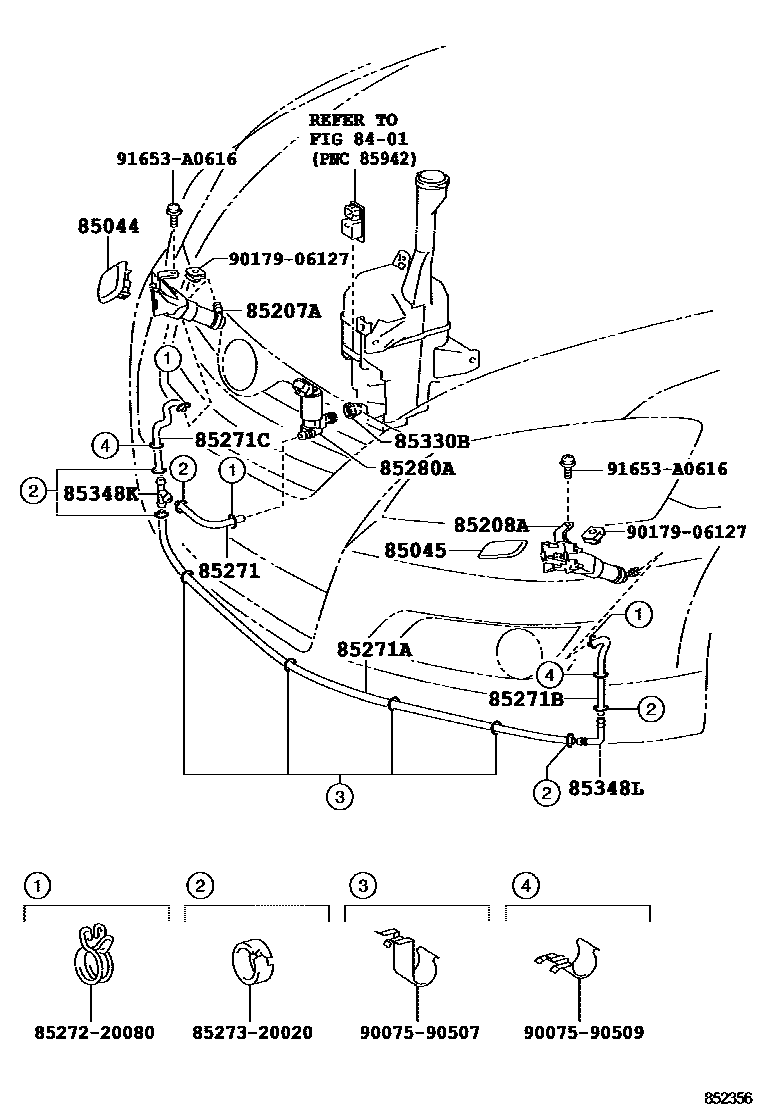

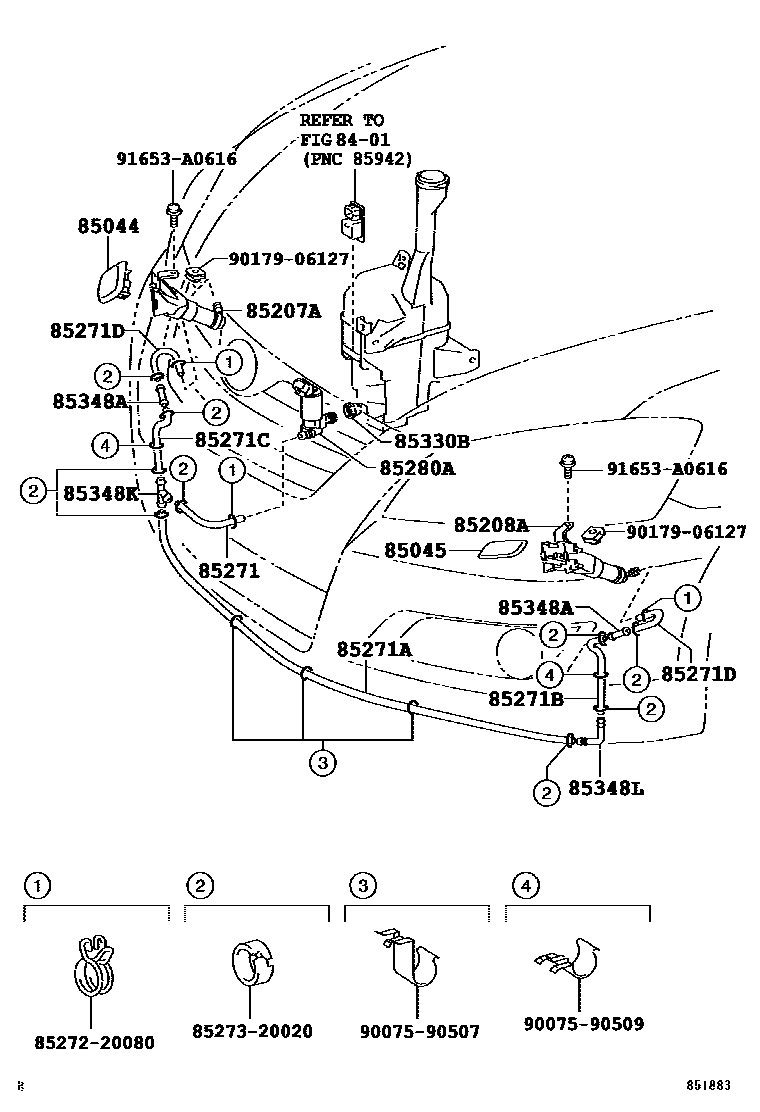

Toyota CAMRY EPC diagram 8505, 前大灯清洗器, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85044 | Right type 1 headlight washer nozzle sub-assembly | 85381-06120 · 85381-06130 |
| 85045 | Left type 1 headlight washer nozzle sub-assembly | 85382-06040 · 85382-06060 |
| 85207A | Right headlight washer actuator sub-assembly | 85207-33050 · 85207-33070 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-33050 · 85208-33070 |
| 85271 | No. 1 headlight washer hose | 85275-42020 · 85343-95700 |
| 85271A | No. 2 headlight washer hose | 85278-33050 |
| 85271B | No. 3 headlight washer hose | 85276-06030 · 85276-33050 |
| 85271C | No. 4 headlight washer hose | 85275-06030 · 85277-33050 |
| 85271D | No. 5 headlight washer hose | 85271-14100 |
| 85280A | Headlight washer motor and pump assembly | 85280-30040 |
| 85330B | Headlight washer washer fluid tank bushing | 90099-32089 |
| 85348A | Headlight washer hose connector No. 1 | 85379-89131 |
| 85348K | No. 1 headlight washer elbow joint | 85352-12010 |
| 85348L | No. 2 headlight washer elbow joint | 85379-22080 |
