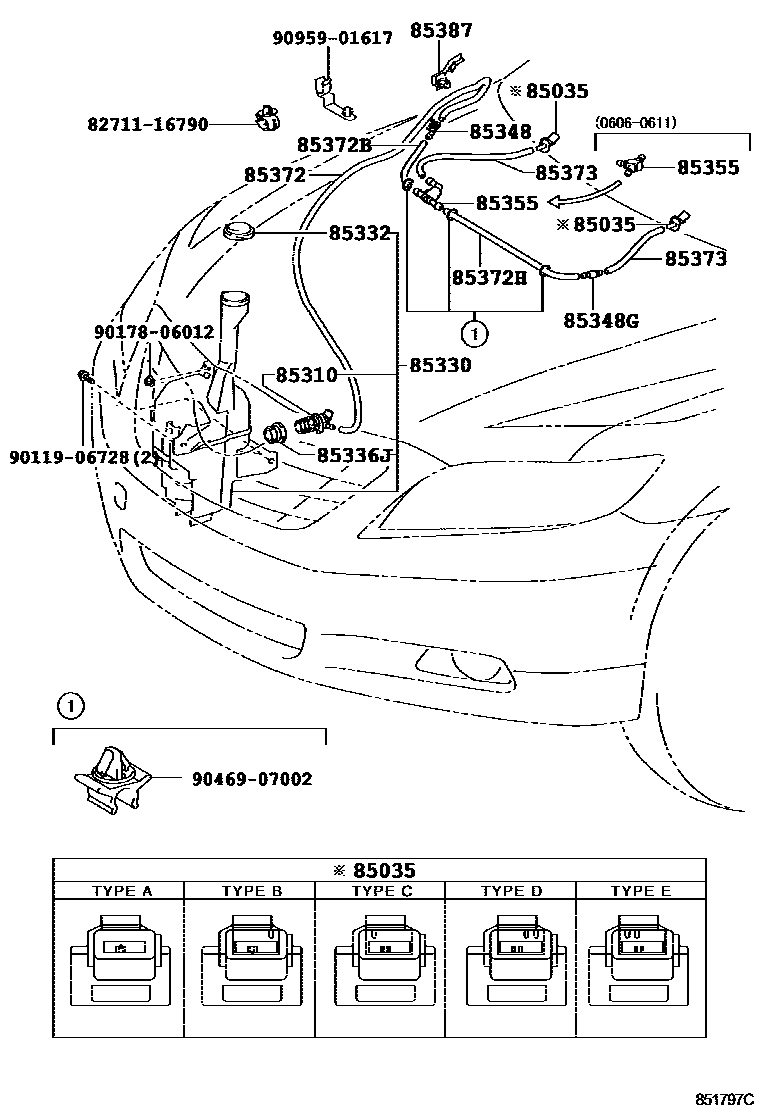

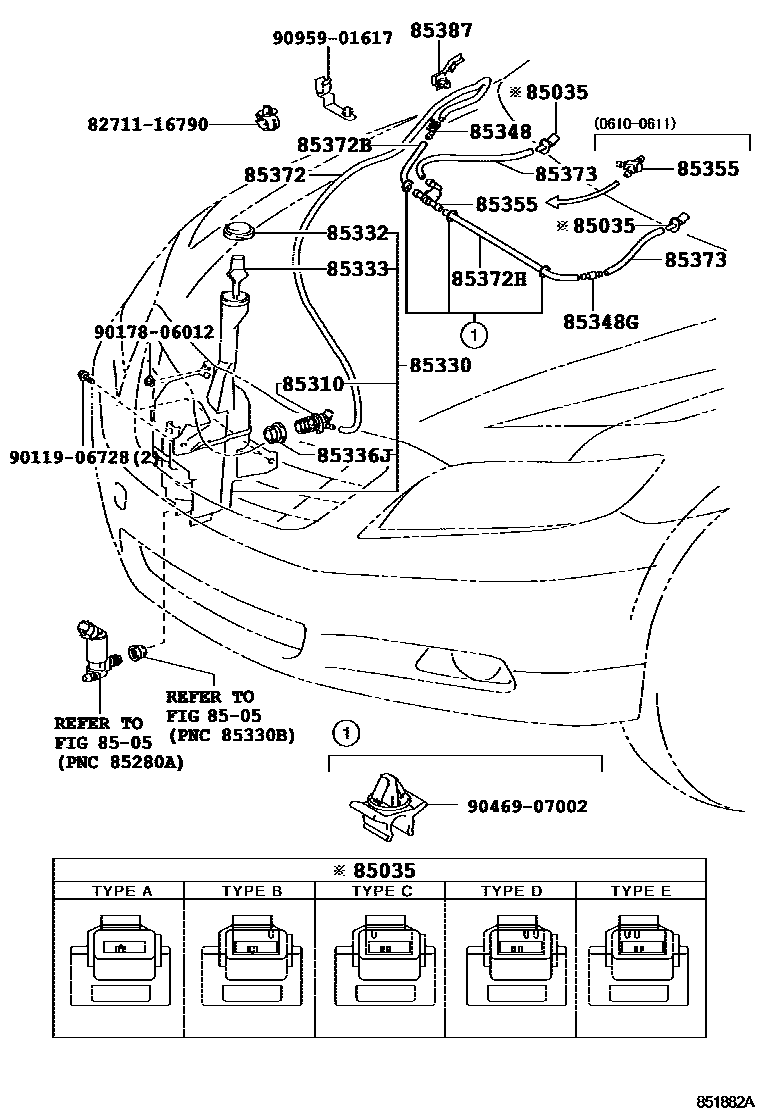

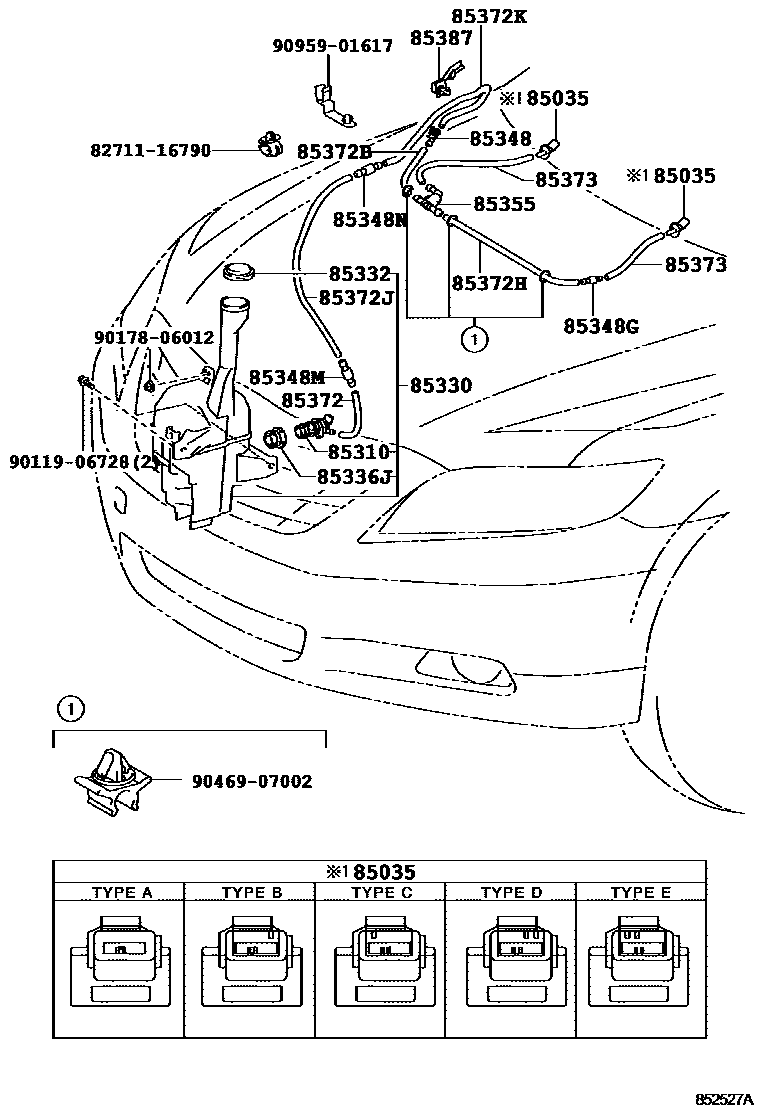

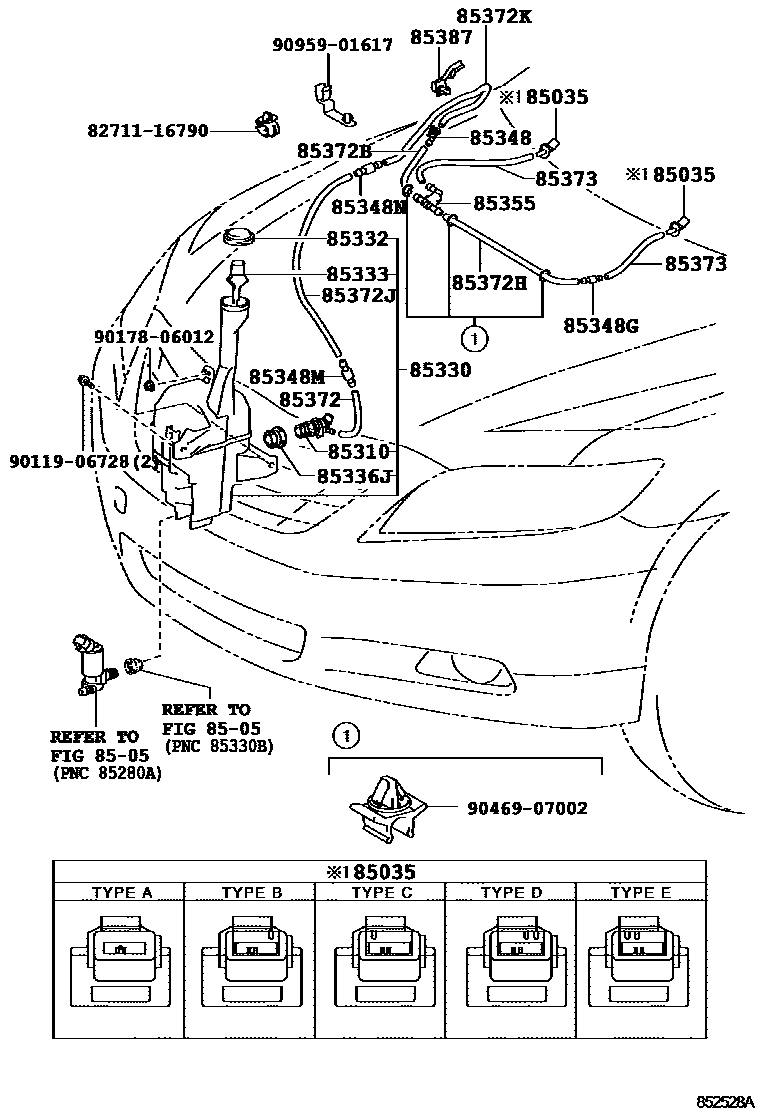

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30110 · 85381-30130 · 85381-30140 · 85381-30150 · 85381-30160 |
| 85310 | Windshield washer motor and pump assembly | 85330-21010 |
| 85330 | Windshield washer fluid tank assembly | 85310-06170 · 85355-33110 |
| 85332 | Windshield washer fluid tank cap | 85316-33320 · 85386-60050 |
| 85333 | Windshield washer fluid tank filter | 85312-21020 |
| 85336J | Cleaning fluid tank protection device | 85336-60300 |
| 85348 | Windshield washer hose connector No. 1 | 85375-20800 |
| 85348G | Windshield washer hose connector No. 2 | 85375-10260 |
| 85348M | No. 3 windshield washer hose connector | 85375-10260 |
| 85348N | No. 4 windshield washer hose connector | 85375-10260 |
| 85355 | Windshield washer hose valve | 85321-28020 · 85321-30080 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33803 |
| 85387 | Clip No. 1 (for windshield washer) | 85387-33080 |
